750W Mid-Drive

Motor Power

52V 17Ah 910Wh

est. 60mi Range

+5'4ft / 330lb

Max Load

Cadence Sensor

Powerful Pedal Assist

25+ Point Quality

Control Checklist

Stunner X 6

4.7

$2,799 USD

This item has been replaced!

Looking for the spiritual successor to the Stunner X? Check out the Juggernaut Classic Duo Step-Thru!

Juggernaut Classic Duo Step-Thru

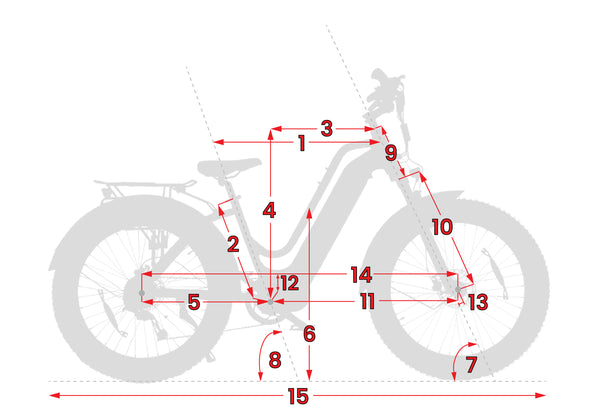

1	Effective Top Tube Length	600mm	23.6in
2	Seat Tube Length (Classic Bike Size)	440mm	17.3in
3	Reach	400mm	15.7in
4	Stack	620mm	24.4in
5	Chainstay Length	480mm	18.9in
6	Standover Height	480mm	18.9in
7	Head Angle	65°	-
8	Seat Angle	70°	-
9	Head Tube Length	180 mm	7.1 in
10	Fork Length	480mm	18.9in
11	Front Center	740mm	29.1in
12	BB (Bottom Bracket) Drop	40mm	1.6in
13	Fork Offset	30mm	1.2in
14	Wheelbase	1210mm	47.6in
15	Total Length	1870mm	73.6in
16	Max Seat Height	920mm	36.2in
17	Min Seat Height	780mm	30.7in
18	Handlebar Height	1100mm	43.3in
19	Weight (Without Battery)	28kg	61.7lb

1	Effective Top Tube Length	610mm	24in
2	Seat Tube Length (Classic Bike Size)	440mm	17.3in
3	Reach	400mm	15.7in
4	Stack	670mm	26.4in
5	Chainstay Length	520mm	20.5in
6	Standover Height	520mm	20.5in
7	Head Angle	65°	-
8	Seat Angle	68°	-
9	Head Tube Length	180 mm	7.1 in
10	Fork Length	520mm	20.5in
11	Front Center	750mm	29.5in
12	BB (Bottom Bracket) Drop	40mm	1.6in
13	Fork Offset	30mm	1.2in
14	Wheelbase	1280mm	50.4in
15	Total Length	2010mm	79.1in
16	Max Seat Height	990mm	39in
17	Min Seat Height	830mm	32.7in
18	Handlebar Height	1180mm	46.5in
19	Weight (Without Battery)	28.5kg	62.8lb

750W Mid-Drive

Motor Power

52V 17Ah 910Wh

est. 60mi Range

+5'4ft / 330lb

Max Load

Cadence Sensor

Powerful Pedal Assist

25+ Point Quality

Control Checklist

Technical Specifications

Frame 6061 aluminum	Front hub 135mm 36h	Seat post 30.4mm
Fork Mozo hydraulic w/ 80mm travel, lockout and preload	Front axle 5mm qr	Seat post clamp Qr
Headset Threadless 1-1/8" straight	Rear hub 170mm 36h	Motor Bafang bbs02 mid-drive
Shifter rear Shimano alivio 9 speed trigger shifter	Rear axle 5mm qr	Battery sizes 52v 17.5ah 910wh hidden battery
Rear derailleur Shimano alivio 9 speed	Rims Black 26" w/ round cutouts, black 24" w/ round cutouts	Display Dpc-18
Cassette 12-36t	Tire sizes 24x3", 26x4"	Lights Headlight, taillight
Chain Kmc x9	Handlebar 700mm wide, 80mm rise, 31.8mm clamp cruiser bars	Assist type Cadence
Crank set 152mm arms w/44t chainring (24" m)/170mm arms w/44t chainring (26" l)	Stem Solid 90mm aluminum	Assist levels 1-5
Bottom bracket Bafang square tapered	Grips Slide on comfort grips	Throttle Thumb throttle
Brakes Tektro e350 dual piston w/ 160mm rotors	Saddle Large saddle	Other Rear rack, fenders, kickstand
Brake levers Tektro with adjustable reach and integrated motor cutoffs

Frame 6061 aluminum	Front hub 135mm 36h
Seat post 30.4mm	Fork Mozo hydraulic w/ 80mm travel, lockout and preload
Front axle 5mm qr	Seat post clamp Qr
Headset Threadless 1-1/8" straight	Rear hub 170mm 36h
Motor Bafang bbs02 mid-drive	Shifter rear Shimano alivio 9 speed trigger shifter
Rear axle 5mm qr	Battery sizes 52v 17.5ah 910wh hidden battery
Rear derailleur Shimano alivio 9 speed	Rims Black 26" w/ round cutouts, black 24" w/ round cutouts
Display Dpc-18	Cassette 12-36t
Tire sizes 24x3", 26x4"	Lights Headlight, taillight
Chain Kmc x9	Handlebar 700mm wide, 80mm rise, 31.8mm clamp cruiser bars
Assist type Cadence	Crank set 152mm arms w/44t chainring (24" m)/170mm arms w/44t chainring (26" l)
Stem Solid 90mm aluminum	Assist levels 1-5
Bottom bracket Bafang square tapered	Grips Slide on comfort grips
Throttle Thumb throttle	Brakes Tektro e350 dual piston w/ 160mm rotors
Saddle Large saddle	Other Rear rack, fenders, kickstand
Brake levers Tektro with adjustable reach and integrated motor cutoffs

Frame

6061 aluminum

Front hub

135mm 36h

Seat post

30.4mm

Fork

Mozo hydraulic w/ 80mm travel, lockout and preload

Front axle

5mm qr

Seat post clamp

Headset

Threadless 1-1/8" straight

Rear hub

170mm 36h

Motor

Bafang bbs02 mid-drive

Shifter rear

Shimano alivio 9 speed trigger shifter

Rear axle

5mm qr

Battery sizes

52v 17.5ah 910wh hidden battery

Rear derailleur

Shimano alivio 9 speed

Rims

Black 26" w/ round cutouts, black 24" w/ round cutouts

Display

Dpc-18

Cassette

12-36t

Tire sizes

24x3", 26x4"

Lights

Headlight, taillight

Chain

Kmc x9

Handlebar

700mm wide, 80mm rise, 31.8mm clamp cruiser bars

Assist type

Cadence

Crank set

152mm arms w/44t chainring (24" m)/170mm arms w/44t chainring (26" l)

Stem

Solid 90mm aluminum

Assist levels

1-5

Bottom bracket

Bafang square tapered

Grips

Slide on comfort grips

Throttle

Thumb throttle

Brakes

Tektro e350 dual piston w/ 160mm rotors

Saddle

Large saddle

Other

Rear rack, fenders, kickstand

Brake levers

Tektro with adjustable reach and integrated motor cutoffs

Size & Fittings

1	Effective Top Tube Length	600mm	23.6in
2	Seat Tube Length (Classic Bike Size)	440mm	17.3in
3	Reach	400mm	15.7in
4	Stack	620mm	24.4in
5	Chainstay Length	480mm	18.9in
6	Standover Height	480mm	18.9in
7	Head Angle	65°	-
8	Seat Angle	70°	-
9	Head Tube Length	180 mm	7.1 in
10	Fork Length	480mm	18.9in
11	Front Center	740mm	29.1in
12	BB (Bottom Bracket) Drop	40mm	1.6in
13	Fork Offset	30mm	1.2in
14	Wheelbase	1210mm	47.6in
15	Total Length	1870mm	73.6in
16	Max Seat Height	920mm	36.2in
17	Min Seat Height	780mm	30.7in
18	Handlebar Height	1100mm	43.3in
19	Weight (Without Battery)	28kg	61.7lb

1	Effective Top Tube Length	610mm	24in
2	Seat Tube Length (Classic Bike Size)	440mm	17.3in
3	Reach	400mm	15.7in
4	Stack	670mm	26.4in
5	Chainstay Length	520mm	20.5in
6	Standover Height	520mm	20.5in
7	Head Angle	65°	-
8	Seat Angle	68°	-
9	Head Tube Length	180 mm	7.1 in
10	Fork Length	520mm	20.5in
11	Front Center	750mm	29.5in
12	BB (Bottom Bracket) Drop	40mm	1.6in
13	Fork Offset	30mm	1.2in
14	Wheelbase	1280mm	50.4in
15	Total Length	2010mm	79.1in
16	Max Seat Height	990mm	39in
17	Min Seat Height	830mm	32.7in
18	Handlebar Height	1180mm	46.5in
19	Weight (Without Battery)	28.5kg	62.8lb
