Technical Specifications
Frame6061 aluminum w/ rack and fenders |
Front hubQuanta 135mm 36h |
Seat postAluminum 28.6mm |
ForkRst guide, 75mm travel |
Front axle5mm qr |
Seat post clampQr |
HeadsetThreadless 1-1/8 1-1/2 tapered |
Rear hubQuanta 190mm 36h |

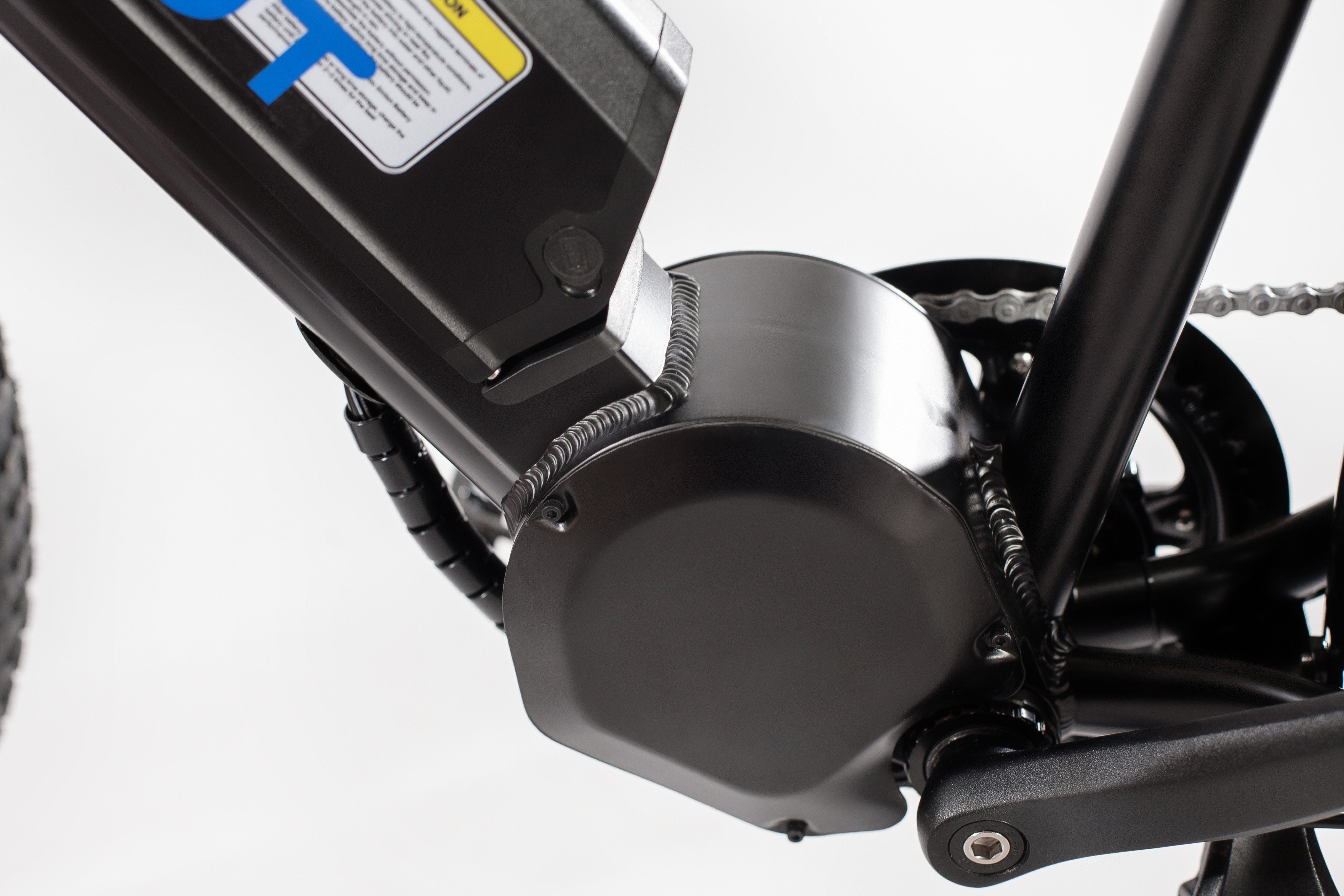

Motor750w bbs02 mid-drive |
Shifter rearSunrace dlm403 - 8 speed |
Rear axle5mm qr |

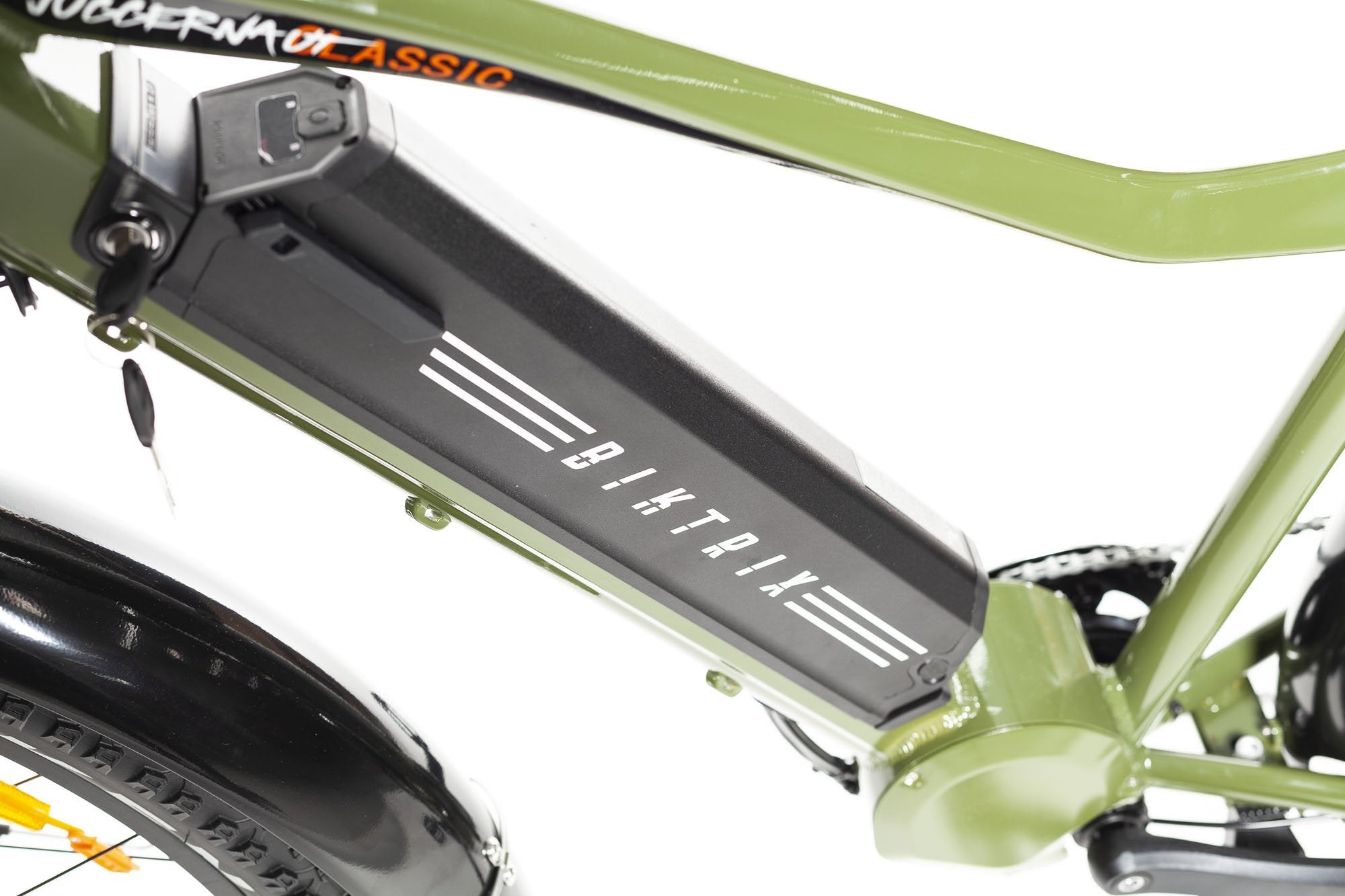

Battery sizes48v17.5ah, 48v21ah, 52v17.5ah |

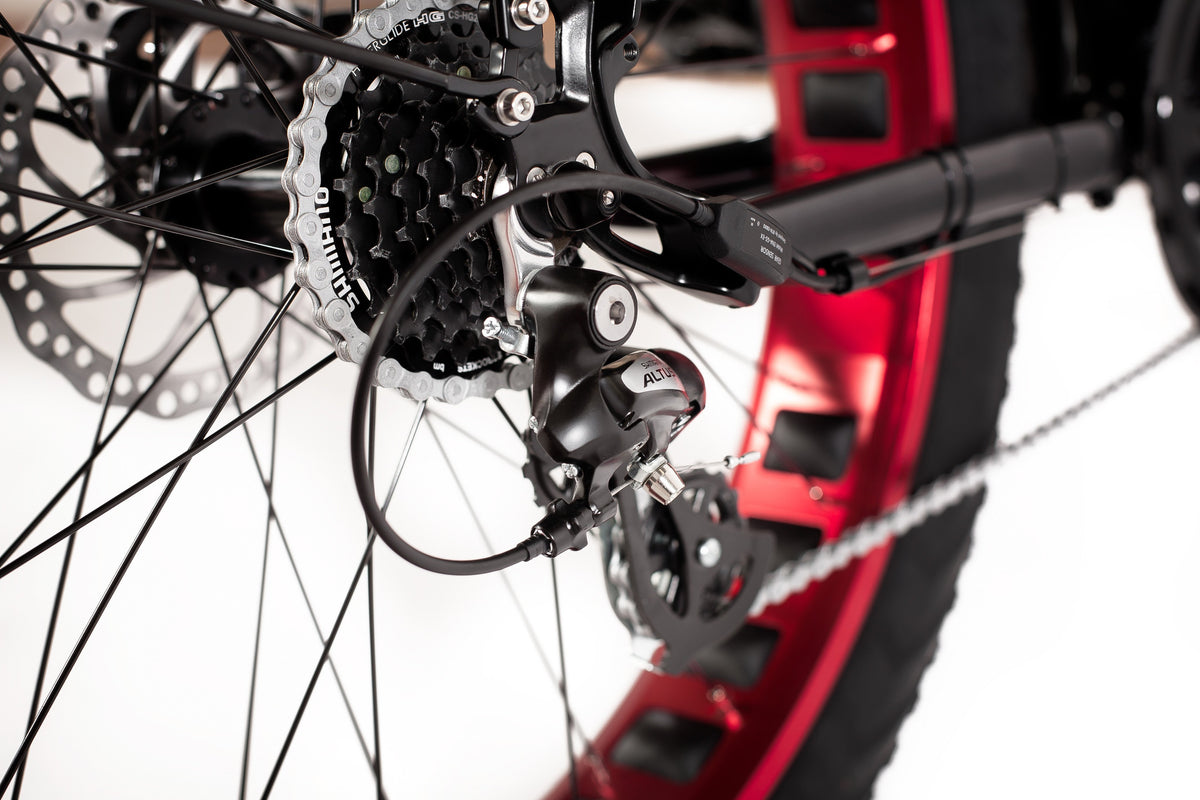

Rear derailleurSunrace rdm57 - 8 speed |
Rims26" - 36h, black 27.5" - 36h |

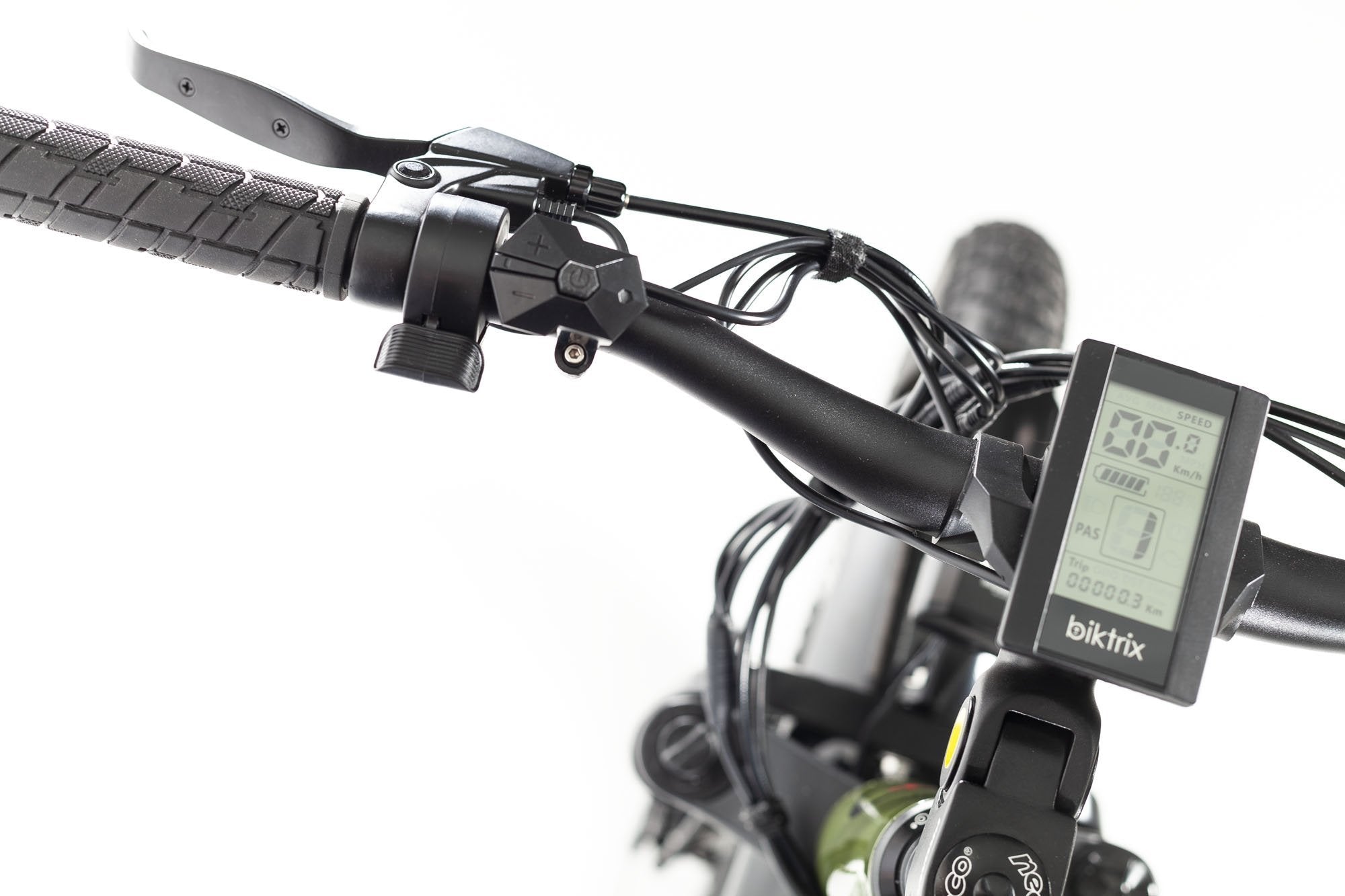

Display800s backlit lcd |
CassetteSunrace csm55 11-34t - 8 speed |
Tire sizes26x4", 27.5x3" |
LightsIntegrated headlight, battery taillight |
ChainKmc z8 |
Handlebar31.8 clamp, 700mm wide, 20mm rise aluminum |
Assist typeCadence |

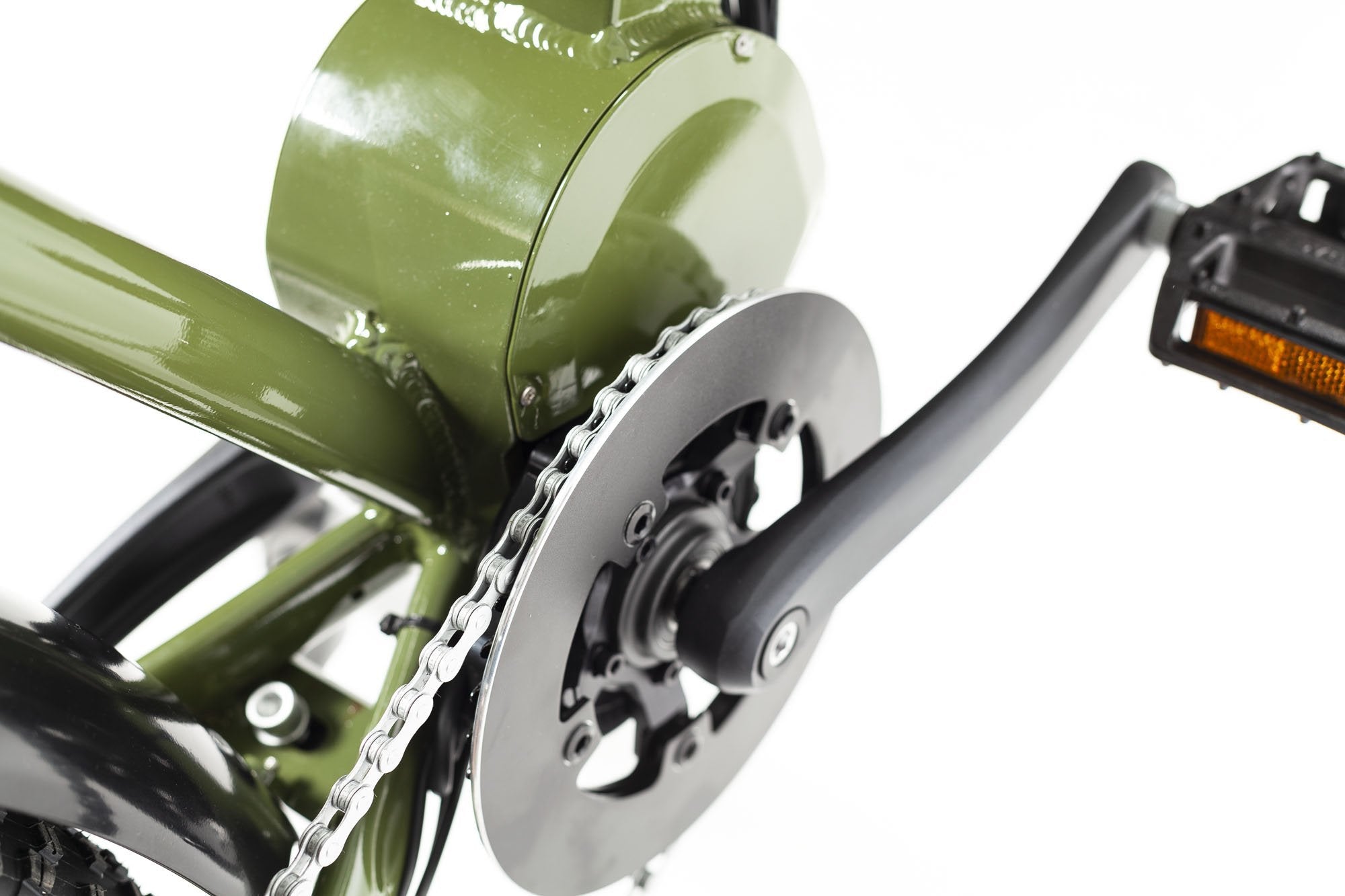

Crank set170mm aluminum with 42t steel chainring |
Stem90mm aluminum |
Assist levels0-5 (0-3, 0-9) |
Bottom bracketBafang 68mm square taper |
GripsSlide on |
ThrottleThumb throttle |

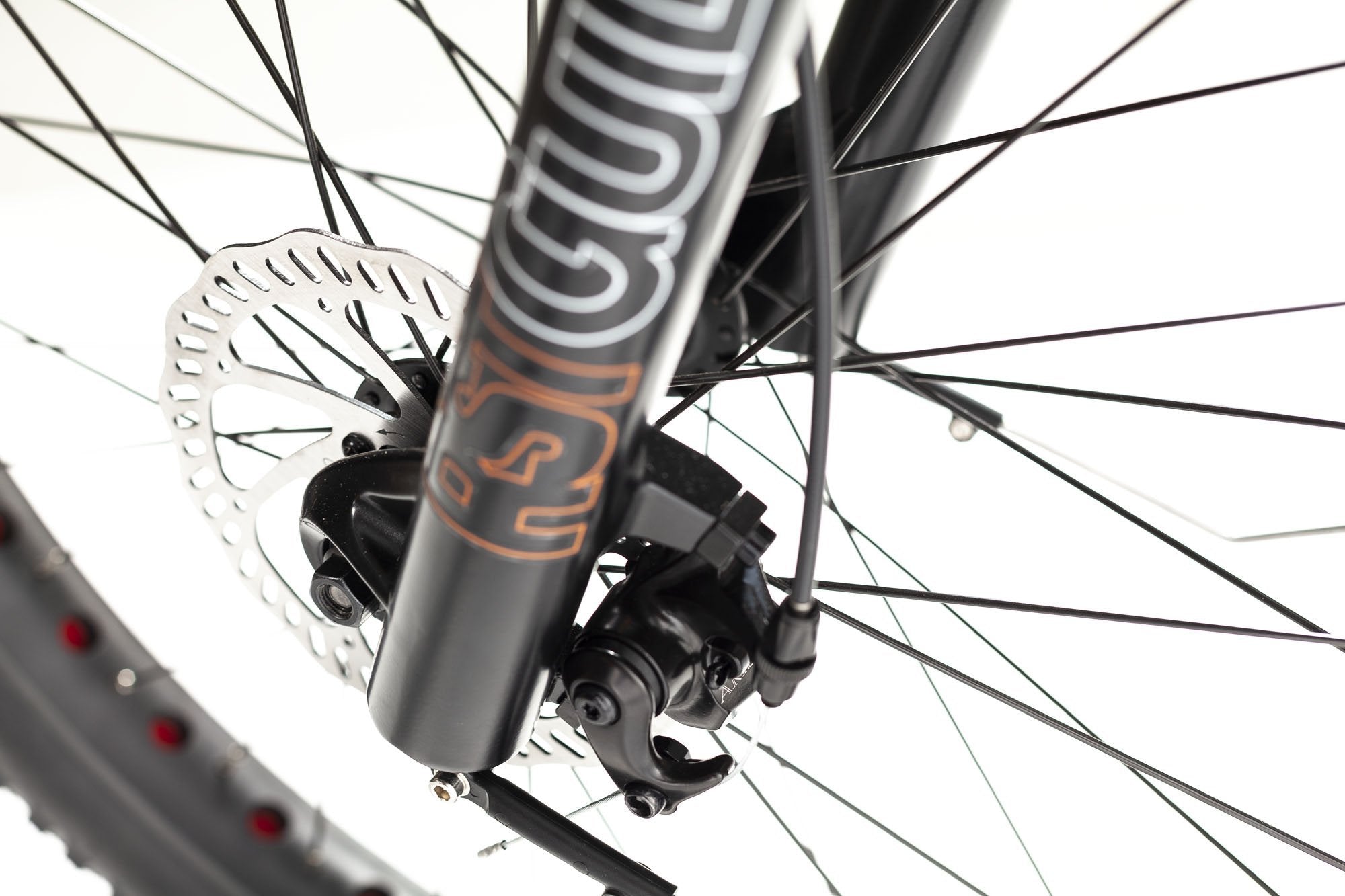

BrakesBiktrix dual piston hydraulic w/ 160mm |
SaddleVelo plush narrow |
OtherAluminum fenders, rear rack, adjustable kickstand |
Brake leversBiktrix w/ adjustable reach and motorcutoffs |
Frame6061 aluminum w/ rack and fenders |
Front hubQuanta 135mm 36h |
Seat postAluminum 28.6mm |
ForkRst guide, 75mm travel |
Front axle5mm qr |
Seat post clampQr |
HeadsetThreadless 1-1/8 1-1/2 tapered |
Rear hubQuanta 190mm 36h |
Motor750w bbs02 mid-drive |
Shifter rearSunrace dlm403 - 8 speed |
Rear axle5mm qr |
Battery sizes48v17.5ah, 48v21ah, 52v17.5ah |
Rear derailleurSunrace rdm57 - 8 speed |
Rims26" - 36h, black 27.5" - 36h |
Display800s backlit lcd |
CassetteSunrace csm55 11-34t - 8 speed |
Tire sizes26x4", 27.5x3" |
LightsIntegrated headlight, battery taillight |
ChainKmc z8 |
Handlebar31.8 clamp, 700mm wide, 20mm rise aluminum |
Assist typeCadence |
Crank set170mm aluminum with 42t steel chainring |
Stem90mm aluminum |
Assist levels0-5 (0-3, 0-9) |
Bottom bracketBafang 68mm square taper |
GripsSlide on |
ThrottleThumb throttle |
BrakesBiktrix dual piston hydraulic w/ 160mm |
SaddleVelo plush narrow |
OtherAluminum fenders, rear rack, adjustable kickstand |
Brake leversBiktrix w/ adjustable reach and motorcutoffs |
Size & Fittings
1 | Effective Top Tube Length |
626mm | 24.6in |
2 | Seat Tube Length (Classic Bike Size) |
483mm | 19in |
3 |
Reach |
404mm | 15.9in |
4 |
Stack |
600mm | 23.6in |
5 |
Chainstay Length |
510mm | 20.1in |
6 |
Standover Height |
750mm | 29.5in |
7 |
Head Angle |
72° | - |
8 |
Seat Angle |
73.5° | - |
9 |
Head Tube Length |
140 mm | 5.5 in |
10 |
Fork Length |
500mm | 19.7in |
11 |
Front Center |
690mm | 27.2in |
12 |
BB (Bottom Bracket) Drop |
55mm | 2.2in |
13 |
Fork Offset |
45mm | 1.8in |
14 |
Wheelbase |
1201mm | 47.3in |
15 |
Total Length |
1500mm | 59.1in |
16 |
Max Seat Height |
1040mm | 40.9in |
17 |
Min Seat Height |
850mm | 33.5in |
18 |
Handlebar Height |
980mm | 38.6in |
19 |
Weight (Without Battery) |
28.7kg | 63.3lb |
