Technical Specifications

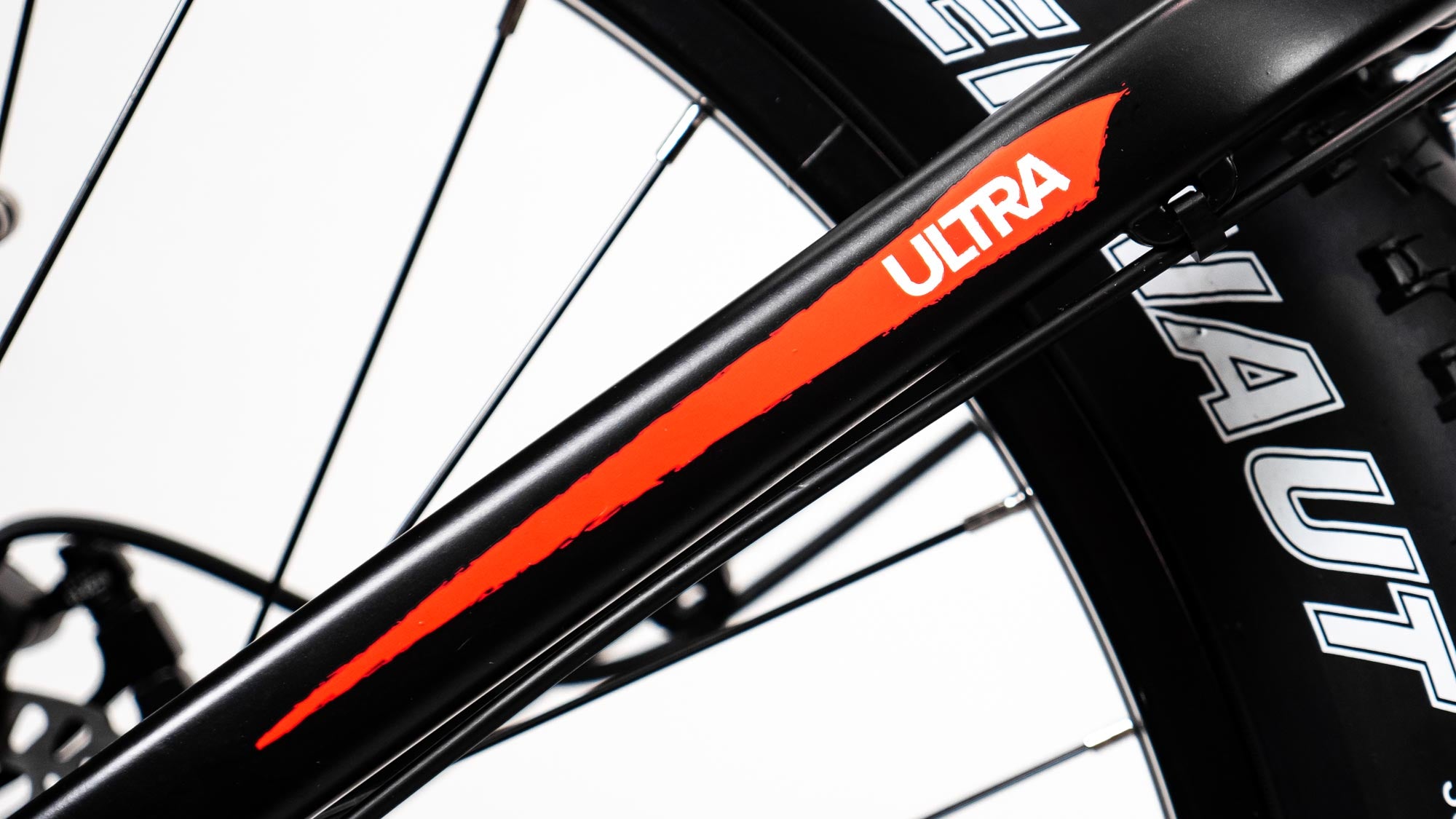

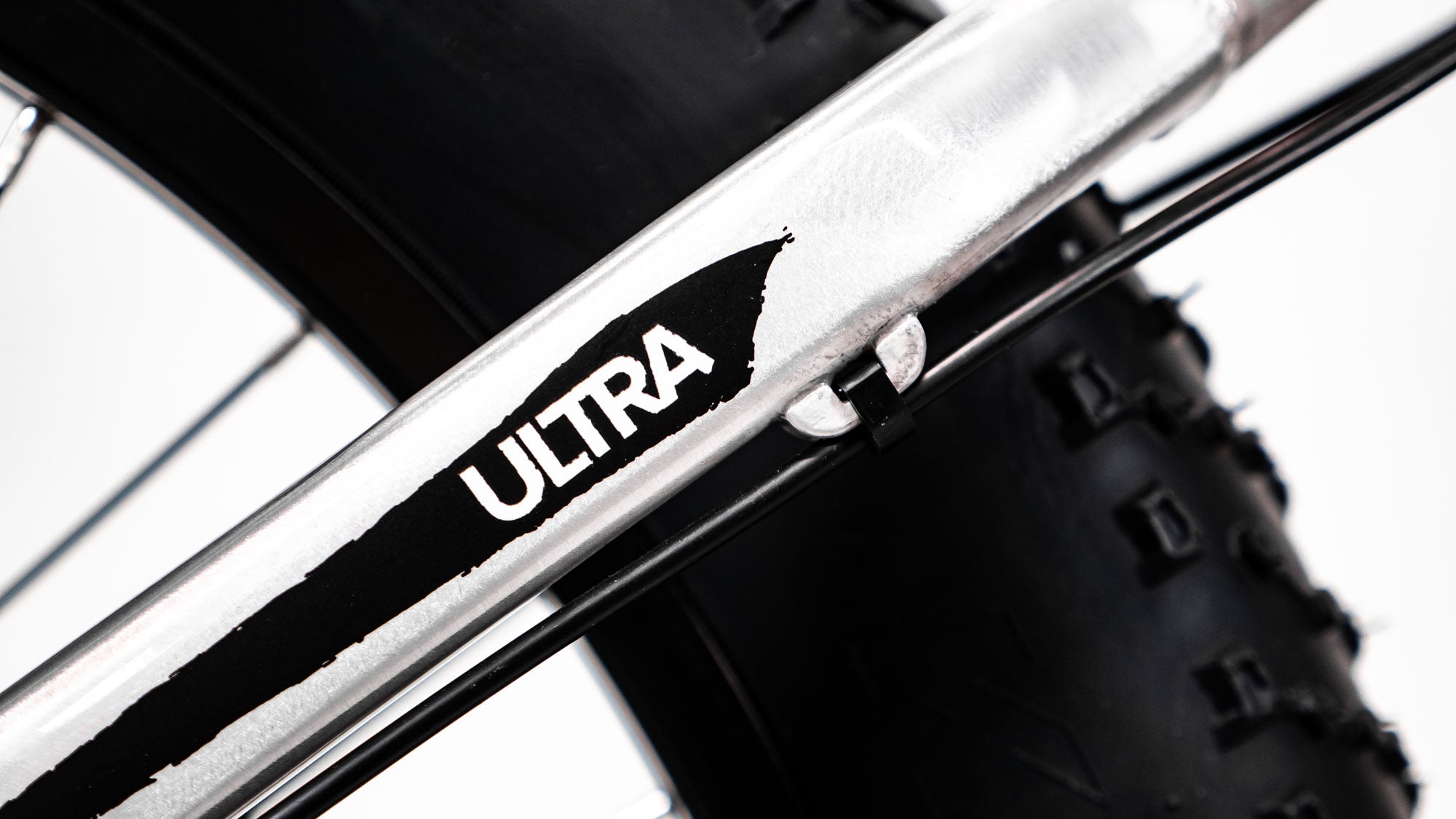

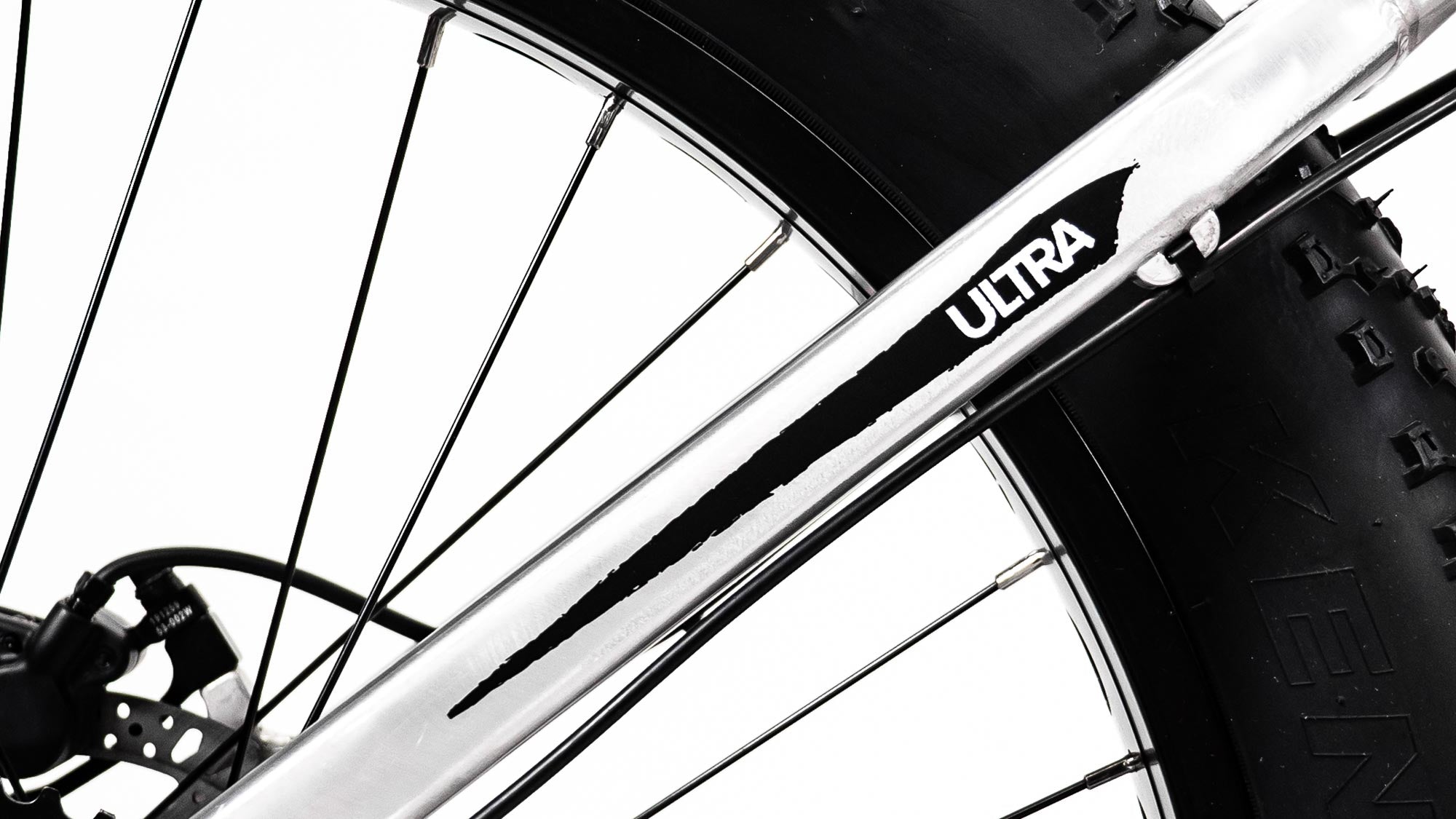

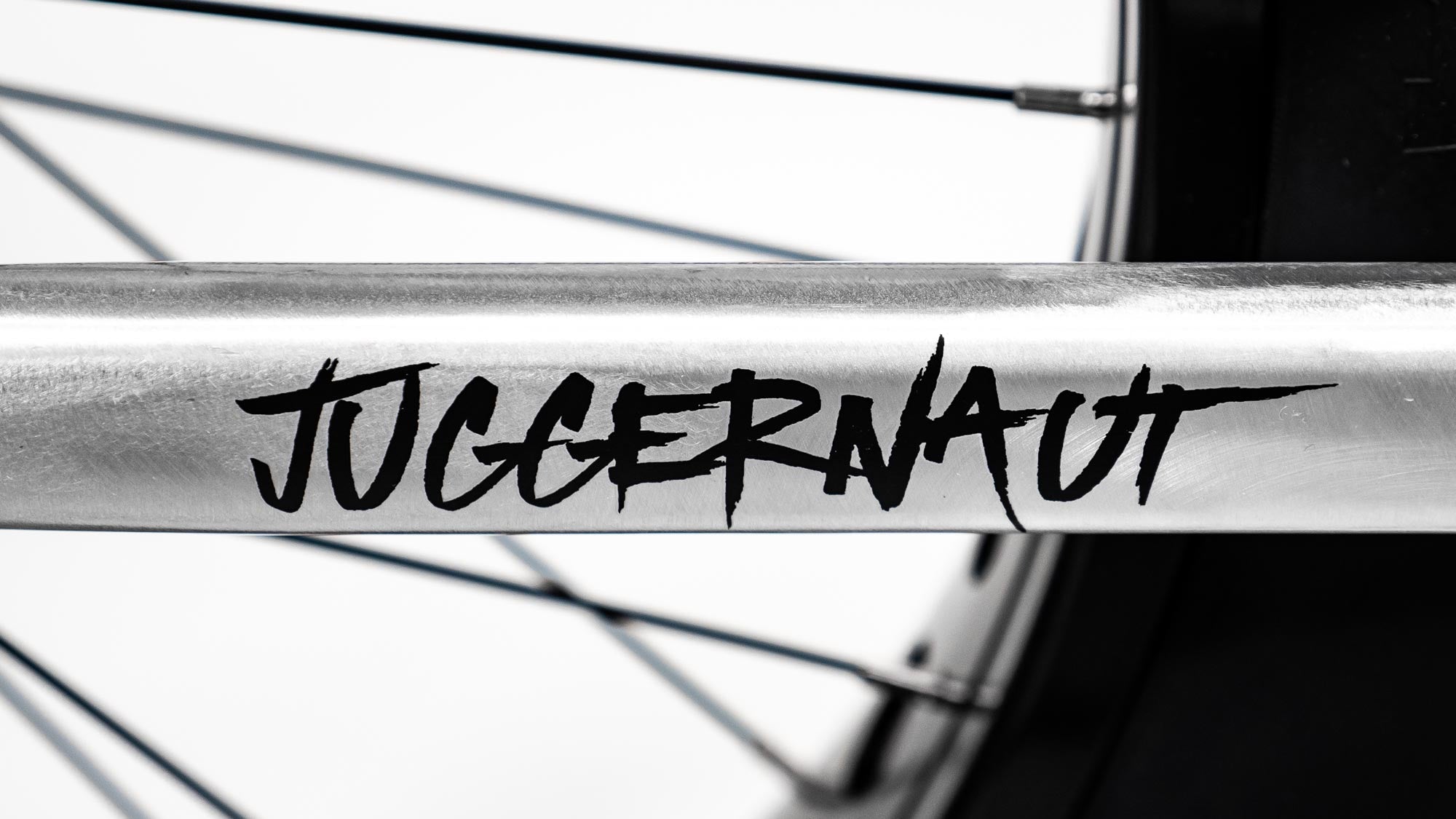

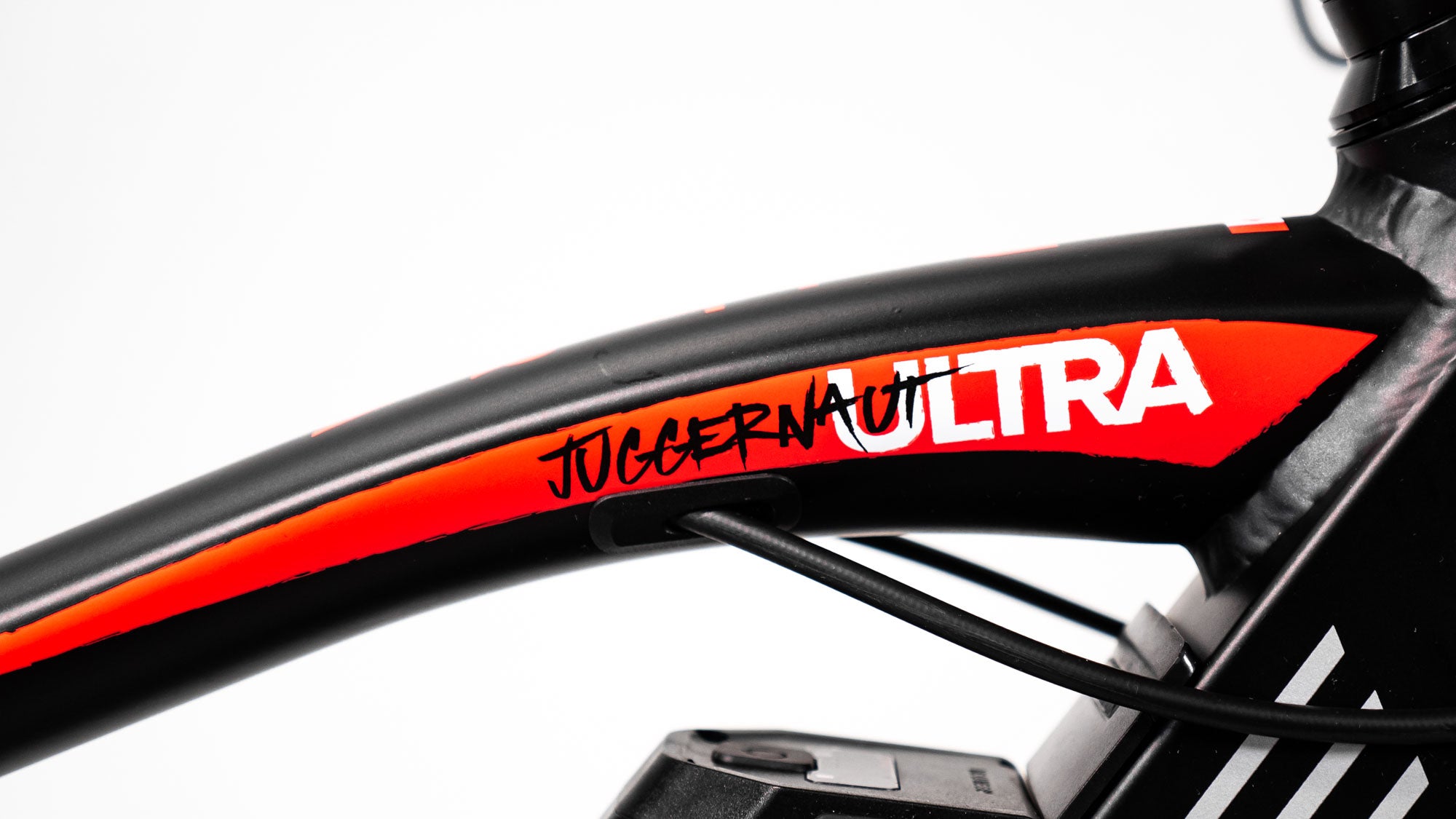

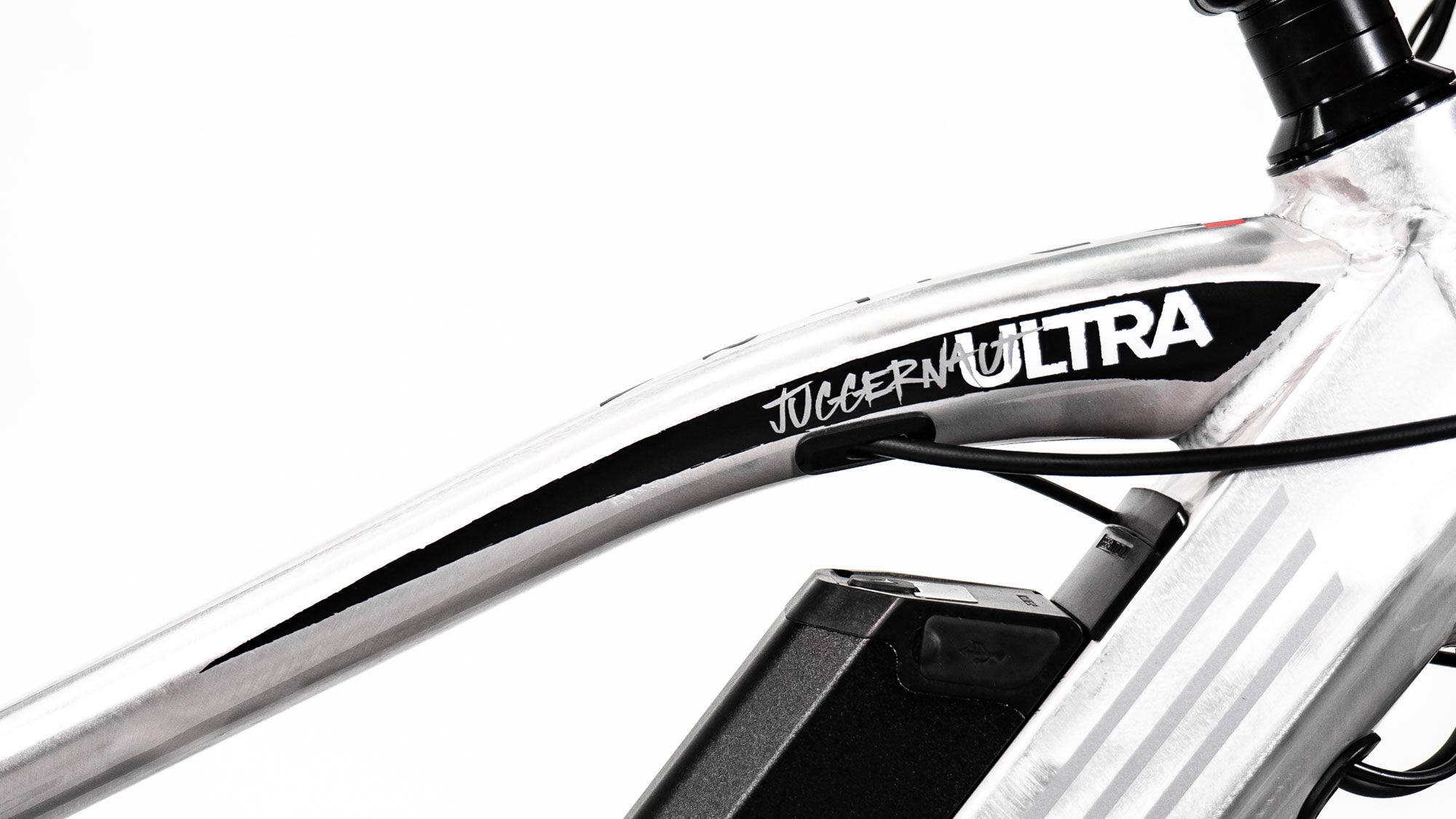

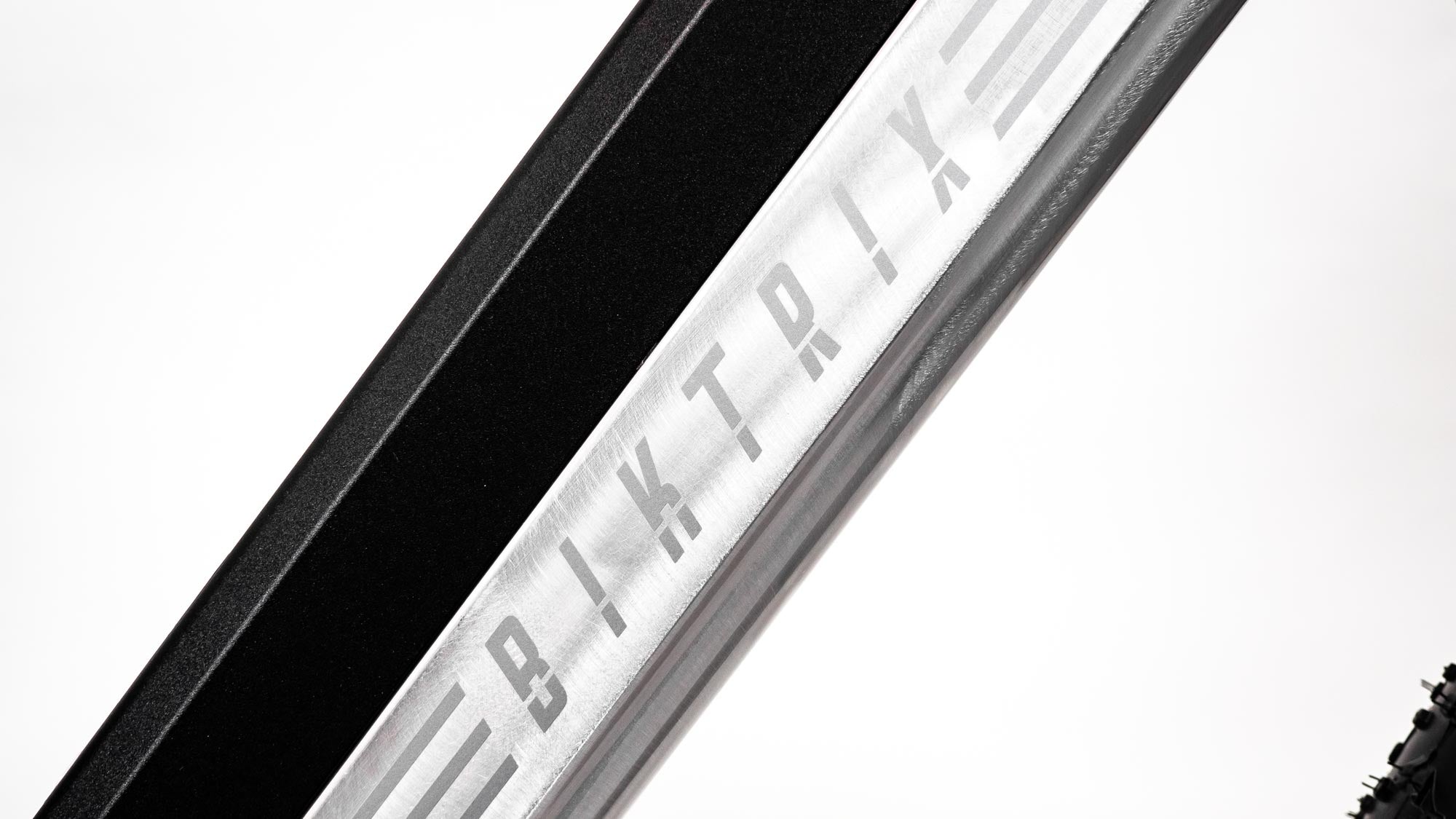

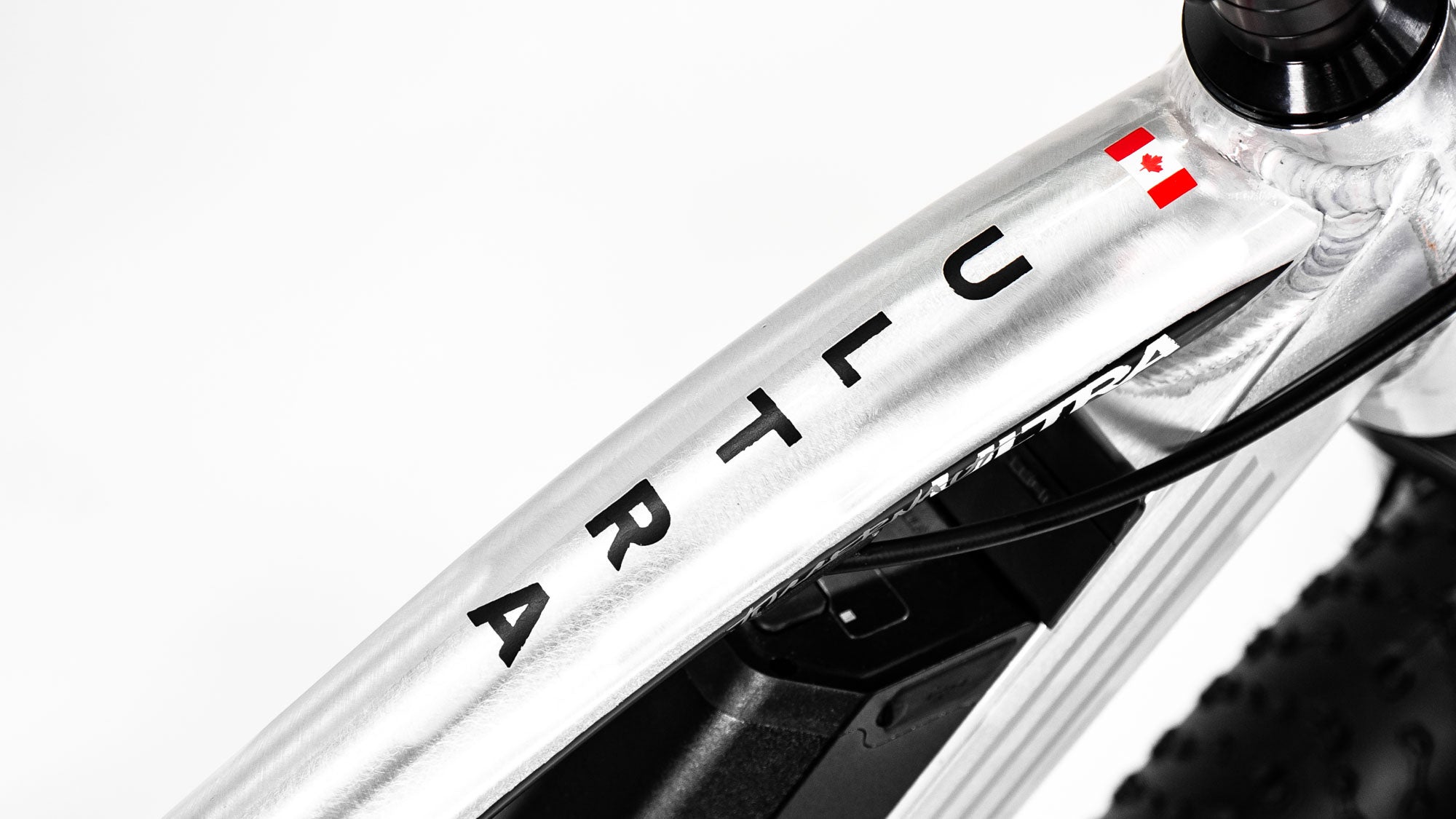

Frame6061 aluminum w/ 100mm rear travel |

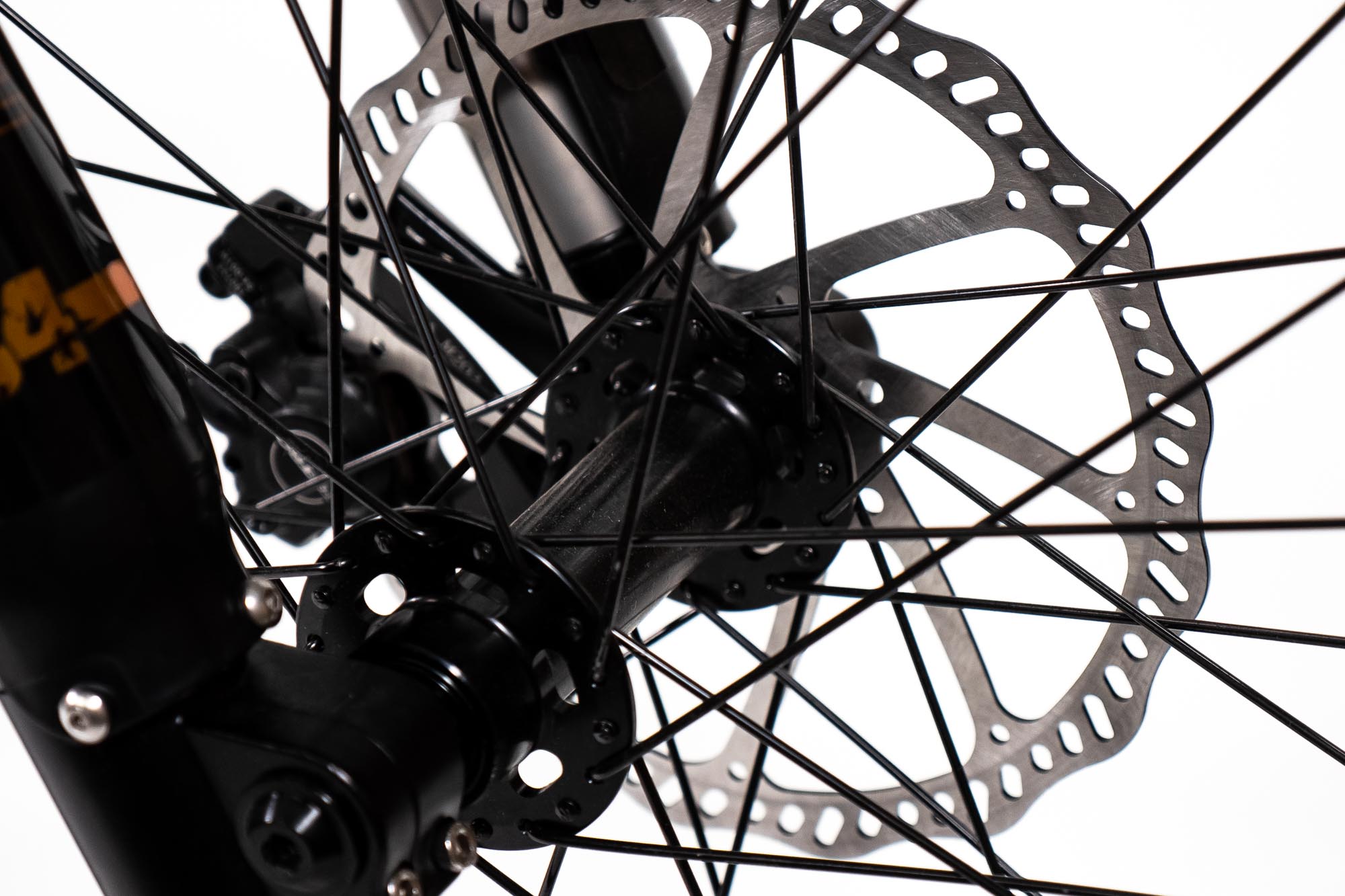

Front hubQuanta 150mm 36h |
Seat postAluminum 31.6mm |

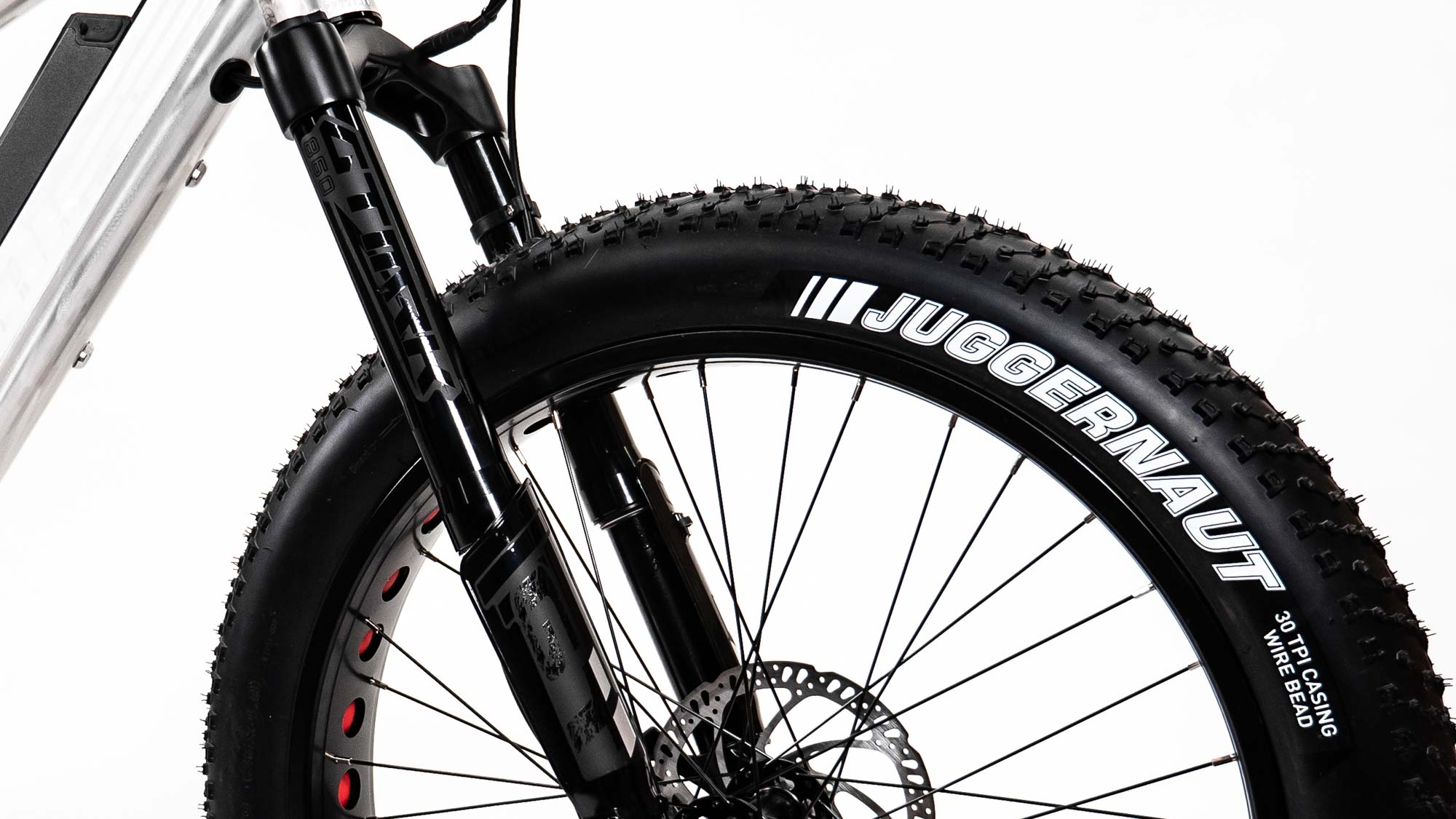

ForkBiktrix inverted tapered w/100mm travel |
Front axle15mm thru |
Seat post clampQuick release |
HeadsetThreadless 1-1/8 1-1/2 tapered |
Rear hubQuanta 197mm 36h |

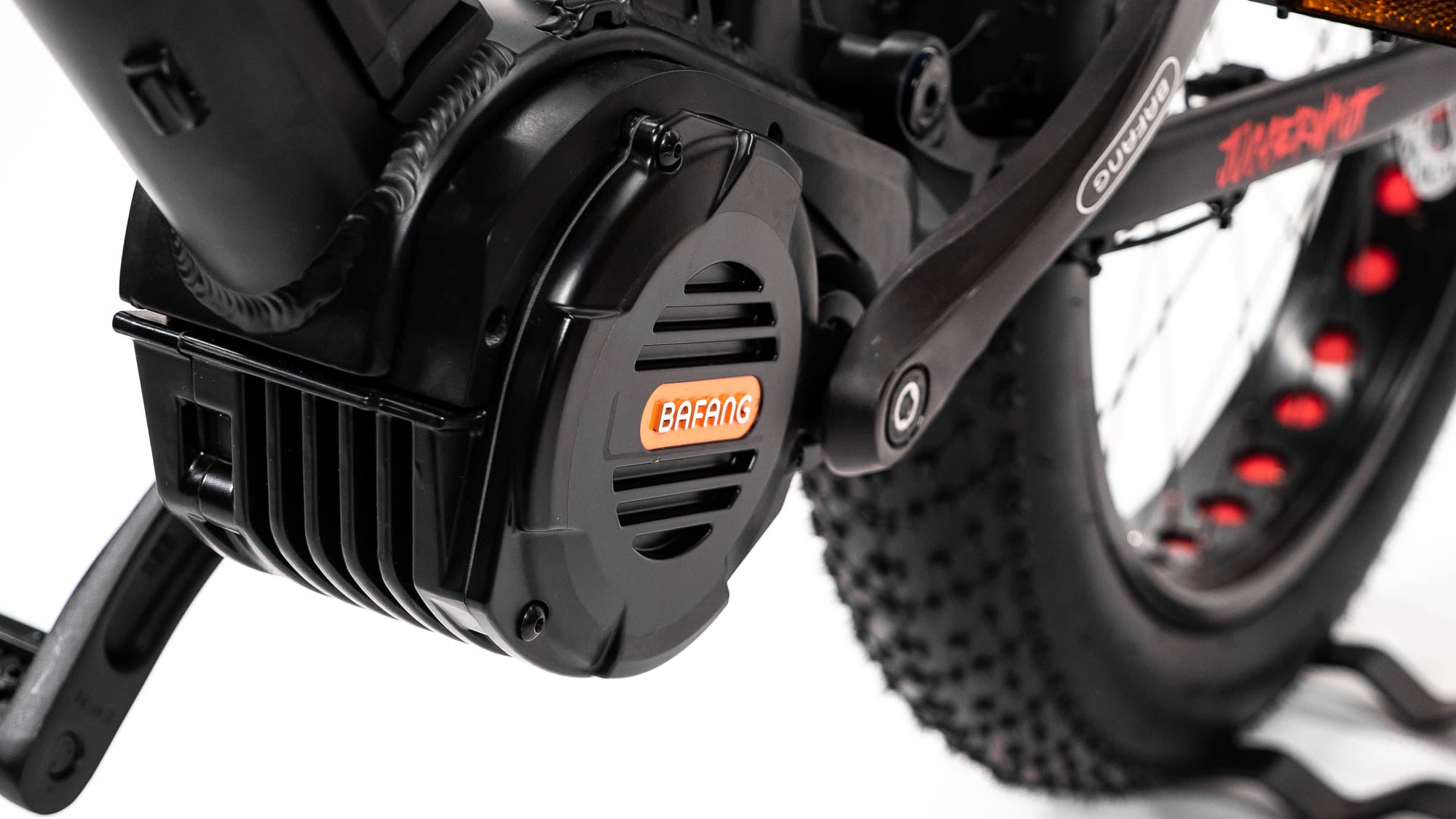

Motor1000w (1500w peak) bafang ultra mid-drive |
Shifter rearSram nx 11 speed |
Rear axle12mm thru |
Battery sizes48v17.5ah, 48v21ah, 52v17.5ah |
Rear derailleurSram nx 11 speed |
Rims26"- black w/ red cutouts 36h, 27.5"- black 36h |

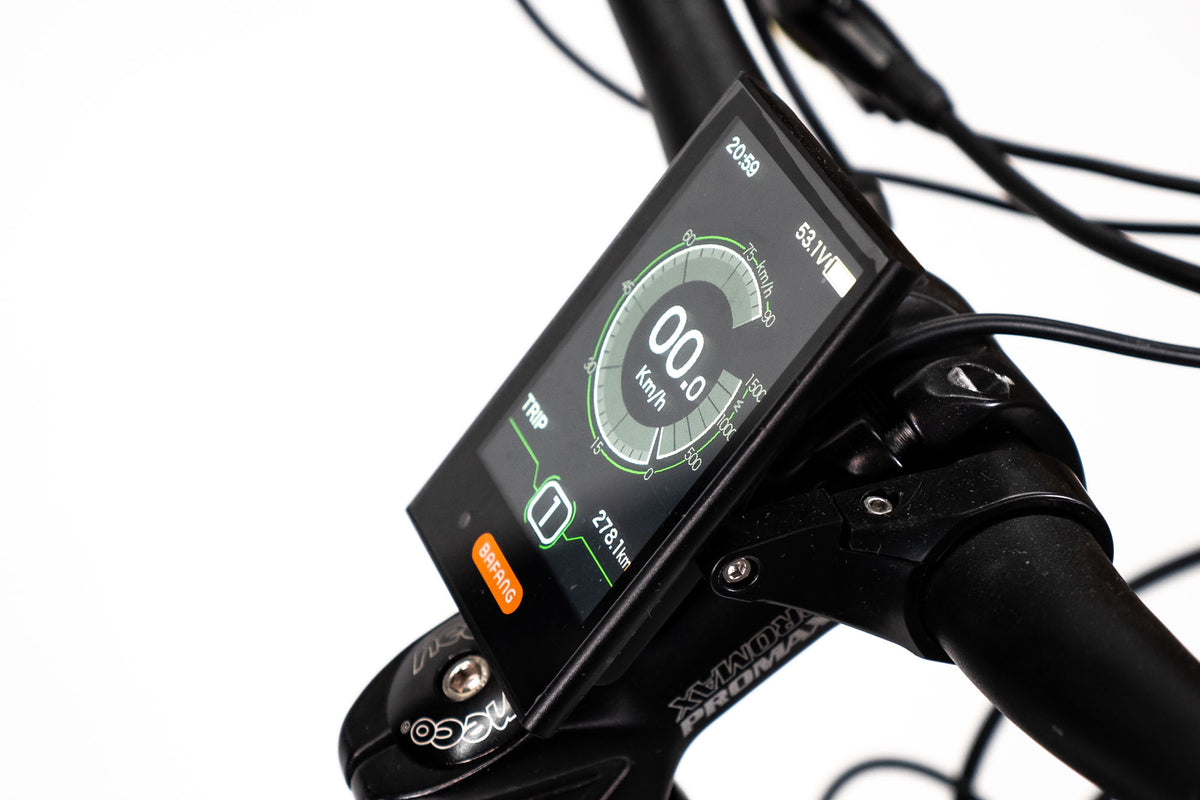

DisplayDpc-18 color display |
CassetteSram pg-1130 11-42t |

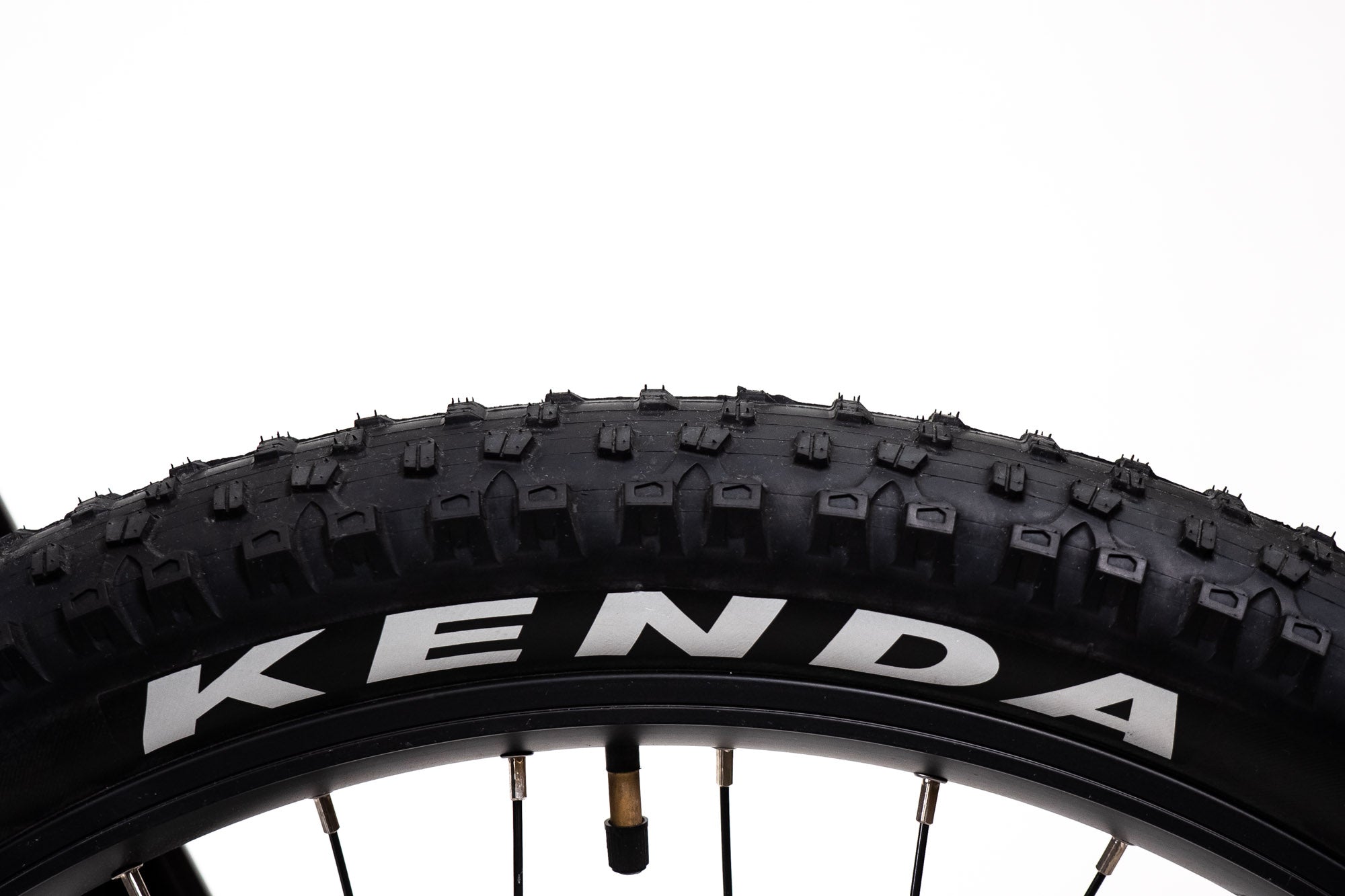

Tire sizes26x4", 27.5x3" |

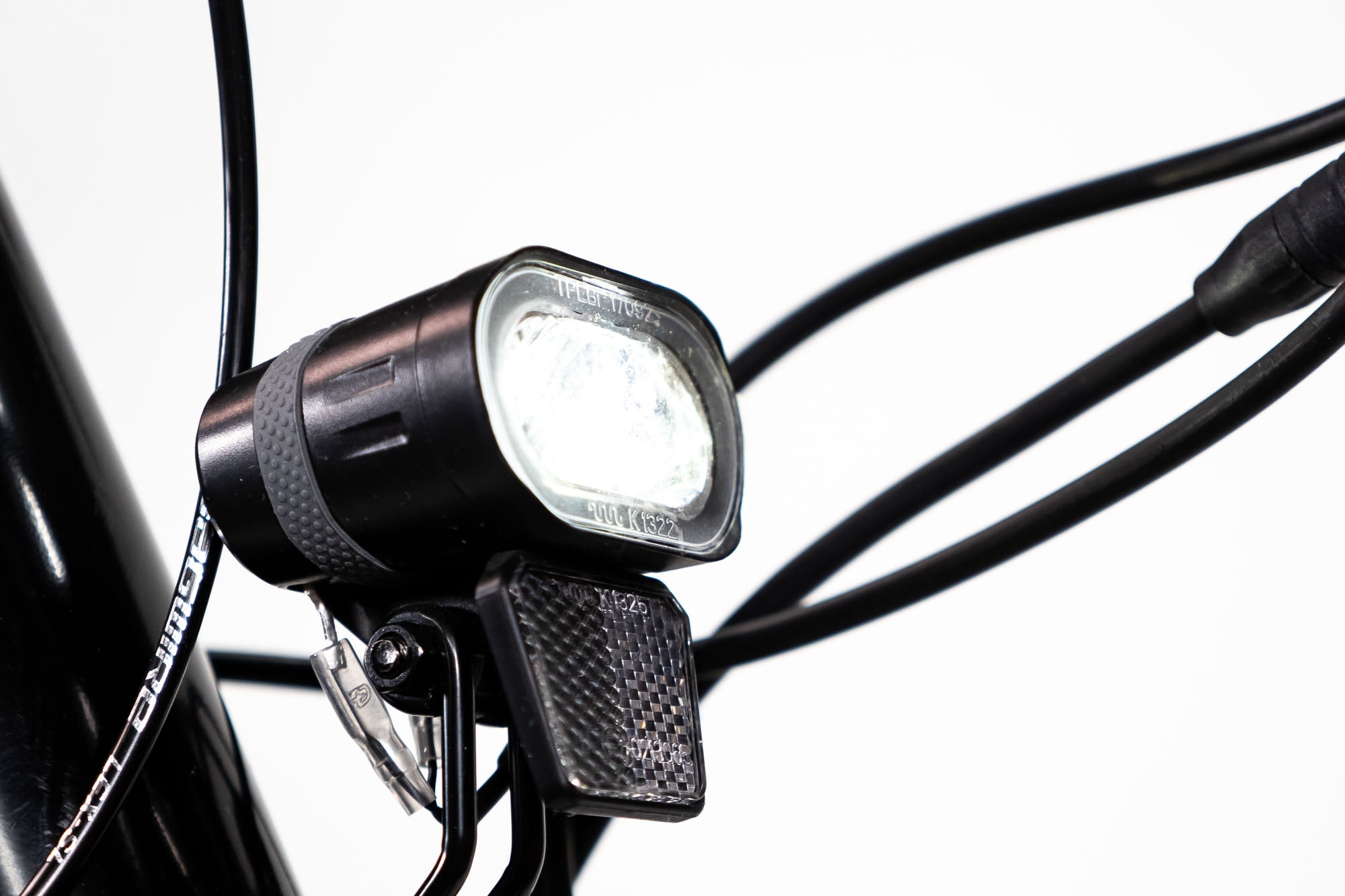

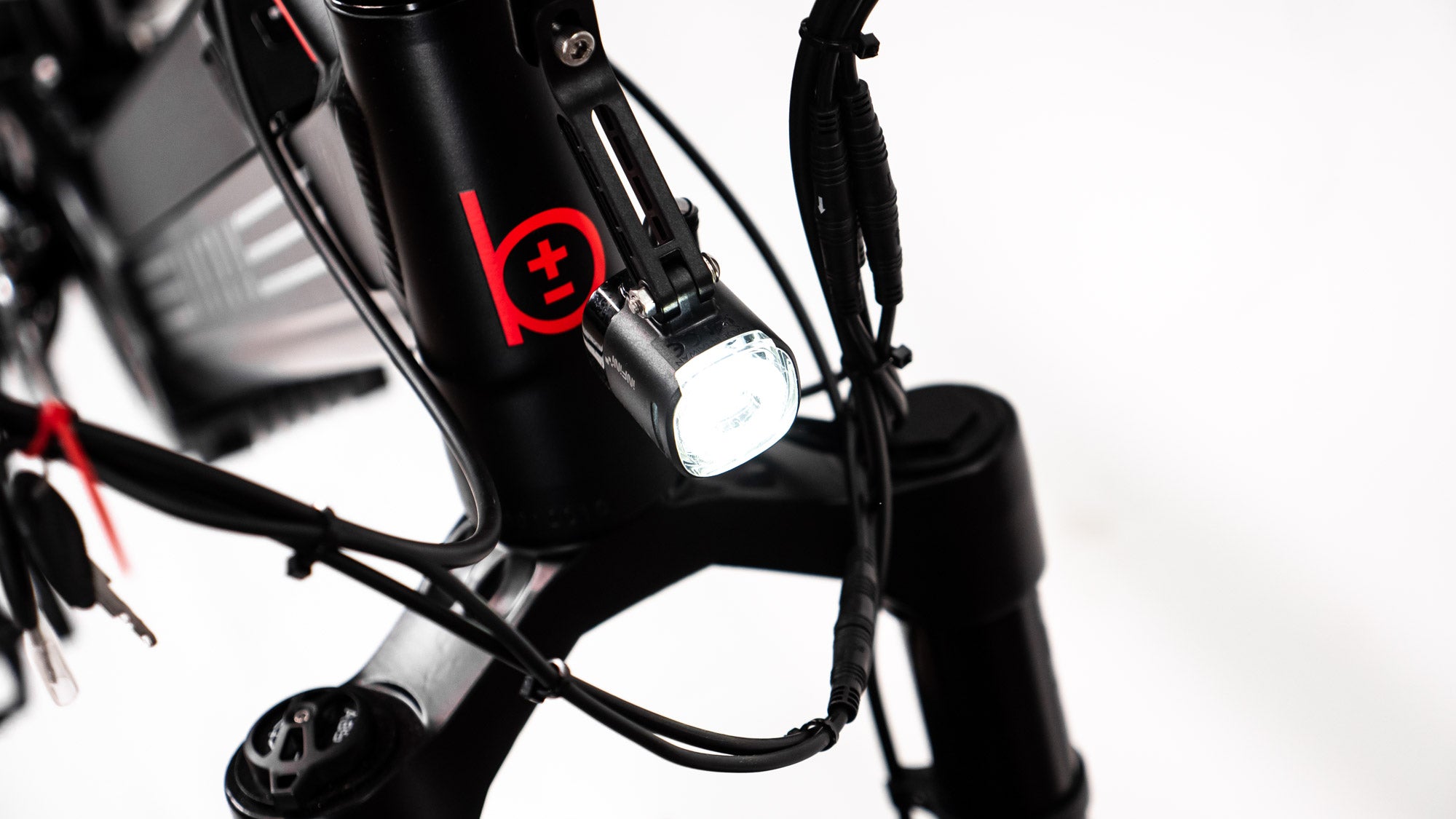

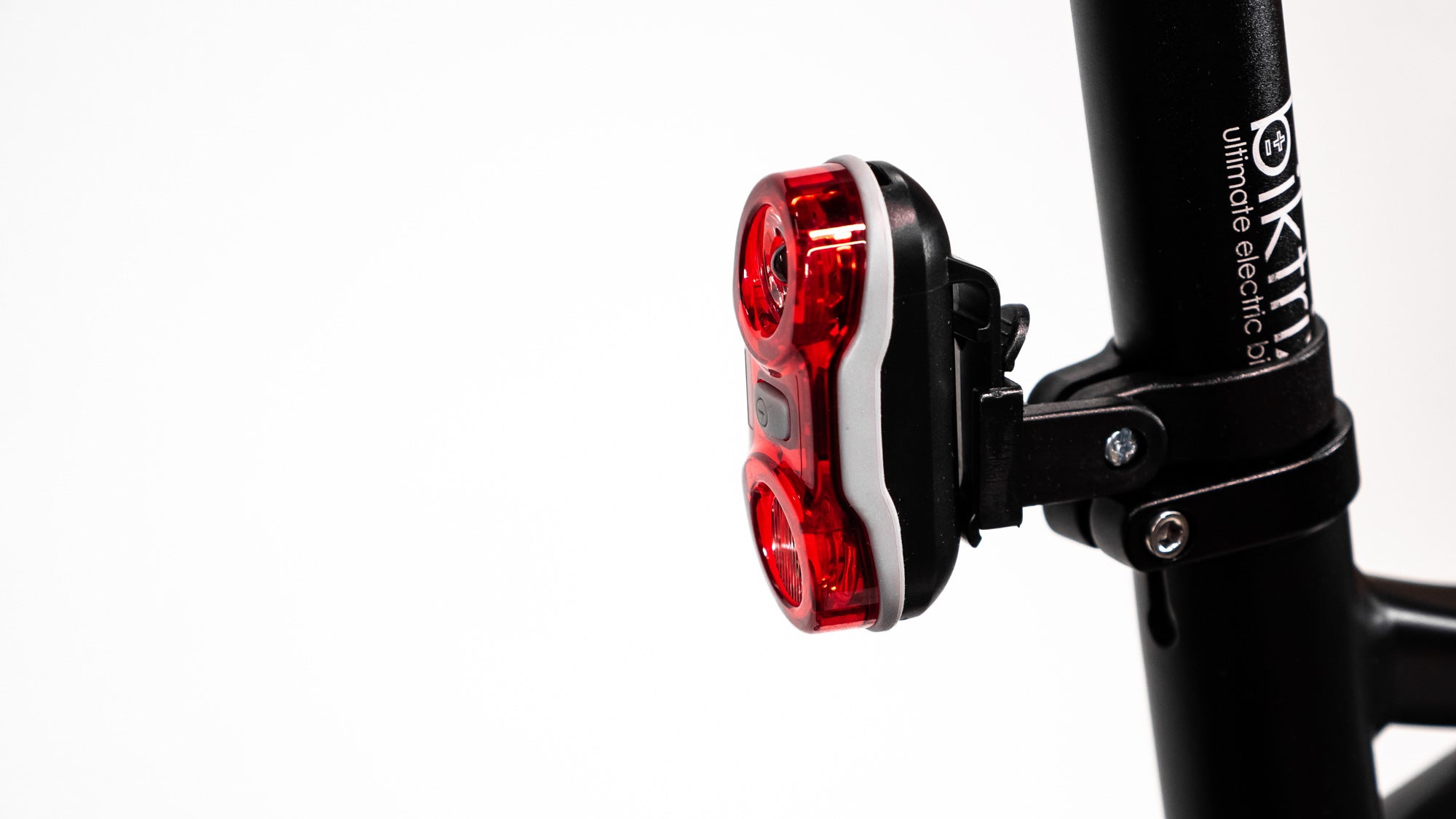

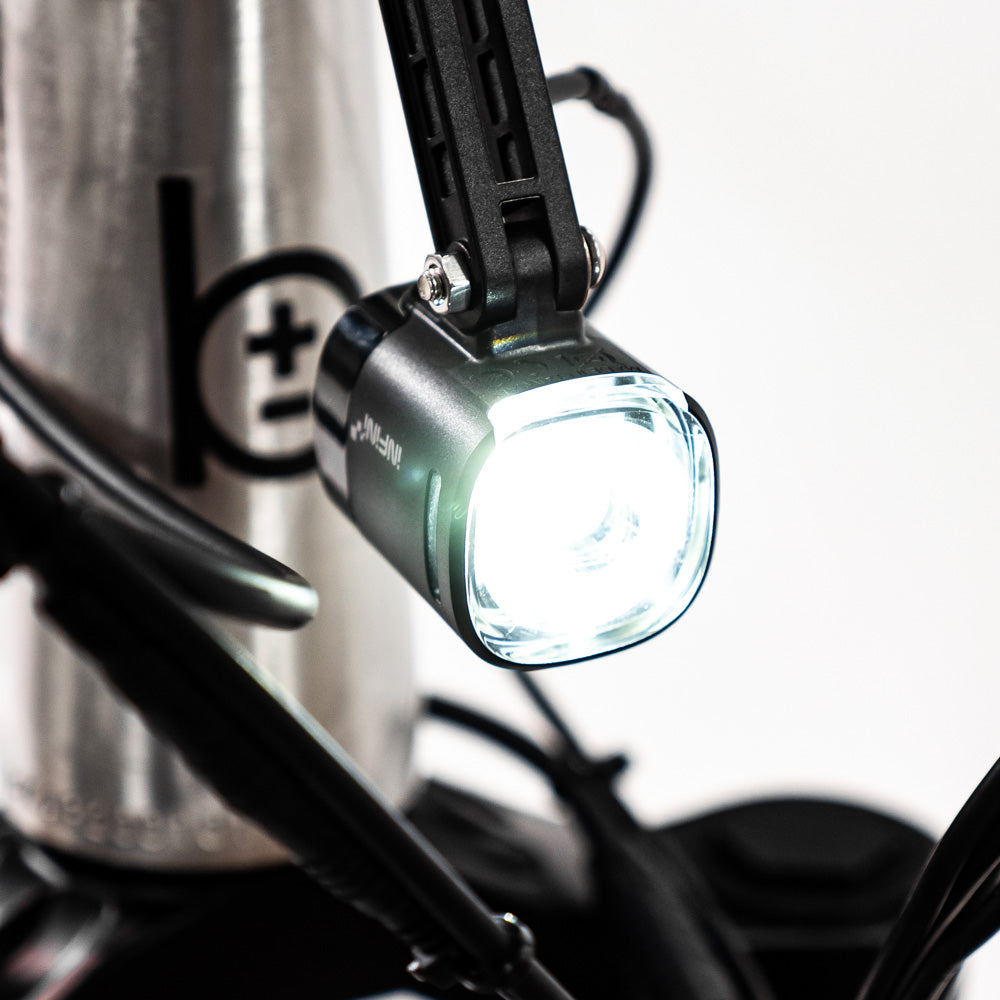

LightsIntegrated headlight, battery taillight |
ChainKmc x11 |
HandlebarAluminum 34.9 clamp, 700mm wide, 20mm rise 8° backsweep 5° upsweep |
Assist typeTorque, cadence |
Crank set170mm aluminum arms with 44t steel chainring |
Stem90mm aluminum |
Assist levels0-5 |
Bottom bracketBafang ultra isis |
GripsSlide on |
ThrottleThumb throttle |
BrakesTektro hd-e500 w/ 180mm rotors |

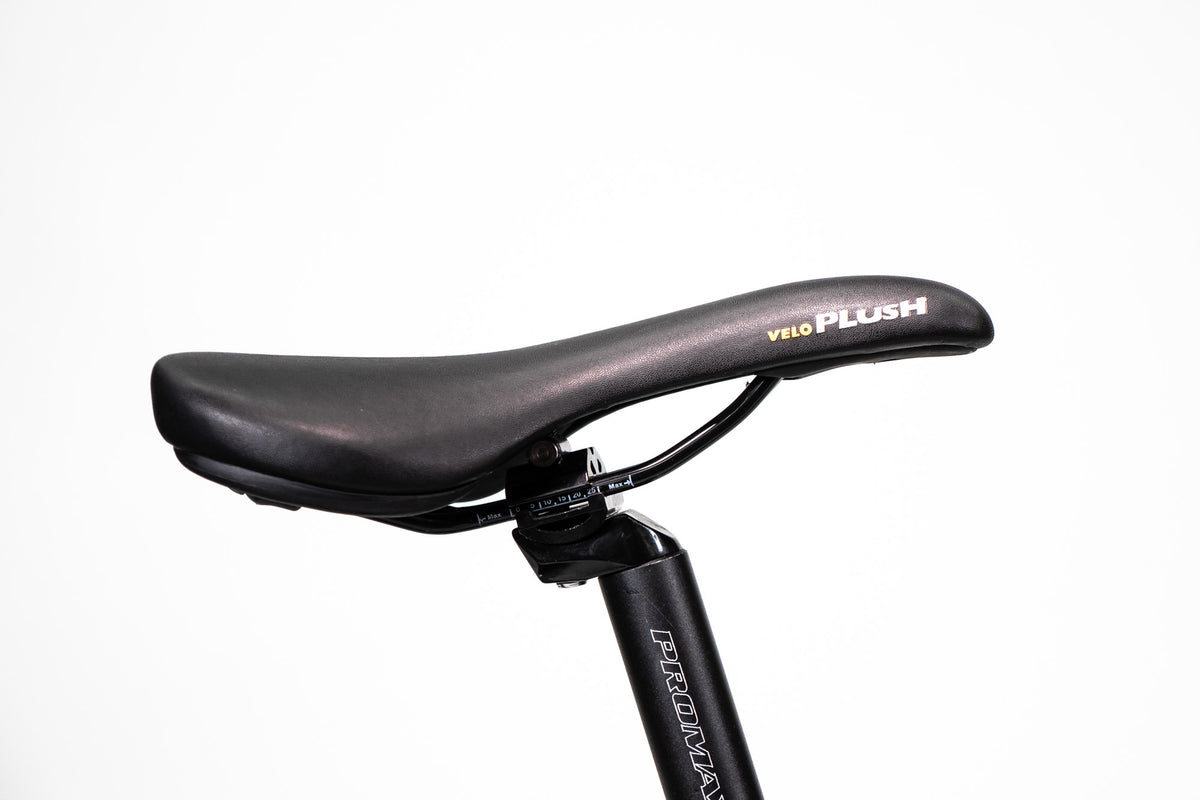

SaddleVelo plush narrow |

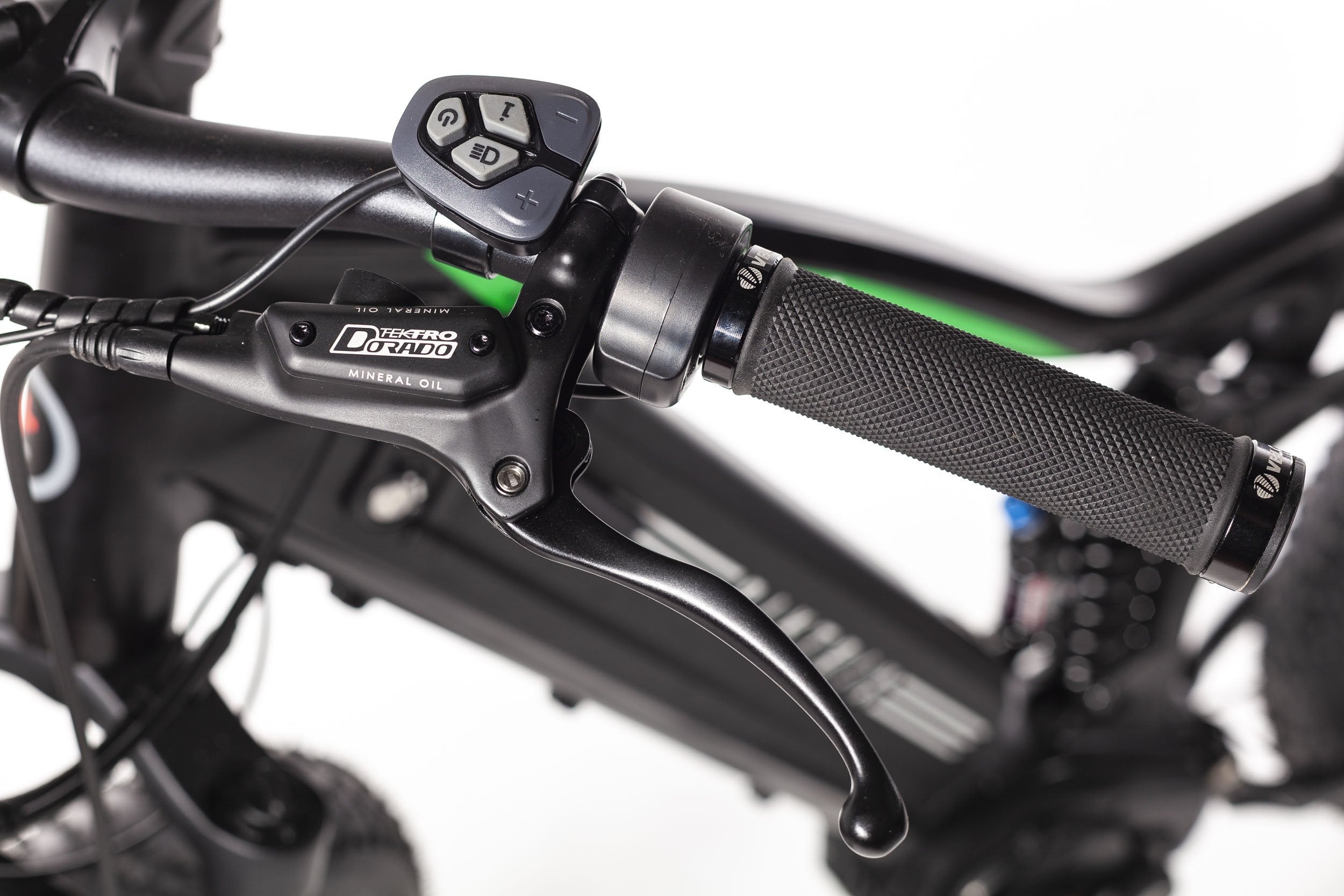

Brake leversTektro hydraulic w/ adjustable reach & motor cutoff |

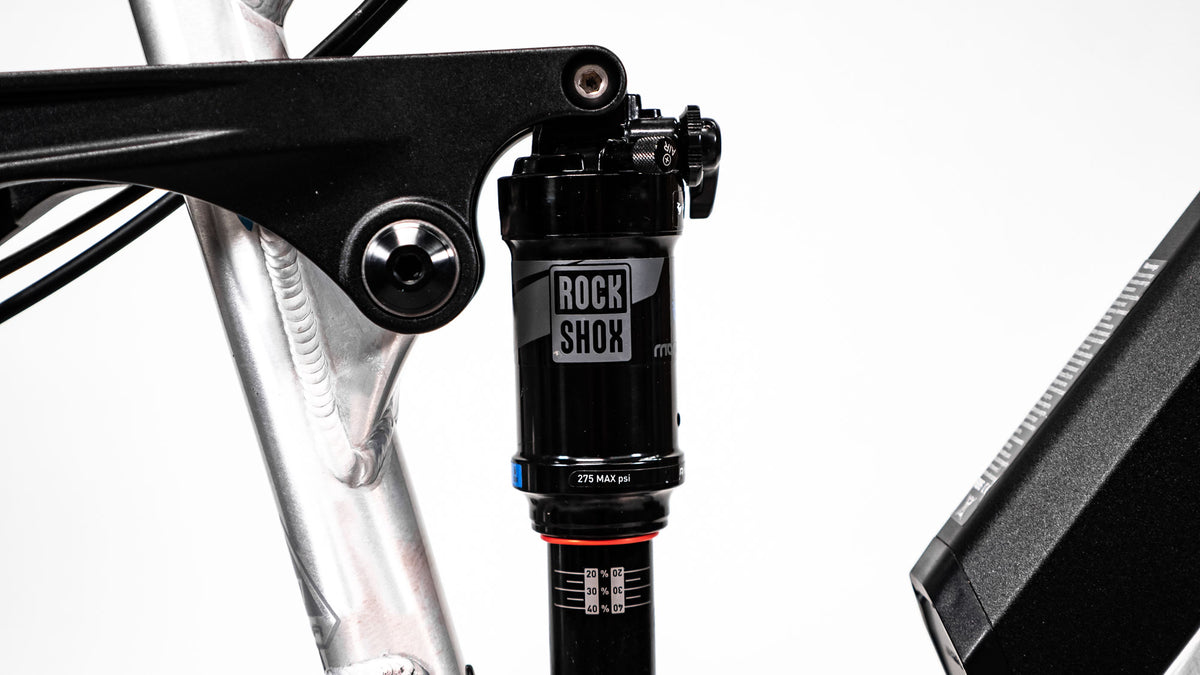

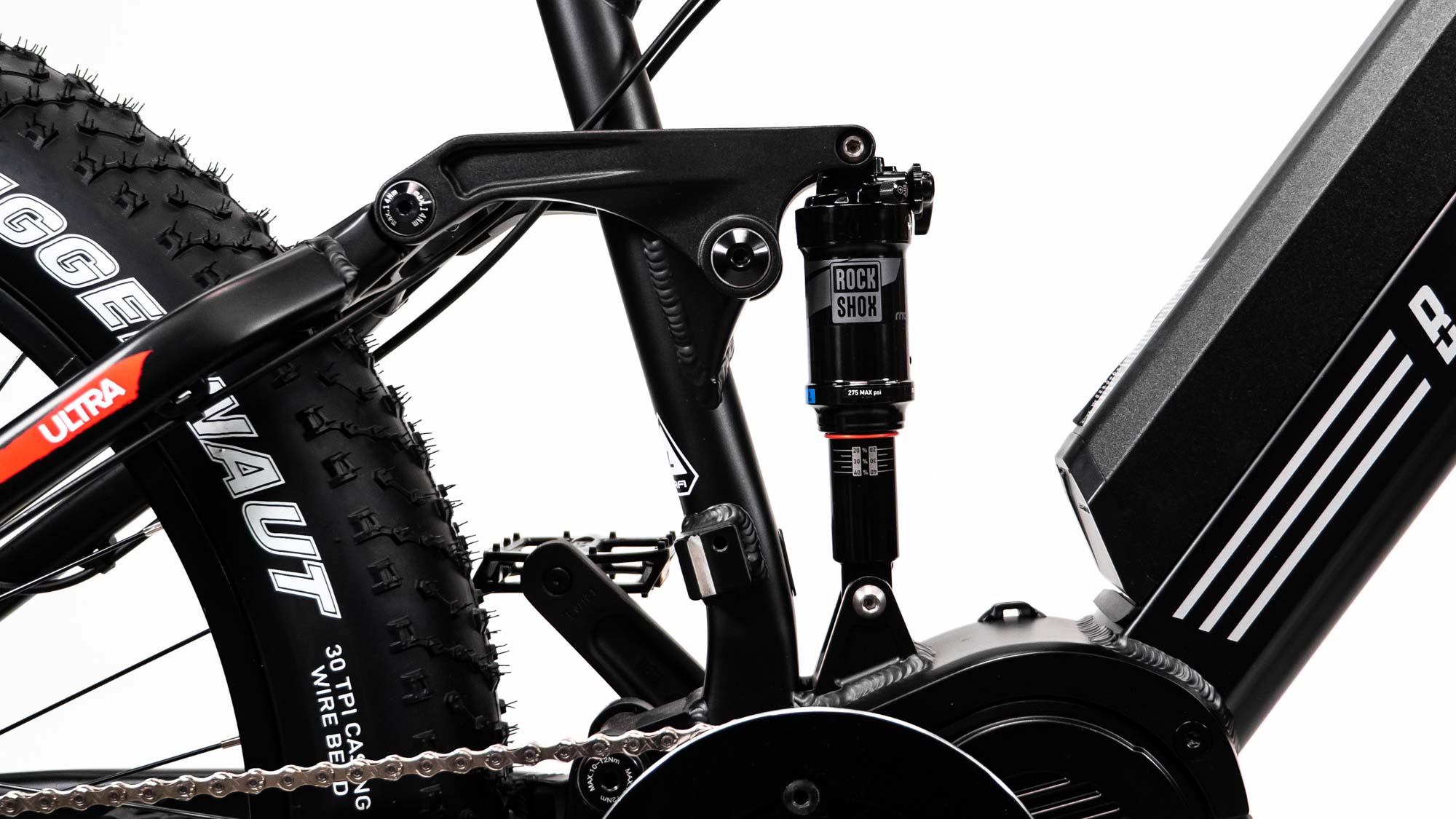

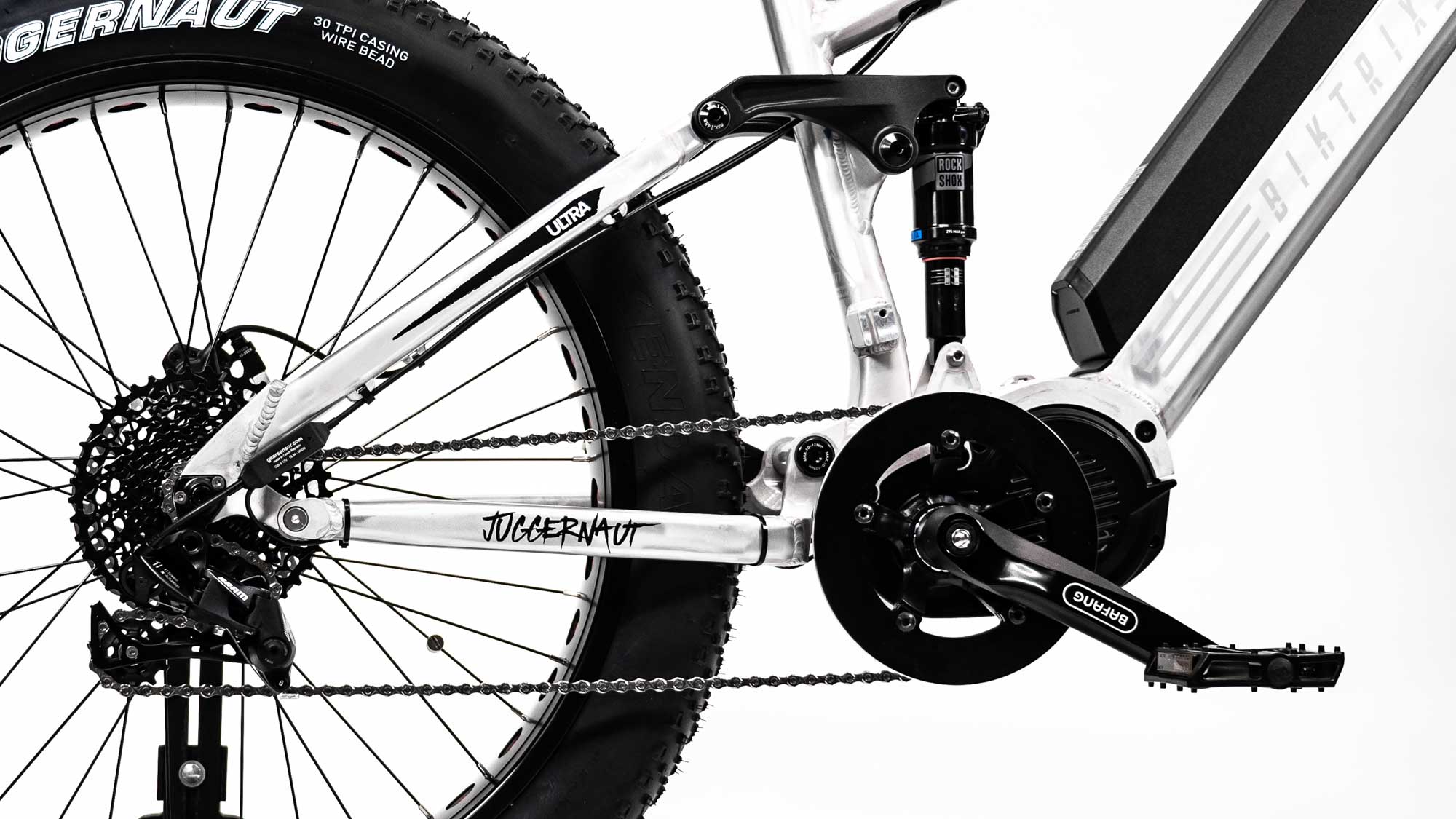

Rear suspensionRockshox monarch rt3 184x44 |
Frame6061 aluminum w/ 100mm rear travel |
Front hubQuanta 150mm 36h |
Seat postAluminum 31.6mm |
ForkBiktrix inverted tapered w/100mm travel |
Front axle15mm thru |
Seat post clampQuick release |
HeadsetThreadless 1-1/8 1-1/2 tapered |
Rear hubQuanta 197mm 36h |
Motor1000w (1500w peak) bafang ultra mid-drive |
Shifter rearSram nx 11 speed |
Rear axle12mm thru |
Battery sizes48v17.5ah, 48v21ah, 52v17.5ah |
Rear derailleurSram nx 11 speed |
Rims26"- black w/ red cutouts 36h, 27.5"- black 36h |
DisplayDpc-18 color display |
CassetteSram pg-1130 11-42t |
Tire sizes26x4", 27.5x3" |
LightsIntegrated headlight, battery taillight |
ChainKmc x11 |
HandlebarAluminum 34.9 clamp, 700mm wide, 20mm rise 8° backsweep 5° upsweep |
Assist typeTorque, cadence |
Crank set170mm aluminum arms with 44t steel chainring |
Stem90mm aluminum |
Assist levels0-5 |
Bottom bracketBafang ultra isis |
GripsSlide on |
ThrottleThumb throttle |
BrakesTektro hd-e500 w/ 180mm rotors |
SaddleVelo plush narrow |
Brake leversTektro hydraulic w/ adjustable reach & motor cutoff |
Rear suspensionRockshox monarch rt3 184x44 |
Size & Fittings
1 | Effective Top Tube Length |
620mm | 24.4in |
2 | Seat Tube Length (Classic Bike Size) |
420mm | 16.5in |
3 |
Reach |
460mm | 18.1in |
4 |
Stack |
580mm | 22.8in |
5 |
Chainstay Length |
480mm | 18.9in |
6 |
Standover Height |
730mm | 28.7in |
7 |
Head Angle |
64° | - |
8 |
Seat Angle |
73° | - |
9 |
Head Tube Length |
150 mm | 5.9 in |
10 |
Fork Length |
570mm | 22.4in |
11 |
Front Center |
790mm | 31.1in |
12 |
BB (Bottom Bracket) Drop |
30mm | 1.2in |
13 |
Fork Offset |
30mm | 1.2in |
14 |
Wheelbase |
1240mm | 48.8in |
15 |
Total Length |
1940mm | 76.4in |
16 |
Max Seat Height |
1060mm | 41.7in |
17 |
Min Seat Height |
910mm | 35.8in |
18 |
Handlebar Height |
1080mm | 42.5in |
19 |
Weight (Without Battery) |
29kg | 63.9lb |
1 | Effective Top Tube Length |
620mm | 24.4in |
2 | Seat Tube Length (Classic Bike Size) |
410mm | 16.1in |
3 |
Reach |
460mm | 18.1in |
4 |
Stack |
580mm | 22.8in |
5 |
Chainstay Length |
490mm | 19.3in |
6 |
Standover Height |
790mm | 31.1in |
7 |
Head Angle |
71° | - |
8 |
Seat Angle |
75° | - |
9 |
Head Tube Length |
150 mm | 5.9 in |
10 |
Fork Length |
580mm | 22.8in |
11 |
Front Center |
815mm | 32.1in |
12 |
BB (Bottom Bracket) Drop |
80mm | 3.1in |
13 |
Fork Offset |
30mm | 1.2in |
14 |
Wheelbase |
1300mm | 51.2in |
15 |
Total Length |
2020mm | 79.5in |
16 |
Max Seat Height |
1120mm | 44.1in |
17 |
Min Seat Height |
960mm | 37.8in |
18 |
Handlebar Height |
1080mm | 42.5in |
19 |
Weight (Without Battery) |
30.6kg | 67.5lb |
