750W Mid-Drive

Motor Power

Up to 55mi

Standard Range

+5'8ft / 330lb

Max Load

Cadence Sensor

Powerful Pedal Assist

25+ Point Quality

Control Checklist

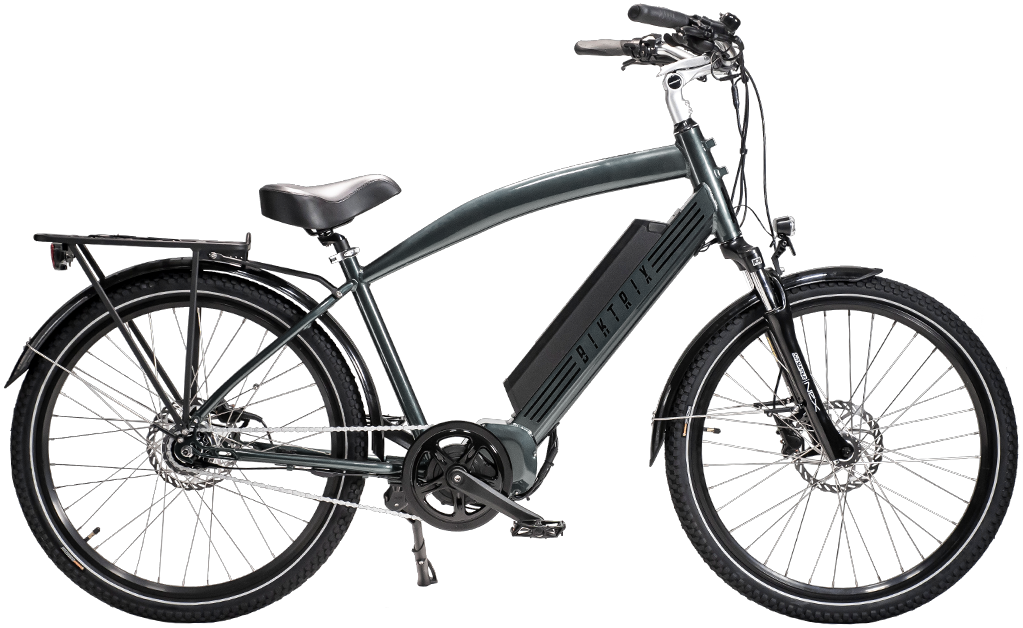

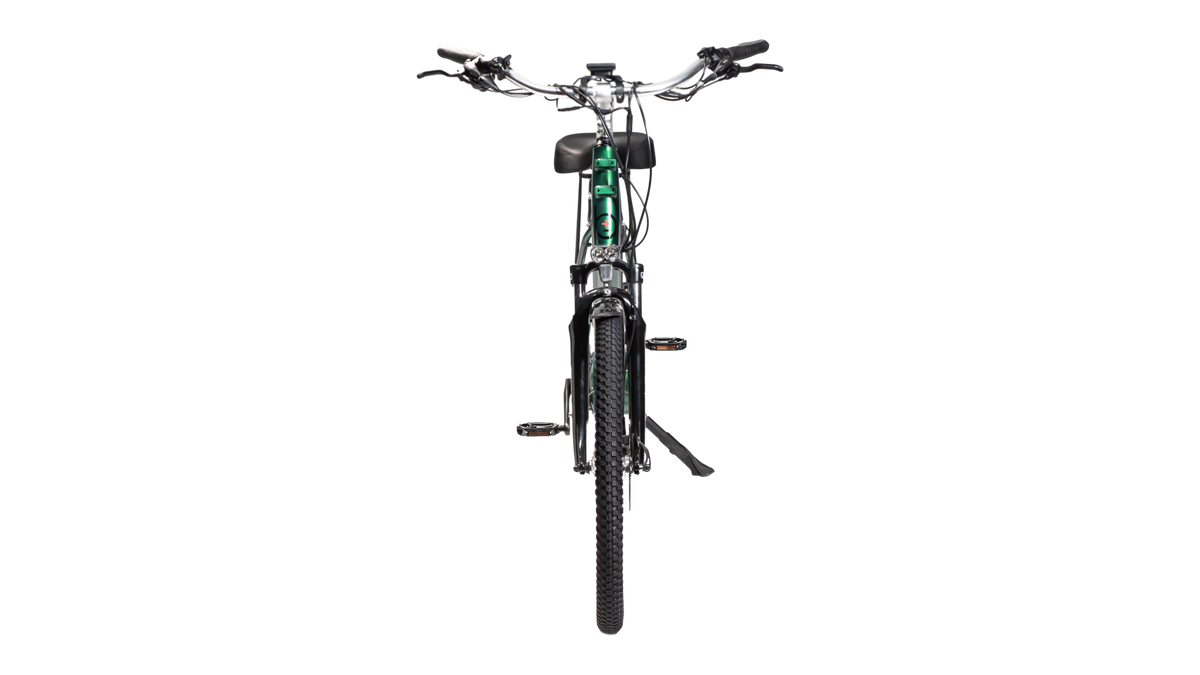

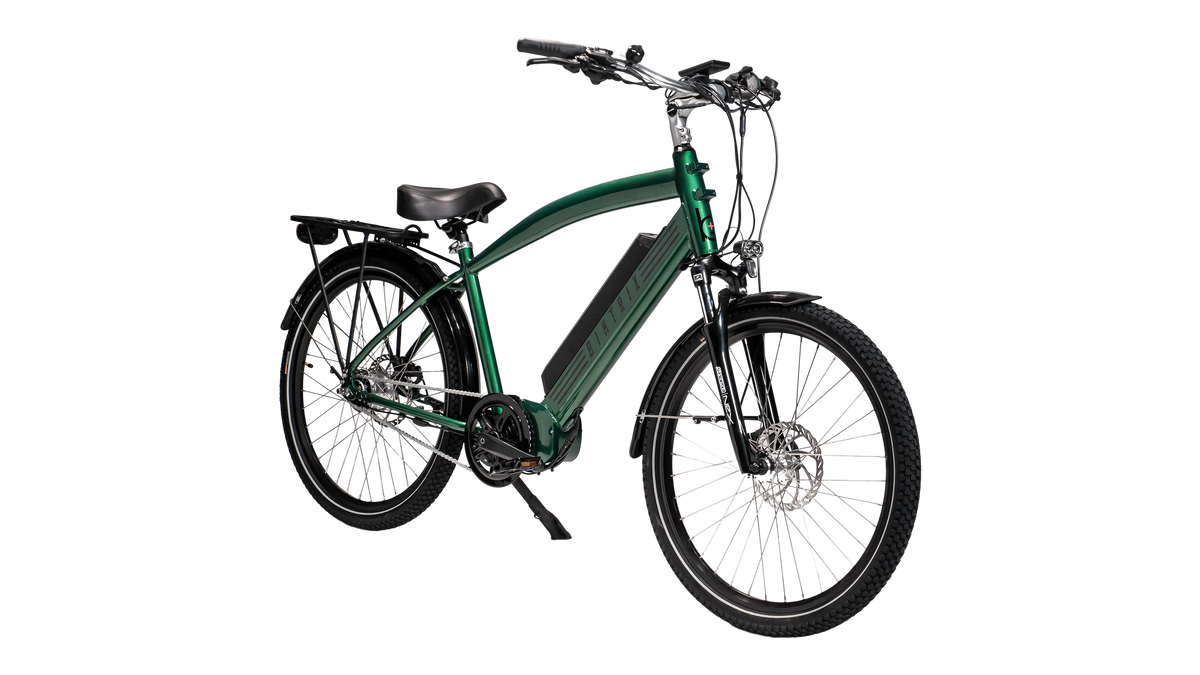

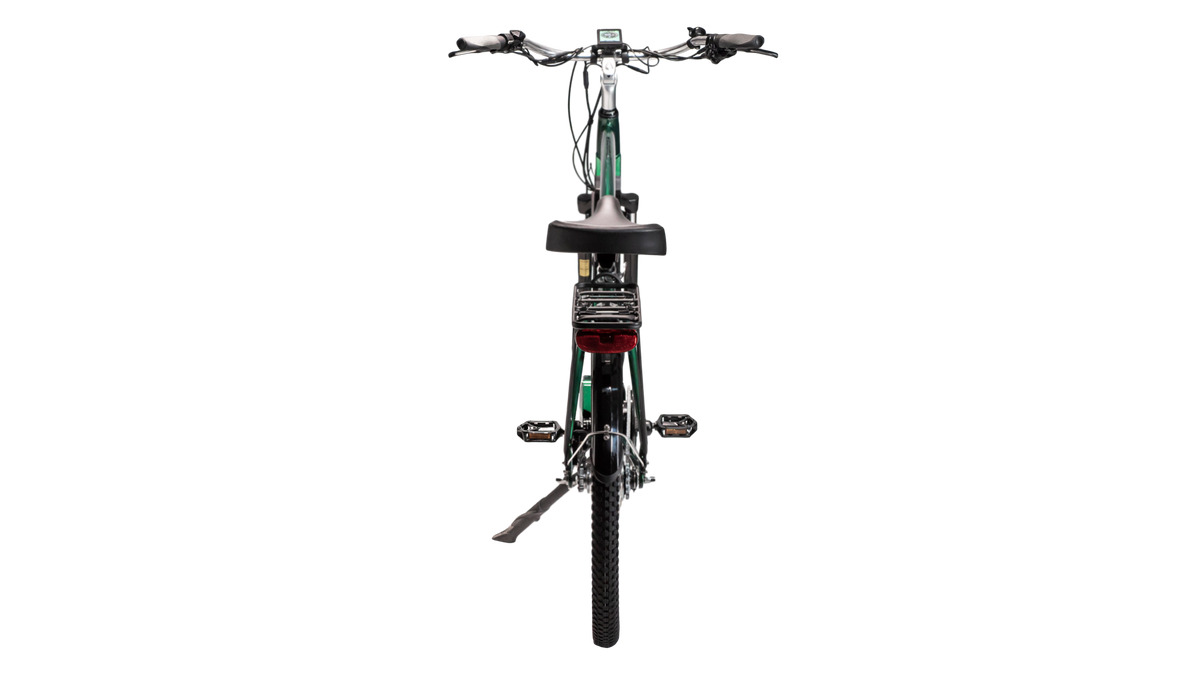

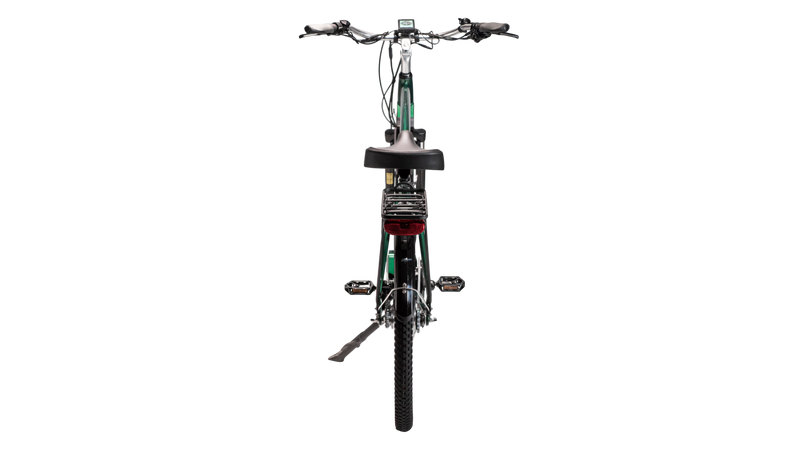

Stunner SO 5

Name: Stunner Step-Over 5
Brand: stunner-step-over-details
SKU: STN-SO-GY
Price: 2699.0 USD
Availability: OutOfStock
Rating: 4.52 (27 reviews)

4.5

$2,699 USD $2,999 USD

1	Effective Top Tube Length	720mm	28.3in
2	Seat Tube Length (Classic Bike Size)	440mm	17.3in
3	Reach	450mm	17.7in
4	Stack	600mm	23.6in
5	Chainstay Length	510mm	20.1in
6	Standover Height	720mm	28.3in
7	Head Angle	68°	-
8	Seat Angle	67°	-
9	Head Tube Length	220 mm	8.7 in
10	Fork Length	455mm	17.9in
11	Front Center	640mm	25.2in
12	BB (Bottom Bracket) Drop	45mm	1.8in
13	Fork Offset	25mm	1in
14	Wheelbase	1235mm	48.6in
15	Total Length	1935mm	76.2in
16	Max Seat Height	965mm	38in
17	Min Seat Height	812mm	32in
18	Handlebar Height	1150mm	45.3in
19	Weight (Without Battery)	27kg	59.5lb

750W Mid-Drive

Motor Power

Up to 55mi

Standard Range

+5'8ft / 330lb

Max Load

Cadence Sensor

Powerful Pedal Assist

25+ Point Quality

Control Checklist

Technical Specifications

Frame 6061 aluminum step over frame	Front hub Modus 100mm	Seat post Aluminum 28.6mm
Fork Sr suntor nex, 60mm travel	Front axle 5mm qr	Seat post clamp Qr
Headset Threadless 1-1/8 straight	Rear hub Sturmey archer 5 speed integrated	Motor 750w bbs02 mid-drive
Shifter rear Sturmey archer 5 speed	Rear axle Bolt on	Battery sizes 48v 17ah 816wh, 48v 21ah 1008wh, 48v 25ah 1200wh, 52v17.5ah 910wh
Rims Black 26"- 25mm 36h	Display Dpc-14 / 850c backlit lcd	Tire sizes Kenda k-rad 2.3"
Lights Integrated headlight, battery taillight	Chain Kmc s1	Handlebar 25.4mm clamp 50mm riser cruiser bars, 700mm wide
Assist type Cadence	Crank set 170mm 44t	Stem Promax adjustable quill
Assist levels 0-5 (0-3, 0-9)	Bottom bracket Bafang 68mm square taper	Grips Ergo slide on
Throttle Thumb throttle	Brakes Biktrix dual piston hydraulic w/160mm rotors	Saddle Wide cruiser
Other Plastic fenders, rear rack, adjustable kickstand	Brake levers Biktrix w/ adjustable reach and motorcutoffs

Frame 6061 aluminum step over frame	Front hub Modus 100mm
Seat post Aluminum 28.6mm	Fork Sr suntor nex, 60mm travel
Front axle 5mm qr	Seat post clamp Qr
Headset Threadless 1-1/8 straight	Rear hub Sturmey archer 5 speed integrated
Motor 750w bbs02 mid-drive	Shifter rear Sturmey archer 5 speed
Rear axle Bolt on	Battery sizes 48v 17ah 816wh, 48v 21ah 1008wh, 48v 25ah 1200wh, 52v17.5ah 910wh
Rims Black 26"- 25mm 36h	Display Dpc-14 / 850c backlit lcd
Tire sizes Kenda k-rad 2.3"	Lights Integrated headlight, battery taillight
Chain Kmc s1	Handlebar 25.4mm clamp 50mm riser cruiser bars, 700mm wide
Assist type Cadence	Crank set 170mm 44t
Stem Promax adjustable quill	Assist levels 0-5 (0-3, 0-9)
Bottom bracket Bafang 68mm square taper	Grips Ergo slide on
Throttle Thumb throttle	Brakes Biktrix dual piston hydraulic w/160mm rotors
Saddle Wide cruiser	Other Plastic fenders, rear rack, adjustable kickstand
Brake levers Biktrix w/ adjustable reach and motorcutoffs

Frame

6061 aluminum step over frame

Front hub

Modus 100mm

Seat post

Aluminum 28.6mm

Fork

Sr suntor nex, 60mm travel

Front axle

5mm qr

Seat post clamp

Qr

Headset

Threadless 1-1/8 straight

Rear hub

Sturmey archer 5 speed integrated

Motor

750w bbs02 mid-drive

Shifter rear

Sturmey archer 5 speed

Rear axle

Bolt on

Battery sizes

48v 17ah 816wh, 48v 21ah 1008wh, 48v 25ah 1200wh, 52v17.5ah 910wh

Rims

Black 26"- 25mm 36h

Display

Dpc-14 / 850c backlit lcd

Tire sizes

Kenda k-rad 2.3"

Lights

Integrated headlight, battery taillight

Chain

Kmc s1

Handlebar

25.4mm clamp 50mm riser cruiser bars, 700mm wide

Assist type

Cadence

Crank set

170mm 44t

Stem

Promax adjustable quill

Assist levels

0-5 (0-3, 0-9)

Bottom bracket

Bafang 68mm square taper

Grips

Ergo slide on

Throttle

Thumb throttle

Brakes

Biktrix dual piston hydraulic w/160mm rotors

Saddle

Wide cruiser

Other

Plastic fenders, rear rack, adjustable kickstand

Brake levers

Biktrix w/ adjustable reach and motorcutoffs

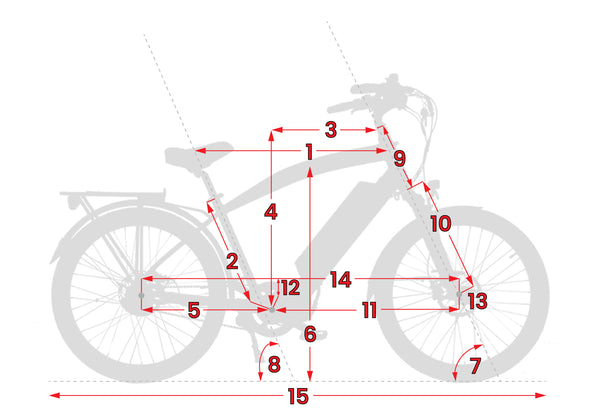

Size & Fittings

1	Effective Top Tube Length	720mm	28.3in
2	Seat Tube Length (Classic Bike Size)	440mm	17.3in
3	Reach	450mm	17.7in
4	Stack	600mm	23.6in
5	Chainstay Length	510mm	20.1in
6	Standover Height	720mm	28.3in
7	Head Angle	68°	-
8	Seat Angle	67°	-
9	Head Tube Length	220 mm	8.7 in
10	Fork Length	455mm	17.9in
11	Front Center	640mm	25.2in
12	BB (Bottom Bracket) Drop	45mm	1.8in
13	Fork Offset	25mm	1in
14	Wheelbase	1235mm	48.6in
15	Total Length	1935mm	76.2in
16	Max Seat Height	965mm	38in
17	Min Seat Height	812mm	32in
18	Handlebar Height	1150mm	45.3in
19	Weight (Without Battery)	27kg	59.5lb

FAQ & Guides

Guide Spare Parts Finder

Need A Hand?

Chat With Us

We are always excited to hear from you. Just click the button below to activate chat now.

Chat Now

Book A Virtual Demo

Our eBike specialists can help you find your dream eBike and answer any questions you may have.

Book An Appointment Now

Give Us A Ring

24/7 e-mail support. 8/5 phone and live chat with eBike Specialists to help you in anyway.

+1-866-BIKTRIX

Faster than expected

I opted for the larger battery and still haven't gone beyond 2nd gear under power. It's quite quick.

Love our new bikes

Purchased a Juggernaut Ultra Pro - Great Bike with a couple niggles

Love the bike. Just went on a 15 mile ride. 7.5 steep down and then back up. Finished in less than an hour. Going up, was in PAS 3 and middle gear and she pulled like a champ. Came home and only at 90%. So, IMHO, great range. And the 1,000w motor is a monster - more than enough power for even the steepest hills. The two things I would change: 1. Offer a backlit LCD screen. The color screen is very nice, but disappears with polarized sunglasses. 2. Offer a dropper post. The bike is not light, but very manageable until you get into the single track. Going downhill without lowering the seat puts you in a very unstable position. I will be adding a dropper post ASAP. Other than that, love this bike. If my kids want to go out with me, I will buy others for them.

Stunner Step-Over 5 Sale

Insufficient assembly help.

The experience of riding the bike has been somewhat delayed because of insufficient assembly instructions and incomplete assembly tools. I was unable to find a video for the Stunner step over and was lacking a long enough hex key for the handlebars 5mm. Even with the front mudguard fully raised the tire still rubs a little. No battery care techniques came with battery. Fortunately, I had visited the Saskatoon store last year and had been given information sheets on battery care, tire care and bedding in new brakes. The bike rides nicely, but would have appreciated a print version of assembly guide.

Wholely shit it's faster then I thought

I am very pleased this is my 3rd ebike, I am very happy I have put over 200 miles on it this week. The only issue is I can't find the instructions , to change my computer from km to miles

Patiently waiting

First experience with e bike, so far not the best. See what happens when part comes in for my new bike that hasn't left the garage. I have purchased a nireeka e bike for my wife, I hope when delivered , a better experience .j

Piss poor service called service 13 times and kept hanging up I’m not a happy customer you fought...

Piss poor lots of problems

Happy

Nice looking bicycle Have just road it once to make sure everything was working seems to have very good torque I am 5’ 8’’ inches and the bike fits good The set up wasn’t flawless but got the job done and it all worked Lol I haven’t quite figured out how to mount the water bottle carrier yet but have till spring to figure that out Likely will not be riding the bike till spring now wouldn’t be much fun at -20 But looking forward to going hard then
