Technical Specifications

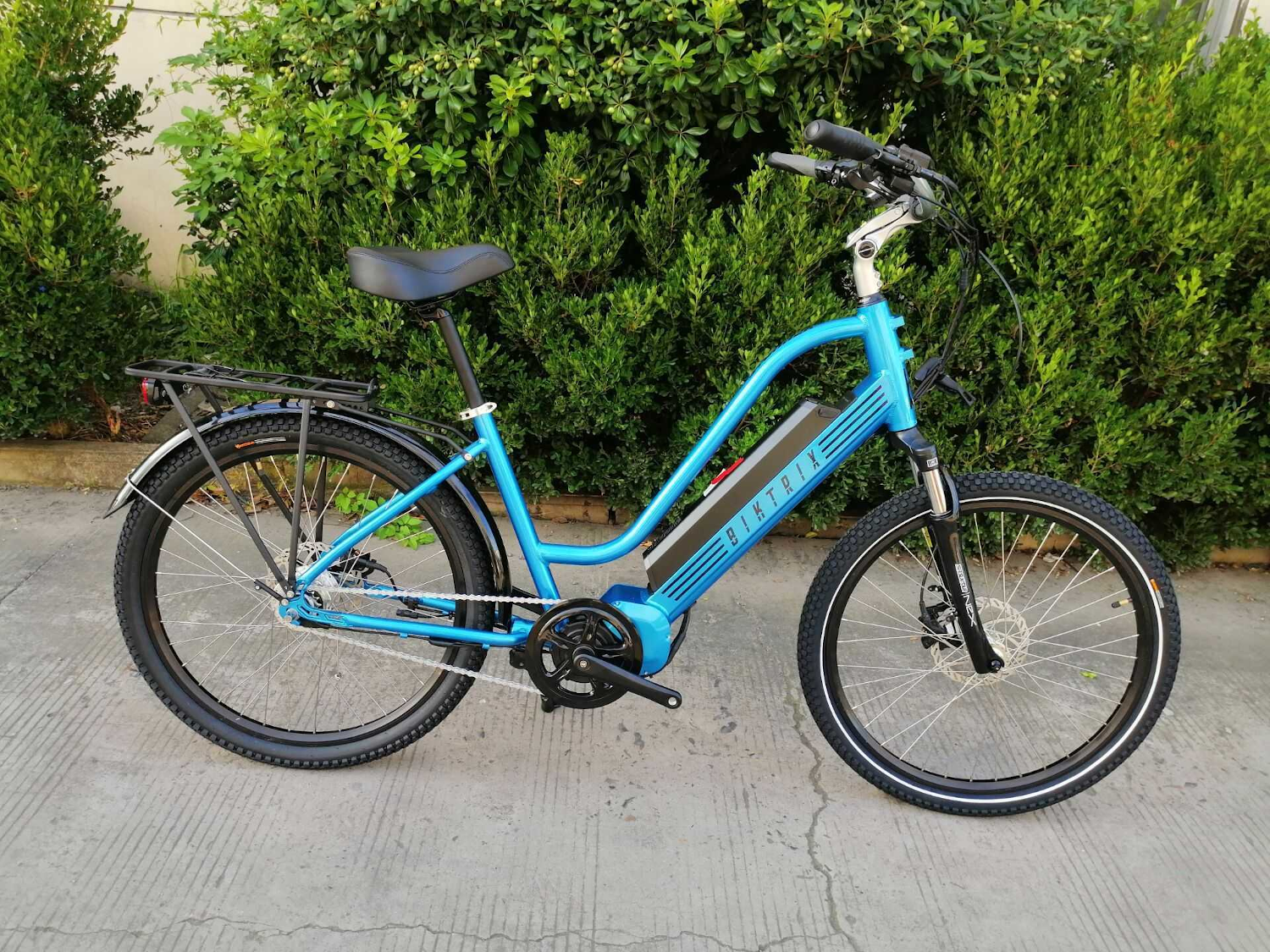

Frame6061 aluminum step thru frame |
Front hubModus 100mm |
Seat postAluminum 31.8mm |

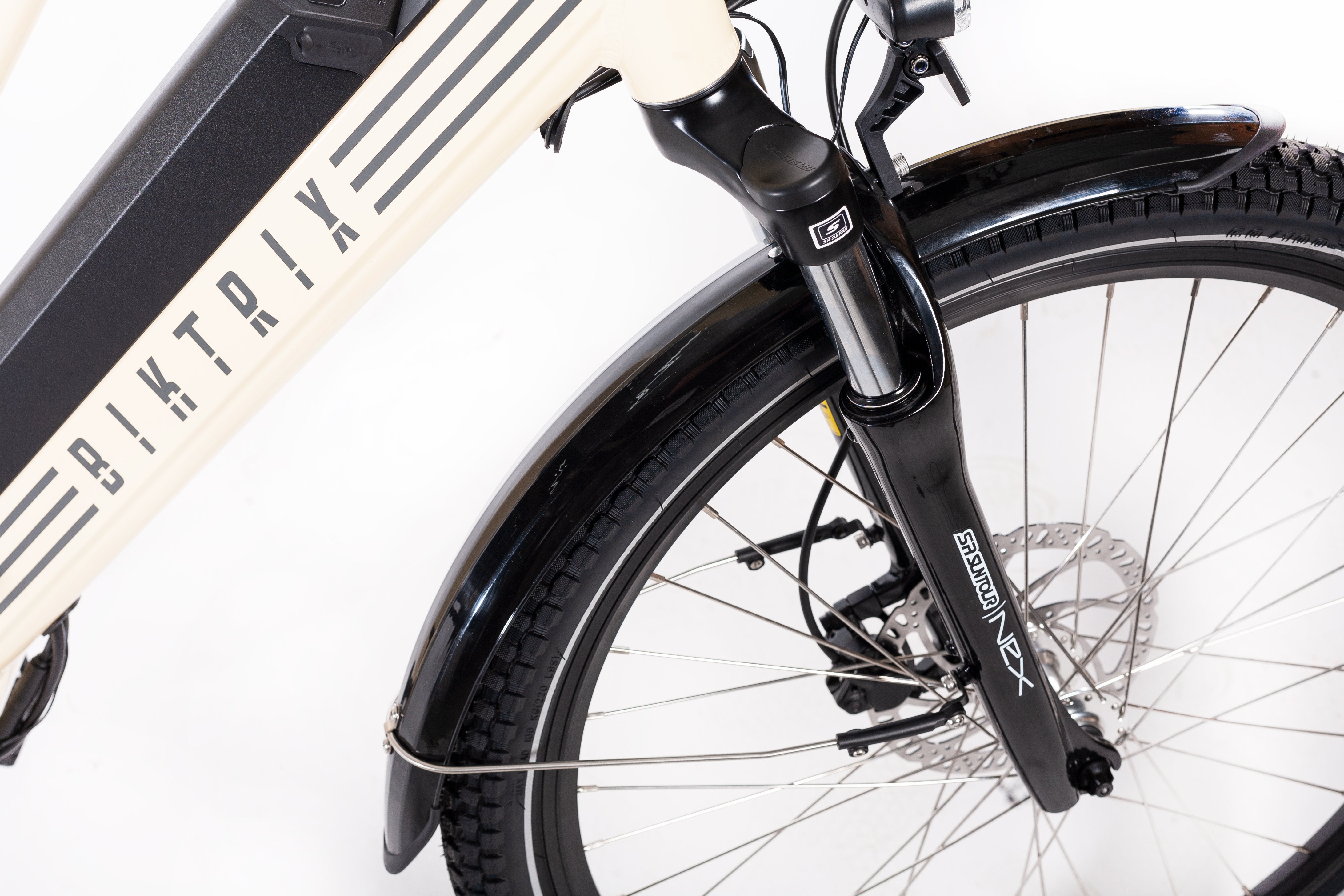

ForkSr suntor nex, 60mm travel |
Front axle5mm qr |
Seat post clamp38.5mm qr |
HeadsetThreadless 1-1/8 straight |
Rear hubSturmey archer 5 speed integrated |

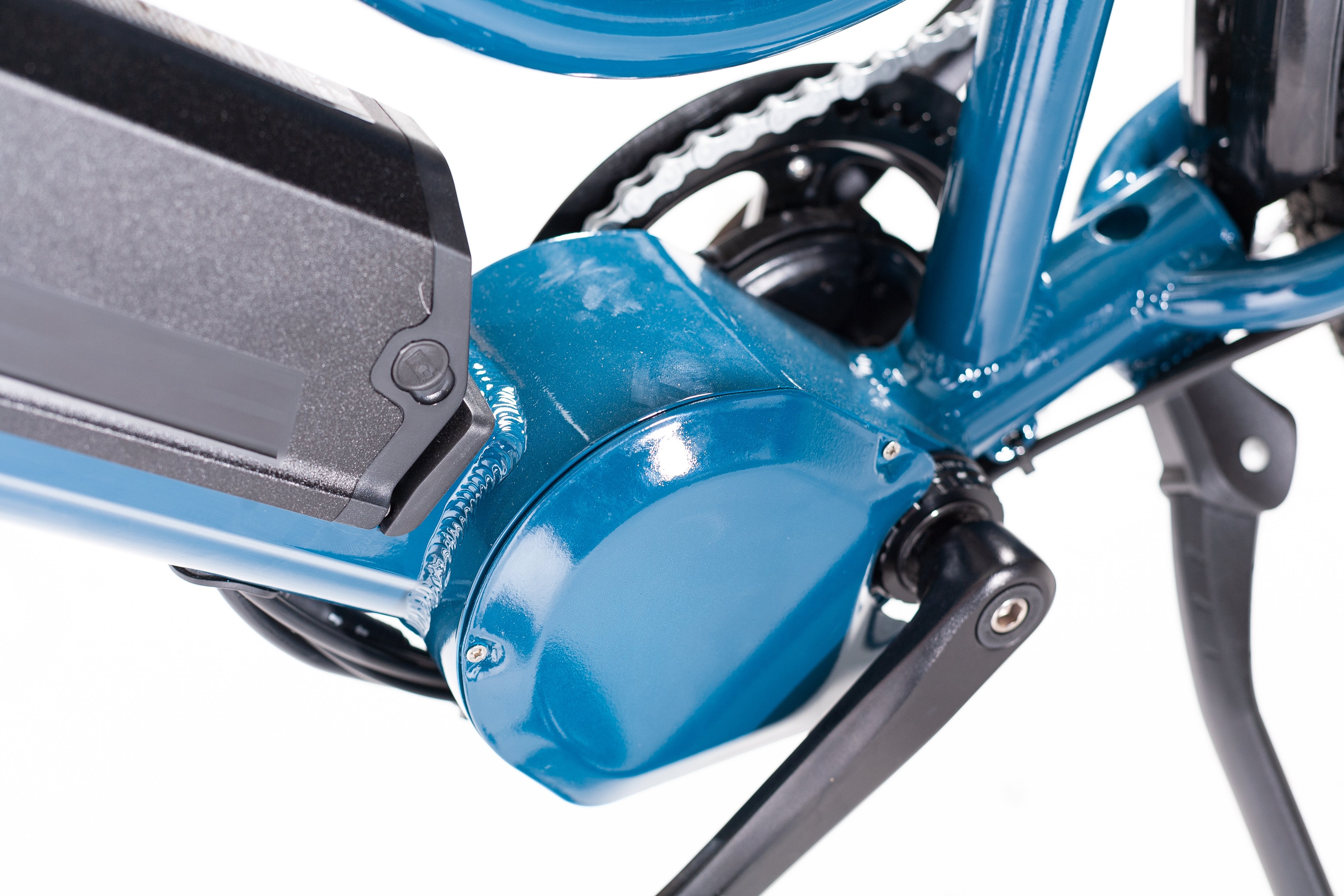

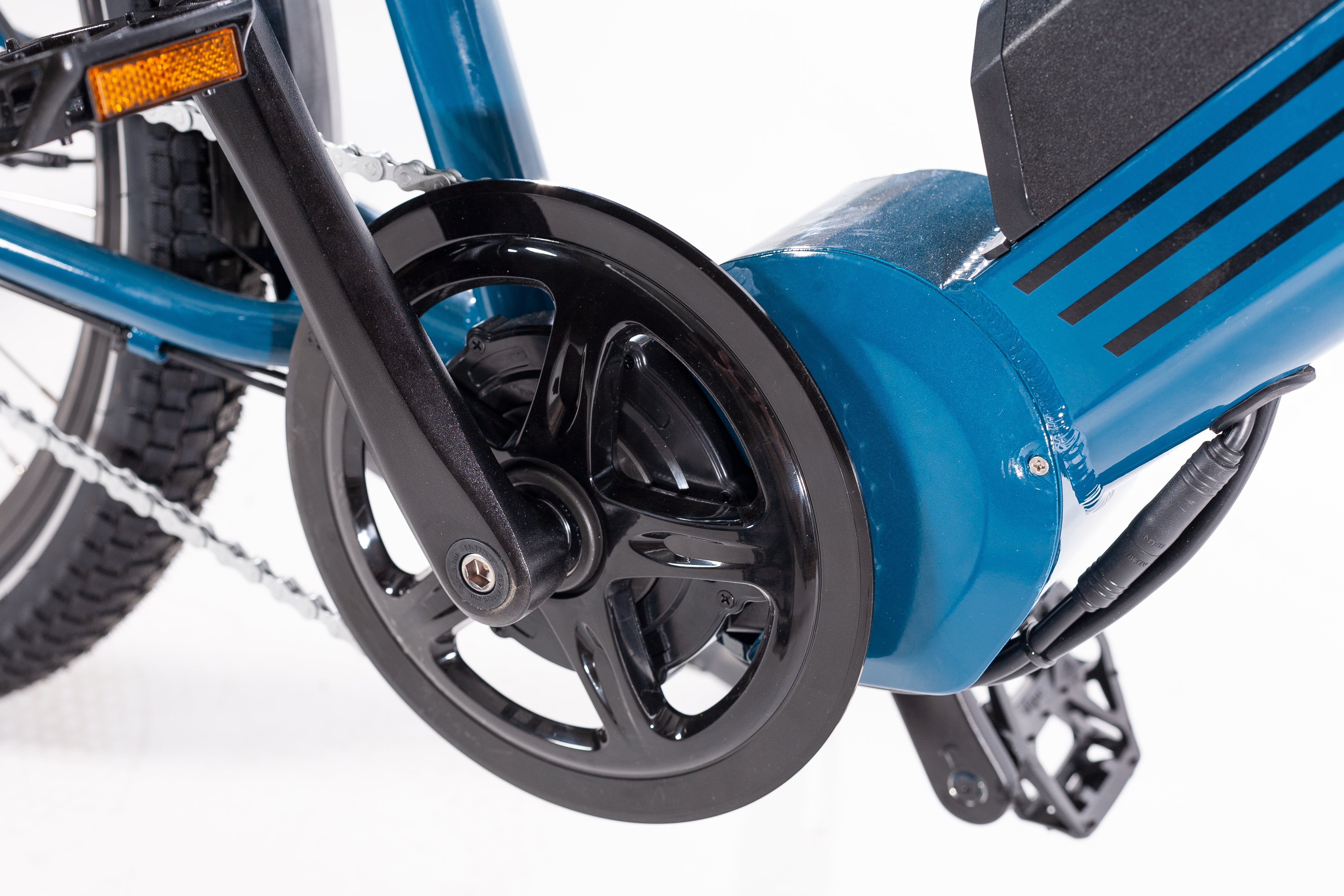

Motor750w bbs02 mid-drive |

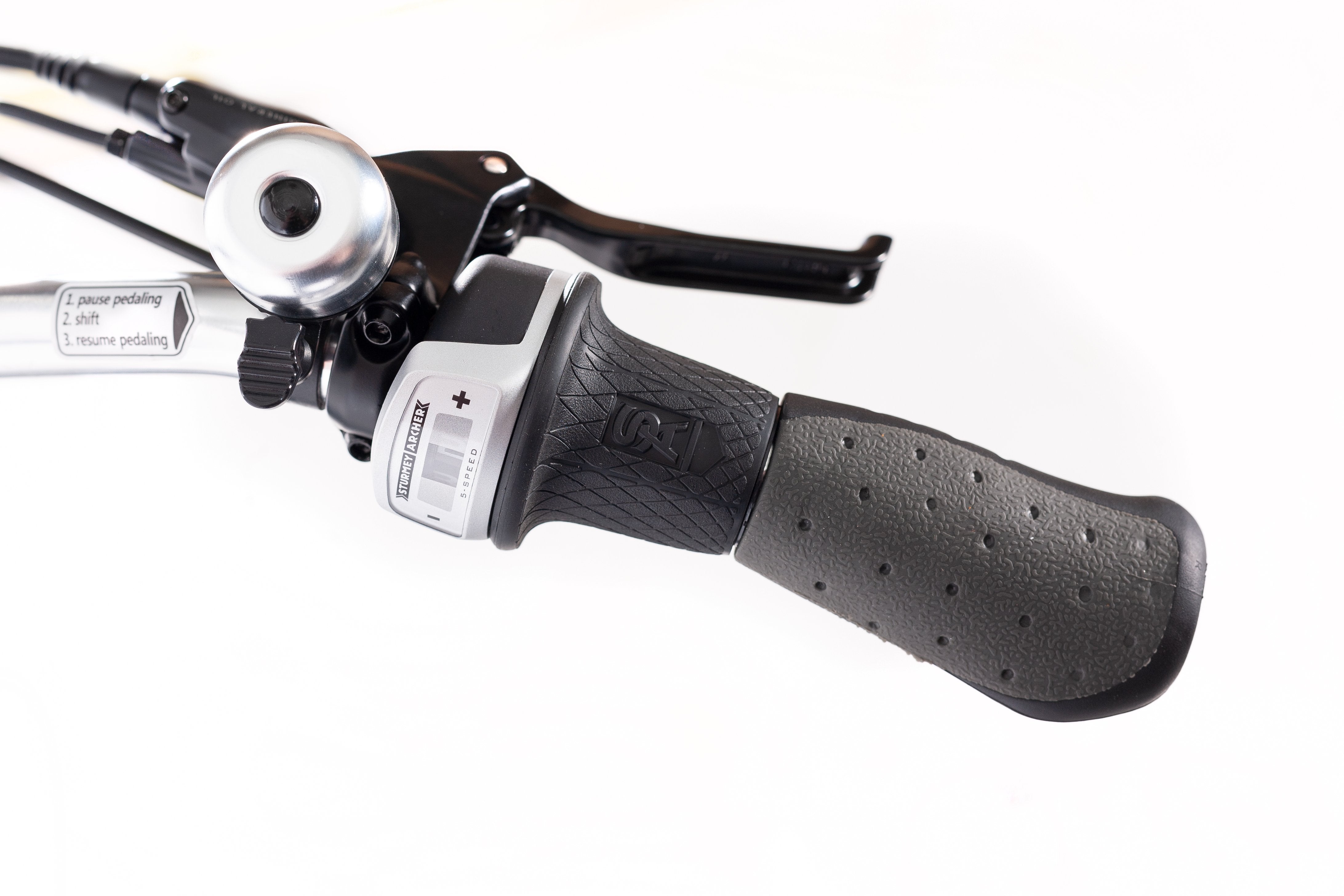

Shifter rearSturmey archer 5 speed |
Rear axleBolt on |
Battery sizes48v17ah, 48v19ah, 48v21ah, 48v25ah, 52v17.5ah |
RimsBlack 26"- 25mm 36h |

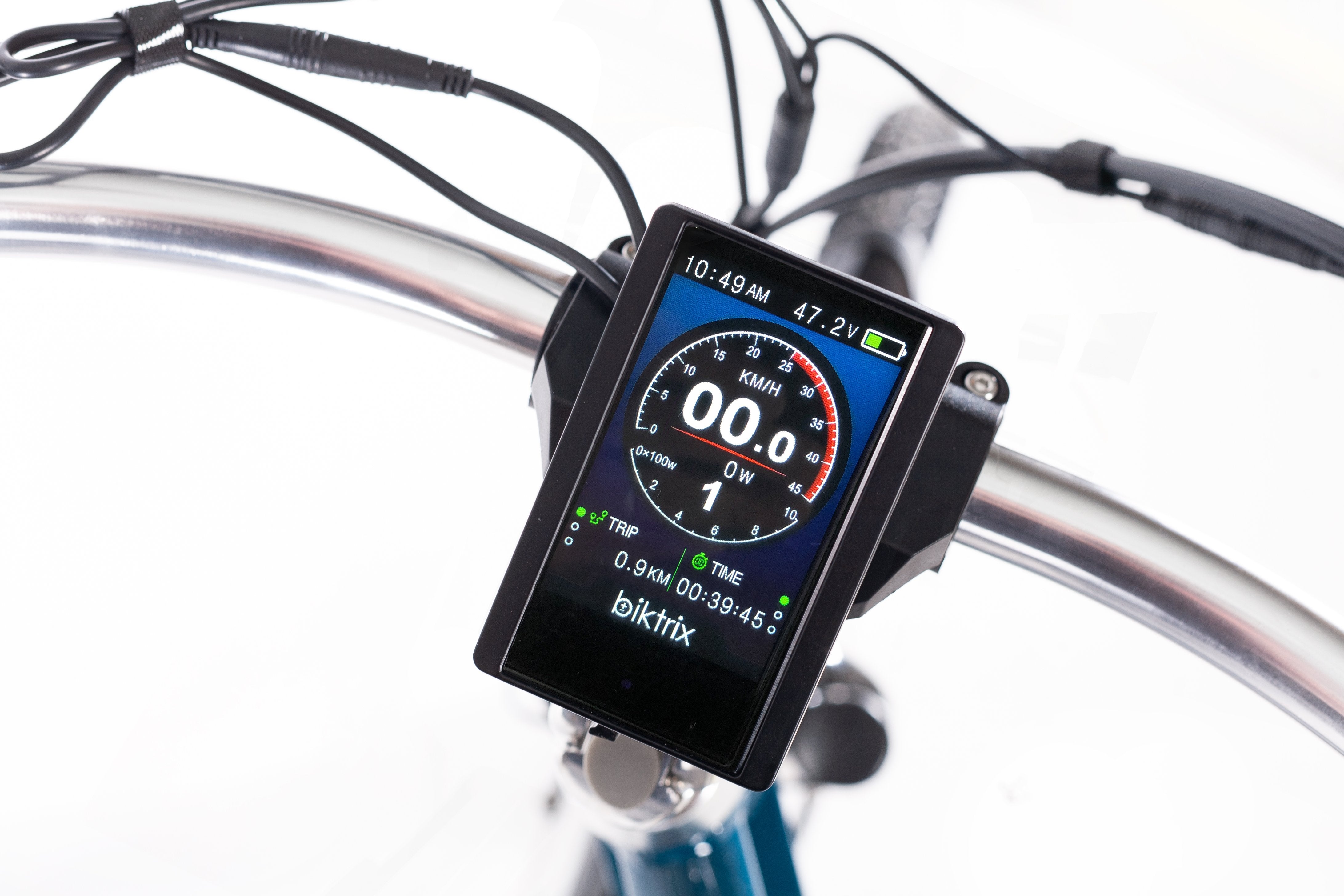

DisplayDpc-14 / 850c backlit lcd |
Tire sizesKenda k-rad 2.3" |
LightsIntegrated headlight, battery taillight |
ChainKmc s1 |
Handlebar25.4mm clamp 50mm riser cruiser bars, 700mm wide |
Assist typeCadence |
Crank set170mm 44t |
StemPromax adjustable quill |
Assist levels0-5 (0-3, 0-9) |
Bottom bracketBafang 68mm square taper |

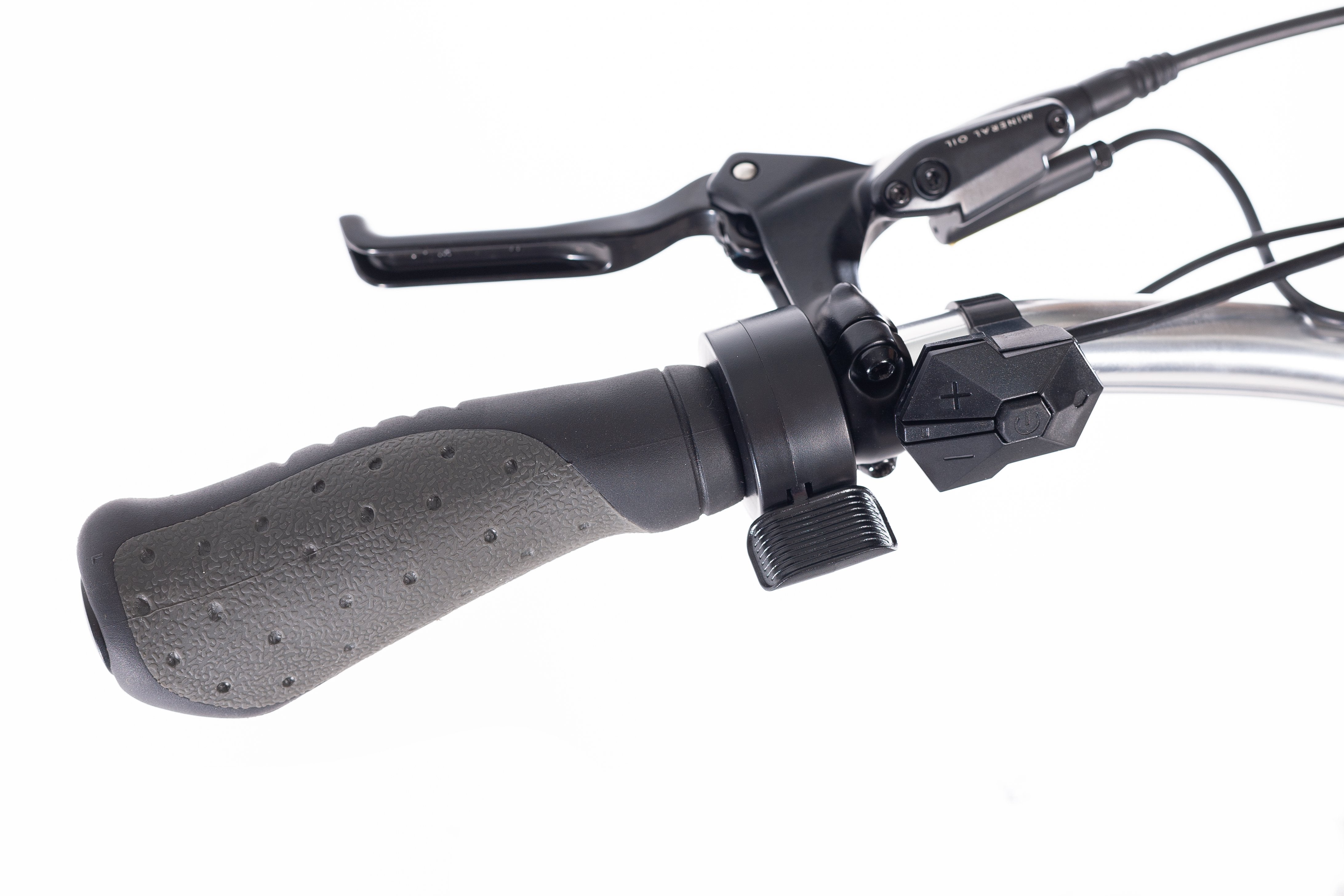

GripsErgo slide on |
ThrottleThumb throttle |

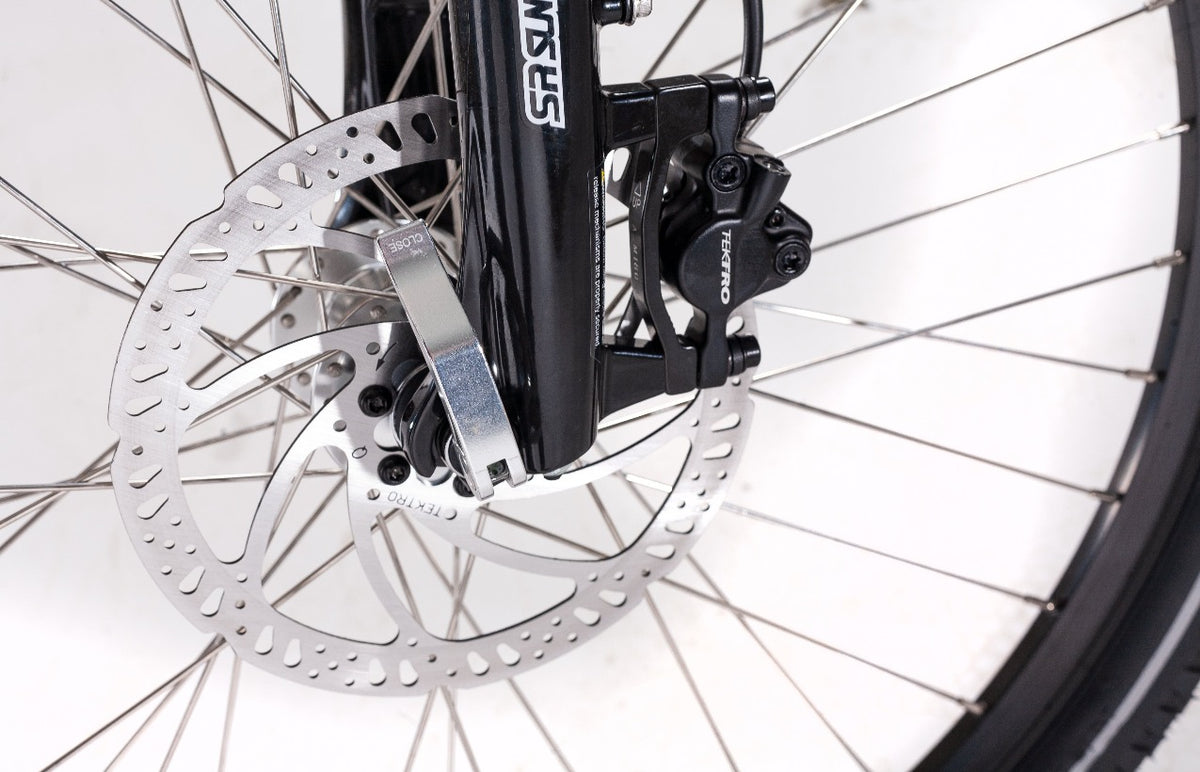

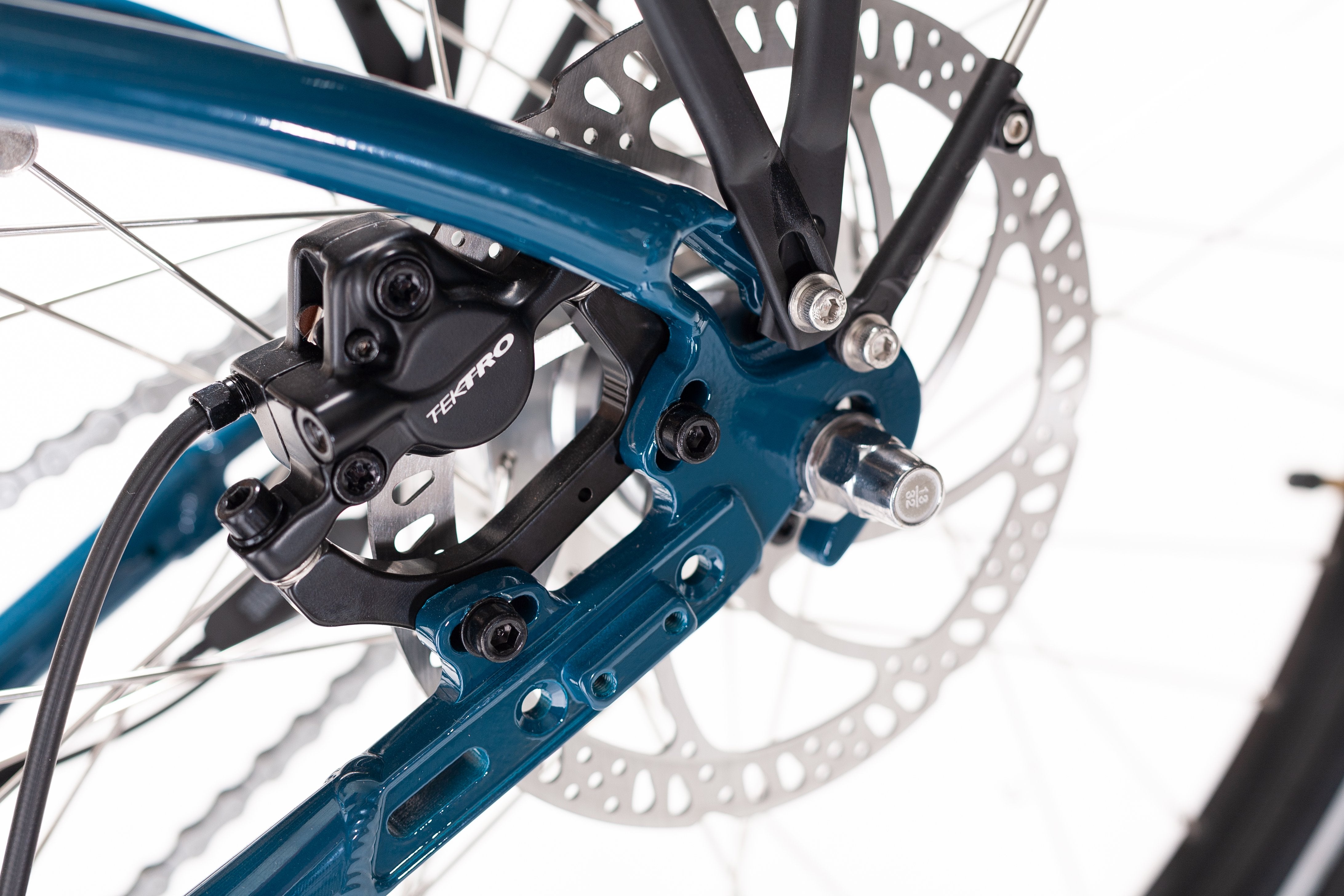

BrakesTektro dual piston hydraulic w/ 160mm |
SaddleWide cruiser |
OtherPlastic fenders, rear rack, adjustable kickstand |
Brake leversBiktrix w/ adjustable reach and motorcutoffs |
Frame6061 aluminum step thru frame |
Front hubModus 100mm |
Seat postAluminum 31.8mm |
ForkSr suntor nex, 60mm travel |
Front axle5mm qr |
Seat post clamp38.5mm qr |
HeadsetThreadless 1-1/8 straight |
Rear hubSturmey archer 5 speed integrated |
Motor750w bbs02 mid-drive |
Shifter rearSturmey archer 5 speed |
Rear axleBolt on |
Battery sizes48v17ah, 48v19ah, 48v21ah, 48v25ah, 52v17.5ah |
RimsBlack 26"- 25mm 36h |
DisplayDpc-14 / 850c backlit lcd |
Tire sizesKenda k-rad 2.3" |
LightsIntegrated headlight, battery taillight |
ChainKmc s1 |
Handlebar25.4mm clamp 50mm riser cruiser bars, 700mm wide |
Assist typeCadence |
Crank set170mm 44t |
StemPromax adjustable quill |
Assist levels0-5 (0-3, 0-9) |
Bottom bracketBafang 68mm square taper |
GripsErgo slide on |
ThrottleThumb throttle |
BrakesTektro dual piston hydraulic w/ 160mm |
SaddleWide cruiser |
OtherPlastic fenders, rear rack, adjustable kickstand |
Brake leversBiktrix w/ adjustable reach and motorcutoffs |
Size & Fittings
1 | Effective Top Tube Length |
730mm | 28.7in |
2 | Seat Tube Length (Classic Bike Size) |
435mm | 17.1in |
3 |
Reach |
470mm | 18.5in |
4 |
Stack |
620mm | 24.4in |
5 |
Chainstay Length |
510mm | 20.1in |
6 |
Standover Height |
470mm | 18.5in |
7 |
Head Angle |
68° | - |
8 |
Seat Angle |
67° | - |
9 |
Head Tube Length |
220 mm | 8.7 in |
10 |
Fork Length |
460mm | 18.1in |
11 |
Front Center |
725mm | 28.5in |
12 |
BB (Bottom Bracket) Drop |
45mm | 1.8in |
13 |
Fork Offset |
20mm | 0.8in |
14 |
Wheelbase |
1240mm | 48.8in |
15 |
Total Length |
1915mm | 75.4in |
16 |
Max Seat Height |
960mm | 37.8in |
17 |
Min Seat Height |
800mm | 31.5in |
18 |
Handlebar Height |
1140mm | 44.9in |
19 |
Weight (Without Battery) |
26.8kg | 59.1lb |
