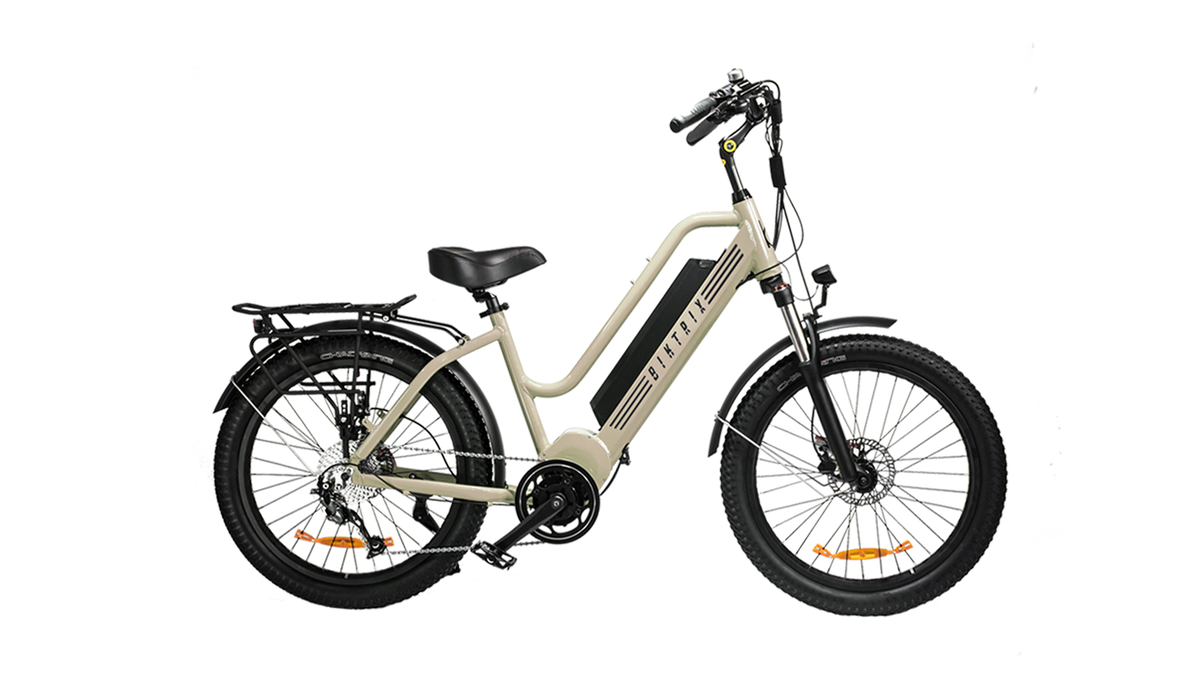

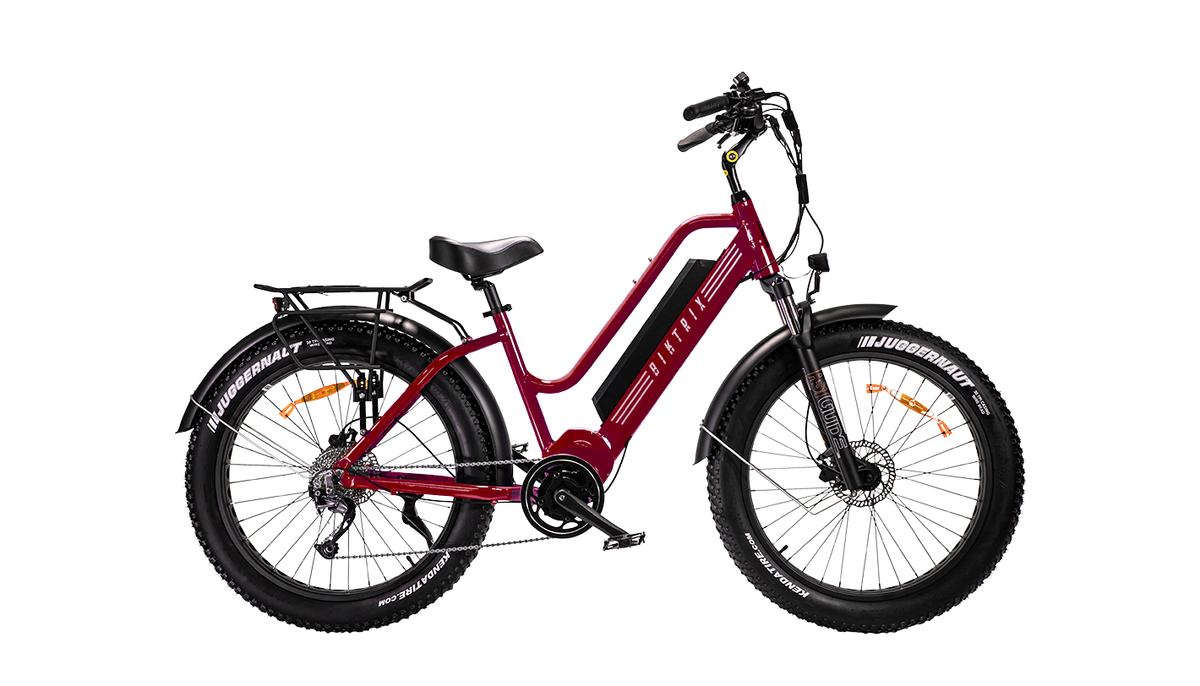

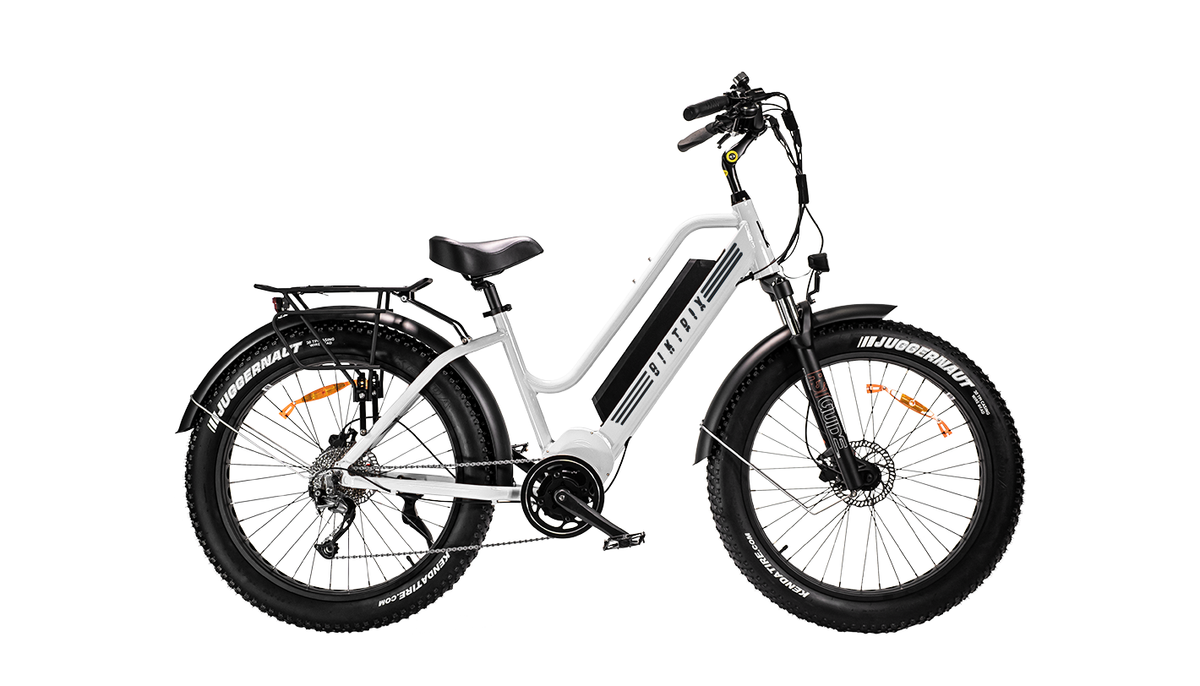

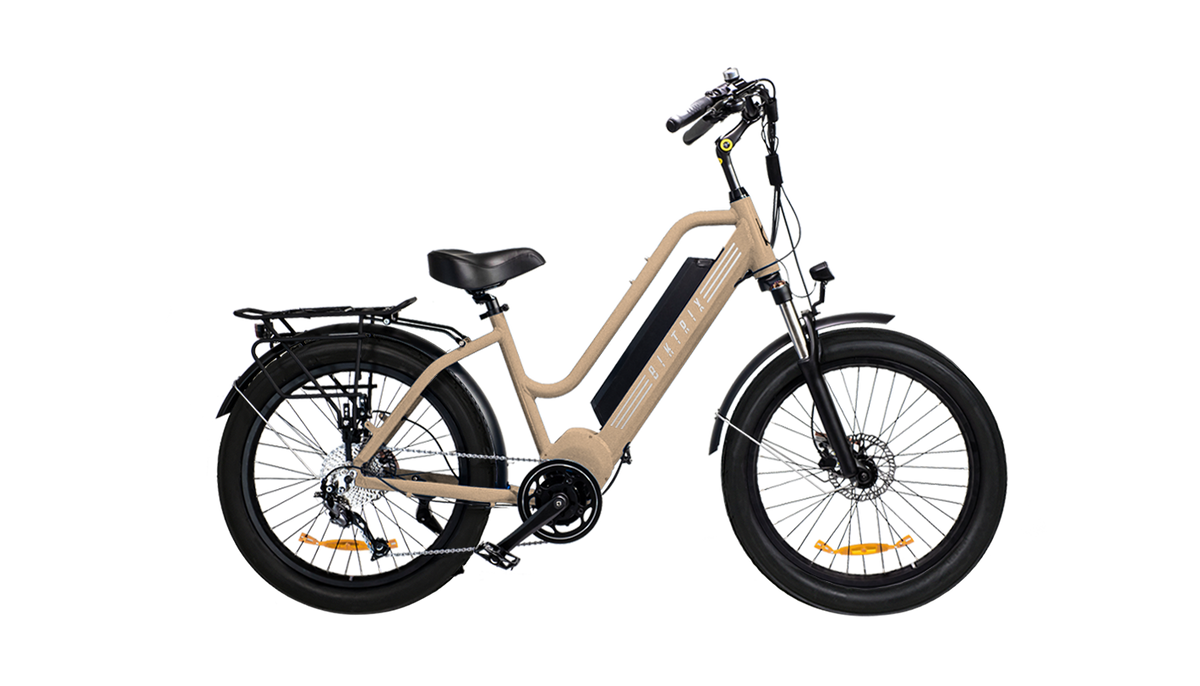

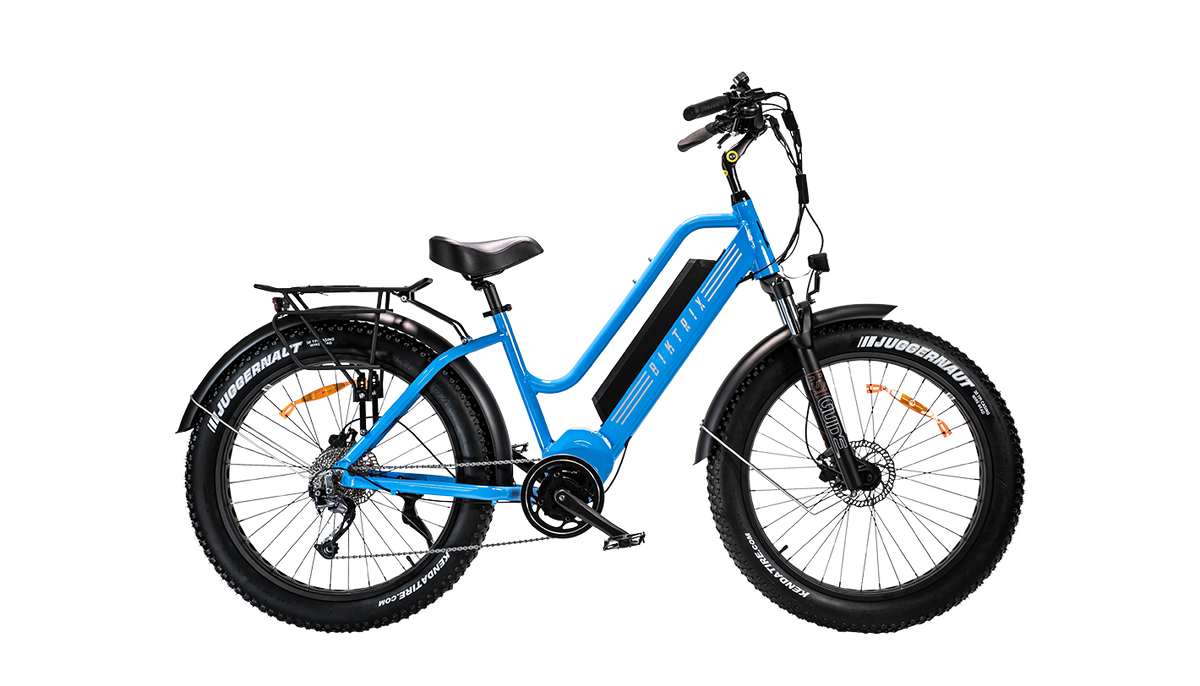

Please select your color
![]()
Technical Specifications
Frame6061 aluminum |
Front hub135mm 36h |
Seat post30.4mm* (24")/30.4mm (26") |
ForkMozo hydraulic w/ 80mm travel, lockout and preload |
Front axle5mm qr |
Seat post clampQr |
HeadsetThreadless 1-1/2 1-1/8 tapered |
Rear hub170mm 36h |
MotorBafang bbs02 mid-drive |
Shifter rearShimano alivio 9 speed trigger shifter |
Rear axle5mm qr |
Battery sizes52v 17ah |
Rear derailleurShimano alivio 9 speed |
RimsBlack 26" w/ round cutouts, black 24" w/ round cutouts |
DisplayDpc-18 |
Cassette12-36t |
Tire sizes24x4, 26x4 |
LightsHeadlight, taillight |
ChainKmc x9 |
Handlebar700mm wide, 80mm rise, 31.8mm clamp cruiser bars |
Assist typeCadence |
Crank set152mm arms w/44t chainring (24")/170mm arms w/44t chainring (26") |
StemSolid 90mm aluminum (24")/ (26") |
Assist levels1-5 |
Bottom bracketBafang square tapered |
GripsSlide on comfort grips |
ThrottleThumb throttle |
BrakesTektro e350 dual piston w/ 160mm rotors |
SaddleLarge saddle |
OtherRear rack, fenders, kickstand |
Brake leversTektro with adjustable reach and integrated motor cutoffs |
Frame6061 aluminum |
Front hub135mm 36h |
Seat post30.4mm* (24")/30.4mm (26") |
ForkMozo hydraulic w/ 80mm travel, lockout and preload |
Front axle5mm qr |
Seat post clampQr |
HeadsetThreadless 1-1/2 1-1/8 tapered |
Rear hub170mm 36h |
MotorBafang bbs02 mid-drive |
Shifter rearShimano alivio 9 speed trigger shifter |
Rear axle5mm qr |
Battery sizes52v 17ah |
Rear derailleurShimano alivio 9 speed |
RimsBlack 26" w/ round cutouts, black 24" w/ round cutouts |
DisplayDpc-18 |
Cassette12-36t |
Tire sizes24x4, 26x4 |
LightsHeadlight, taillight |
ChainKmc x9 |
Handlebar700mm wide, 80mm rise, 31.8mm clamp cruiser bars |
Assist typeCadence |
Crank set152mm arms w/44t chainring (24")/170mm arms w/44t chainring (26") |
StemSolid 90mm aluminum (24")/ (26") |
Assist levels1-5 |
Bottom bracketBafang square tapered |
GripsSlide on comfort grips |
ThrottleThumb throttle |
BrakesTektro e350 dual piston w/ 160mm rotors |
SaddleLarge saddle |
OtherRear rack, fenders, kickstand |
Brake leversTektro with adjustable reach and integrated motor cutoffs |
Size & Fittings
| 1 | Effective Top Tube Length |
600mm | 23.6in |
| 2 | Seat Tube Length (Classic Bike Size) |
440mm | 17.3in |
| 3 |
Reach |
400mm | 15.7in |
| 4 |
Stack |
620mm | 24.4in |
| 5 |
Chainstay Length |
480mm | 18.9in |
| 6 |
Standover Height |
480mm | 18.9in |
| 7 |
Head Angle |
65° | - |
| 8 |
Seat Angle |
70° | - |
| 9 |
Head Tube Length |
180 mm | 7.1 in |
| 10 |
Fork Length |
480mm | 18.9in |
| 11 |
Front Center |
740mm | 29.1in |
| 12 |
BB (Bottom Bracket) Drop |
40mm | 1.6in |
| 13 |
Fork Offset |
30mm | 1.2in |
| 14 |
Wheelbase |
1210mm | 47.6in |
| 15 |
Total Length |
1870mm | 73.6in |
| 16 |
Max Seat Height |
920mm | 36.2in |
| 17 |
Min Seat Height |
780mm | 30.7in |
| 18 |
Handlebar Height |
1100mm | 43.3in |
| 19 |
Weight (Without Battery) |
28kg | 61.7lb |
| 1 | Effective Top Tube Length |
610mm | 24in |
| 2 | Seat Tube Length (Classic Bike Size) |
440mm | 17.3in |
| 3 |
Reach |
400mm | 15.7in |
| 4 |
Stack |
670mm | 26.4in |
| 5 |
Chainstay Length |
520mm | 20.5in |
| 6 |
Standover Height |
520mm | 20.5in |
| 7 |
Head Angle |
65° | - |
| 8 |
Seat Angle |
68° | - |
| 9 |
Head Tube Length |
180 mm | 7.1 in |
| 10 |
Fork Length |
520mm | 20.5in |
| 11 |
Front Center |
750mm | 29.5in |
| 12 |
BB (Bottom Bracket) Drop |
40mm | 1.6in |
| 13 |
Fork Offset |
30mm | 1.2in |
| 14 |
Wheelbase |
1280mm | 50.4in |
| 15 |
Total Length |
2010mm | 79.1in |
| 16 |
Max Seat Height |
990mm | 39in |
| 17 |
Min Seat Height |
830mm | 32.7in |
| 18 |
Handlebar Height |
1180mm | 46.5in |
| 19 |
Weight (Without Battery) |
28.5kg | 62.8lb |
FAQ & Guides
- Guide Spare Parts Finder
Need A Hand?
Customer Reviews
Based on 147 reviews
82%
(120)
12%
(18)
4%
(6)
1%
(1)
1%
(2)
P
Just can’t say how much fun I am having with my new Stunner x6 It’s just a blast very powerful and comfortable to ride super at going up hills. I am trying to get all my friends to join in and get a e-bike. I would definitely recommend Biktrix and the stunnerX6. I had a question about the battery and they got back to me the next morning with the answer. Good Job
J
Several friends encouraged us to get e-bikes and they had good experiences with BIKTRIK. We were hesitant. We took the plunge - super happy!!
K
I am really enjoying my new ebike. I live in a rural community that is quite hilly. I wanted to have a bike I could ride to do my basic commuting and chores with and the Stunner is working out great. I recently went into town to pick up the mail and was a bit surprised by a large heavy box. Using the rat trap and a bungy cord I was easily able to get it home!
J
Lots of fun on this bike. It has lots of power to do all the hills without an issue. Very comfortable to ride.
Used assist wuite a bit the first 30 k and battery still said 100%
I'm very happy with the quality of the bike for the price.
K
I am 250 lbs. with two heavy panniers, and my ride to work is a hilly 18.7 miles, and I use less then 10% of the battery. I stay mostly in the 2-assist level but occasionally use 3. The lights are a battery killer, so I attach my own rechargeable back light. From the first ride you IMMEDIATELY feel the excellent build quality. Couldn't be happier. I also have a dual hub drive monster long hauler, and I love both hub and mid-drives. I have always been an avid cyclist, and at 60 yrs. old it is way more fun than any grown man should have!
D
So I bought one of your bikes and like a day later you come out with a new plan for a better battery. I hope that we can make this happen and I can get the better battery cuz I missed it by a day
G
And customer service Mr Hismak) was great! Just wish colors would match …
K
Stunner X 6
J
My bike just arrived in great condition - no problems. Just as promised, it’s a comfortable, zippy bike - especially up hills. The 4 inch tires are good to have on our gravel roads. Thank you, Biktrix team !
