Overview

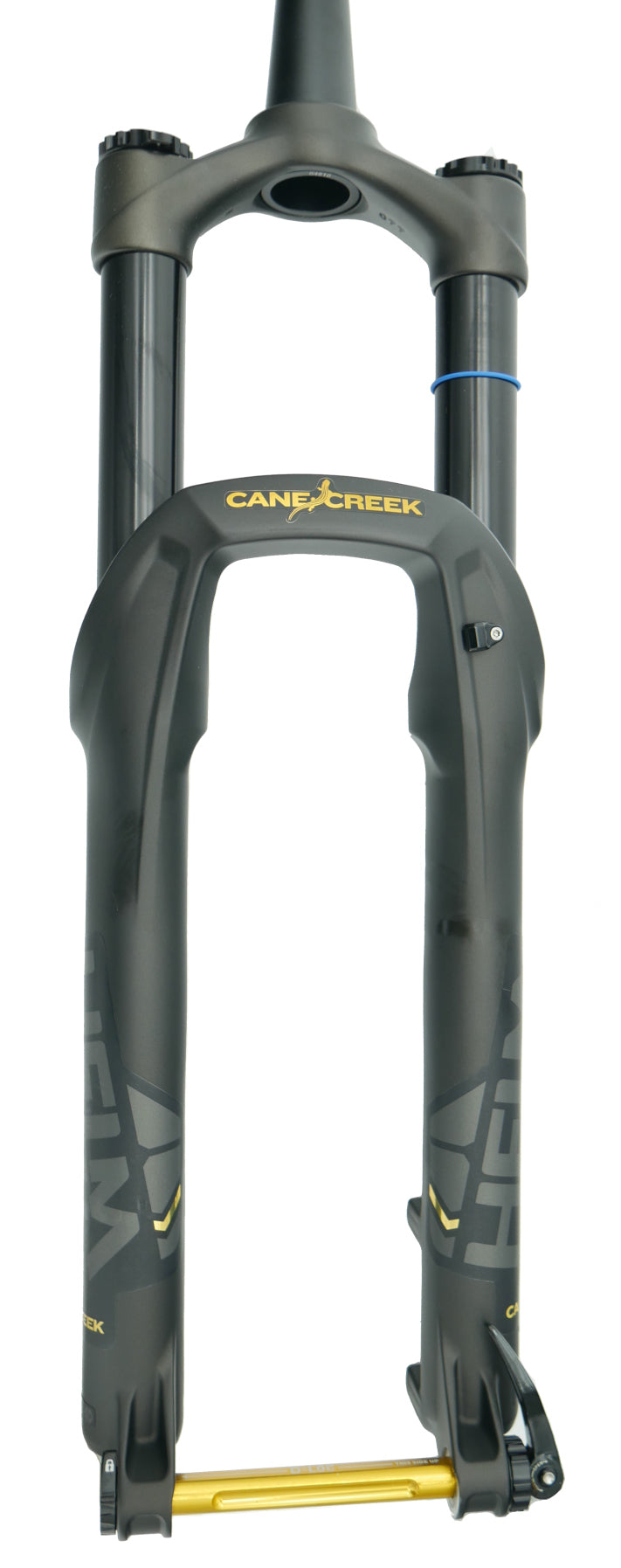

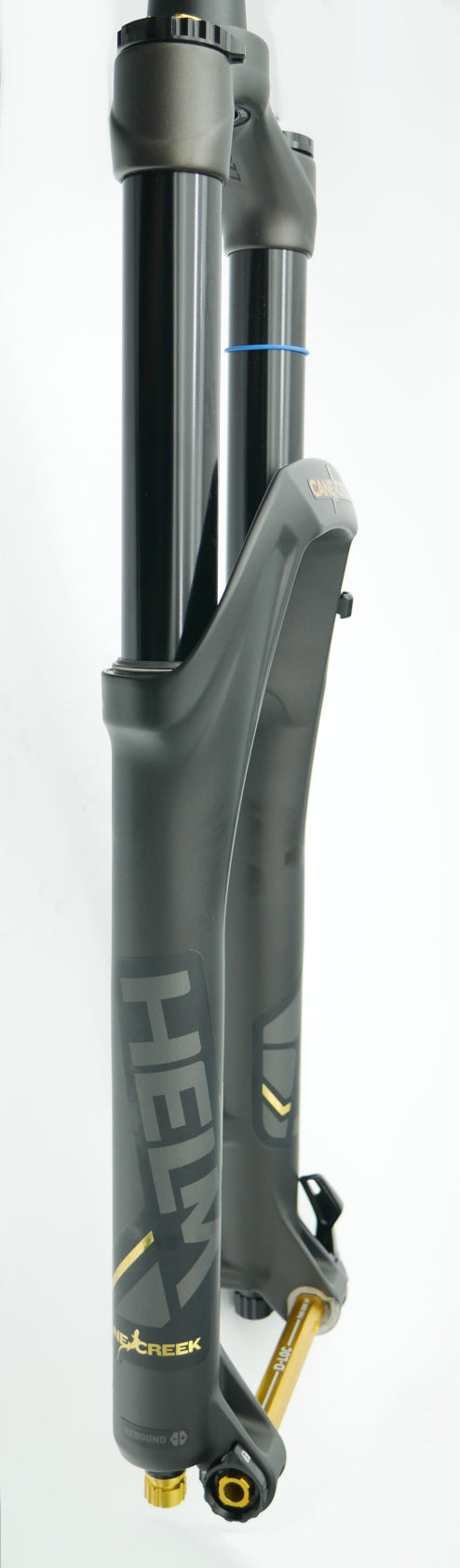

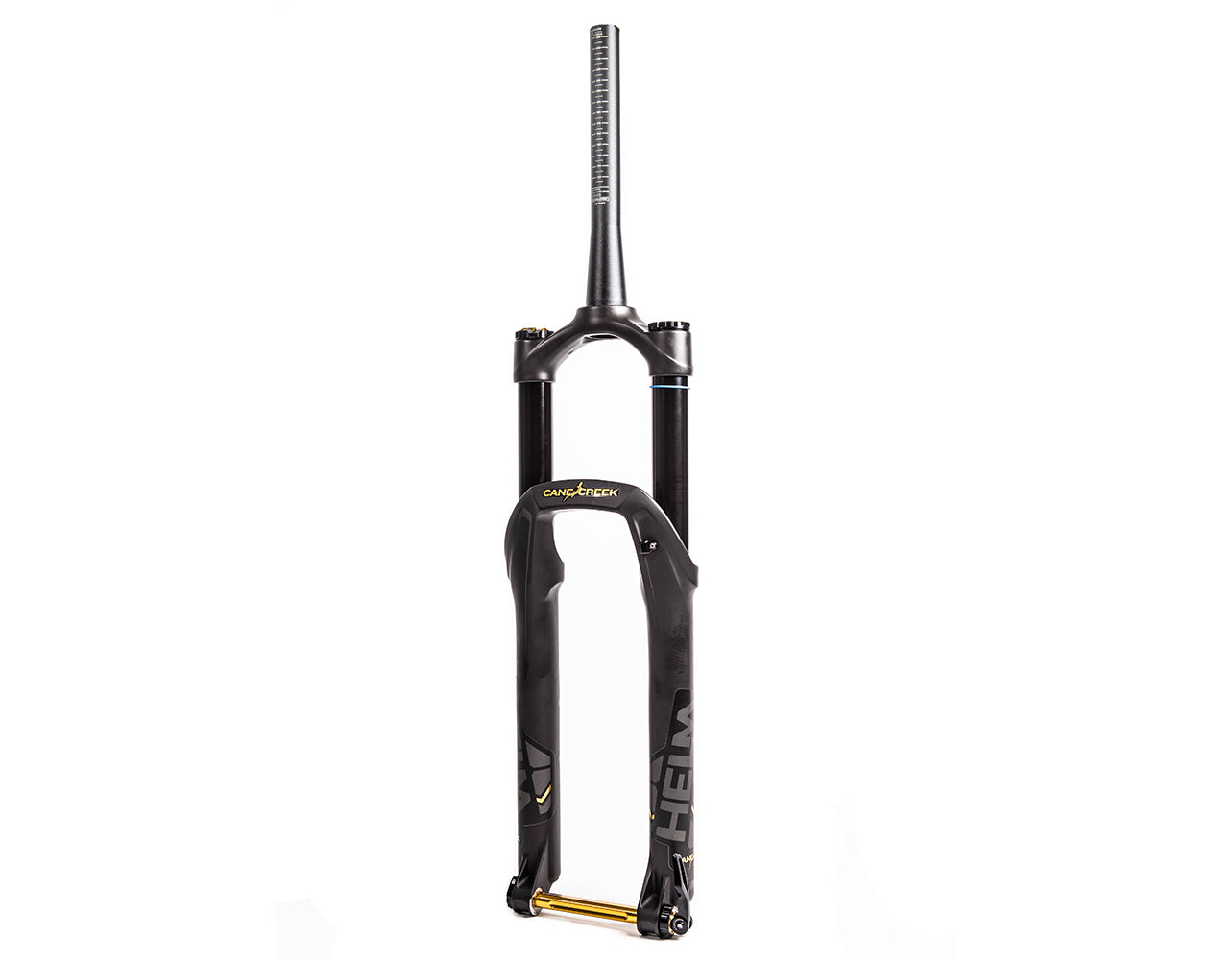

Upgrade your eBike's suspension with the Cane Creek Helm 27.5" Bike Fork. Designed for the rigors of off-road riding, this fork, compatible with disc brakes, features a beautifully tapered alloy steerer. Ensure yourself a smooth and comfortable ride over rough terrain. Note: Max tire size is 27.5x2.8"Technical Specifications
Travel
160 mm
Adjustments

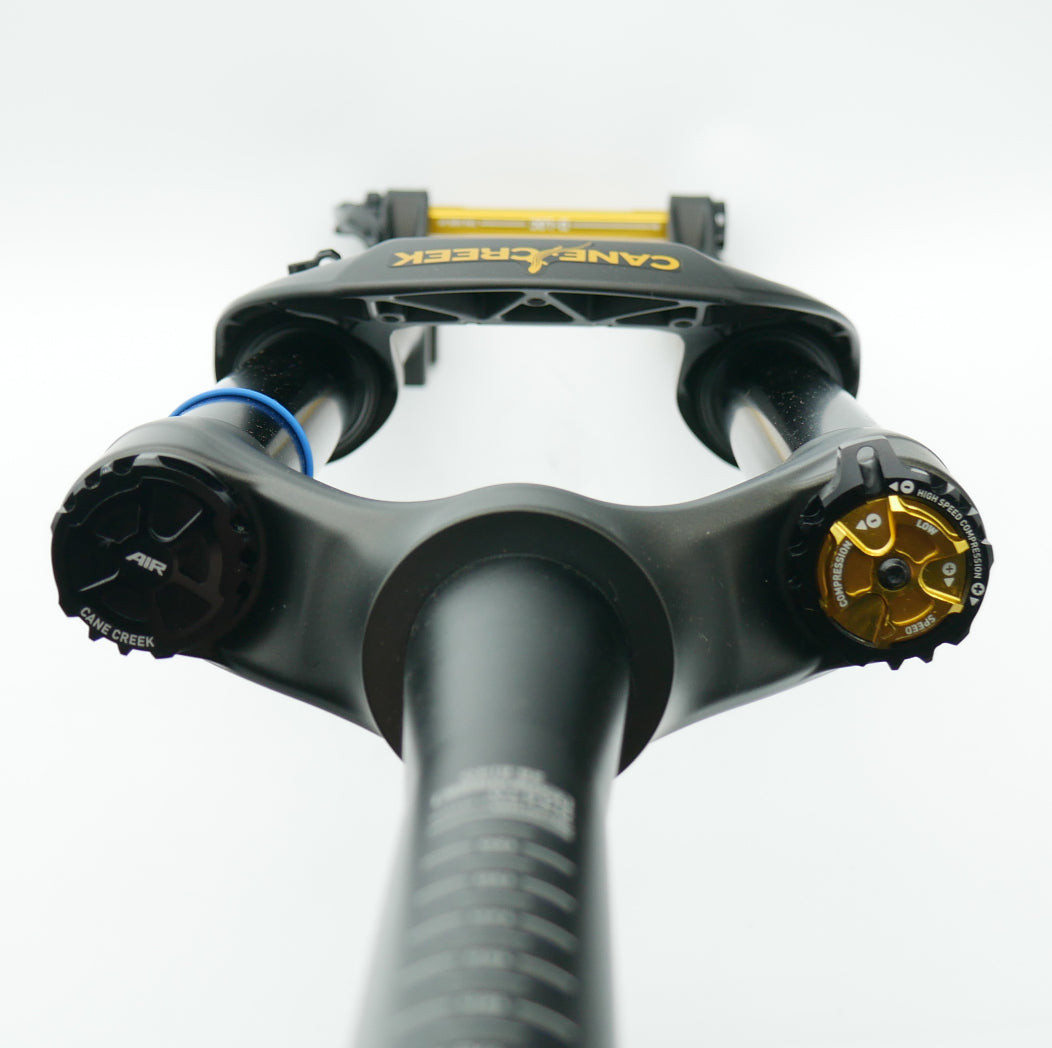

High Speed and Low Speed Compression, Rebound
Spring Type
Air Spring
Steerer Tube Length and Diameter
260mm, 1-1/8" 1-1/2" Tapered
Hub Spacing
110mm TA
Supported Axle

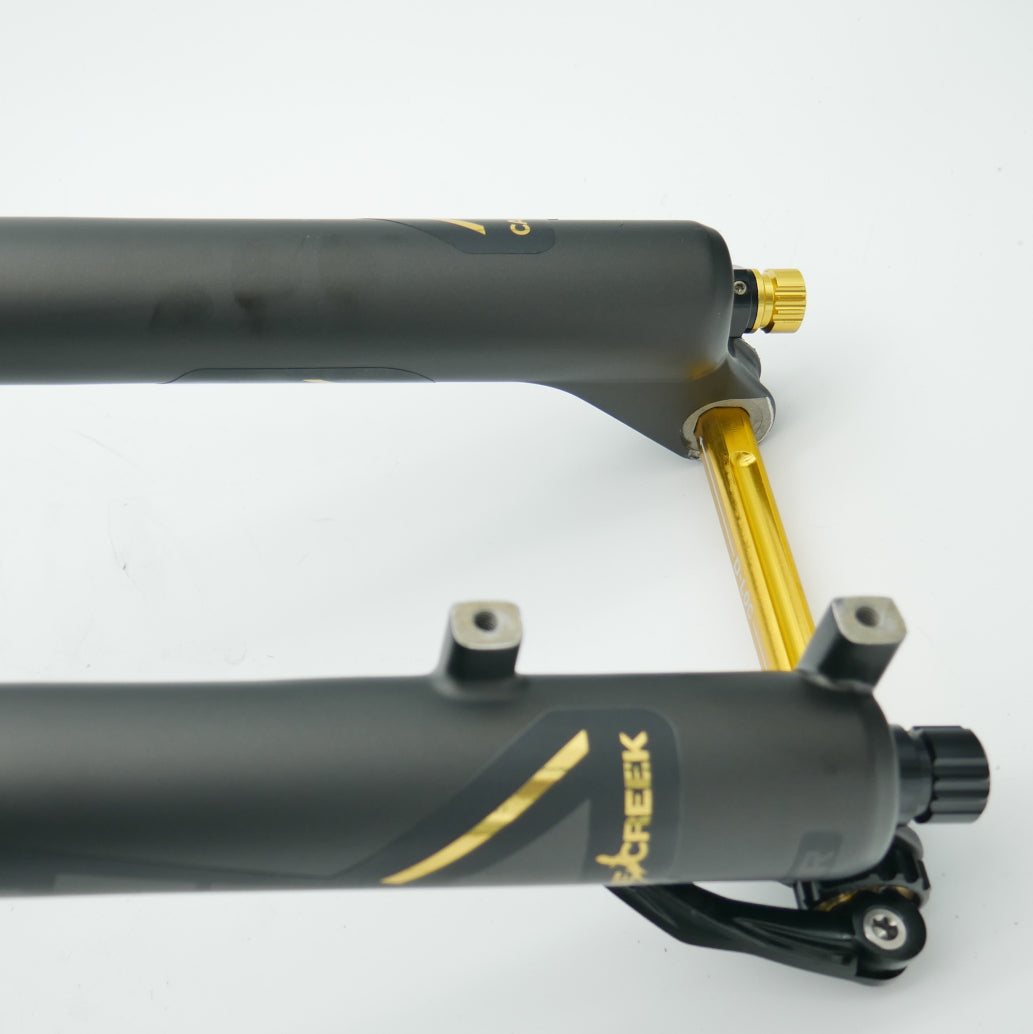

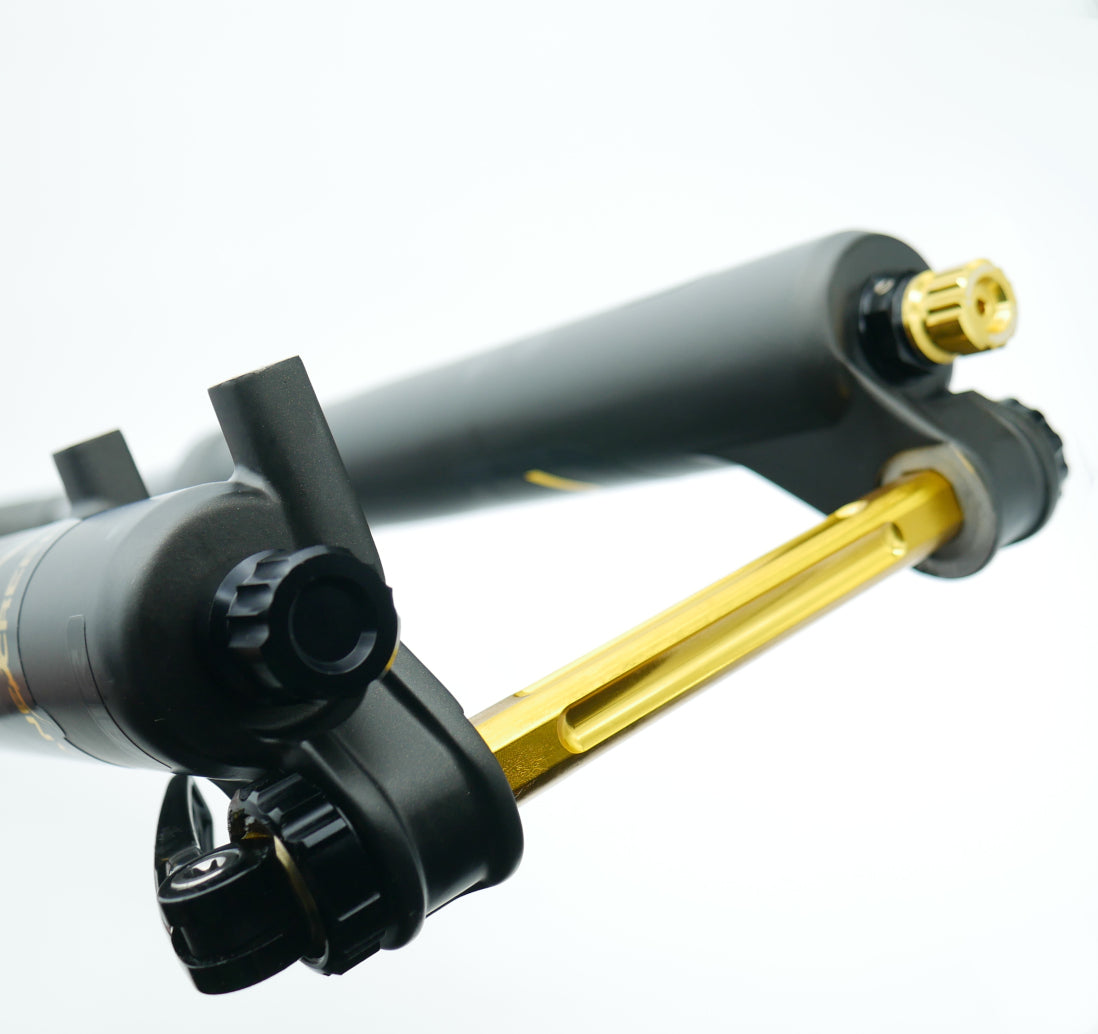

15x110mm QR Thru Axle - Included
Supported Wheel Sizes
27.5x3"
Brake Rotor Size Range
160mm - 203mm
Compatibility
| Bike Name | Compatible |
|---|---|
| Monte Capro Ultra 1/2 w/ 27.5 x 2.8" Boost Hub Spacing | |
| Monte Capro Ultra 1/2 w/ 26x4.8" Fat Tire Hub Spacing | |
| Monte Capro Lite | |
| Juggernaut Ultra Eagle 1 | |
| Juggernaut Ultra FS Pro 1 w/ 27.5x3" Boost Hub Spacing | |
| Juggernaut Ultra FS Pro 1 w/26x4" Fat Tire hub Spacing | |
| Juggernaut Ultra FS Pro 2/3 | |
| Juggernaut Ultra FS |
