1500W Mid-Drive

Motor Power

52V 25Ah 1300Wh

est. 60mi Range

+5'6"ft / 265lb

Max Load

Torque Sensor

Powerful Pedal Assist

25+ Point Quality

Control Checklist

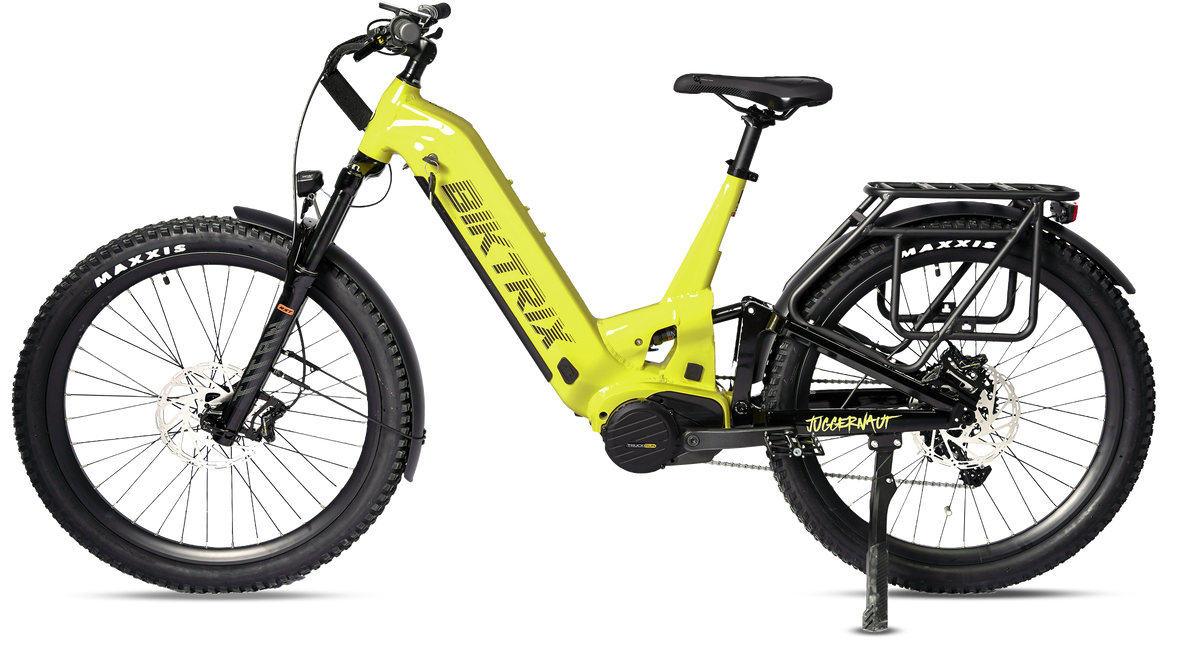

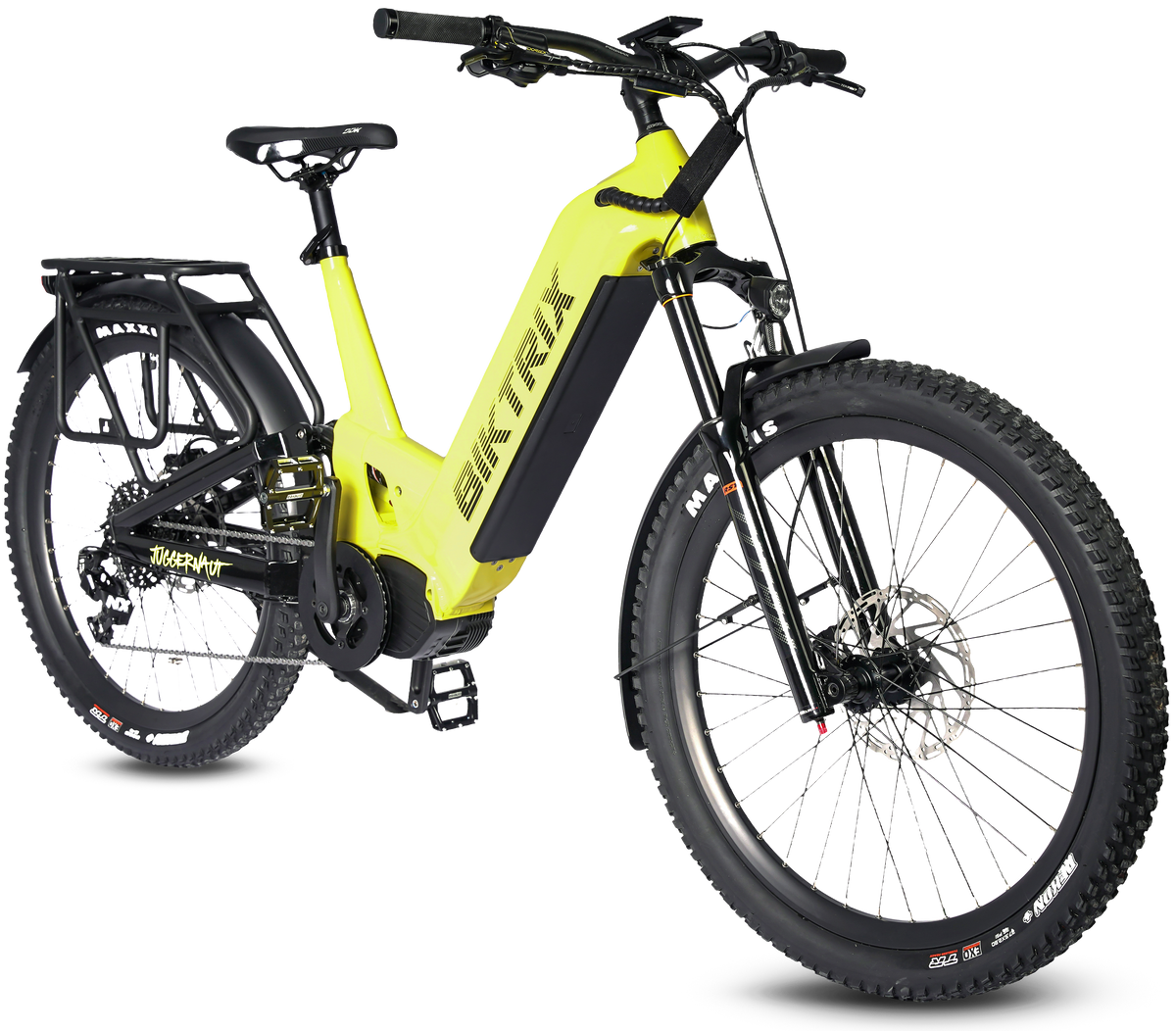

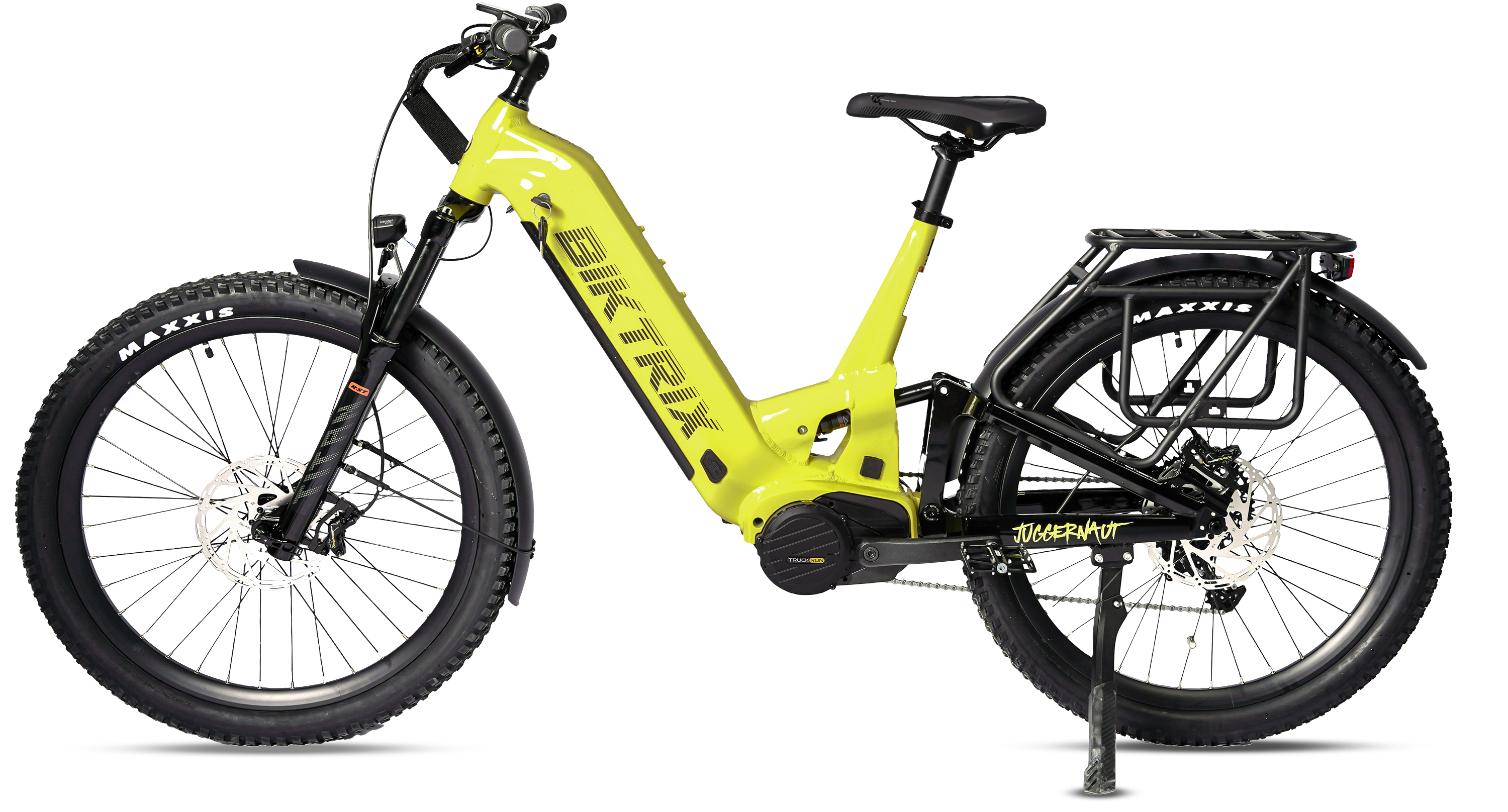

Juggernaut FS ST MTB

Name: Juggernaut FS Step-Thru MTB
Brand: Biktrix Electric Bikes
SKU: JFSSTL2728YL1
Price: 5499.0 USD
Availability: InStock
Rating: 4.62 (8 reviews)

4.6

$5,499 USD

Unleash the power of the Juggernaut FS Step-Thru, Biktrix’s latest masterpiece in electric mountain biking. Designed with the seasoned rider in mind, this Full Suspension, Low Step eMTB combines power, endurance, and comfort for an unparalleled riding experience.

Key Features:

Powerful Performance: Equipped with a 1500W 52V 30A Custom Bafang Ultra M620 Mid-drive Motor and boasting 200Nm+ of peak torque, conquer challenging hills with ease.
Long-lasting Endurance: A massive 52V 25Ah 1300Wh downtube battery ensures extended riding sessions, easily removable for hassle-free recharging.
Smooth Ride: Experience ultimate comfort with full suspension powered by the Rockshox 35 Gold TK and DNM AO-38RC Rear Suspension, offering customizable travel and rebound adjustment.
Safety First: Tektro E725 Quad-Piston Brakes and Adjustable Levers with Integrated Brake Cutoffs ensure powerful stops and customizable control.
Superior Traction: Dominate any terrain with Boost Spacing Wheelsets, 36H Solid Black Rims, and Maxxis Rekon tires, delivering exceptional grip and durability.
User-friendly Design: Effortlessly mount and dismount with the low step frame, while on-demand throttle and seamless pedal assistance provide instant power.
Customizable Comfort: Velo Bolt-On MTB Grips offer optimal control and comfort, with two frame sizes and a variety of color options for a personalized fit.

Benefits:

Effortlessly conquer challenging terrain with powerful motor and peak torque.
Enjoy extended riding sessions with long-lasting battery life.
Experience a smooth and tailored ride with customizable suspension.
Ride confidently with powerful brakes and customizable control.
Dominate any terrain with superior traction and durability.
Enjoy a user-friendly design for easy mounting and dismounting.
Personalize your comfort and style with customizable options.

Don’t miss out on the ultimate biking adventure – order your Juggernaut FS Step-Thru today and embark on your next thrilling journey.

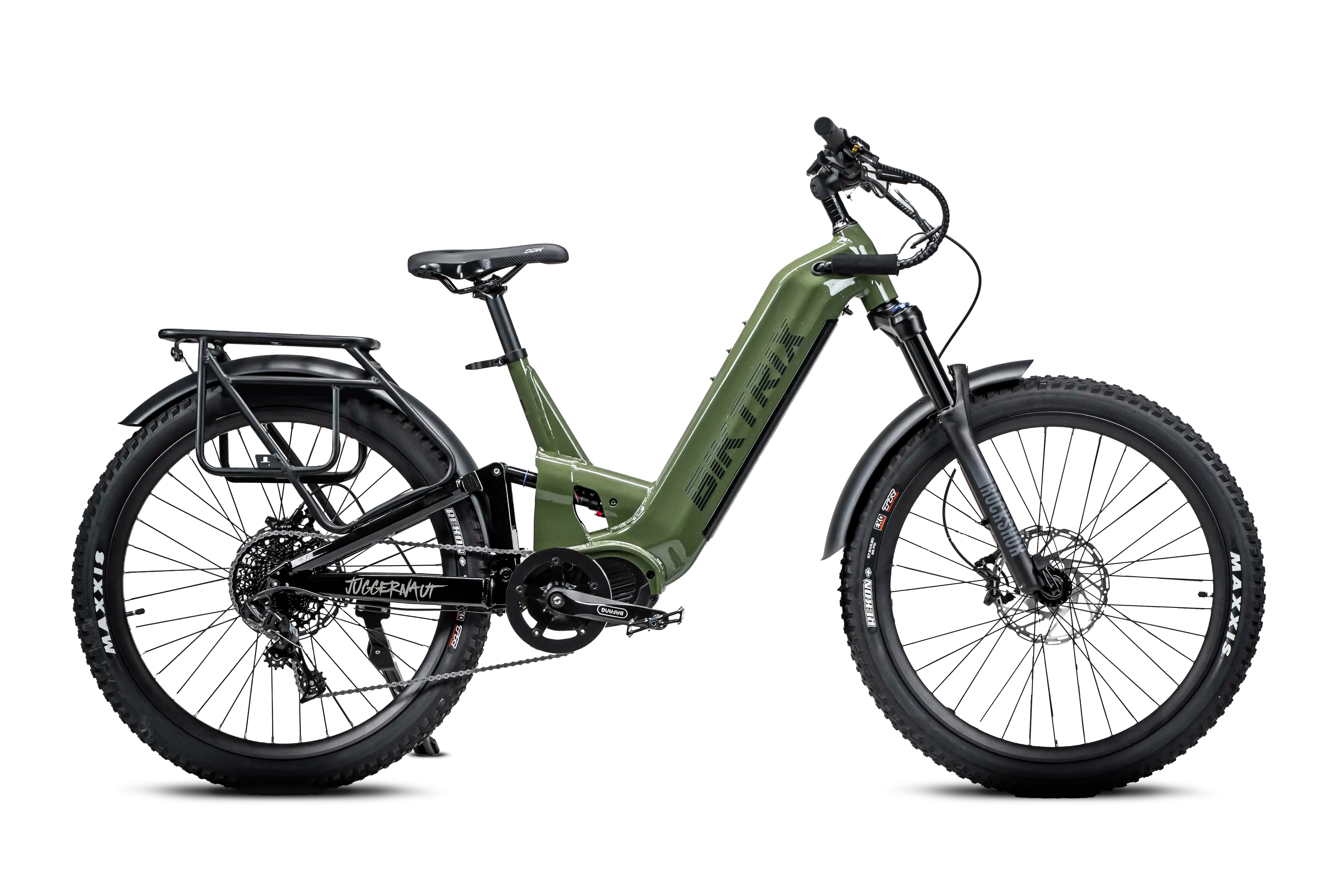

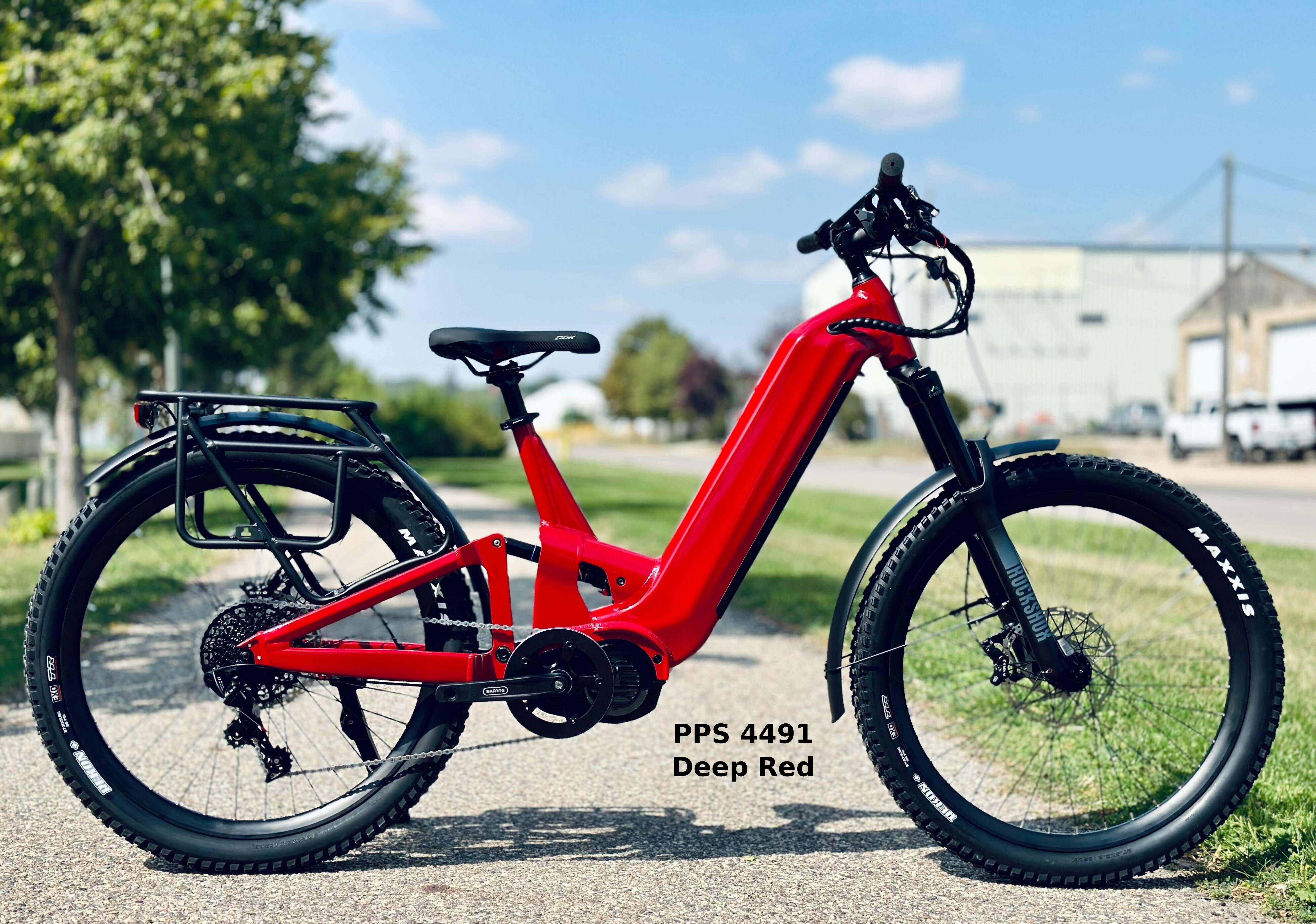

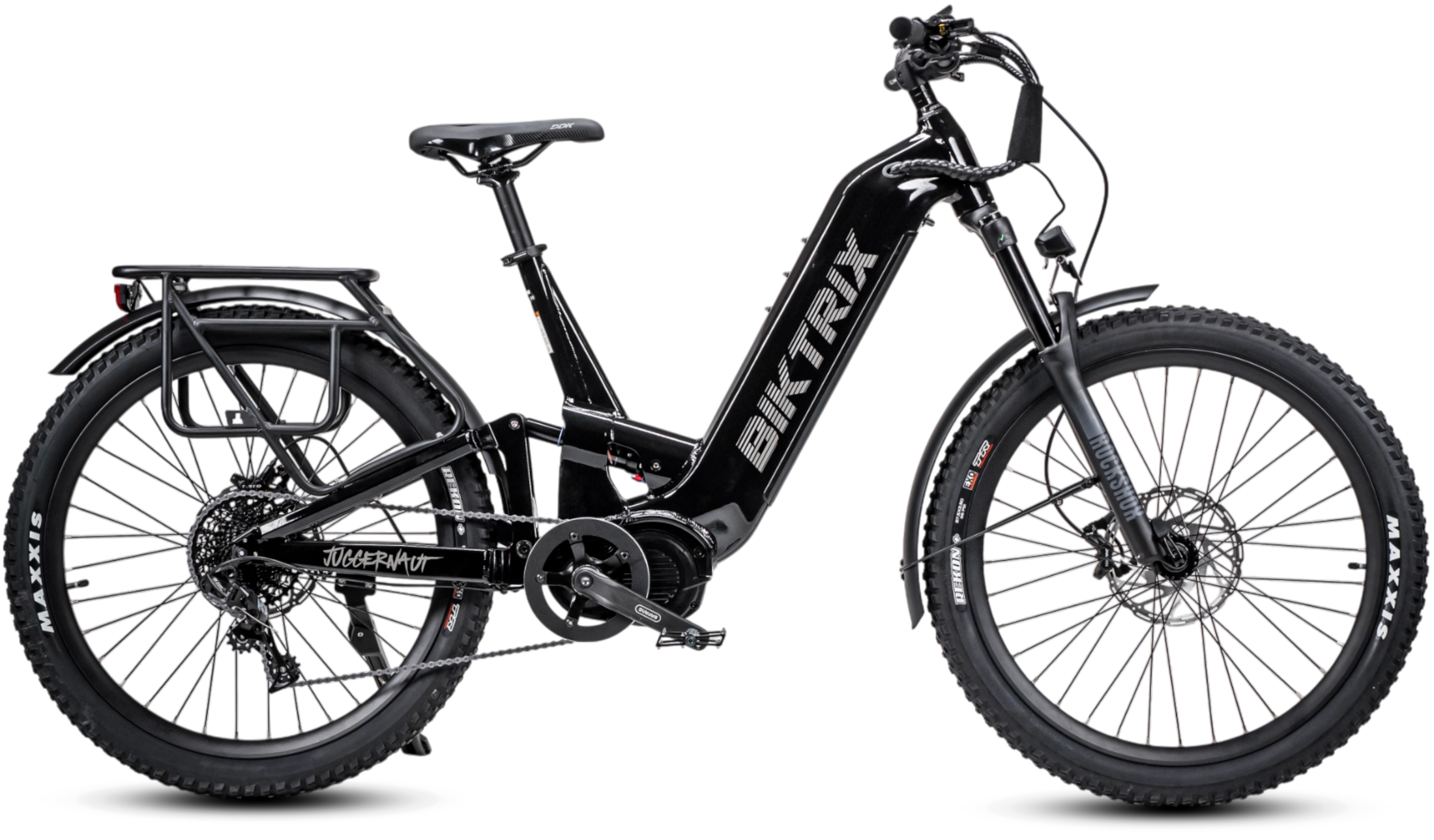

Choose Your Color

Choose your selected color or press Discard to return.

Ride Style

Frame Size

Colour Yellow

Advanced Options

Packages

Battery

Range Extender Battery

This option adds an extra battery that mounts on top of the frame providing up to double the range of the stock battery.

Upgrades

Brakes

Enhance your safety and control on every ride by upgrading your eBike brakes.

Fork

Elevate your ride's comfort and control by upgrading your ebike fork, ensuring a smoother journey over any terrain.

**The Upgraded Fork options are incompatible with the front fender included with the bike.

Biktrix A-Bars

The swept-back design of the Biktrix A Bars provides an upright riding position with multiple comfortable hand positions so you can enjoy further and more frequent rides!

Dropper Seatpost

Elevate your ride with a dropper seatpost for seamless adjustments and ultimate control on any terrain.

***Adding a dropper seatpost to your eBike will increase the minimum seatpost height by approximately 75mm/3"

**Free Quad-Piston Brake Upgrade and Rack + Fender Set Included!

Puncture Resistant Tire Liner Puncture Resistant Tire Liner

Enhance your ride with a tire liner—designed to add an extra layer of puncture resistance and help reduce the chances of flat tires, so you can enjoy more worry-free miles!

Headlight

Illuminate your path to adventure with an upgraded eBike headlight, delivering superior visibility and style for night-time riding.

Accessories

Canvas Pannier Bags

These Canvas bags offer great convenience and carrying capacity!

Warranty

Protect Your Bike

Secure your investment by opting for an extended warranty through the BiktrixCare+ plan.

$5,499 USD

Shipping Time

Leaves within 6-7 Business Days

Juggernaut FS

$5,499 USD

Product
Overview
Features
Specs/Sizing
Reviews

$5,499 USD

Leaves within 6-7 Business Days

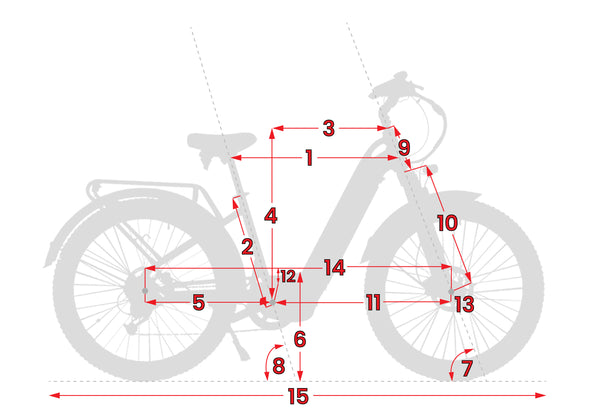

1	Effective Top Tube Length	650mm	25.6in
2	Seat Tube Length (Classic Bike Size)	480mm	18.9in
3	Reach	510mm	20.1in
4	Stack	630mm	24.8in
5	Chainstay Length	490mm	19.3in
6	Standover Height	545mm	21.5in
7	Head Angle	64°	-
8	Seat Angle	71°	-
9	Head Tube Length	145 mm	5.7 in
10	Fork Length	580mm	22.8in
11	Front Center	880mm	34.6in
12	BB (Bottom Bracket) Drop	35mm	1.4in
13	Fork Offset	40mm	1.6in
14	Wheelbase	1335mm	52.6in
15	Total Length	2070mm	81.5in
16	Max Seat Height	1030mm	40.6in
17	Min Seat Height	890mm	35in
18	Handlebar Height	1080mm	42.5in
19	Weight (Without Battery)	31.9kg	70.3lb

1	Effective Top Tube Length	670mm	26.4in
2	Seat Tube Length (Classic Bike Size)	450mm	17.7in
3	Reach	510mm	20.1in
4	Stack	630mm	24.8in
5	Chainstay Length	430mm	16.9in
6	Standover Height	530mm	20.9in
7	Head Angle	64°	-
8	Seat Angle	71°	-
9	Head Tube Length	145 mm	5.7 in
10	Fork Length	580mm	22.8in
11	Front Center	860mm	33.9in
12	BB (Bottom Bracket) Drop	35mm	1.4in
13	Fork Offset	40mm	1.6in
14	Wheelbase	1335mm	52.6in
15	Total Length	2070mm	81.5in
16	Max Seat Height	930mm	36.6in
17	Min Seat Height	840mm	33.1in
18	Handlebar Height	1050mm	41.3in
19	Weight (Without Battery)	31.9kg	70.3lb

1500W Mid-Drive

Motor Power

52V 25Ah 1300Wh

est. 60mi Range

+5'6"ft / 265lb

Max Load

Torque Sensor

Powerful Pedal Assist

25+ Point Quality

Control Checklist

Biktrix VS. Everyone

In the electrifying Battle of the Bikes, the Juggernaut FS Step-Through stands tall, ready to go head-to-head against the rest. Brace yourselves; this is no ordinary comparison – it's a clash of innovation and power.

52V 30A 1500W Bafang Ultra M620
52V 25Ah 1300Wh
Dual Battery Support
Tektro E725 Quad-Piston, 203mm Rotors
MTB (27.5x2.8) or FAT (26x4)
SRAM NX 11 Speed
Ships from Canada (Custom Built Orders)
Direct Support From Canada +1-866-BIKTRIX

Bafang M620 1000W Mid-Drive, 160 Nm Torque
48V 21Ah 1008Wh
No Dual Battery Support
Magura MT5e Quad-Piston, 203mm Rotors
FAT Only (26x4)
Shimano Alivio 9 Speed
Ships from China (Some Custom Built Options)
Direct Support From China (via Email)

Bafang M620 1000W Mid-Drive, 160 Nm Torque
48V 17Ah 816Wh
No Dual Battery Support
EUNORAU Dual-Piston, 180MM Rotors
Only MTB (27.5x2.8)
SRAM NX 11 Speed
Ships from Third-Party US Warehouse (No Custom Orders)
Direct Support From China (via Email)

Full Suspension. Full Power.

The Juggernaut FS Step-Thru is not a compromise; its full-suspension design using the 53mm Travel DNM AO-38RC rear suspension along with the front suspension lets you glide over any surface with total control.

Dominance Unleashed

Expand every journey and conquer any elevation with the electrifying 1500W Bafang Ultra M620 Mid-Drive motor delivering 200Nm peak torque with on-demand throttle or choose from 6 levels of torque + cadence sensing pedal assist

Battery Powerhouse

Elevate your off-road adventures with the Juggernaut FS Step-Thru, featuring a massive 52V 25Ah 1300Wh UL Certified default battery for up to 100 km on a single charge.

Extend your journey even further with the Range Extender option, pushing the limits to an impressive 160 km without breaking a sweat.

No Dual Battery

100km

Dual Battery

160km

Crush Any Obstacle.

Bafang M620 Mid-Drive Motor

The Bafang M620 Mid-Drive Motor provides 1500W of power and 200Nm of peak torque. The high-sensitivity torque sensor provides very predictable assistance when you need it.

52V 25Ah Battery

The included 52V25Ah removable downtube battery provides up to 100km of assistance. Need to go further? Add a secondary Range Extender Battery to tackle even longer distances!

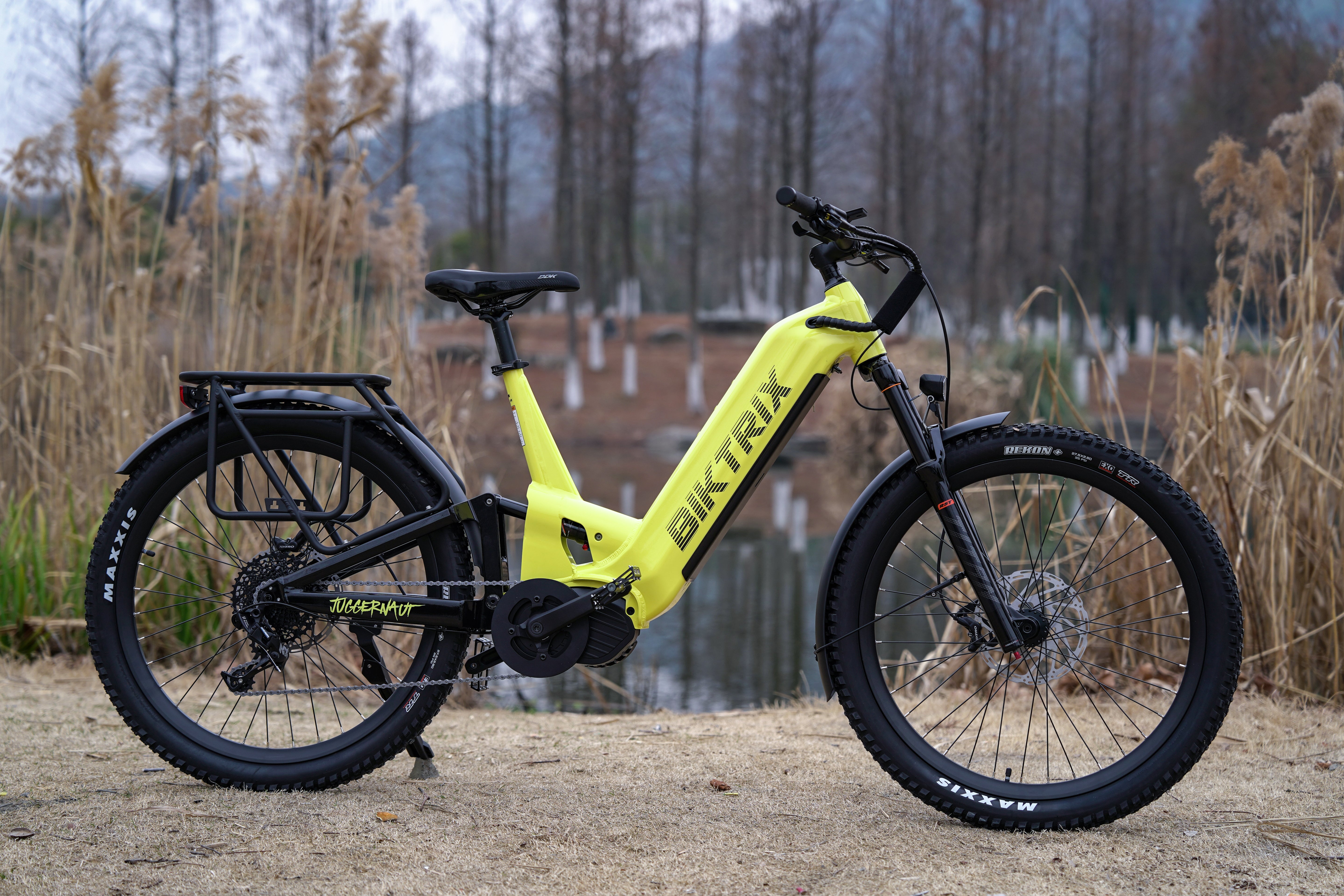

Step-Thru Full Suspension Frame

This unique frame design gives you the accessibility of a Step-Thru frame with the added performance and comfort of full suspension.

Quad-Piston Hydraulic Brakes

When it’s so easy to go fast, you need strong stopping power. These quad-piston brakes combined with 203mm rotors will quickly and reliably bring you to a halt.

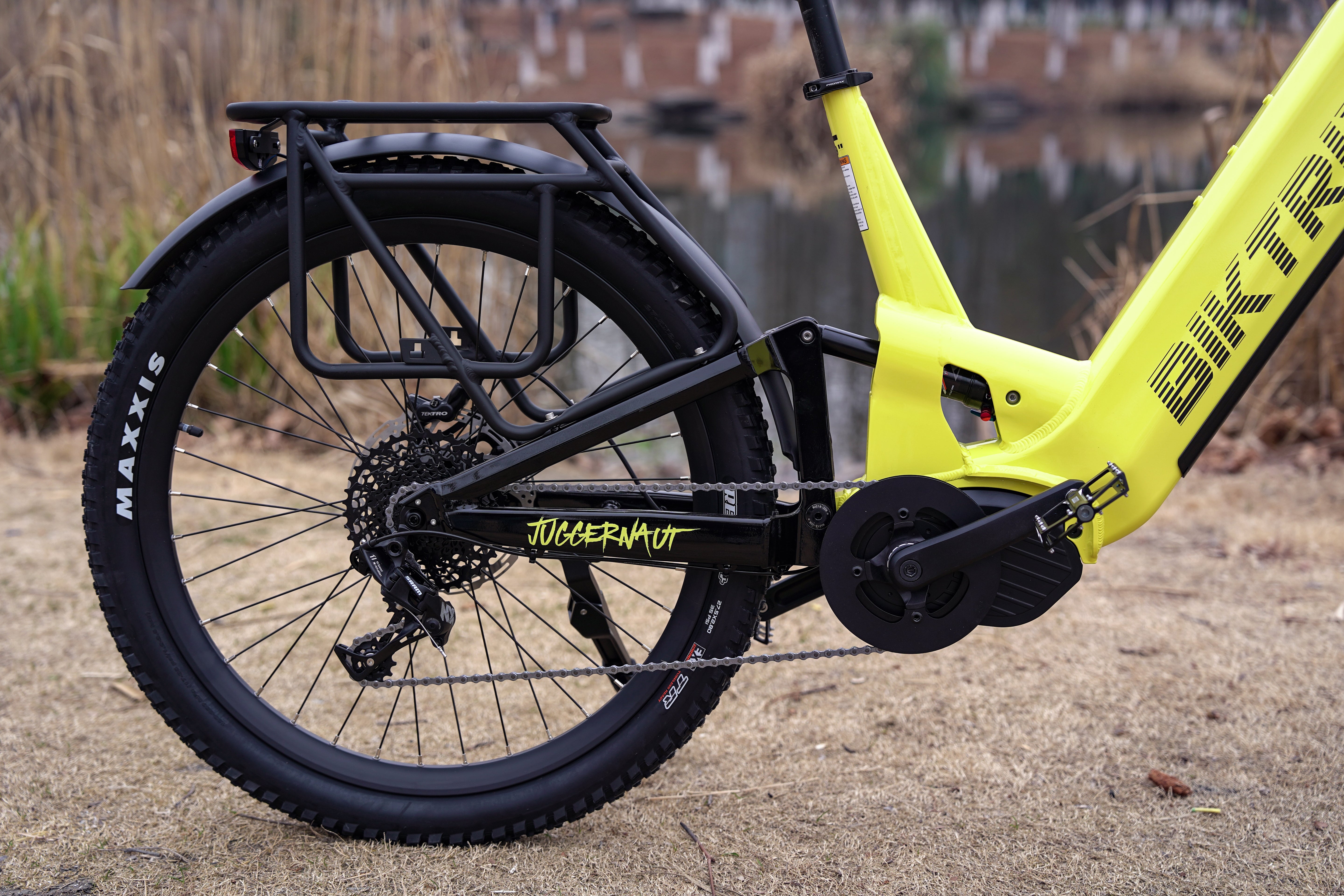

11 Speed SRAM NX Drivetrain

From climbing hills to holding maximum speed on the flats, the SRAM NX 11-Speed drivetrain has you covered.

Rear Suspension

The DNM Air Shock provides 53mm Travel with adjustable lockout and rebound giving you a comfortable ride regardless of your conditions.

LCD Display

The LCD Display shows all kinds of important information about your ride including speed, battery life, odometer, pedal assist level and more!

NEW

Suspension Fork

The RST Titan Suspension Fork features 140mm of travel along with adjustable lockout and rebound.

NEW

MTB Tires

The Maxxis Recon tires are lightweight yet grippy, a perfect choice for mixed street and trail riding.

Distance Range (Single Battery)

PAS 1 Pedal-Assist Lv.1		100km Up To
PAS 2 Pedal-Assist Lv.2		86km Up To
PAS 3 Pedal-Assist Lv.3		71km Up To
PAS 4 Pedal-Assist Lv.4		65km Up To
PAS 5 Pedal-Assist Lv.5		58km Up To
THRL Throttle Only		41km Up To

**Please note that information regarding the expected range on a single stock battery charge on one of our e-bikes is an estimate, not a guarantee. There are many factors that contribute to the actual, real-world range for an e-bike battery such as the age of the battery, temperature, level of assist, speed, payload, and terrain. Depending on these various conditions, it is possible to get less than the expected minimum range or greater than the expected maximum range.

Technical Specifications

Frame 6061 aluminum - 120mm frame travel	Front hub 110mm 36h ta	Seat post 31.6mm aluminum
Fork Rockshox 35 gold tk w/160mm travel, lockout and rebound adjustment	Front axle 15x110mm ta	Seat post clamp 38mm qr
Headset Threadless 1-1/2 1-1/8 tapered	Rear hub 148mm 36h ta	Motor Canbus bafang ultra m620
Shifter rear Sram nx 11 speed trigger	Rear axle 12mm ta	Battery sizes Total capacity of 52v 52v42ah 2184wh: 52v 25ah 1300wh (ul certified internal battery) + 52v 17ah 884wh (external range extender battery)
Rear derailleur Sram nx 11 speed	Rims Solid black, 36h, 40mm wide	Display Canbus dpc-010 lcd display / 860c
Cassette Sram 11-42t 11 speed	Tire sizes 27.5x2.8 maxxis rekon	Lights Integrated headlight
Chain Kmc e11s - 126 links	Handlebar 780mm wide, 8° rise, 9° backsweep promax w/31.8mm clamp size	Assist type Torque + cadence
Crank set 40t chainring w/170mm arms	Stem Promax 40mm w/31.8mm clamp	Assist levels 0-6 (0-4)
Bottom bracket Bafang isis	Grips Velo bolt-on mtb grips	Throttle Thumb throttle
Brakes Tektro e725 quad-piston brakes w/203mm rotors	Saddle Gel padded mtb saddle	Other Rear rack, fenders, kickstand
Brake levers Tektro adjustable w/ integrated brake cutoffs	Rear suspension Dnm ao-38rc w/53mm travel, 210 eye-to-eye, lockout + rebound adjustment

Frame 6061 aluminum - 120mm frame travel	Front hub 110mm 36h ta
Seat post 31.6mm aluminum	Fork Rockshox 35 gold tk w/160mm travel, lockout and rebound adjustment
Front axle 15x110mm ta	Seat post clamp 38mm qr
Headset Threadless 1-1/2 1-1/8 tapered	Rear hub 148mm 36h ta
Motor Canbus bafang ultra m620	Shifter rear Sram nx 11 speed trigger
Rear axle 12mm ta	Battery sizes Total capacity of 52v 52v42ah 2184wh: 52v 25ah 1300wh (ul certified internal battery) + 52v 17ah 884wh (external range extender battery)
Rear derailleur Sram nx 11 speed	Rims Solid black, 36h, 40mm wide
Display Canbus dpc-010 lcd display / 860c	Cassette Sram 11-42t 11 speed
Tire sizes 27.5x2.8 maxxis rekon	Lights Integrated headlight
Chain Kmc e11s - 126 links	Handlebar 780mm wide, 8° rise, 9° backsweep promax w/31.8mm clamp size
Assist type Torque + cadence	Crank set 40t chainring w/170mm arms
Stem Promax 40mm w/31.8mm clamp	Assist levels 0-6 (0-4)
Bottom bracket Bafang isis	Grips Velo bolt-on mtb grips
Throttle Thumb throttle	Brakes Tektro e725 quad-piston brakes w/203mm rotors
Saddle Gel padded mtb saddle	Other Rear rack, fenders, kickstand
Brake levers Tektro adjustable w/ integrated brake cutoffs	Rear suspension Dnm ao-38rc w/53mm travel, 210 eye-to-eye, lockout + rebound adjustment

Frame

6061 aluminum - 120mm frame travel

Front hub

110mm 36h ta

Seat post

31.6mm aluminum

Fork

Rockshox 35 gold tk w/160mm travel, lockout and rebound adjustment

Front axle

15x110mm ta

Seat post clamp

38mm qr

Headset

Threadless 1-1/2 1-1/8 tapered

Rear hub

148mm 36h ta

Motor

Canbus bafang ultra m620

Shifter rear

Sram nx 11 speed trigger

Rear axle

12mm ta

Battery sizes

Total capacity of 52v 52v42ah 2184wh:
52v 25ah 1300wh (ul certified internal battery) +
52v 17ah 884wh (external range extender battery)

Rear derailleur

Sram nx 11 speed

Rims

Solid black, 36h, 40mm wide

Display

Canbus dpc-010 lcd display / 860c

Cassette

Sram 11-42t 11 speed

Tire sizes

27.5x2.8 maxxis rekon

Lights

Integrated headlight

Chain

Kmc e11s - 126 links

Handlebar

780mm wide, 8° rise, 9° backsweep promax w/31.8mm clamp size

Assist type

Torque + cadence

Crank set

40t chainring w/170mm arms

Stem

Promax 40mm w/31.8mm clamp

Assist levels

0-6 (0-4)

Bottom bracket

Bafang isis

Grips

Velo bolt-on mtb grips

Throttle

Thumb throttle

Brakes

Tektro e725 quad-piston brakes w/203mm rotors

Saddle

Gel padded mtb saddle

Other

Rear rack, fenders, kickstand

Brake levers

Tektro adjustable w/ integrated brake cutoffs

Rear suspension

Dnm ao-38rc w/53mm travel, 210 eye-to-eye, lockout + rebound adjustment

Size & Fittings

1	Effective Top Tube Length	650mm	25.6in
2	Seat Tube Length (Classic Bike Size)	480mm	18.9in
3	Reach	510mm	20.1in
4	Stack	630mm	24.8in
5	Chainstay Length	490mm	19.3in
6	Standover Height	545mm	21.5in
7	Head Angle	64°	-
8	Seat Angle	71°	-
9	Head Tube Length	145 mm	5.7 in
10	Fork Length	580mm	22.8in
11	Front Center	880mm	34.6in
12	BB (Bottom Bracket) Drop	35mm	1.4in
13	Fork Offset	40mm	1.6in
14	Wheelbase	1335mm	52.6in
15	Total Length	2070mm	81.5in
16	Max Seat Height	1030mm	40.6in
17	Min Seat Height	890mm	35in
18	Handlebar Height	1080mm	42.5in
19	Weight (Without Battery)	31.9kg	70.3lb

1	Effective Top Tube Length	670mm	26.4in
2	Seat Tube Length (Classic Bike Size)	450mm	17.7in
3	Reach	510mm	20.1in
4	Stack	630mm	24.8in
5	Chainstay Length	430mm	16.9in
6	Standover Height	530mm	20.9in
7	Head Angle	64°	-
8	Seat Angle	71°	-
9	Head Tube Length	145 mm	5.7 in
10	Fork Length	580mm	22.8in
11	Front Center	860mm	33.9in
12	BB (Bottom Bracket) Drop	35mm	1.4in
13	Fork Offset	40mm	1.6in
14	Wheelbase	1335mm	52.6in
15	Total Length	2070mm	81.5in
16	Max Seat Height	930mm	36.6in
17	Min Seat Height	840mm	33.1in
18	Handlebar Height	1050mm	41.3in
19	Weight (Without Battery)	31.9kg	70.3lb

FAQ & Guides

Manual eBike Display Manuals
FAQ I just received my eBike - what next?
FAQ I just assembled my eBike, what next?
FAQ Recommended Tire Pressure and Inflation Levels
FAQ eBike Battery Care Guide
Guide Spare Parts Finder
Manual How to Adjust Your Rear Suspension

Need A Hand?

Chat With Us

We are always excited to hear from you. Just click the button below to activate chat now.

Chat Now

Book A Virtual Demo

Our eBike specialists can help you find your dream eBike and answer any questions you may have.

Book An Appointment Now

Give Us A Ring

24/7 e-mail support. 8/5 phone and live chat with eBike Specialists to help you in anyway.

+1-866-BIKTRIX

How was the performance of the bike?:

Poor

Excellent

How comfortable was the bike?:

Uncomfortable

Very Comfortable

How was the bike build?:

Poor

Excellent

What a wonderful experience this was and will continue to be

First let’s start with the fact that we (my wife and I)went to the local Kelowna BC showroom to see and test drive a few different models. Dillon Terry, the showroom manager, was really friendly and knowledgeable. He was patient and so respectful and he took the time to explain the differences between the models and helped us test drive 7 different models. We are not new to e-bikes, having owned each two different make and models before. After searching the web and comparing models, we decided that buying local and from a Canadian manufacturer made best sense. I selected the Juggernaut FS Step-Thru for the full suspension and torque of the motor. The ride is smooth and the motor makes the steepest hill of the region feel like you are on a flat road. Service is excellent, friendly and if you go during the week you will also be met by a furry four legged friend. I recommend shopping there. They have so many models and variation on models that you should find the best fit for you. It’s also nice to be able to personalize the colour of your bike if that is something you wish for.

Absolutely perfect, power is awesome in any mode brakes are amazing love the smaller tires instead of the 4 inch Clayton was a pleasure to deal with, bent over backwards to put the deal together

Adjust power provided by modes

I need to be able to adjust the power provided by each individual mode. The throttle reveals that there is a lot of power provided by the motor, but the six modes are underpowered. This should be a way to increase the amount of power provided by each mode. And I’m not talking about How you can decide how much power is provided each mode, you know the 25 %, 50 %, 75%, 100%. I’m talking about when you’re at 100% of let’s say the mode Boost, that the motor provides much more power. And I’m talking about the power that is revealed with the throttle. The bike has huge power, but it’s not delivered fully in the modes. Can this be fixed?

Great bike!

Received the FS Step thru fat tire bike and assembled it a month or so ago and have ridden it a few times. Was worried about the display as the handle bar was protruding from the box a little bit but everything worked as it should. All the parts look good and seem really solid. Assembly was a smooth process...bike is heavy so smaller individuals might need a 2nd pair of hands to take it out of the box and to hold the forks up to get the front tire on. Instructions were good, would be nice to have torque values for all the bolts and nuts. Once everything was put together (took a couple hours), the bike rides very smooth, and the default battery lasts way longer than I thought. A long bike ride in the 'sport' setting for me only got the battery to 75% so lots of rides per charge..battery is easy to take off and charge. There aren't many hills around here so battery drain would be more if you're in a hilly area. Chain, sprocket, gear changes, etc were all great right off the bat. Glad I went with the large size frame (6' 1", 32" inseam). Not a complaint, just a heads up for those coming from a basic mountain bike, this bike is heavier than I thought it would be and the fat tires are huge compared to a basic mountain tire. Next purchase would include the regular mountain tires but I'll have to try this beast out in the snow this year to see how the fat tires do...I wanted a bike to ride around the farm all year if possible. Overall, very happy with the purchase and the bike so far!

What to do next

Really like the bike, has a fantastic ride didn’t have to make any adjustments. Spent a lot of time on both front and rear fender noises. Rear one was loose from the start. Now I realize I don’t have 11th gear and have delayed shifting when shifting up. The pannier bag doesn’t fit the rack properly. All in all, I still like the bike, and hope to resolve this.

YOU WON'T BE DISAPPOINTED

Been on my New FS Step-Thru for over week now. This RidgeRunner is an allrounder. From across town, the city trails, to an adventure up a mountain, such FUN! The Power of the Bafang M620 motor, the 100km distance of the 52V 1300Wh battery, fast cruising speeds, and the comfort of the Ride. YOU'L LOVE IT... and won't be disappointed.

I STRONGLY RECOMMEND the Biktrix FS ST eBike,

My do it all Juggernaut.

I cannot say enough about my Juggernaut, so I'm gonna try my best to keep this short & truthful as possible. This was not my first ebike. My first ebike was manufactured by a major brand and was more expensive than my Biktrix purchase. In short, the Biktrix bike blows my previous bike ( hint: begins with a T) right outta the water. There is simply no comparison. I absolutely love my bike! Biktrix is also not cheap to purchase but the craftsmanship & quality are top tier. You guys build the Bugatti of ebikes as far as I am concerned. I waited for this bike from time of order to in my garage of almost half a year & if I could do it all again I'd do the same thing because of the end result. Lastly, even more than my FS, what impressed me most was your customer service. I communicated by phone with Clayton (ext.108) throughout this process and he was genuine & professional to deal with. He is the real deal and I know he really cared about my 100% satisfaction. So my hats off to Mr. Thomas and his team at Biktrix! Keep doing exactly what your doing because actions always speak louder than words. Sincerely, Dave

Love my Juggernaut FS Step-Thru MTB

The bike arrived within 4 days of my order and was protected in a great reusable shipping box. This is my 6th ebike over 7 years and I can do my own periodic maintenance. My first ride was perfect. The setup was perfect. Shifting was soooo smooth and quiet. I had a 1000 watt Bafang on my older fat tire so I was familiar with what to expect. The acceleration on the Juggernaut literally threw me back on my seat…. far faster than my previous fat tire. I’m impressed with the quality that was put into this bike.

1500W Mid-Drive

52V 25Ah 1300Wh

+5'6"ft / 265lb

Torque Sensor

25+ Point Quality

Choose Battery

Upgrade Brakes

Upgrade Motor

Upgrade Headlights

Why BiktrixCare+?

Shipping Time

Sizing / Fittings

L | 19"

M | 17"

Effective Top Tube Length

Seat Tube Length (Classic Bike Size)

Reach

Stack

Chainstay Length

Standover Height

Head Angle

Seat Angle

Head Tube Length

Fork Length

Front Center

BB (Bottom Bracket) Drop

Fork Offset

Wheelbase

Total Length

Max Seat Height

Min Seat Height

Handlebar Height

Weight (Without Battery)

Effective Top Tube Length

Seat Tube Length (Classic Bike Size)

Reach

Stack

Chainstay Length
