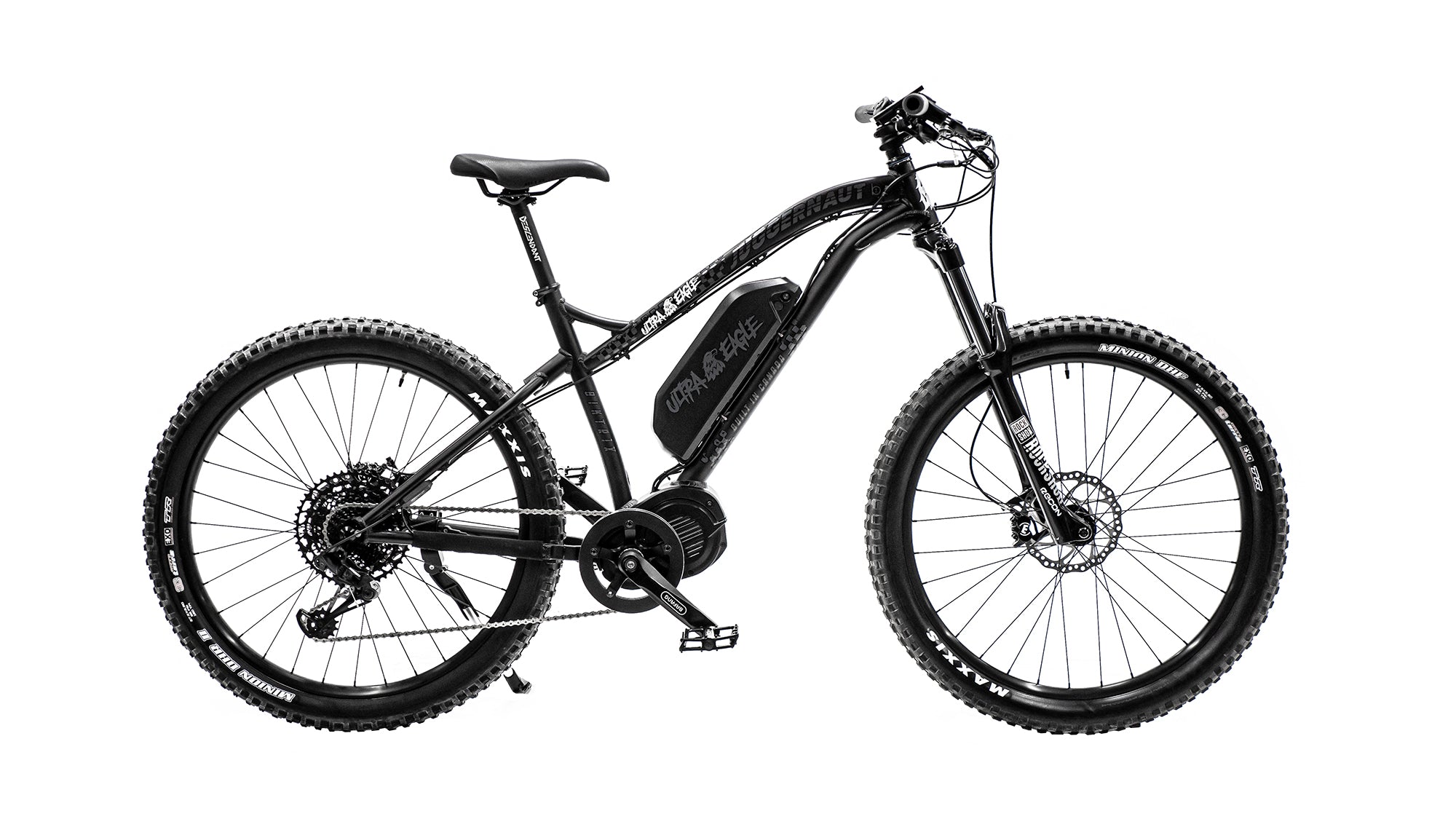

Biktrix Juggernaut Ultra Eagle Electric Bike

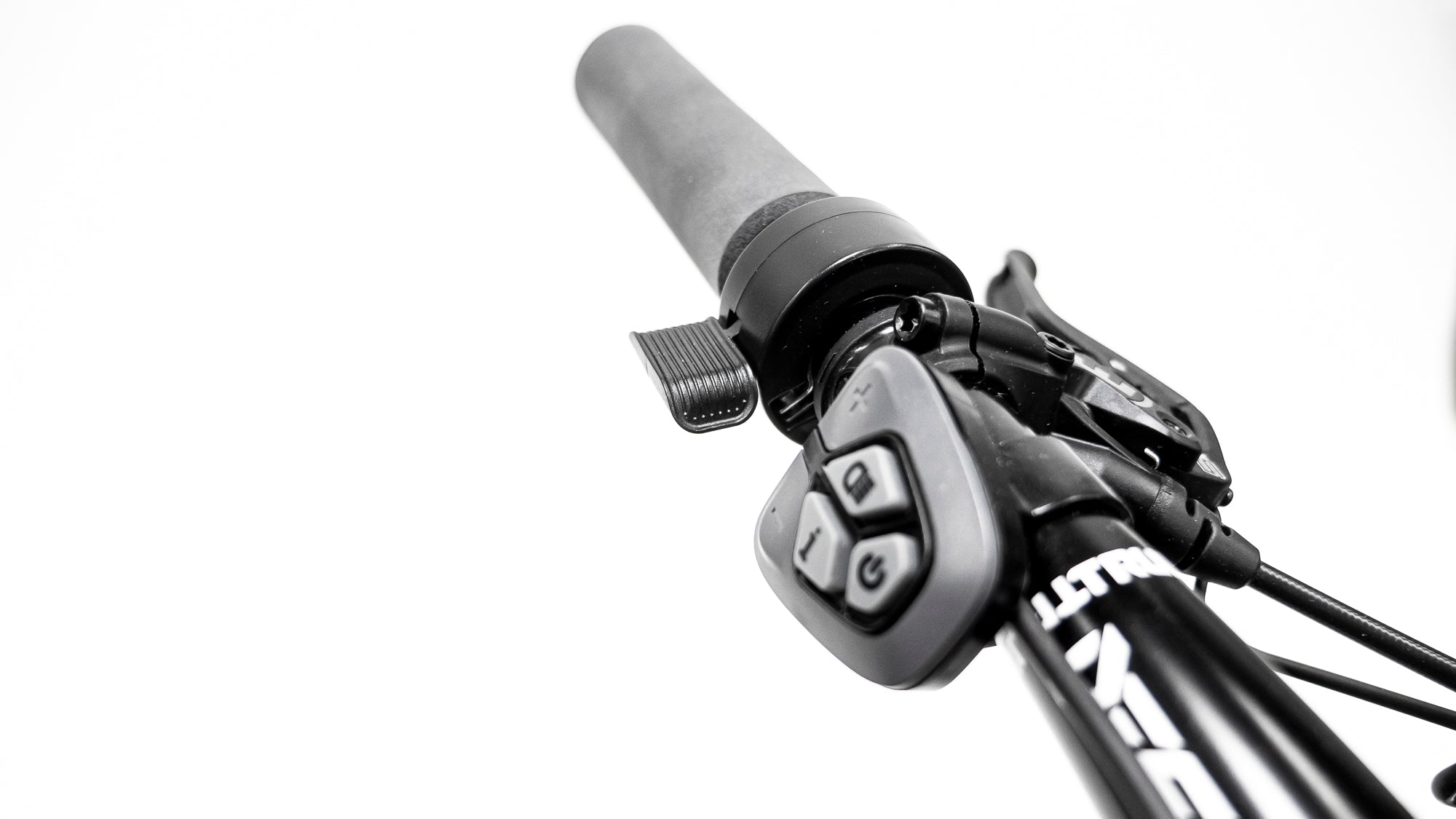

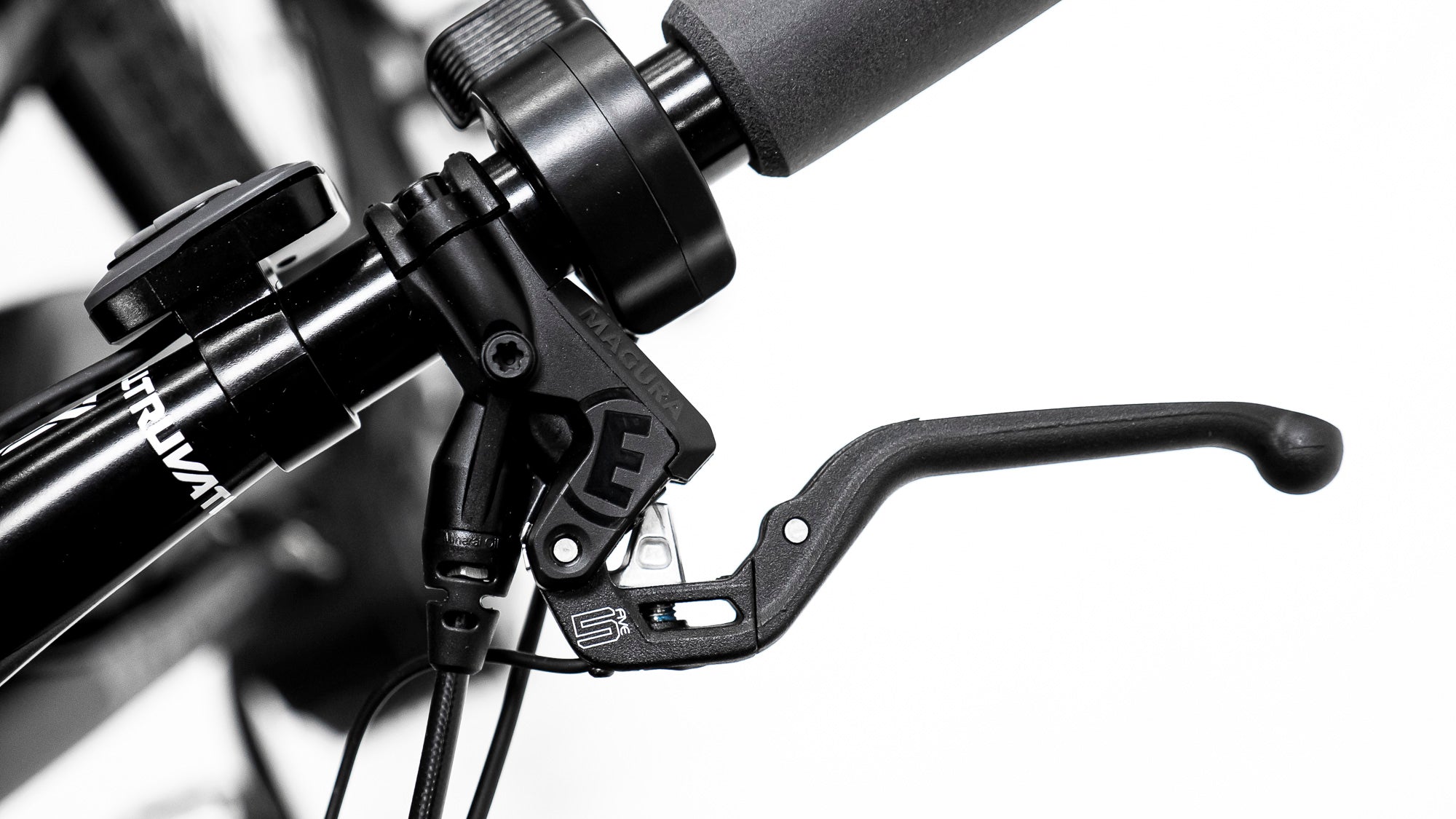

Ultra Eagle Electric Bike Handlebars and Controls

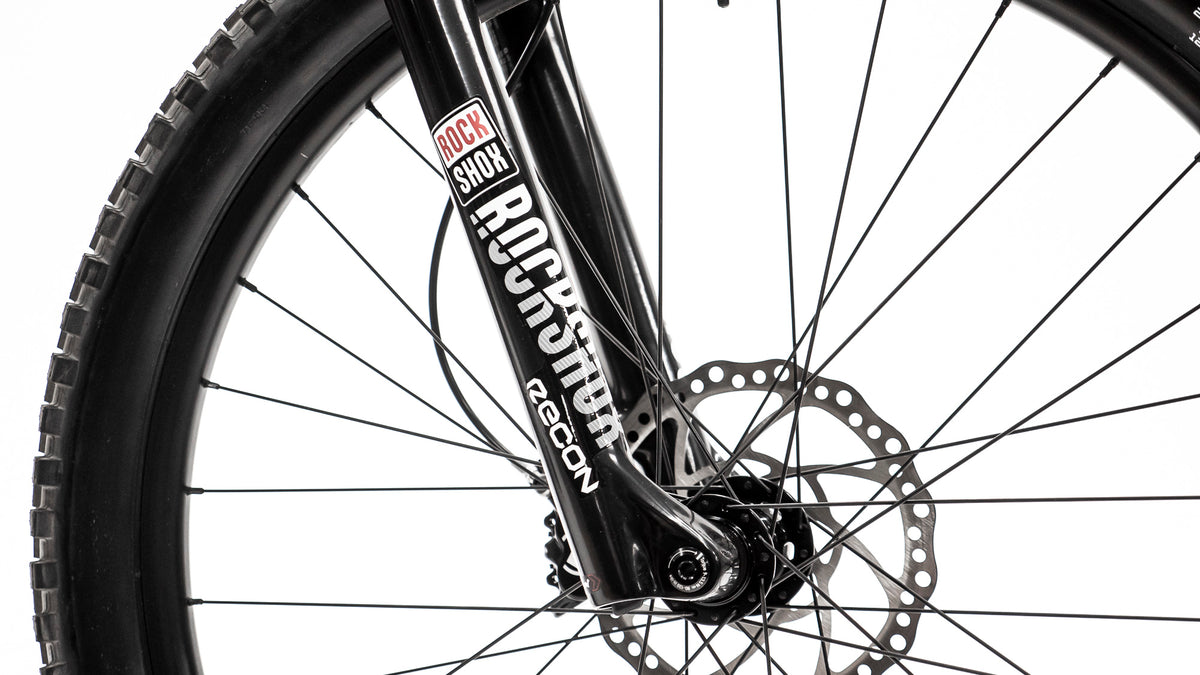

Biktrix Ultra Eagle Wheels with Rockshox

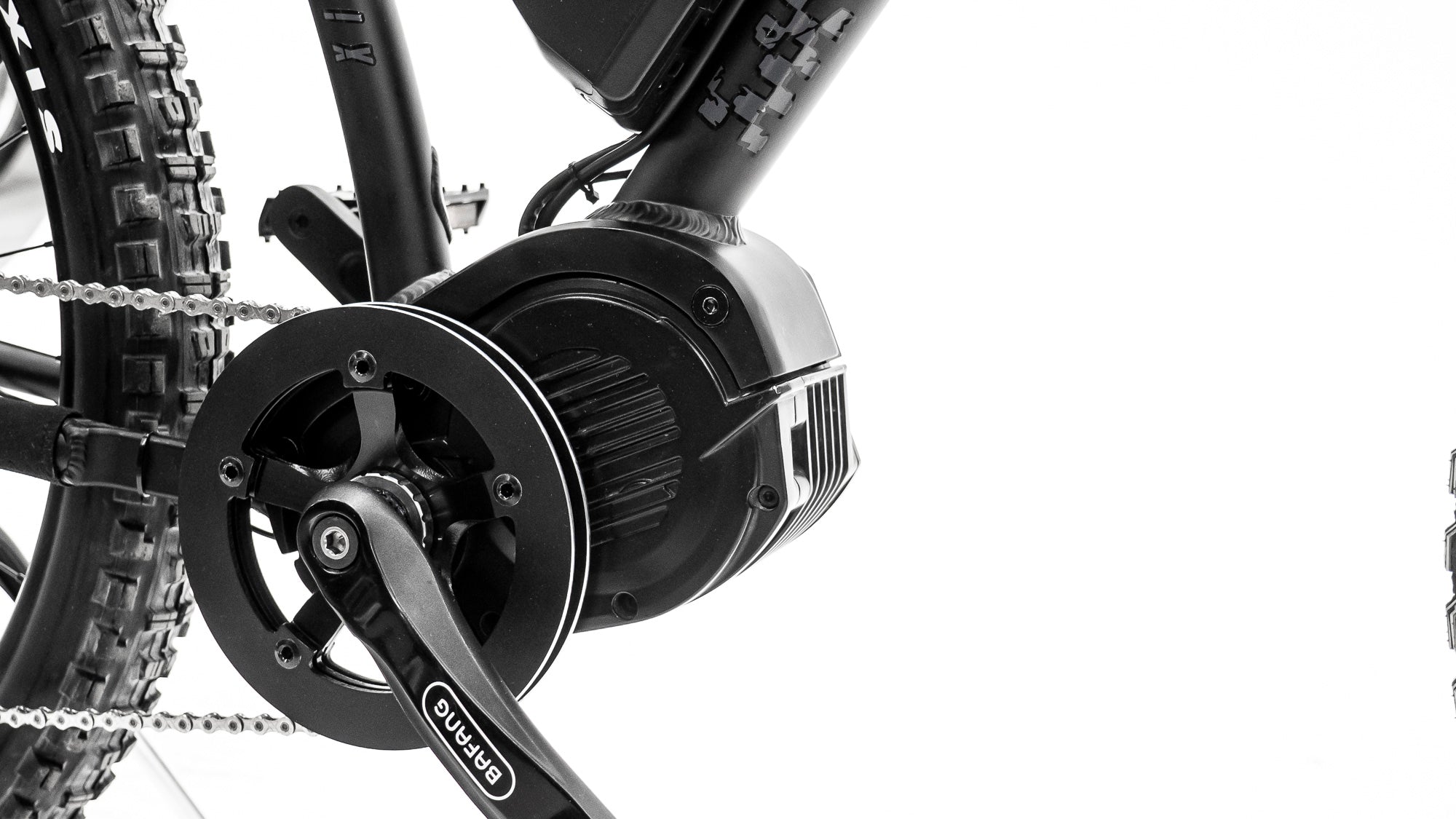

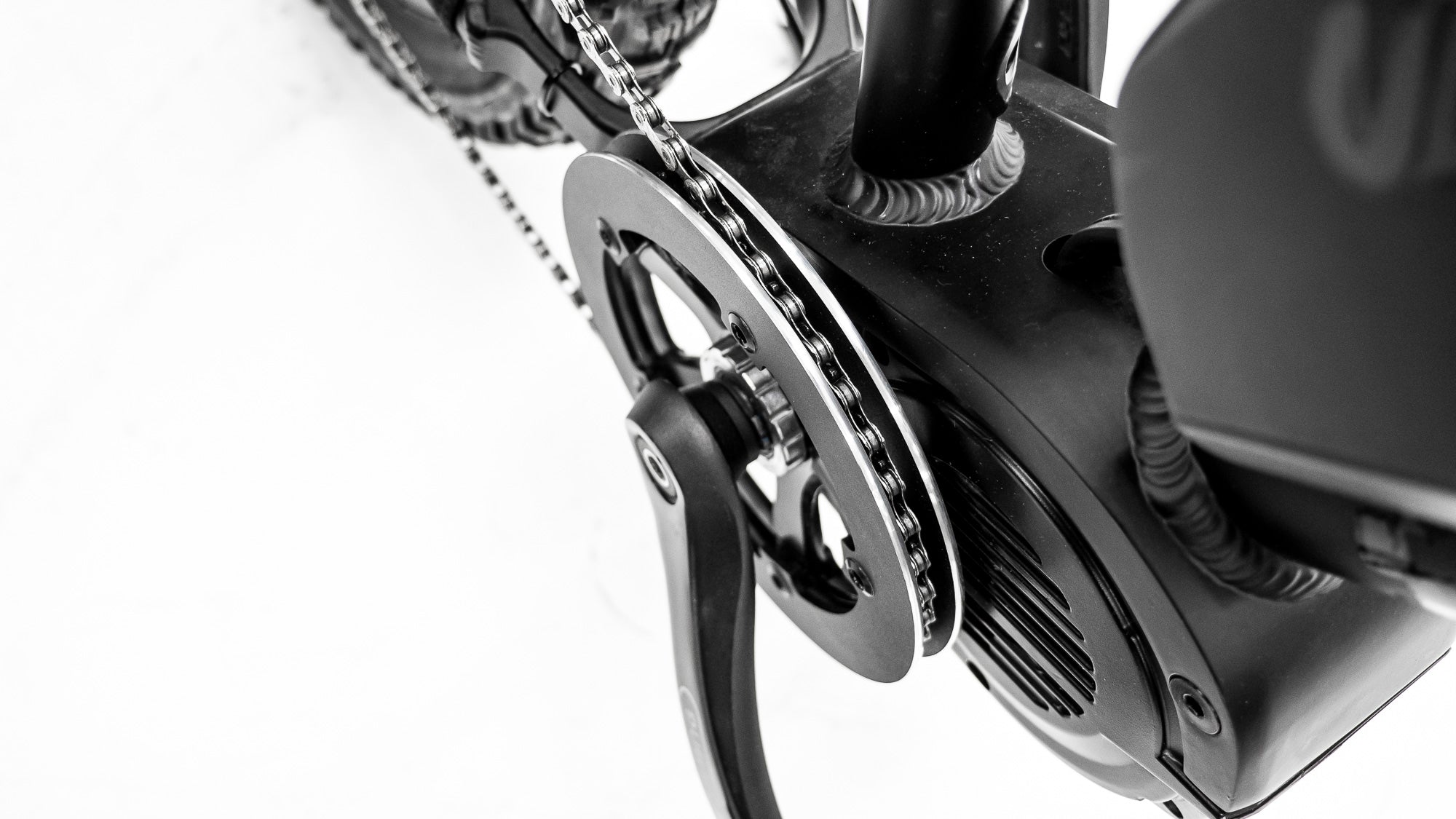

Biktrix Ultra Eagle Bafang Ultra Mid-Drive Motor

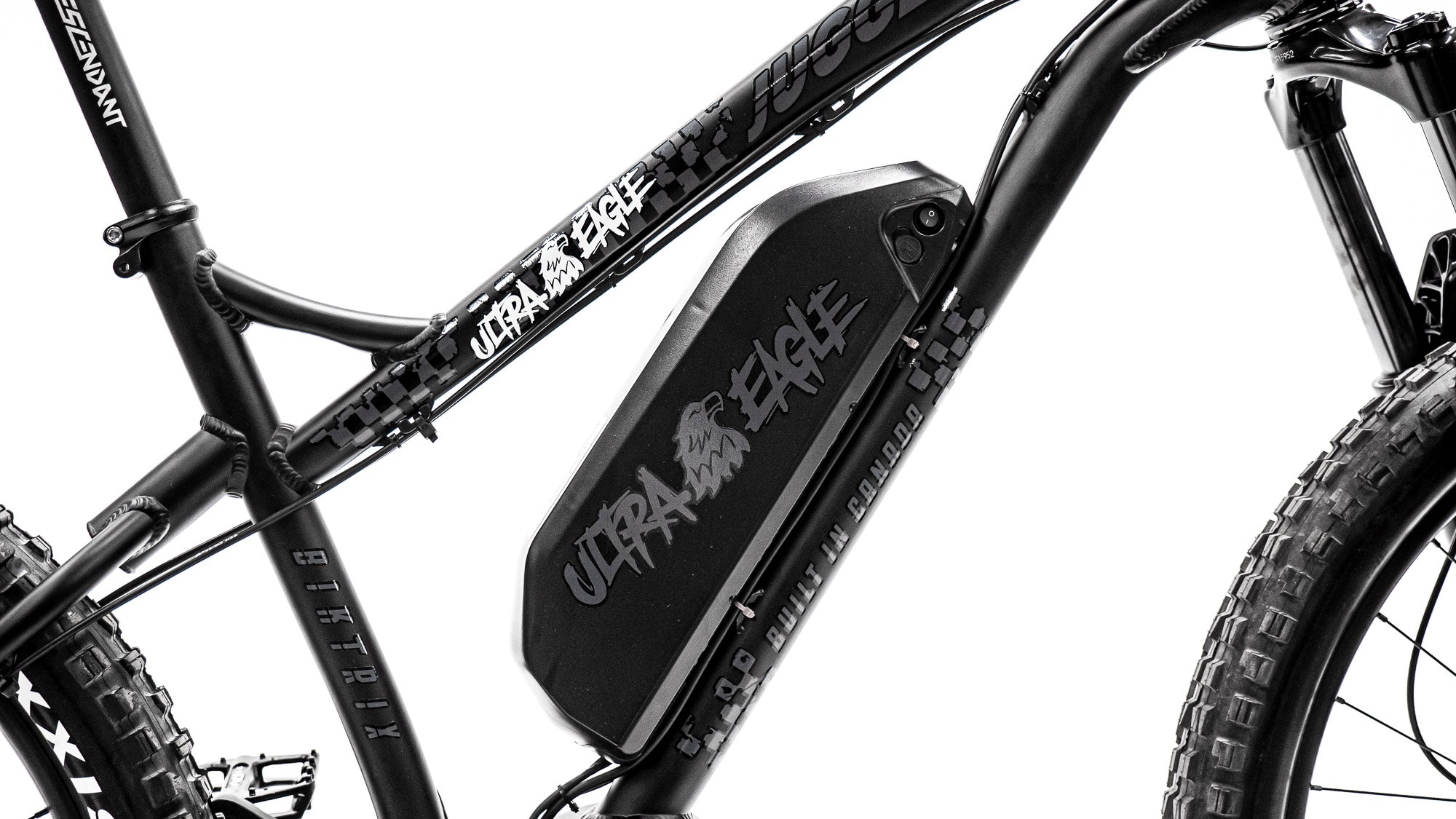

Biktrix Ultra Eagle All-Terrain Fat Bike

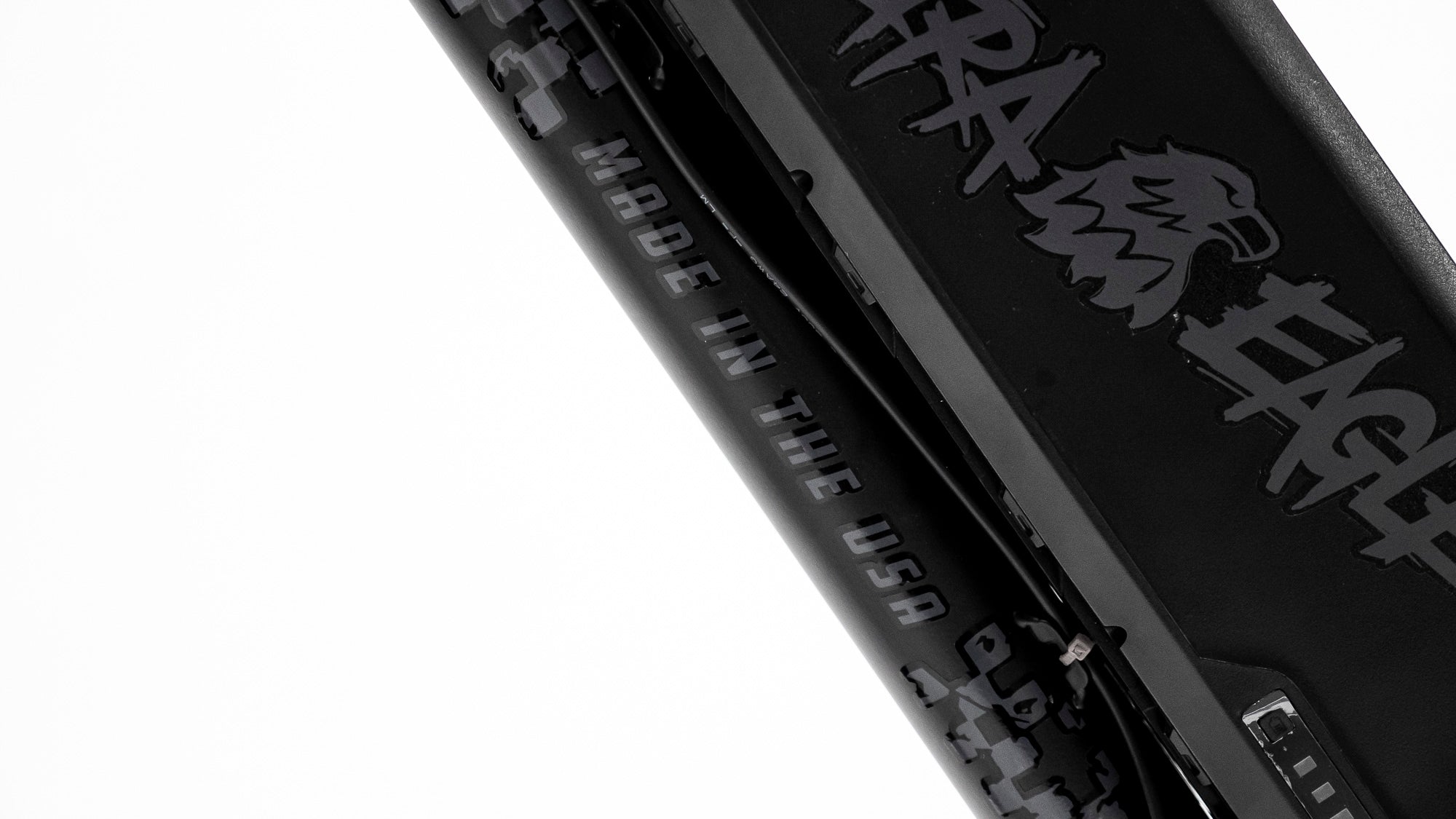

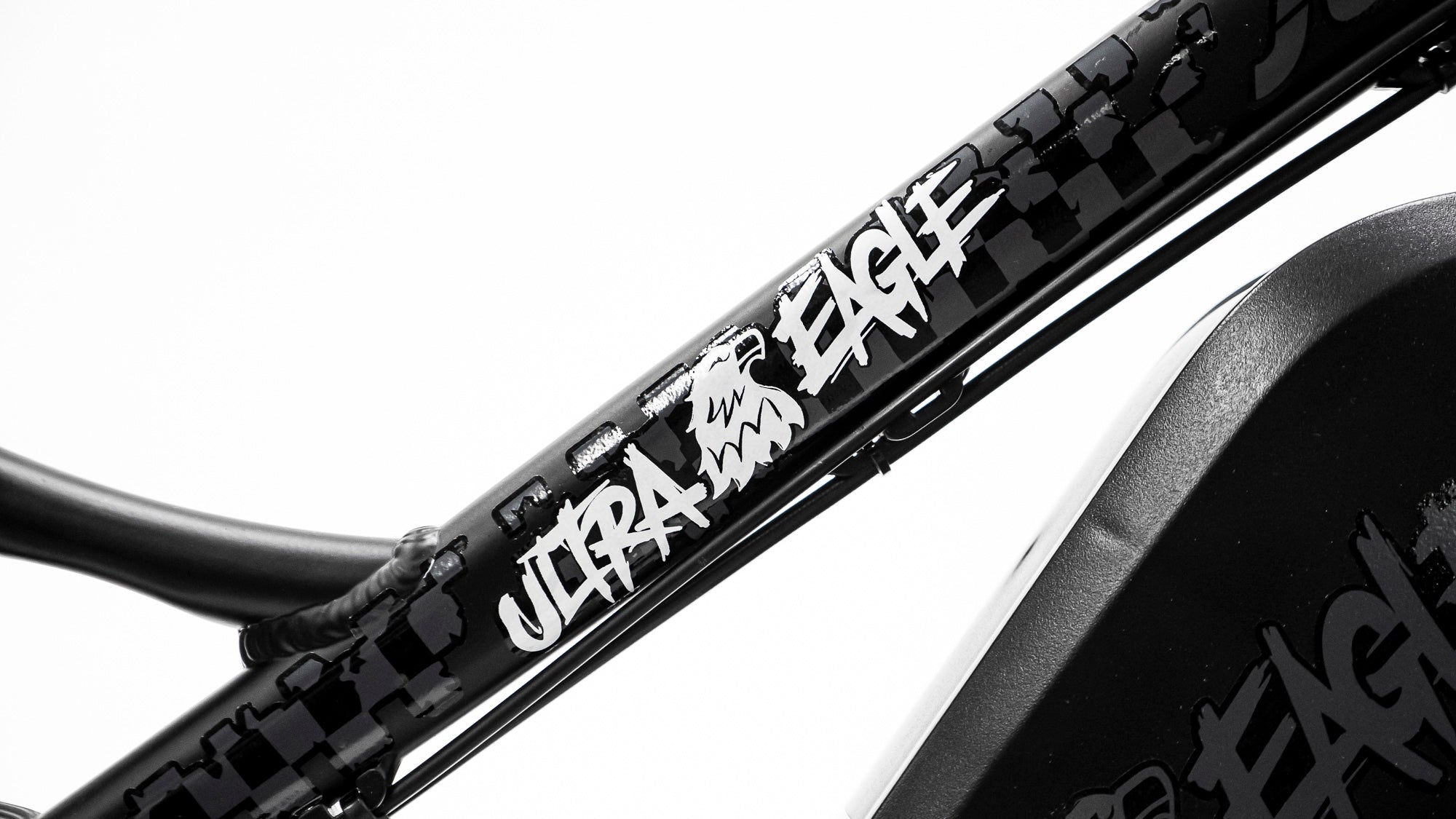

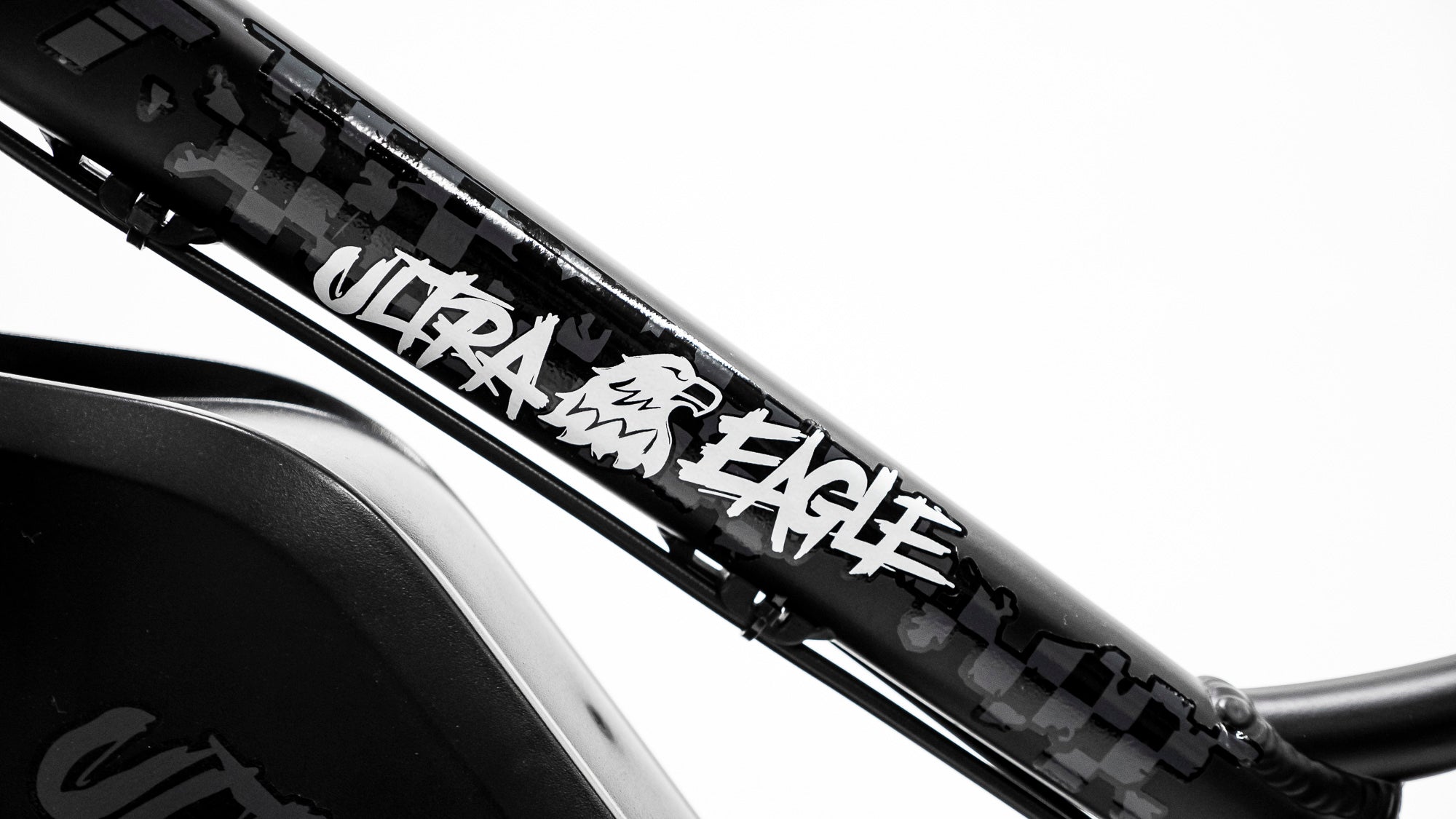

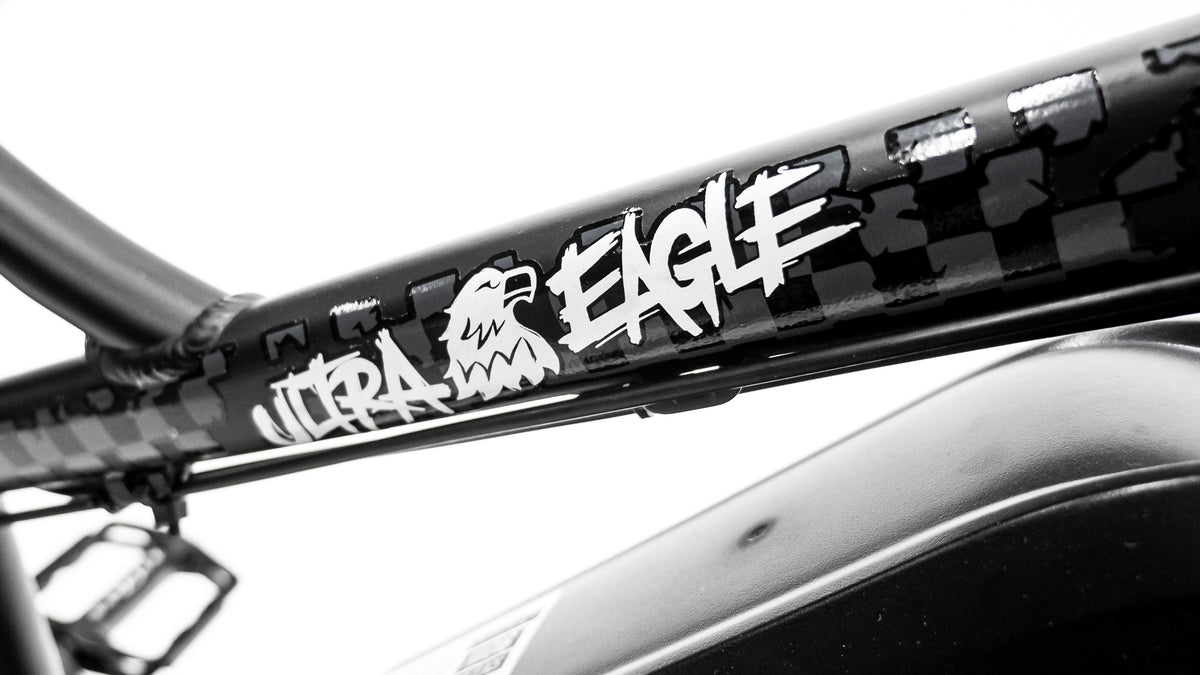

Biktrix Ultra Eagle Aluminum Frame Made in California

Juggernaut Ultra Eagle

Name: Juggernaut Ultra Eagle
Brand: ultra-eagle-details
SKU: JUG-ULTEG-M-BK
Price: 3999.0 USD
Availability: OutOfStock
Rating: 4.57 (28 reviews)

4.5

$3,999 USD $5,199 USD

Technical Specifications

Frame 6061-t6 aluminum made in california	Front hub Quanta 110mm boost 36h	Seat post Truvative descedant 31.8mm
Fork Rockshox recon rl, 150mm travel	Front axle 15mm thru	Seat post clamp 34.9mm bolt-on
Headset Canecreek 40 series	Rear hub Quanta 148mm boost 32h (small)/quanta 148mm boost 32h (medium)/quanta 148mm boost 36h (large)	Motor 1000w (1500w peak) bafang ultra mid-drive
Shifter rear Sram eagle 12 speed	Rear axle 12mm thru	Battery sizes 52v14.5ah, 52v17.5ah
Rear derailleur Sram eagle 12 speed	Rims 26"- 80mm 36h, black 27.5"- 35mm 36h (small)/26"- 80mm 36h, black 27.5"- 35mm 36h (medium)/26"- 80mm 36h, black 27.5"- 35mm 32h (large)	Display 500c
Cassette Sram pg-1130 11-50t	Tire sizes 27.5x3"	Lights Integrated headlight (200 lumens), battery taillight
Chain Kmc x12	Handlebar Aluminum 31.8 clamp, 800mm wide, truvative descendant 30mm rise	Assist type Torque, cadence
Crank set 170mm aluminum arms with 44t steel chainring	Stem Zipp 30mm	Assist levels 0-5
Bottom bracket Bafang ultra isis	Grips Slide on esi foam	Throttle Thumb throttle
Brakes Tektro dorado	Saddle Wtb medium mtb	Brake levers Tektro dorado

Frame 6061-t6 aluminum made in california	Front hub Quanta 110mm boost 36h
Seat post Truvative descedant 31.8mm	Fork Rockshox recon rl, 150mm travel
Front axle 15mm thru	Seat post clamp 34.9mm bolt-on
Headset Canecreek 40 series	Rear hub Quanta 148mm boost 32h (small)/quanta 148mm boost 32h (medium)/quanta 148mm boost 36h (large)
Motor 1000w (1500w peak) bafang ultra mid-drive	Shifter rear Sram eagle 12 speed
Rear axle 12mm thru	Battery sizes 52v14.5ah, 52v17.5ah
Rear derailleur Sram eagle 12 speed	Rims 26"- 80mm 36h, black 27.5"- 35mm 36h (small)/26"- 80mm 36h, black 27.5"- 35mm 36h (medium)/26"- 80mm 36h, black 27.5"- 35mm 32h (large)
Display 500c	Cassette Sram pg-1130 11-50t
Tire sizes 27.5x3"	Lights Integrated headlight (200 lumens), battery taillight
Chain Kmc x12	Handlebar Aluminum 31.8 clamp, 800mm wide, truvative descendant 30mm rise
Assist type Torque, cadence	Crank set 170mm aluminum arms with 44t steel chainring
Stem Zipp 30mm	Assist levels 0-5
Bottom bracket Bafang ultra isis	Grips Slide on esi foam
Throttle Thumb throttle	Brakes Tektro dorado
Saddle Wtb medium mtb	Brake levers Tektro dorado

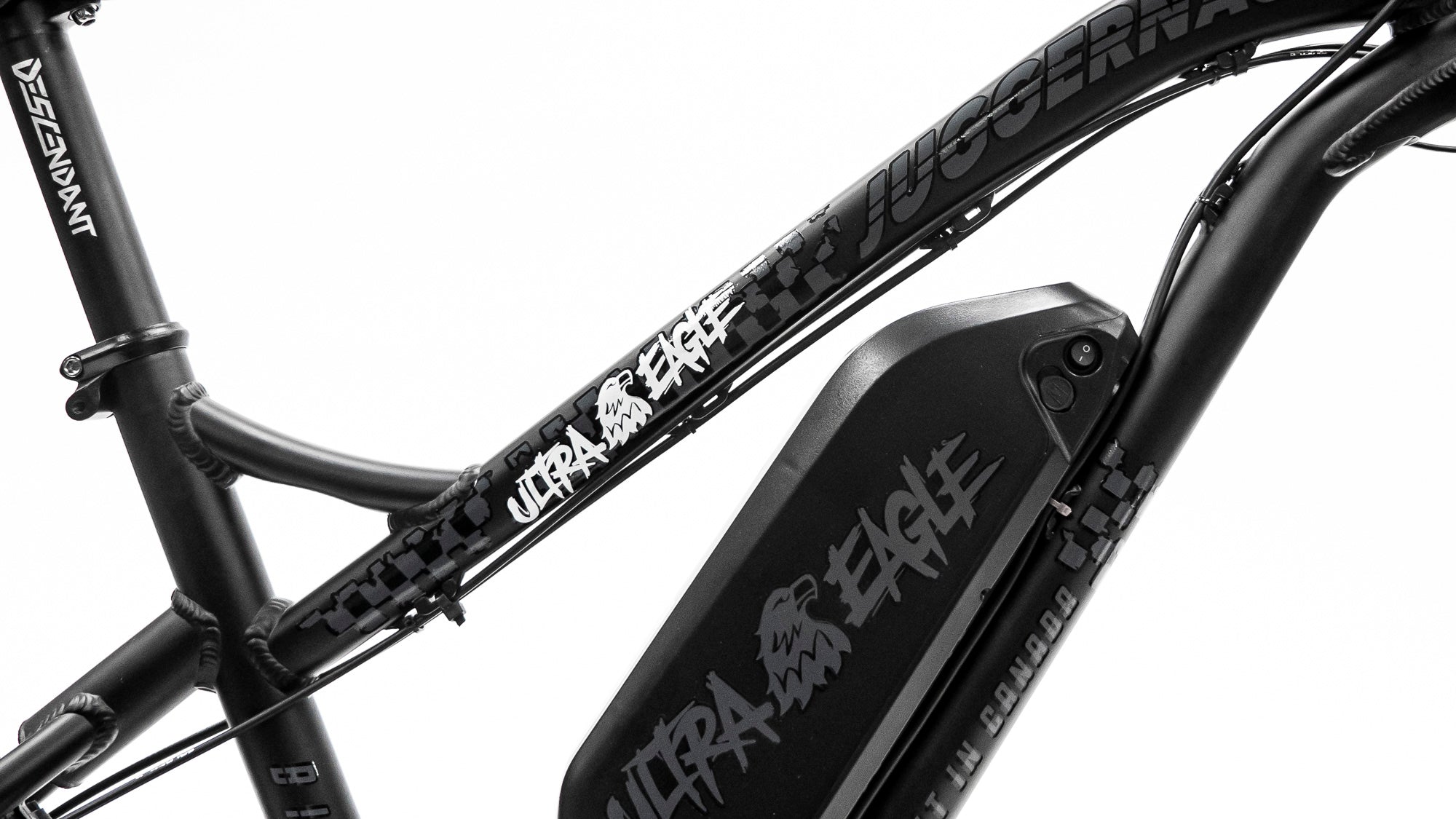

Frame

6061-t6 aluminum made in california

Front hub

Quanta 110mm boost 36h

Seat post

Truvative descedant 31.8mm

Fork

Rockshox recon rl, 150mm travel

Front axle

15mm thru

Seat post clamp

34.9mm bolt-on

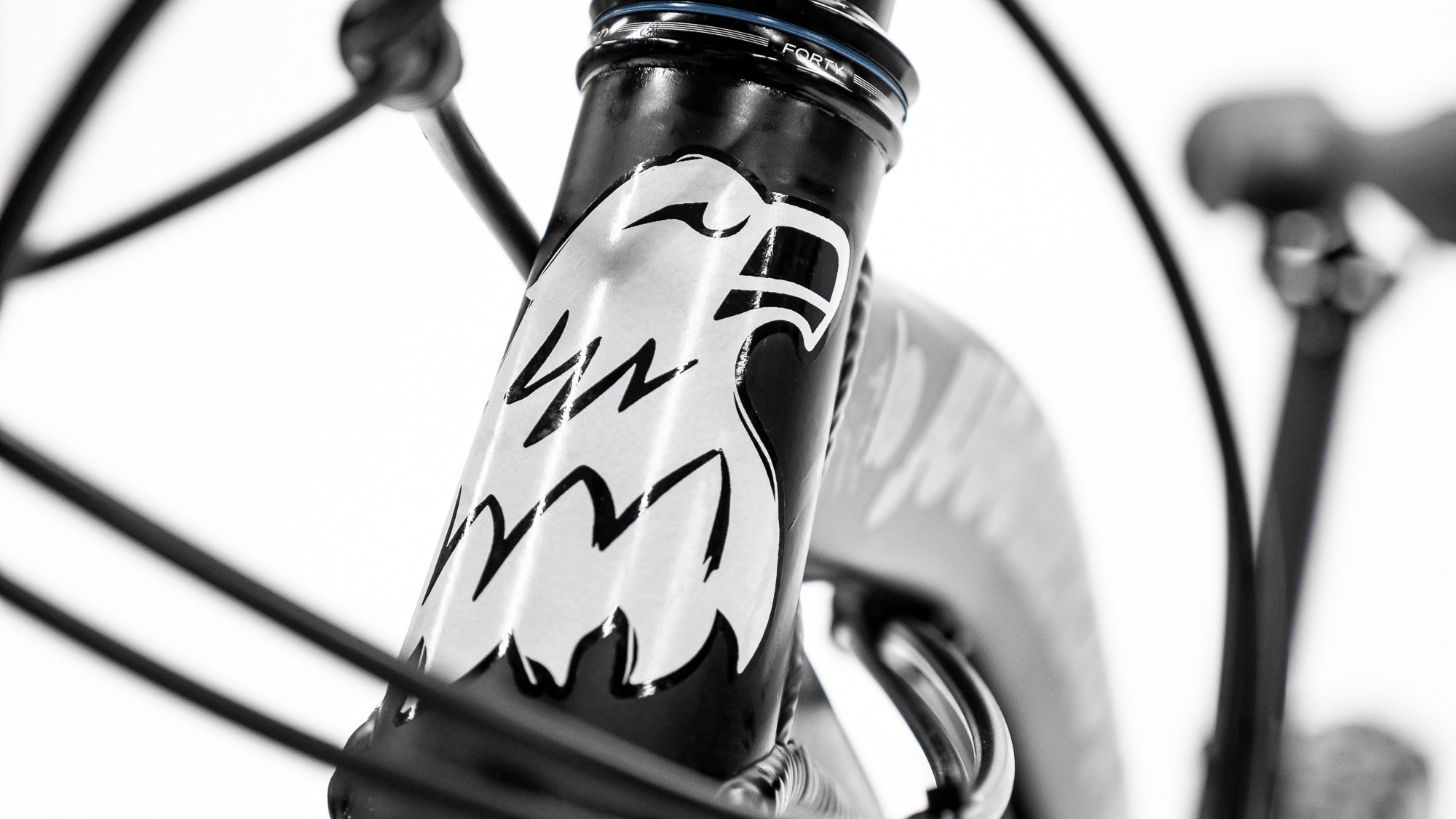

Headset

Canecreek 40 series

Rear hub

Quanta 148mm boost 32h (small)/quanta 148mm boost 32h (medium)/quanta 148mm boost 36h (large)

Motor

1000w (1500w peak) bafang ultra mid-drive

Shifter rear

Sram eagle 12 speed

Rear axle

12mm thru

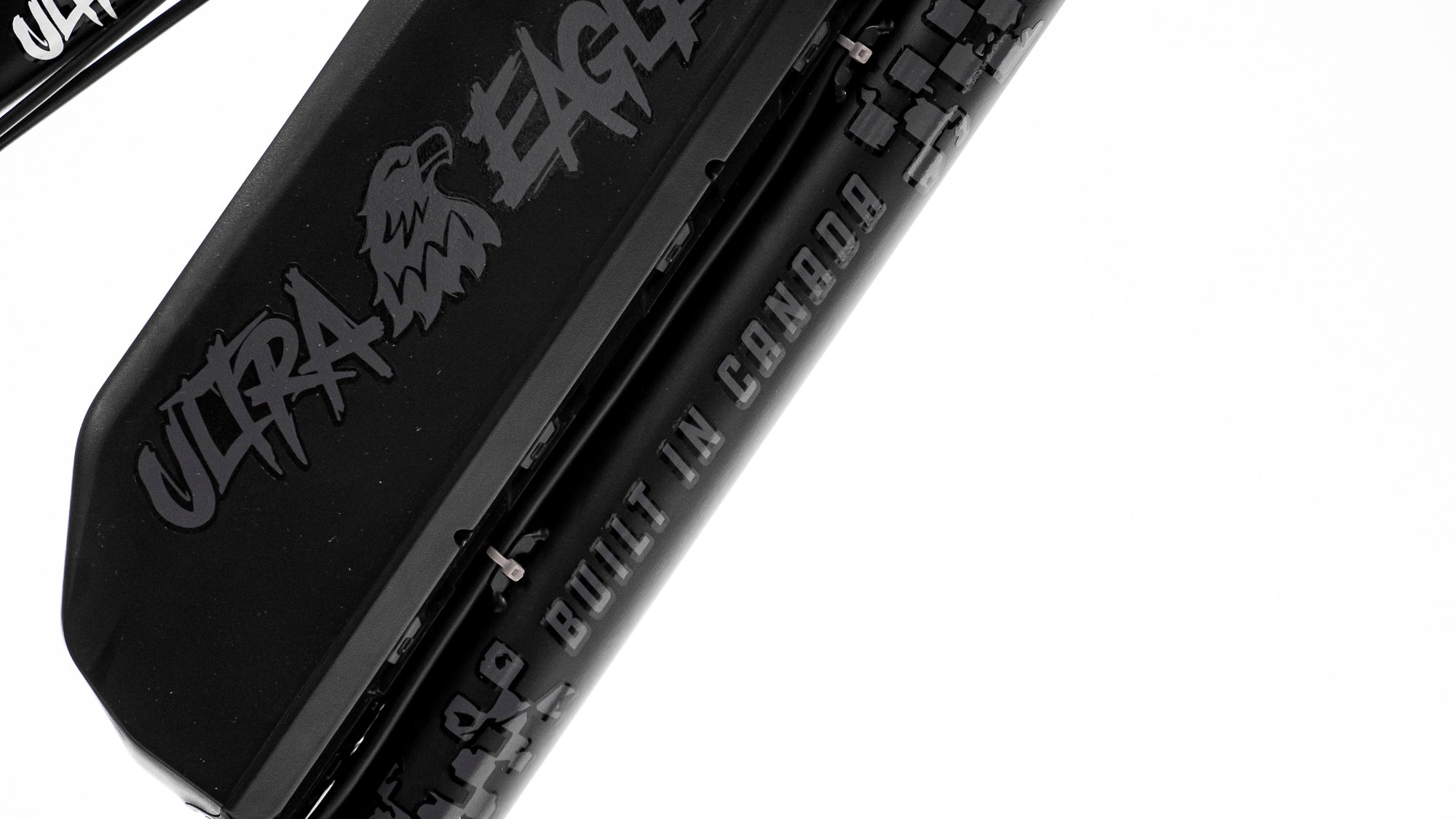

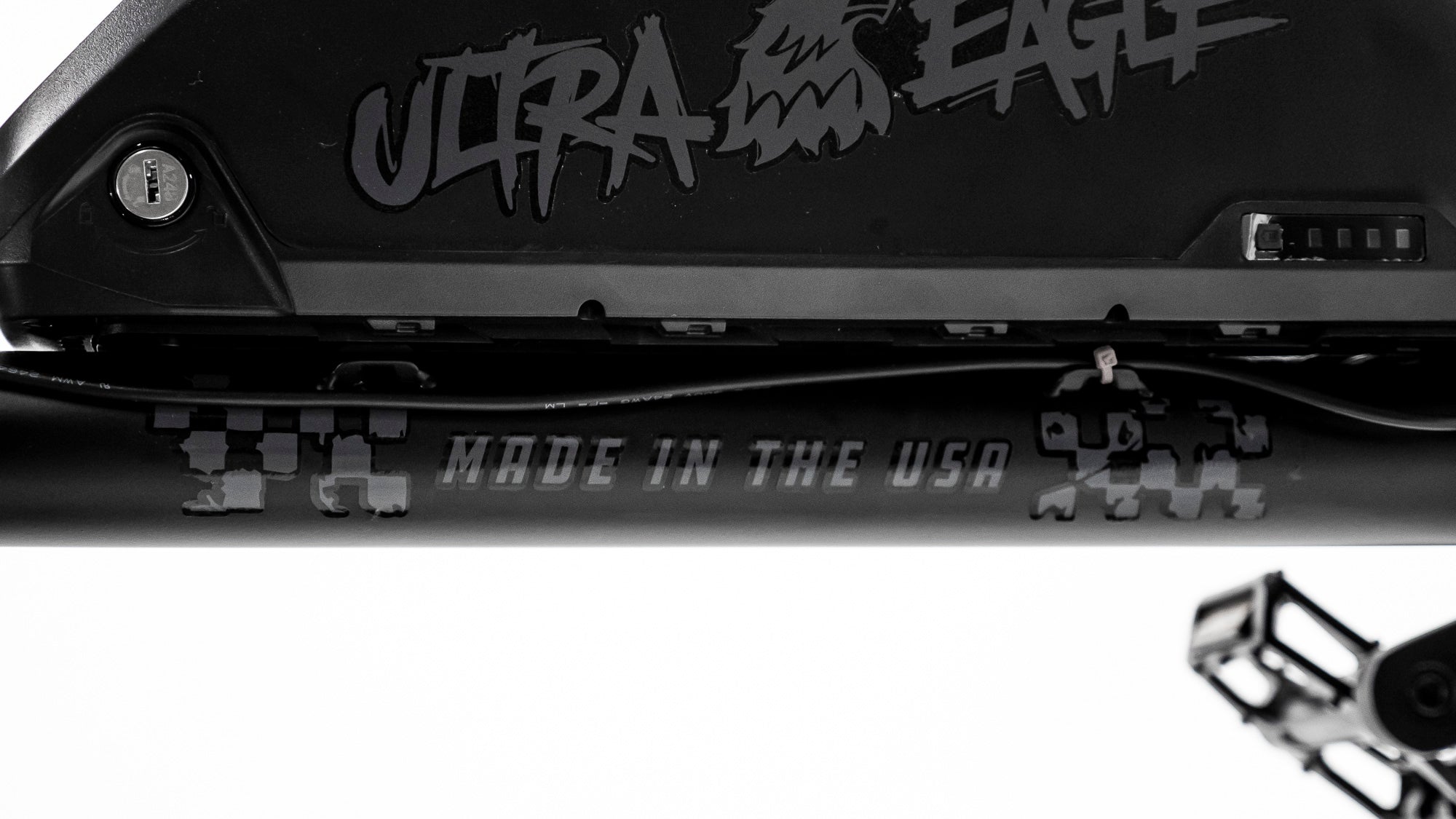

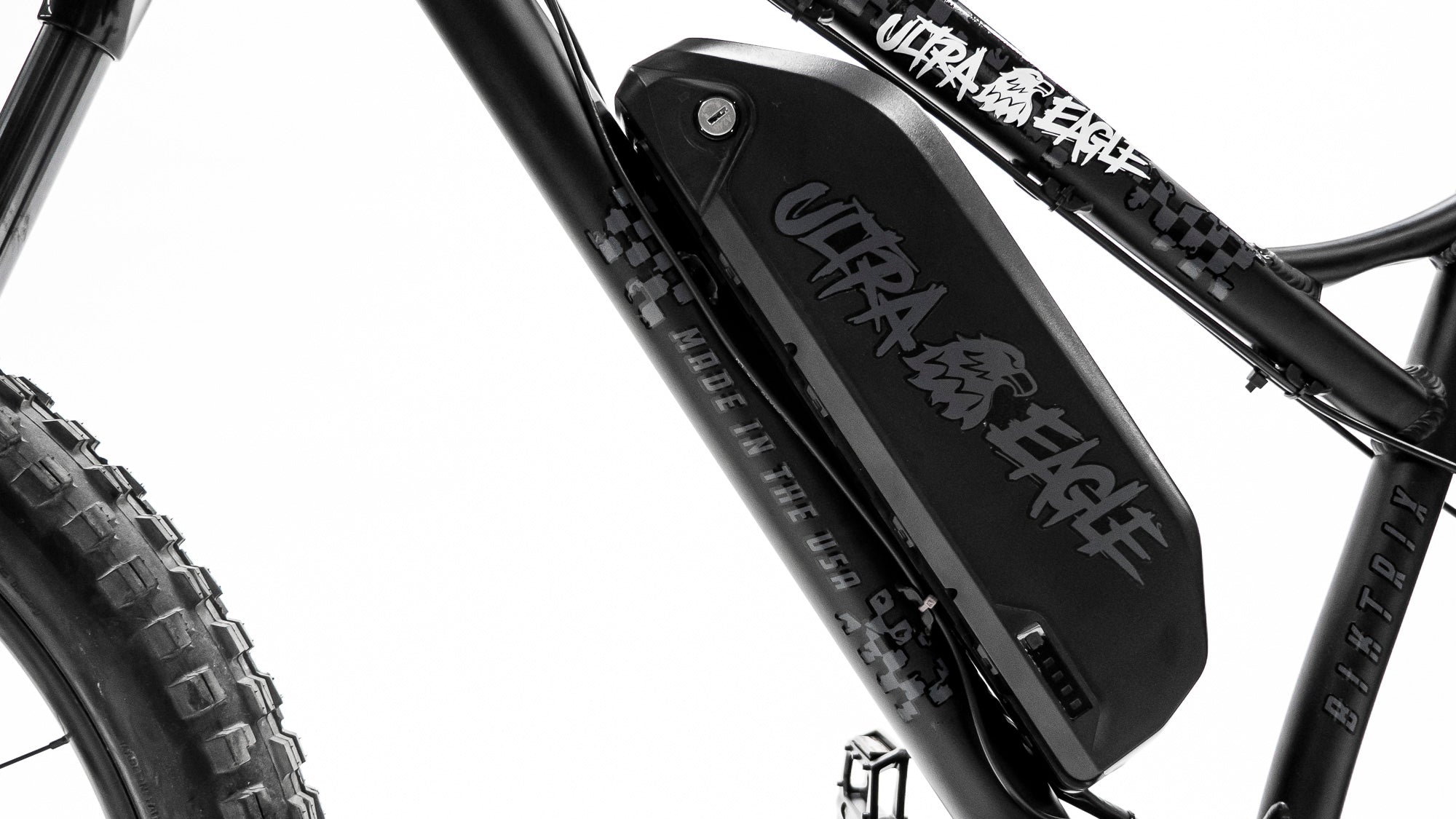

Battery sizes

52v14.5ah, 52v17.5ah

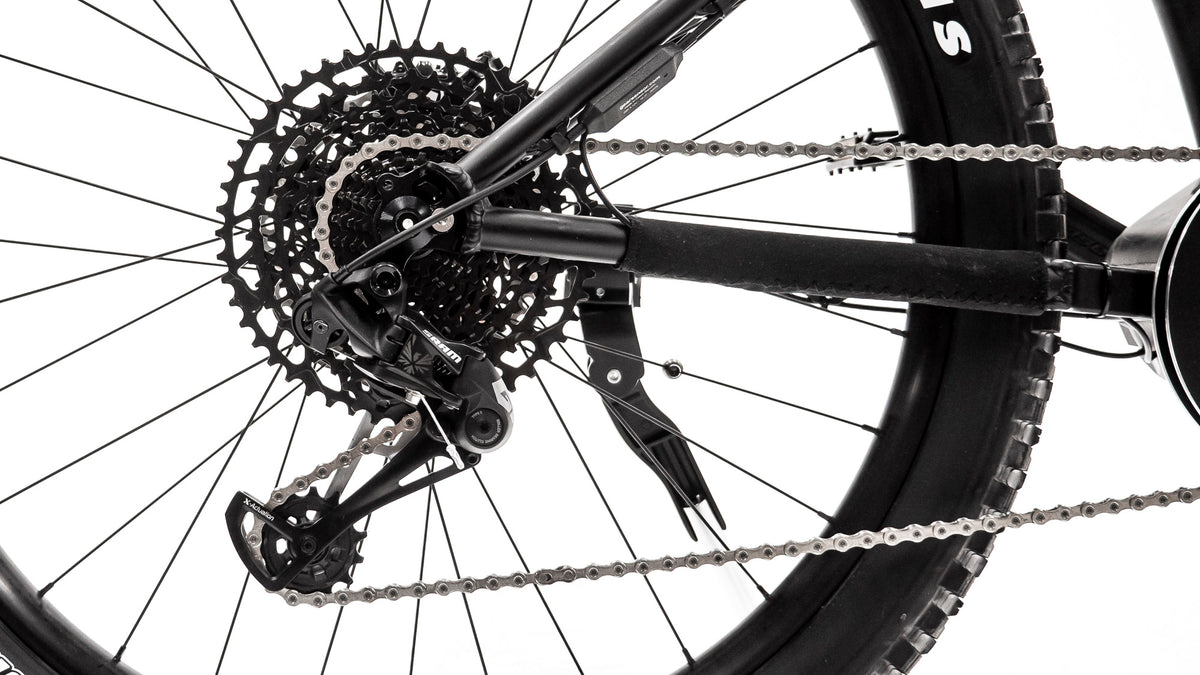

Rear derailleur

Sram eagle 12 speed

Rims

26"- 80mm 36h, black 27.5"- 35mm 36h (small)/26"- 80mm 36h, black 27.5"- 35mm 36h (medium)/26"- 80mm 36h, black 27.5"- 35mm 32h (large)

Display

500c

Cassette

Sram pg-1130 11-50t

Tire sizes

27.5x3"

Lights

Integrated headlight (200 lumens), battery taillight

Chain

Kmc x12

Handlebar

Aluminum 31.8 clamp, 800mm wide, truvative descendant 30mm rise

Assist type

Torque, cadence

Crank set

170mm aluminum arms with 44t steel chainring

Stem

Zipp 30mm

Assist levels

0-5

Bottom bracket

Bafang ultra isis

Grips

Slide on esi foam

Throttle

Thumb throttle

Brakes

Tektro dorado

Saddle

Wtb medium mtb

Brake levers

Tektro dorado

Size & Fittings

1	Effective Top Tube Length	579mm	22.8in
2	Seat Tube Length (Classic Bike Size)	432mm	17in
3	Reach	406mm	16in
4	Stack	620mm	24.4in
5	Chainstay Length	508mm	20in
6	Standover Height	660mm	26in
7	Head Angle	72°	-
8	Seat Angle	73°	-
9	Head Tube Length	152 mm	6 in
10	Fork Length	508mm	20in
11	Front Center	699mm	27.5in
12	BB (Bottom Bracket) Drop	51mm	2in
13	Fork Offset	51mm	2in
14	Wheelbase	1143mm	45in
15	Total Length	1829mm	72in
16	Max Seat Height	991mm	39in
17	Min Seat Height	711mm	28in
18	Handlebar Height	1181mm	46.5in
19	Weight (Without Battery)	28.1kg	61.9lb

1	Effective Top Tube Length	584mm	23in
2	Seat Tube Length (Classic Bike Size)	483mm	19in
3	Reach	432mm	17in
4	Stack	620mm	24.4in
5	Chainstay Length	508mm	20in
6	Standover Height	711mm	28in
7	Head Angle	72°	-
8	Seat Angle	73°	-
9	Head Tube Length	152 mm	6 in
10	Fork Length	508mm	20in
11	Front Center	699mm	27.5in
12	BB (Bottom Bracket) Drop	51mm	2in
13	Fork Offset	51mm	2in
14	Wheelbase	1143mm	45in
15	Total Length	1829mm	72in
16	Max Seat Height	1041mm	41in
17	Min Seat Height	787mm	31in
18	Handlebar Height	1181mm	46.5in
19	Weight (Without Battery)	28.1kg	61.9lb

1	Effective Top Tube Length	610mm	24in
2	Seat Tube Length (Classic Bike Size)	533mm	21in
3	Reach	457mm	18in
4	Stack	620mm	24.4in
5	Chainstay Length	508mm	20in
6	Standover Height	737mm	29in
7	Head Angle	72°	-
8	Seat Angle	73°	-
9	Head Tube Length	152 mm	6 in
10	Fork Length	508mm	20in
11	Front Center	699mm	27.5in
12	BB (Bottom Bracket) Drop	51mm	2in
13	Fork Offset	51mm	2in
14	Wheelbase	1143mm	45in
15	Total Length	1829mm	72in
16	Max Seat Height	838mm	33in
17	Min Seat Height	1118mm	44in
18	Handlebar Height	1184mm	46.6in
19	Weight (Without Battery)	28.1kg	61.9lb

FAQ & Guides

Guide Spare Parts Finder

Need A Hand?

Chat With Us

We are always excited to hear from you. Just click the button below to activate chat now.

Chat Now

Book A Virtual Demo

Our eBike specialists can help you find your dream eBike and answer any questions you may have.

Book An Appointment Now

Give Us A Ring

24/7 e-mail support. 8/5 phone and live chat with eBike Specialists to help you in anyway.

+1-866-BIKTRIX

Disappointed

This is my 5 th ebike so I had high hopes that this bike would be something special. I was looking for 2 things. 4 inch fat tires for snow, but absolutely most important was the need for speed. My impression from my research was that this bike was capable of 30 mph and more.
I went over this in great detail with Biktrix and with the battery spec’d I had hoped for a bike that I could comfortably cruise at 22-25 mph and push to 30 when needed. My bike in Texas gives me that comfortably.
The best I can get out of this bike is 18-20 mph. I am so hopeful that Biktrix can respond and come up with a solution. They have been great to work with so far but we must overcome this problem.

I love this bike

I probably bought more bike than I needed but it is an amazing ride. I love everything about it.

I love this bike

I probably bought more bike than I needed but it is an amazing ride. I love everything about it.

Very Pleased

I am very happy with the Ultra Eagle. While I am not an expert I have learned a lot over the last couple of months and the Eagle has very nice components as standard equipment. My only real complaint would be the mounting of the battery plate. The bike arrived with the battery severely cocked to one side when mounted. this is due to the cable mounts on the frame. I purchase longer bolts and made some spacers as a temporary fix while waiting on a plate that should deal with the situation. This looked really bad and may have moved the balance of the bike a bit given the weight of the battery. This is my only reason for the loss of one star. The frame and build quality are excellent other than that and I do have a good eye in that regard.

Juggernaut ultra eagle

By far best bike on earth....

Juggernaut ultra eagle

By far best bike on earth....

The Ultra Eagle Flies.

I couldn’t ride it for a while because I just wanted to look at it. What a beauty. Totally balanced and comfortable and what a ride! I’m 75 this week and took it on a 28 mile ride into the mountains on a rough road.

I gained 2,500’ in 6 miles in 38 minutes at the start. Once I’m over the first mountains it’s all joy because it levels for miles. I had never broken 40 minutes on my Ultra FS. I had to get this gem. Thank you Biktrix.

The Ultra Eagle Flies.

fantastic product

love this bicycle fast and well built 👌
