Technical Specifications
Frame6061 aluminum |
Front hub150mm 36h (fat)/110mm 36h (boost) |
Seat post31.6mm |
ForkRst renegade w/100mm travel, preload and lockout (fat)/rst titan w/140mm travel, preload and lockout (boost) |
Front axle15mm thru-qr |
Seat post clampQr |

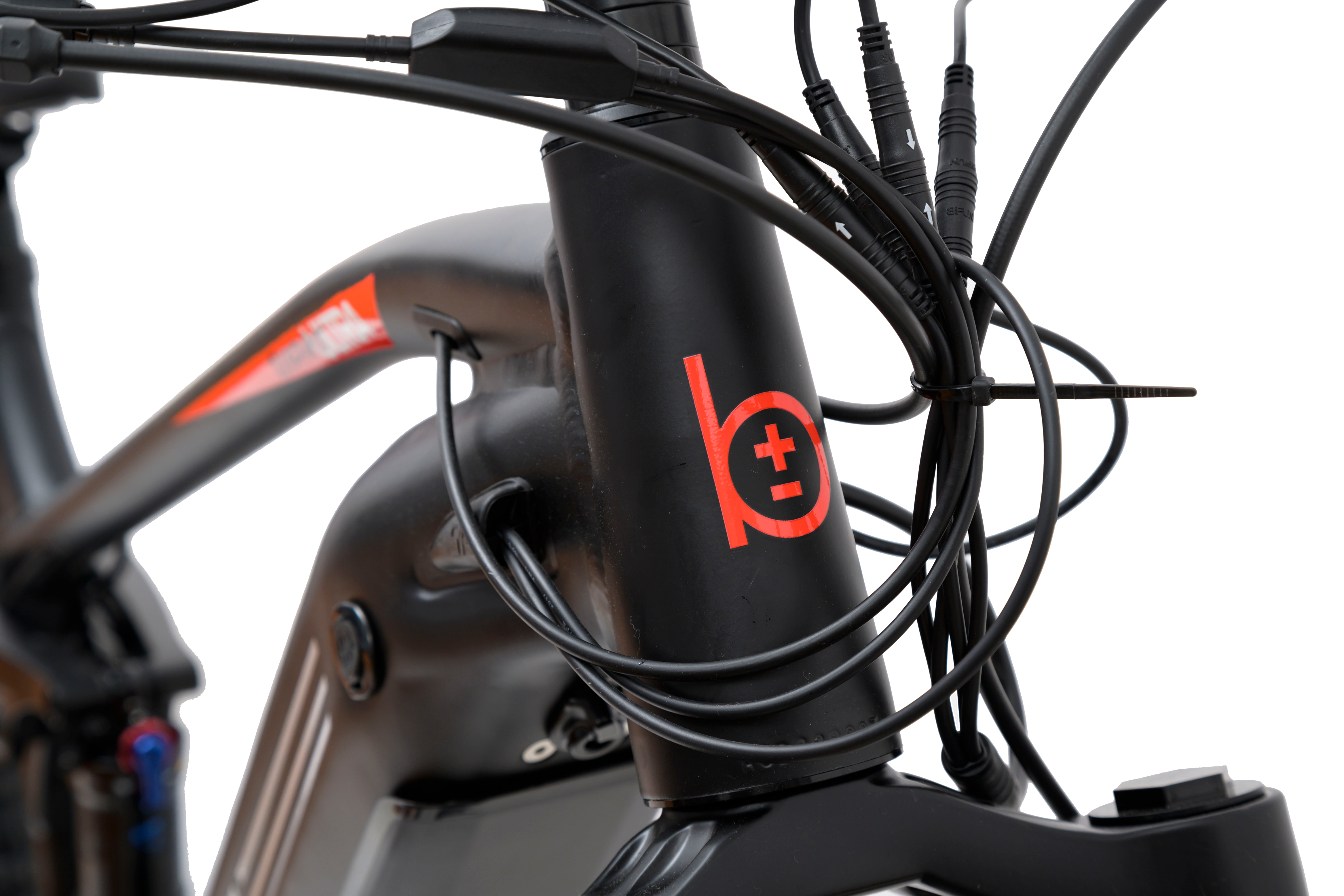

HeadsetThreadless 1-1/8 1-1/2 tapered |
Rear hub197mm 36h (fat)/148mm 36h (boost) |

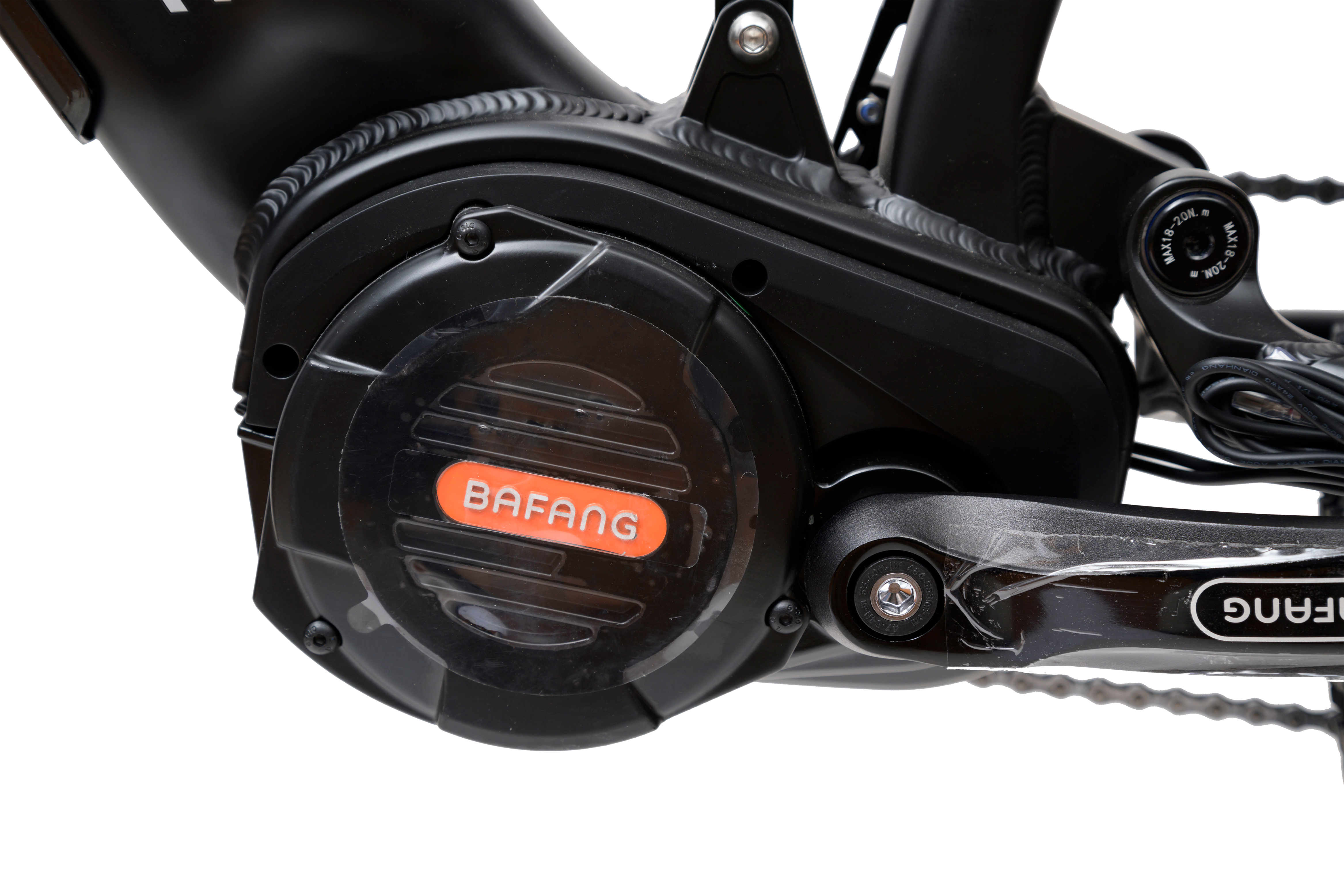

MotorBafang ultra m620 |
Shifter rearSram nx 11 speed trigger |
Rear axle12mm thru axle |
Battery sizes52v 17.5ah 910wh hidden battery |
Rear derailleurSram nx 11 speed |
RimsBlack 26" 36h (fat)/black 27.5" 36h (boost) |
DisplayDpc-18 |
CassetteSram 11-42t |
Tire sizes26x4" (fat)/27.5x3" (boost) |
LightsIntegrated headlight |
ChainKmc x11e |
Handlebar700mm wide w/31.8mm clamp |
Assist typeTorque + cadence |
Crank set40t chainring w/170mm arms, no chainguard |
StemPromax 70mm (fat)/promax 90mm (boost) |
Assist levels1-5 |
Bottom bracketBafang isis |
GripsVelo mtb bolt-on grips |
ThrottleThumb throttle |
BrakesTektro e725 quad piston hydraulic w/203mm rotors |
SaddleSellaroyal seto s1 |
OtherRockshox monarch rl rear suspension w/ 44mm travel + 184mm eye-to-eye, clamp on kickstand |
Brake leversTektro w/ adjustable reach and motor cutoffs |

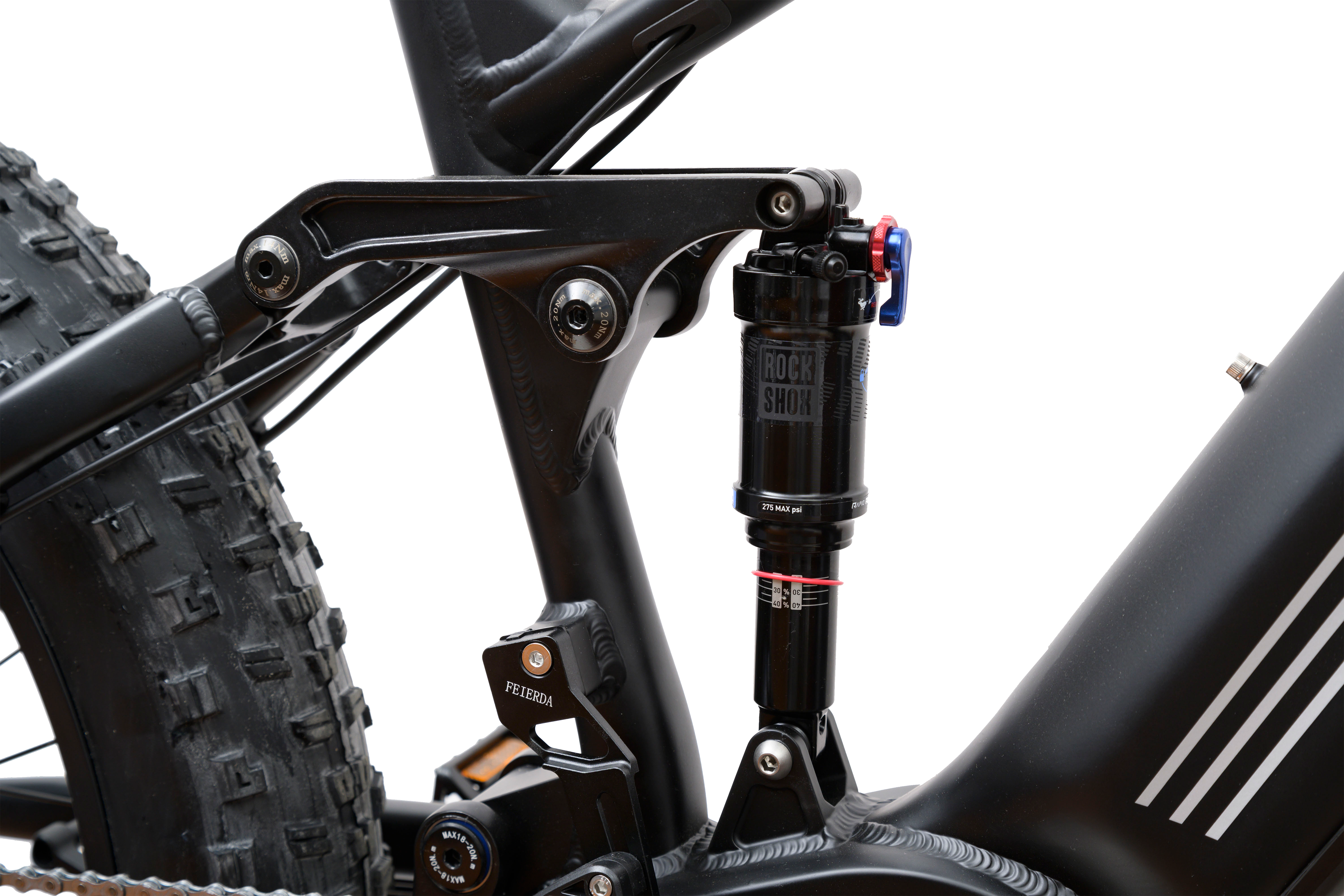

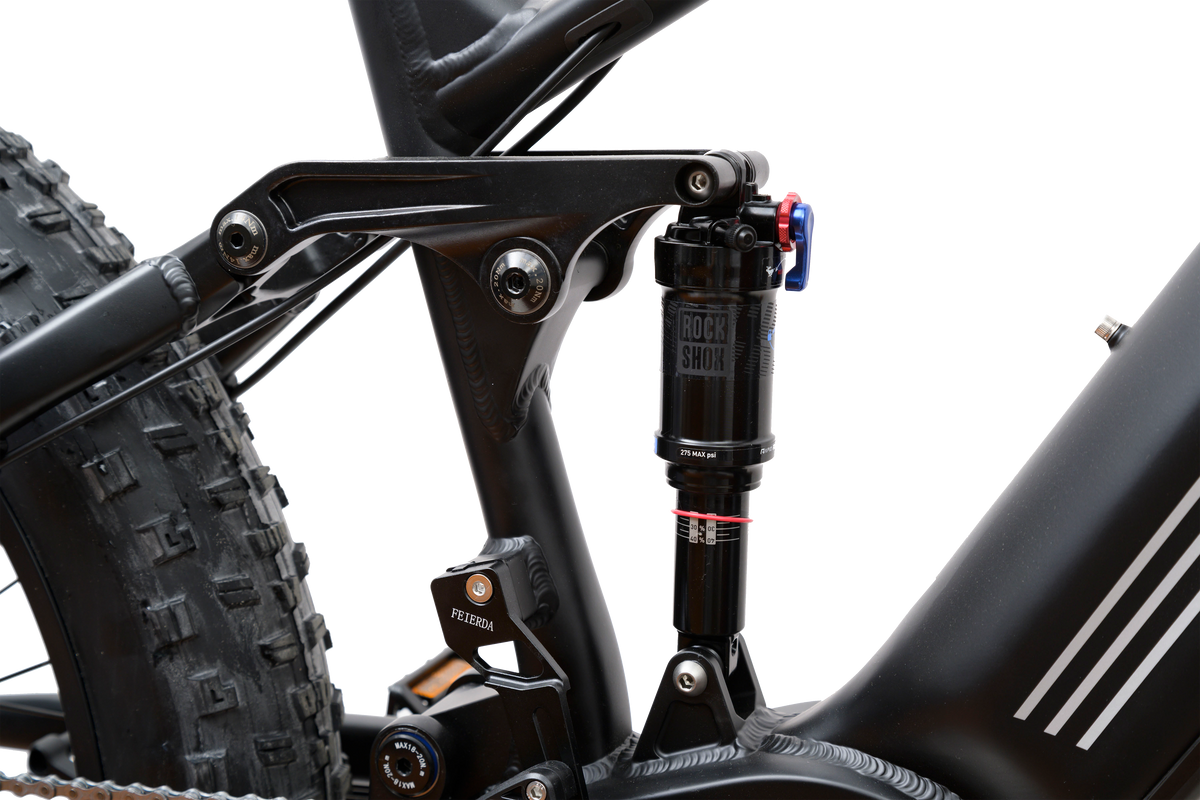

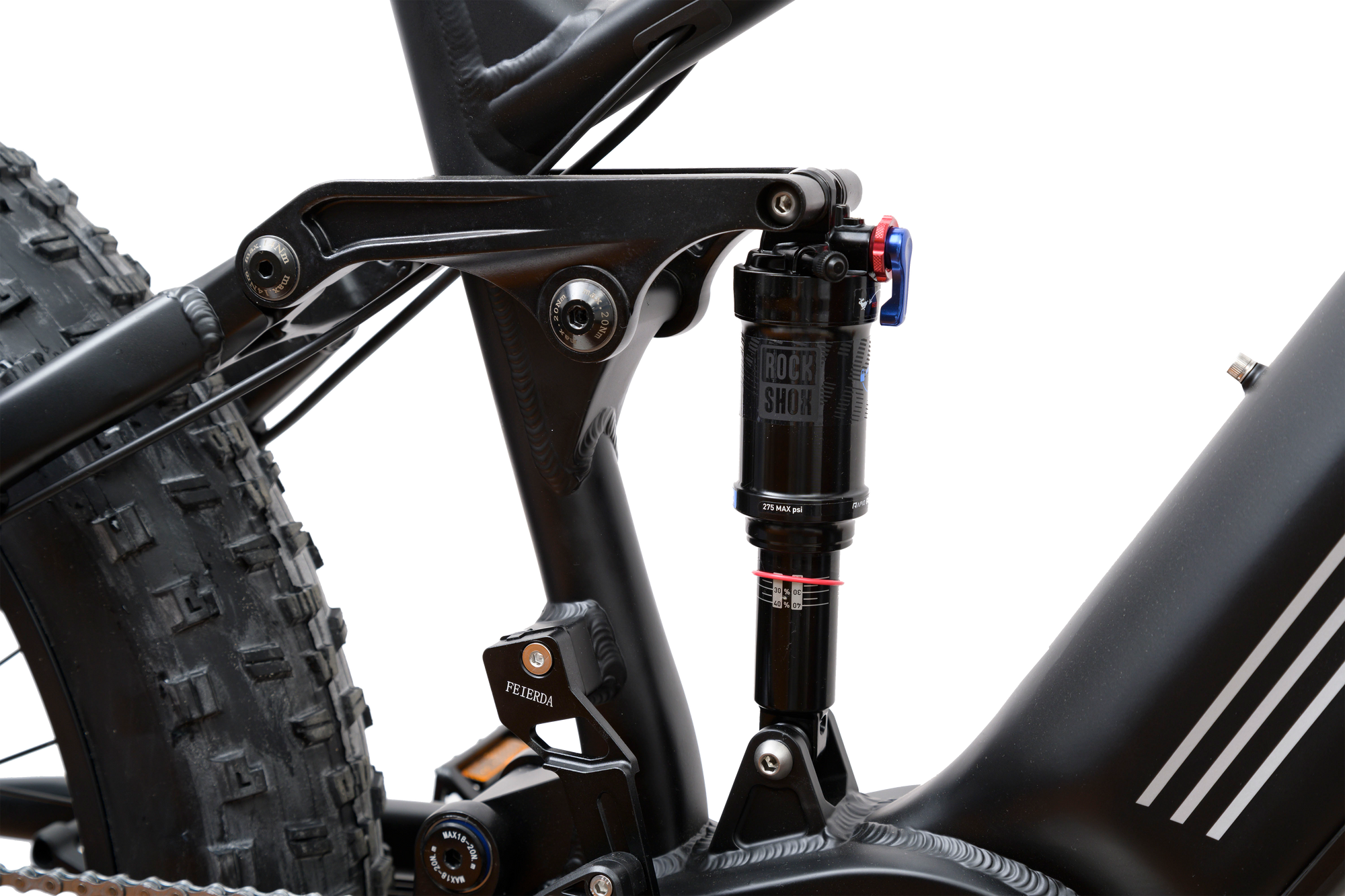

Rear suspensionRockshox monarch rl rear suspension w/ 44mm travel 184mm eye-to-eye |
Frame6061 aluminum |
Front hub150mm 36h (fat)/110mm 36h (boost) |
Seat post31.6mm |
ForkRst renegade w/100mm travel, preload and lockout (fat)/rst titan w/140mm travel, preload and lockout (boost) |
Front axle15mm thru-qr |
Seat post clampQr |
HeadsetThreadless 1-1/8 1-1/2 tapered |
Rear hub197mm 36h (fat)/148mm 36h (boost) |
MotorBafang ultra m620 |
Shifter rearSram nx 11 speed trigger |
Rear axle12mm thru axle |
Battery sizes52v 17.5ah 910wh hidden battery |
Rear derailleurSram nx 11 speed |
RimsBlack 26" 36h (fat)/black 27.5" 36h (boost) |
DisplayDpc-18 |
CassetteSram 11-42t |
Tire sizes26x4" (fat)/27.5x3" (boost) |
LightsIntegrated headlight |
ChainKmc x11e |
Handlebar700mm wide w/31.8mm clamp |
Assist typeTorque + cadence |
Crank set40t chainring w/170mm arms, no chainguard |
StemPromax 70mm (fat)/promax 90mm (boost) |
Assist levels1-5 |
Bottom bracketBafang isis |
GripsVelo mtb bolt-on grips |
ThrottleThumb throttle |
BrakesTektro e725 quad piston hydraulic w/203mm rotors |
SaddleSellaroyal seto s1 |
OtherRockshox monarch rl rear suspension w/ 44mm travel + 184mm eye-to-eye, clamp on kickstand |
Brake leversTektro w/ adjustable reach and motor cutoffs |
Rear suspensionRockshox monarch rl rear suspension w/ 44mm travel 184mm eye-to-eye |
Size & Fittings
1 | Effective Top Tube Length |
610mm | 24in |
2 | Seat Tube Length (Classic Bike Size) |
430mm | 16.9in |
3 |
Reach |
530mm | 20.9in |
4 |
Stack |
590mm | 23.2in |
5 |
Chainstay Length |
470mm | 18.5in |
6 |
Standover Height |
700mm | 27.6in |
7 |
Head Angle |
67° | - |
8 |
Seat Angle |
71° | - |
9 |
Head Tube Length |
140 mm | 5.5 in |
10 |
Fork Length |
570mm | 22.4in |
11 |
Front Center |
815mm | 32.1in |
12 |
BB (Bottom Bracket) Drop |
75mm | 3in |
13 |
Fork Offset |
35mm | 1.4in |
14 |
Wheelbase |
1280mm | 50.4in |
15 |
Total Length |
2000mm | 78.7in |
16 |
Max Seat Height |
1020mm | 40.2in |
17 |
Min Seat Height |
840mm | 33.1in |
18 |
Handlebar Height |
1060mm | 41.7in |
19 |
Weight (Without Battery) |
27.7kg | 61.1lb |
1 | Effective Top Tube Length |
610mm | 24in |
2 | Seat Tube Length (Classic Bike Size) |
430mm | 16.9in |
3 |
Reach |
520mm | 20.5in |
4 |
Stack |
540mm | 21.3in |
5 |
Chainstay Length |
500mm | 19.7in |
6 |
Standover Height |
720mm | 28.3in |
7 |
Head Angle |
63° | - |
8 |
Seat Angle |
72° | - |
9 |
Head Tube Length |
150 mm | 5.9 in |
10 |
Fork Length |
570mm | 22.4in |
11 |
Front Center |
820mm | 32.3in |
12 |
BB (Bottom Bracket) Drop |
85mm | 3.3in |
13 |
Fork Offset |
30mm | 1.2in |
14 |
Wheelbase |
1300mm | 51.2in |
15 |
Total Length |
2020mm | 79.5in |
16 |
Max Seat Height |
1050mm | 41.3in |
17 |
Min Seat Height |
910mm | 35.8in |
18 |
Handlebar Height |
1080mm | 42.5in |
19 |
Weight (Without Battery) |
32.6kg | 71.9lb |
1 | Effective Top Tube Length |
620mm | 24.4in |
2 | Seat Tube Length (Classic Bike Size) |
470mm | 18.5in |
3 |
Reach |
540mm | 21.3in |
4 |
Stack |
590mm | 23.2in |
5 |
Chainstay Length |
470mm | 18.5in |
6 |
Standover Height |
710mm | 28in |
7 |
Head Angle |
67° | - |
8 |
Seat Angle |
71° | - |
9 |
Head Tube Length |
140 mm | 5.5 in |
10 |
Fork Length |
570mm | 22.4in |
11 |
Front Center |
815mm | 32.1in |
12 |
BB (Bottom Bracket) Drop |
75mm | 3in |
13 |
Fork Offset |
35mm | 1.4in |
14 |
Wheelbase |
1300mm | 51.2in |
15 |
Total Length |
2020mm | 79.5in |
16 |
Max Seat Height |
1050mm | 41.3in |
17 |
Min Seat Height |
870mm | 34.3in |
18 |
Handlebar Height |
1060mm | 41.7in |
19 |
Weight (Without Battery) |
28kg | 61.7lb |
1 | Effective Top Tube Length |
620mm | 24.4in |
2 | Seat Tube Length (Classic Bike Size) |
470mm | 18.5in |
3 |
Reach |
530mm | 20.9in |
4 |
Stack |
540mm | 21.3in |
5 |
Chainstay Length |
500mm | 19.7in |
6 |
Standover Height |
720mm | 28.3in |
7 |
Head Angle |
63° | - |
8 |
Seat Angle |
72° | - |
9 |
Head Tube Length |
150 mm | 5.9 in |
10 |
Fork Length |
570mm | 22.4in |
11 |
Front Center |
820mm | 32.3in |
12 |
BB (Bottom Bracket) Drop |
85mm | 3.3in |
13 |
Fork Offset |
30mm | 1.2in |
14 |
Wheelbase |
1310mm | 51.6in |
15 |
Total Length |
2020mm | 79.5in |
16 |
Max Seat Height |
1080mm | 42.5in |
17 |
Min Seat Height |
940mm | 37in |
18 |
Handlebar Height |
1080mm | 42.5in |
19 |
Weight (Without Battery) |
32.8kg | 72.3lb |
