New

Soar Like An Eagle.

Delivering an exhilarating ride that conquers any terrain with unmatched performance and style.

Buy Now
Max Load Capacity
330lbs
Max Range
45mi
Strong, Reliable Battery
52V 17Ah
From $5,999.00 USD
Buy Now

Juggernaut XD Eagle

Sale price $5,999 USD
Packages
Battery
Battery


A sleek internal battery that provides reliable power and range to extend your ride!

Upgrades
[Select] Extra Discounted Battery
Extra Battery At Discounted Price


Add an additional battery to on a discounted price to give you an extra boost!

**Please make sure that the voltage of the extra battery matches your battery selection above. Batteries of two different voltages will not work on the bike
Throttle


Select between a twist throttle or a thumb throttle for your eBike!

Seatpost


Suspension seatposts offer great riding comfort as they absorb many of the imperfections on the road/trail.

****Dropper seatposts allow you to easily adjust your seat height while in the middle of a ride. This can be useful in all terrain riding when you may need to quickly lower your seat for descents or raise it for climbing. Adding a Dropper Seatpost will increase the minimum seat height by 25mm/1"
Brakes


Enhance your safety and control on every ride by upgrading your eBike brakes.

Fork


Elevate your ride's comfort and control by upgrading your ebike fork, ensuring a smoother journey over any terrain.

Accessories
Warranty

Secure your investment by opting for an extended warranty through the BiktrixCare+ plan.

Sale price $5,999.00
Shipping: Leaves within 3 to 4 weeks
2300W Mid-Drive

Motor Power

Up to 45mi

Standard Range

+5'8ft / 330lb

Max Load

Cadence Sensor

Powerful Pedal Assist

On-Demand Throttle

Pedaling Optional

25+ Point Quality

Control Checklist

40+

Miles Range

330lbs

Max Load Capacity

52V 17Ah

Strong, Reliable Battery

Designed In Canada. Manufactured In The USA.

The North American-made Juggernaut XD Eagle is a high-performance electric mountain bike built for serious riders. Endless color options and multiple wheel sizes make it uniquely customizable, and the Biktrix developed 2300W XD Motor packs a major punch. To paraphrase a well-known song by a classic American band... "If It Had A Set Of Wings, Man, I Know It Could Fly".

Customize Your Ride The Way You Want It.

A full spectrum of color options and multiple wheel sizes make the Juggernaut XD Eagle uniquely customizable to each rider.

Bells & Whistles? You Bet.

Technical Specifications

Frame
Made in usa 6061 aluminum
Front hub
150mm 36h/150mm 32h
Seat post
31.6mm
Fork
Rst renegade coil spring w/100mm travel, lockout & preload
Front axle
15mm thru axle
Seat post clamp
Qr
Headset
Threadless 1-1/2 1-1/8 tapered
Rear hub
197mm 36h / 197 32h
Motor
Biktrix xd dual drive motor
Shifter rear
Sram nx 11 speed trigger shifter
Rear axle
12mm thru axle
Battery sizes
48v 21ah 1008wh, 52v 17ah 910wh, 48v 25ah 1200wh
Rear derailleur
Sram nx 11 speed
Rims
27.5x3 36h, 26x4 32h, 26x4.8 32h

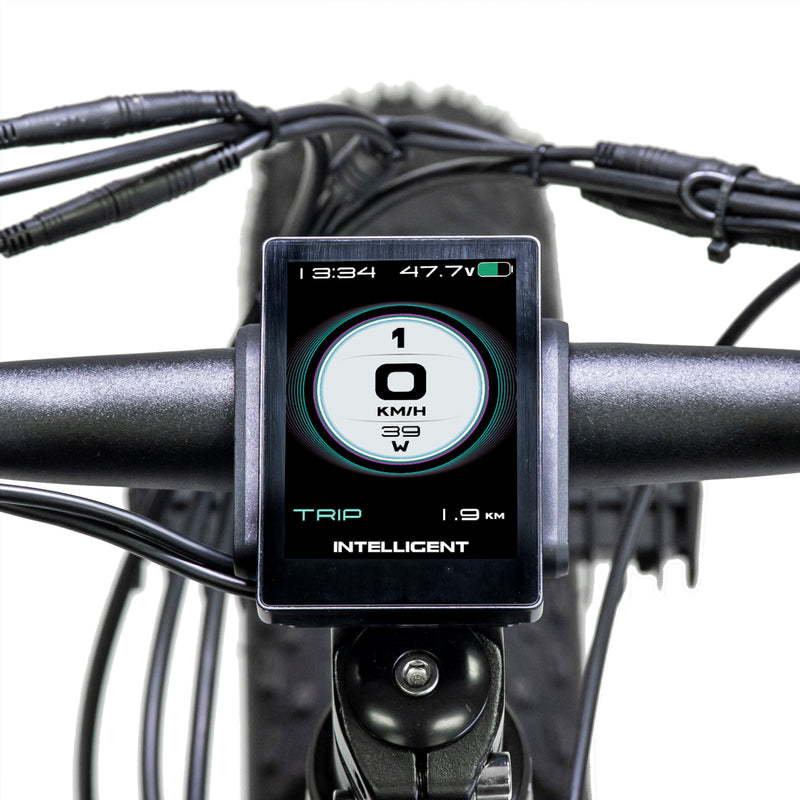

Display
Ds104 / ds103
Cassette
Sram 11-42t
Tire sizes
27.5x3", 26x4", 26x4.8"
Lights
Biktrix armageddon 2000 lumen headlight, battery taillight
Chain
Kmc x11e
Handlebar
31.8mm clamp, 800mm length, 30mm rise
Assist type
Cadence
Crank set
150mm short crank arms, 46t chainring (xd)
Stem
31.8mm clamp 100mm fixed stem
Assist levels
0-5
Bottom bracket
High strength stainless steel square tapered
Grips
Mtb grips
Throttle
Twist throttle
Brakes
Iiipro e500 quad piston brakes w/ 203mm front + 220mm rear
Saddle
Dco classic mtb saddle
Brake levers
Tektro dorado 4-finger w/adjustable reach and brake cutoffs
Frame
Made in usa 6061 aluminum
Front hub
150mm 36h/150mm 32h
Seat post
31.6mm
Fork
Rst renegade coil spring w/100mm travel, lockout & preload
Front axle
15mm thru axle
Seat post clamp
Qr
Headset
Threadless 1-1/2 1-1/8 tapered
Rear hub
197mm 36h / 197 32h
Motor
Biktrix xd dual drive motor
Shifter rear
Sram nx 11 speed trigger shifter
Rear axle
12mm thru axle
Battery sizes
48v 21ah 1008wh, 52v 17ah 910wh, 48v 25ah 1200wh
Rear derailleur
Sram nx 11 speed
Rims
27.5x3 36h, 26x4 32h, 26x4.8 32h
Display
Ds104 / ds103
Cassette
Sram 11-42t
Tire sizes
27.5x3", 26x4", 26x4.8"
Lights
Biktrix armageddon 2000 lumen headlight, battery taillight
Chain
Kmc x11e
Handlebar
31.8mm clamp, 800mm length, 30mm rise
Assist type
Cadence
Crank set
150mm short crank arms, 46t chainring (xd)
Stem
31.8mm clamp 100mm fixed stem
Assist levels
0-5
Bottom bracket
High strength stainless steel square tapered
Grips
Mtb grips
Throttle
Twist throttle
Brakes
Iiipro e500 quad piston brakes w/ 203mm front + 220mm rear
Saddle
Dco classic mtb saddle
Brake levers
Tektro dorado 4-finger w/adjustable reach and brake cutoffs
Frame
Made in usa 6061 aluminum
Front hub
150mm 36h/150mm 32h
Seat post
31.6mm
Fork
Rst renegade coil spring w/100mm travel, lockout & preload
Front axle
15mm thru axle
Seat post clamp
Qr
Headset
Threadless 1-1/2 1-1/8 tapered
Rear hub
197mm 36h / 197 32h
Motor
Biktrix xd dual drive motor
Shifter rear
Sram nx 11 speed trigger shifter
Rear axle
12mm thru axle
Battery sizes
48v 21ah 1008wh, 52v 17ah 910wh, 48v 25ah 1200wh
Rear derailleur
Sram nx 11 speed
Rims
27.5x3 36h, 26x4 32h, 26x4.8 32h
Display
Ds104 / ds103
Cassette
Sram 11-42t
Tire sizes
27.5x3", 26x4", 26x4.8"
Lights
Biktrix armageddon 2000 lumen headlight, battery taillight
Chain
Kmc x11e
Handlebar
31.8mm clamp, 800mm length, 30mm rise
Assist type
Cadence
Crank set
150mm short crank arms, 46t chainring (xd)
Stem
31.8mm clamp 100mm fixed stem
Assist levels
0-5
Bottom bracket
High strength stainless steel square tapered
Grips
Mtb grips
Throttle
Twist throttle
Brakes
Iiipro e500 quad piston brakes w/ 203mm front + 220mm rear
Saddle
Dco classic mtb saddle
Brake levers
Tektro dorado 4-finger w/adjustable reach and brake cutoffs

Size & Fittings

1
Effective Top Tube Length
600mm 23.6in
2
Seat Tube Length (Classic Bike Size)
480mm 18.9in
3
Reach
480mm 18.9in
4
Stack
620mm 24.4in
5
Chainstay Length
530mm 20.9in
6
Standover Height
720mm 28.3in
7
Head Angle
66° -
8
Seat Angle
71° -
9
Head Tube Length
180 mm 7.1 in
10
Fork Length
510mm 20.1in
11
Front Center
760mm 29.9in
12
BB (Bottom Bracket) Drop
40mm 1.6in
13
Fork Offset
20mm 0.8in
14
Wheelbase
1290mm 50.8in
15
Total Length
2050mm 80.7in
16
Max Seat Height
1130mm 44.5in
17
Min Seat Height
890mm 35in
18
Handlebar Height
1100mm 43.3in
19
Weight (Without Battery)
21.6kg 47.6lb
1
Effective Top Tube Length
600mm 23.6in
2
Seat Tube Length (Classic Bike Size)
535mm 21.1in
3
Reach
480mm 18.9in
4
Stack
620mm 24.4in
5
Chainstay Length
530mm 20.9in
6
Standover Height
770mm 30.3in
7
Head Angle
66° -
8
Seat Angle
71° -
9
Head Tube Length
180 mm 7.1 in
10
Fork Length
510mm 20.1in
11
Front Center
760mm 29.9in
12
BB (Bottom Bracket) Drop
40mm 1.6in
13
Fork Offset
20mm 0.8in
14
Wheelbase
1290mm 50.8in
15
Total Length
2050mm 80.7in
16
Max Seat Height
1190mm 46.9in
17
Min Seat Height
950mm 37.4in
18
Handlebar Height
1120mm 44.1in
19
Weight (Without Battery)
21.8kg 48.1lb
