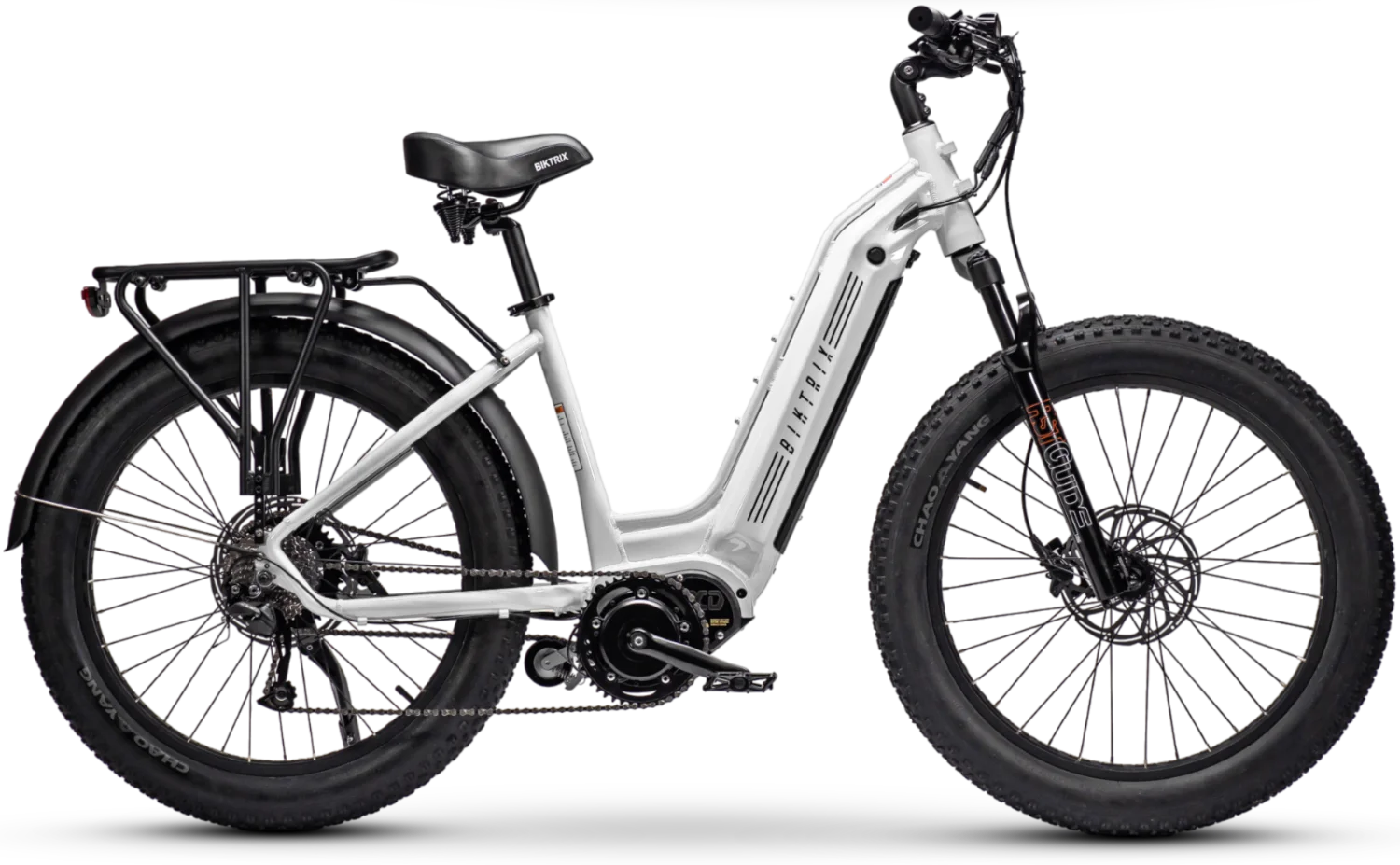

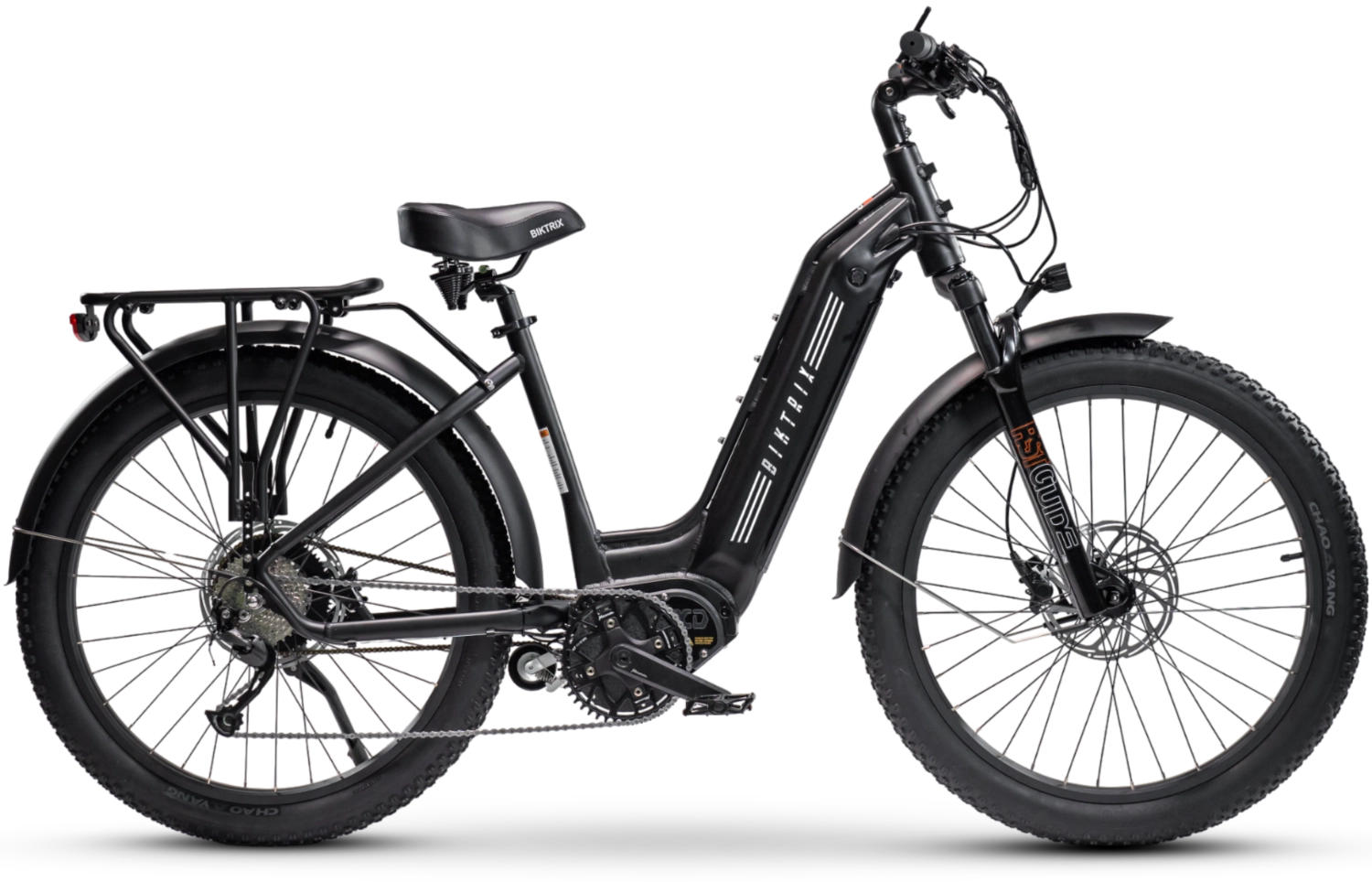

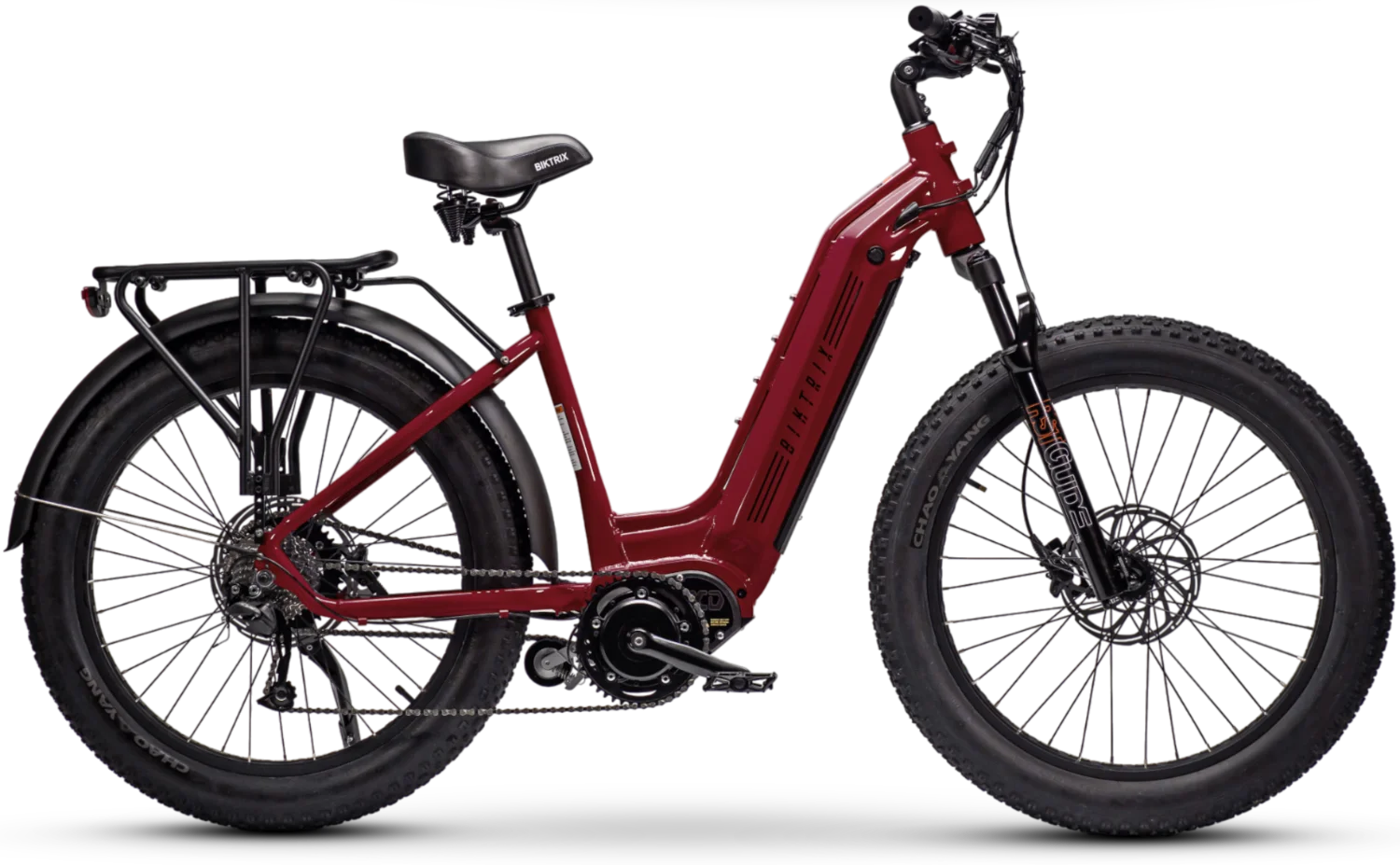

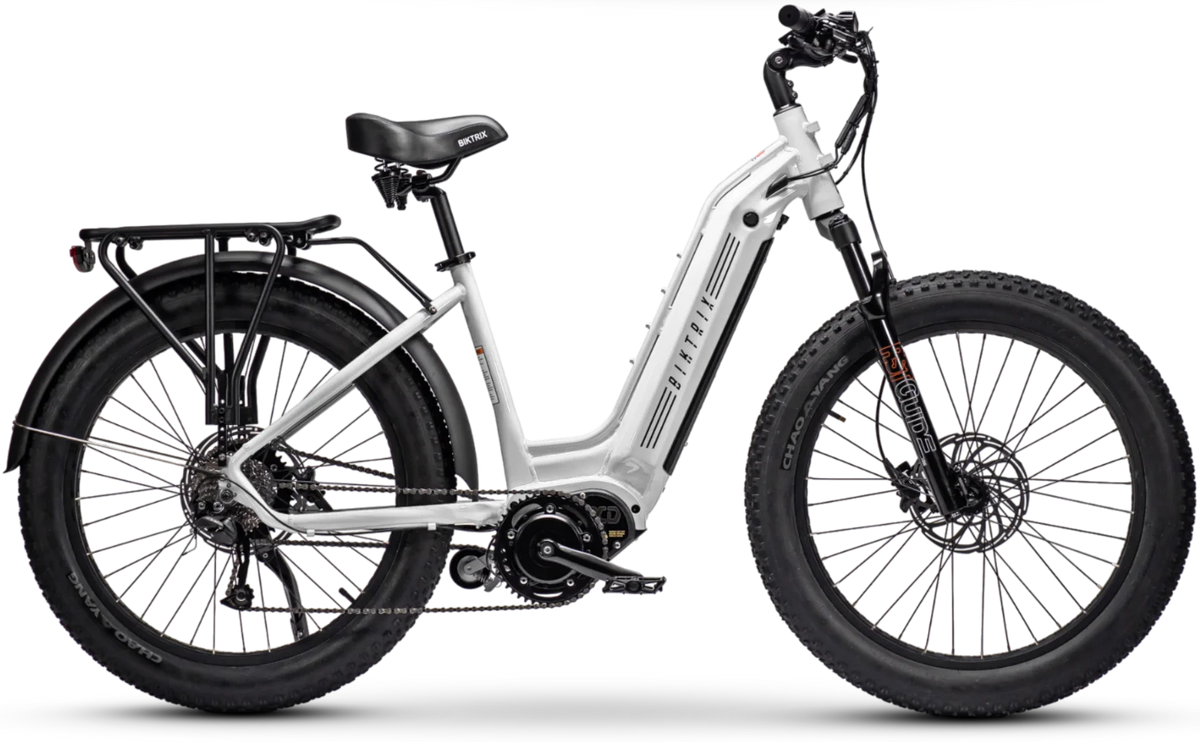

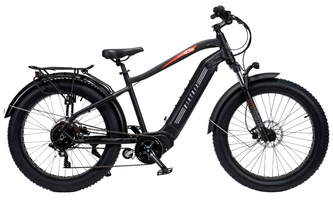

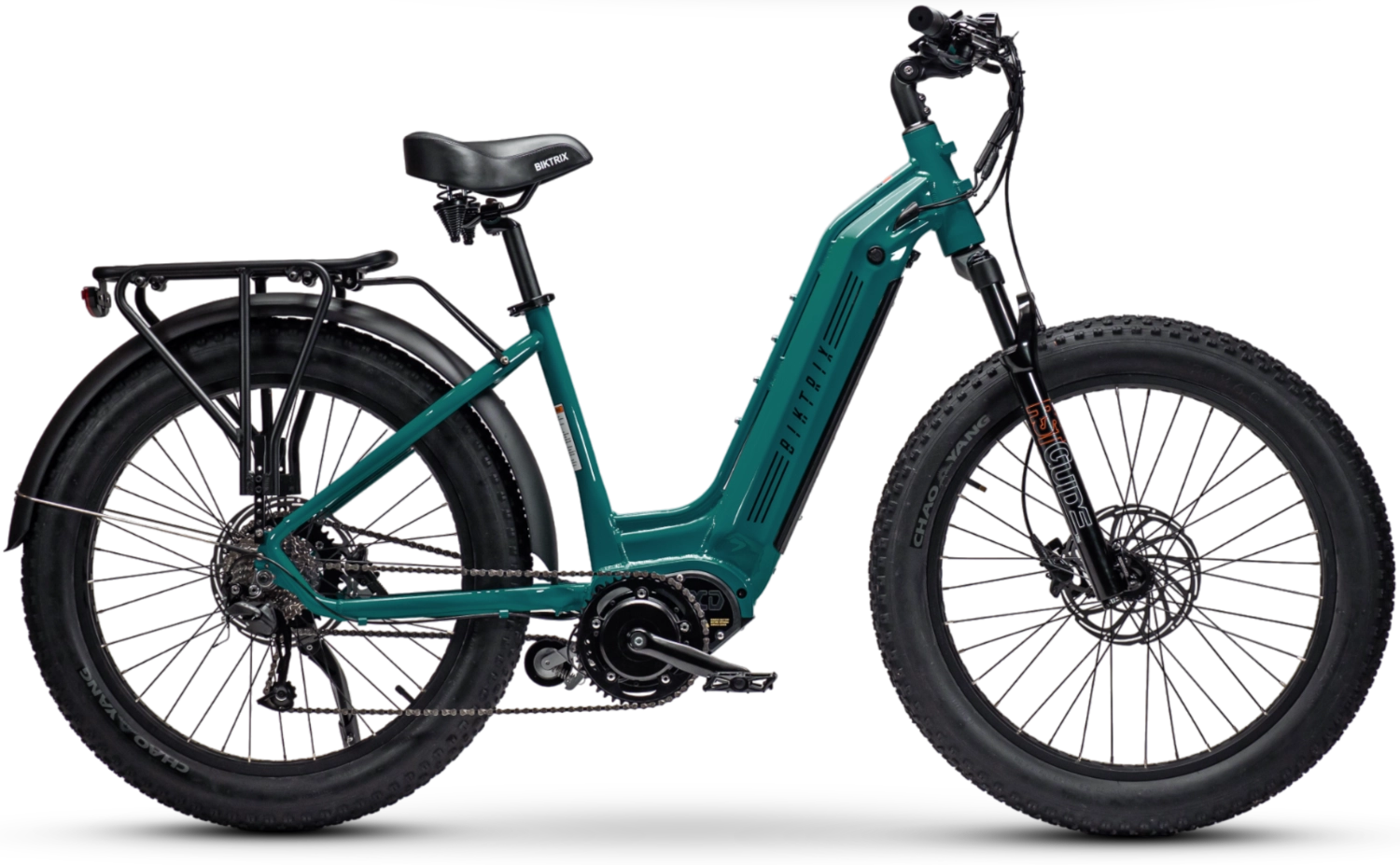

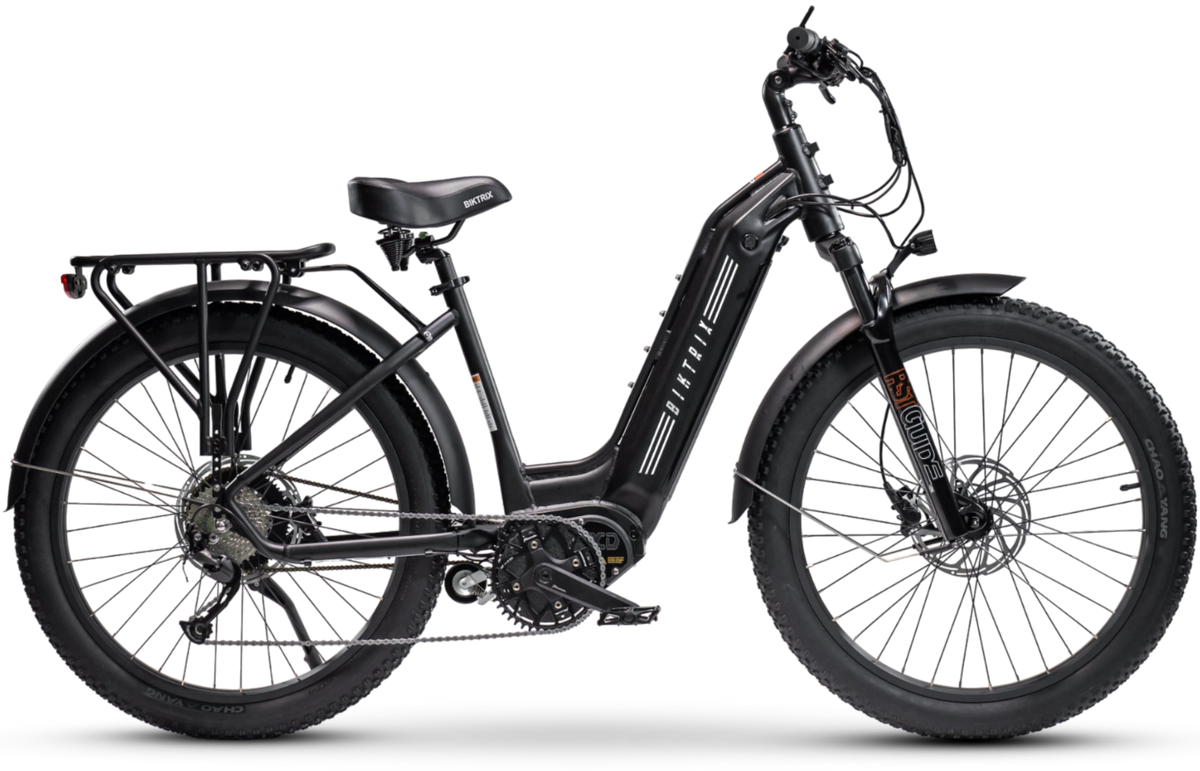

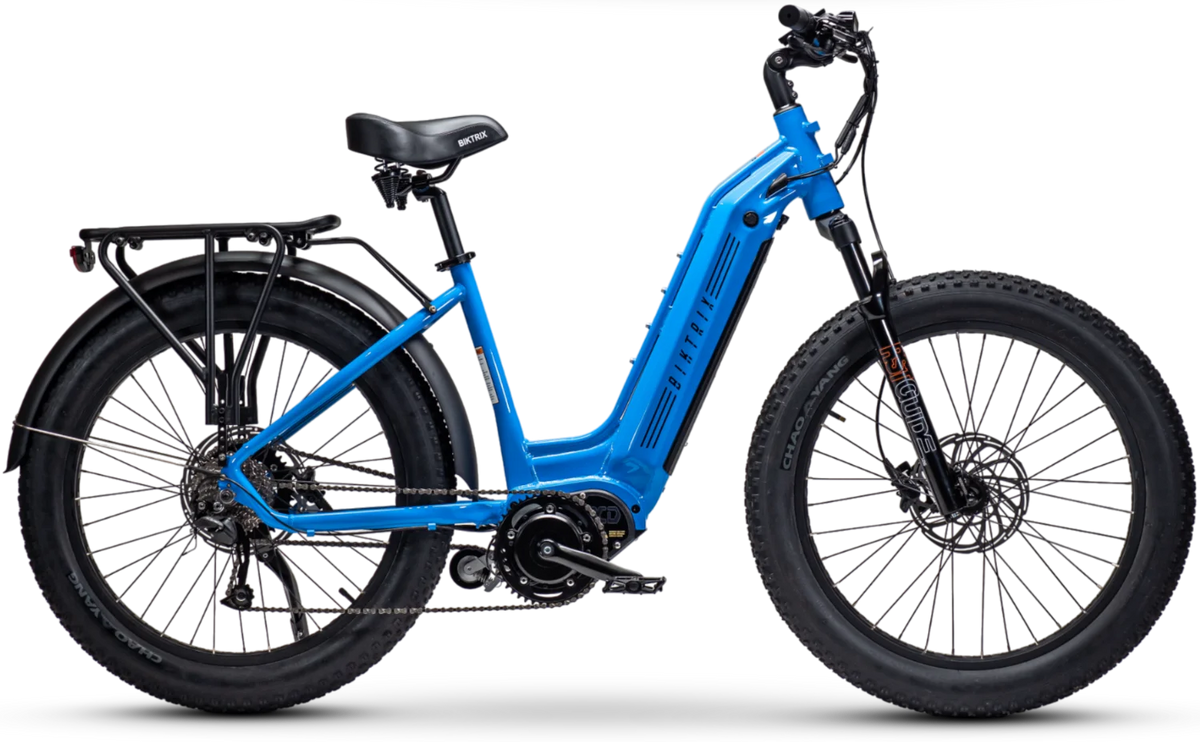

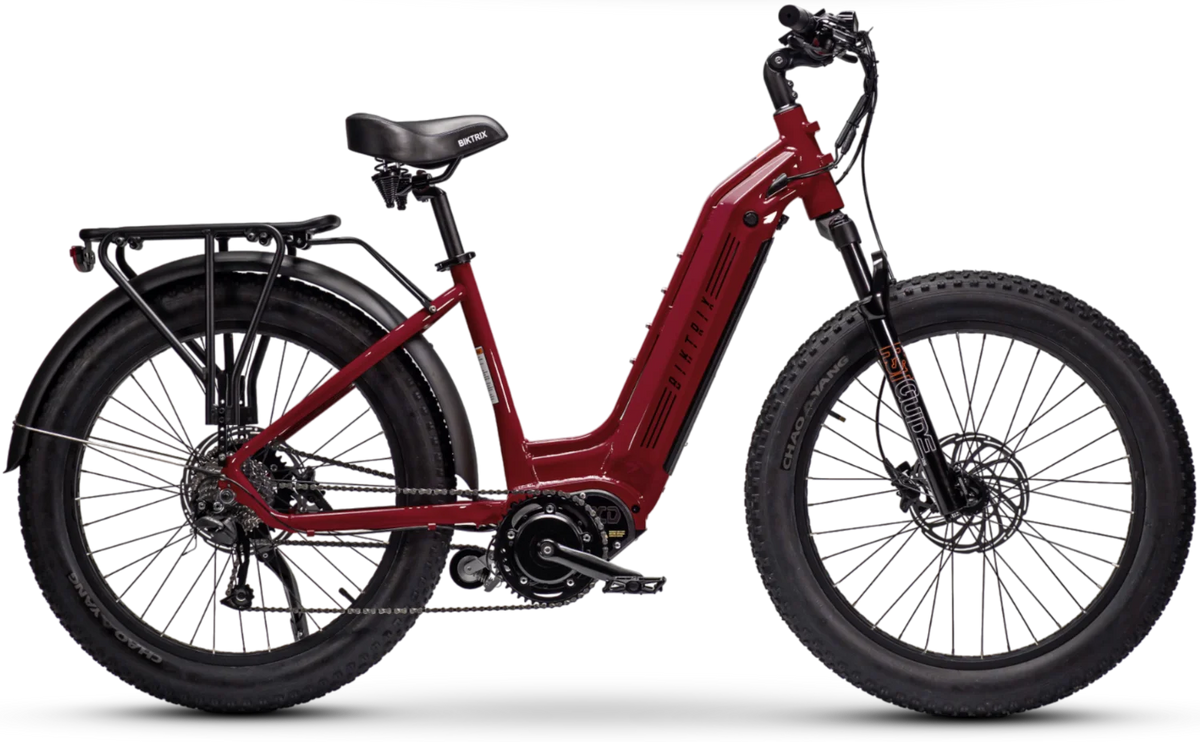

Juggernaut XD Duo ST

Sale price $4,499 USD Regular price$4,999 USD
Save $500 USD
Satin Black
Packages
Battery
Range Extender


Add an additional battery to extend your bikes range and give you that boost!

**This option adds an extra battery that mounts on top of the frame that doubles the range of the stock battery.
Upgrades
Brakes


Enhance your safety and control on every ride by upgrading your eBike brakes.

Fork


Elevate your ride's comfort and control by upgrading your ebike fork, ensuring a smoother journey over any terrain.

**The Upgraded Fork options are incompatible with the front fender included with the bike.
Drive Train


Unmatched power, smooth performance, and eco-friendly commuting in one seamless package.

**Drivetrain upgrade included Shifter, Cassette, Derailleur and Chain
Biktrix A-Bars


The swept-back design provides an upright riding position with multiple comfortable hand positions so you can enjoy further and more frequent rides!

Throttle


Select a Thumb Throttle or Twist Throttle for your eBike

**Right-Hand Twist throttle is incompatible with A-Bar Upgrade
Seatpost


Suspension seatposts offer great riding comfort as they absorb many of the imperfections on the road/trail.

***Adding a suspension seatpost to your eBike will increase the minimum seatpost height by 75mm/3" to 150mm/6"
Accessories
Canvas Pannier Bags
Canvas Pannier Bags


These Canvas bags offer great convenience and carrying capacity!

Coloured Pedals


Add some extra flair to your eBike with a set of coloured pedals!

Warranty

Secure your investment by opting for an extended warranty through the BiktrixCare+ plan.

Sale price $4,499.00 Regular price$4,999.00
Shipping: Leaves within 4-6 Weeks
2300W Mid-Drive

Motor Power

Up to 60mi

Standard Range

+5'6"ft / 330lb

Max Load

Torque Sensor

Powerful Pedal Assist

On-Demand Throttle

Pedaling Optional

25+ Point Quality

Control Checklist

65+

Kilometers Range

2300W

Mid-Drive

52V 17Ah

Strong, Reliable Battery

Unmatched. Power. Reliable.

Getting plenty of power to the rear wheel is exciting, but has always come at the risk of ongoing costs in replacement parts, and time lost riding. Many casual to moderate riders will not ride hard enough to cause such issues. But for those who want to push the limits, a more robust solution was needed to build the dream e-bike machine, with extreme endurance.

Designed And Built In Canada

The XD Drive system was developed in Saskatoon, Canada, by a team of e-bike enthusiasts with a shared passion for better solutions to transportation. The global pandemic conditions forced them to improvise, adapt, and overcome, tackling the bike parts shortages, chip shortages, shipping shortages, and forces of nature simultaneously throughout development.

The resulting product and its manufacturing approaches are primed for navigating such challenges with agility, and competitive in-house solutions.

Performance. Fully Loaded.

Technical Specifications

Frame
6061 aluminum
Front hub
135mm 36h
Seat post
28.6mm
Fork
Rst guide w/75mm travel, lockout and preload
Front axle
5mm qr
Seat post clamp
Qr
Headset
Threadless 1-1/2 1-1/8 tapered
Rear hub
190mm 36h

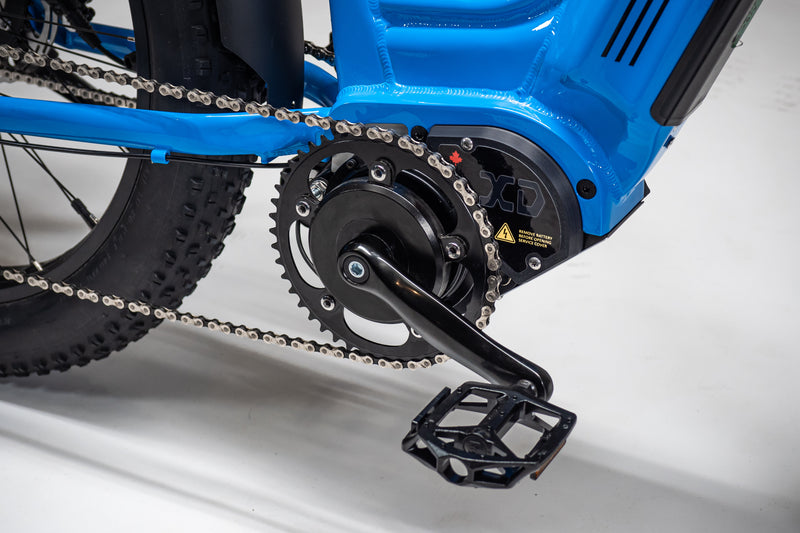

Motor
Biktrix coaxial mid-drive motor
Shifter rear
Shimano alivio trigger shifter
Rear axle
Bolt-on
Battery sizes
Total capacity of 52v 38.5ah 2002wh:
52v 17.5ah 910wh (internal battery) +
52v 21ah 1092 wh (external range extender battery)

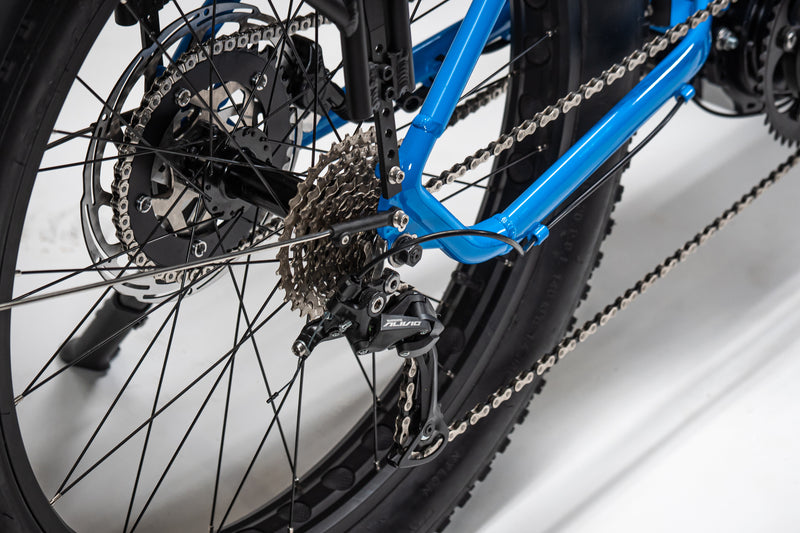

Rear derailleur
Shimano alivio 9 speed
Rims
26" black w/ round cutouts, 27.5" solid black

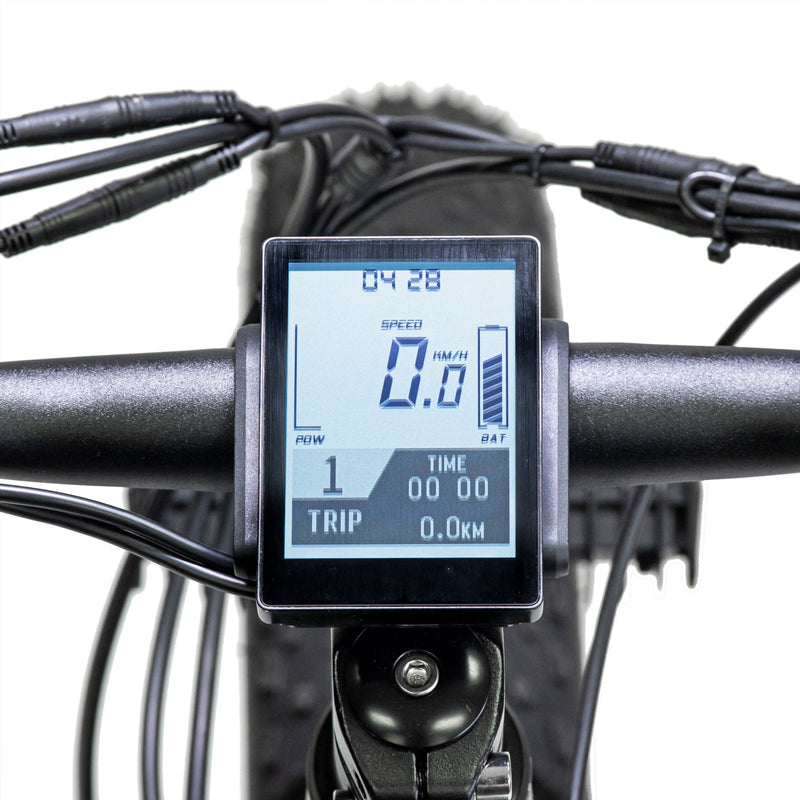

Display
Ds103

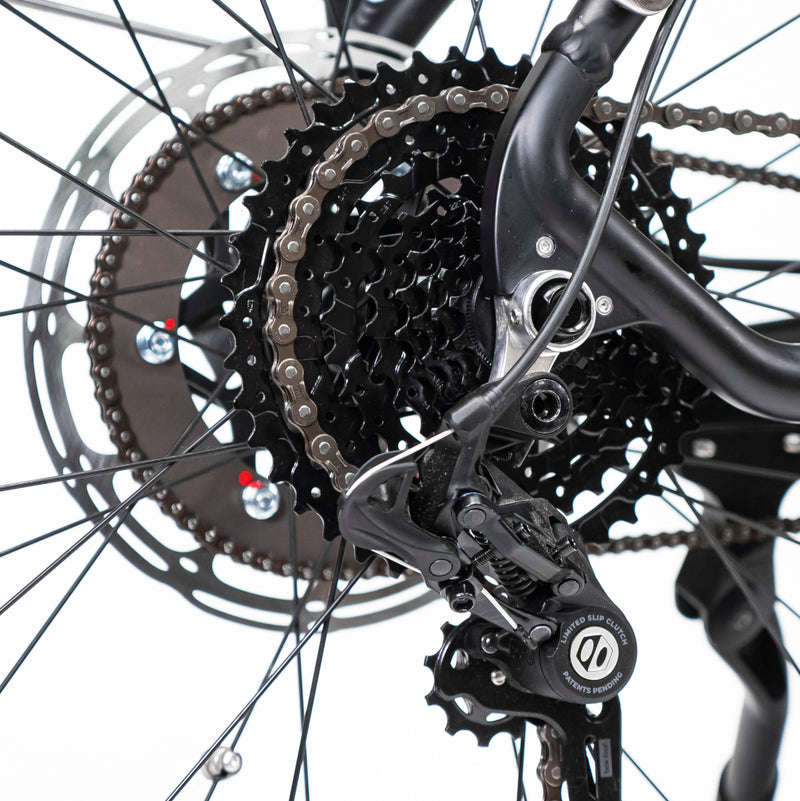

Cassette
11-34t 9 speed
Tire sizes
Chaoyang 26x4, chaoyang 27.5x3

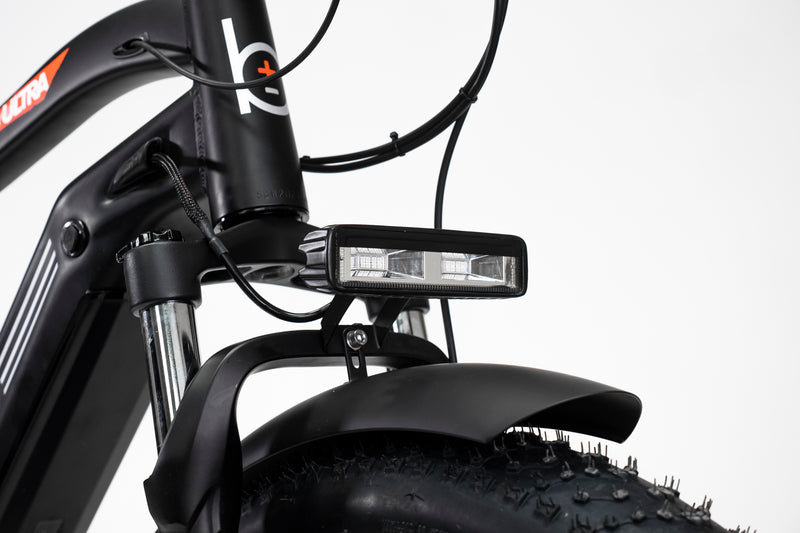

Lights
Armageddon headlight
Chain
Kmc e9s - 124 links
Handlebar
700mm wide, 50mm rise w/31.8mm clamp
Assist type
Cadence + torque

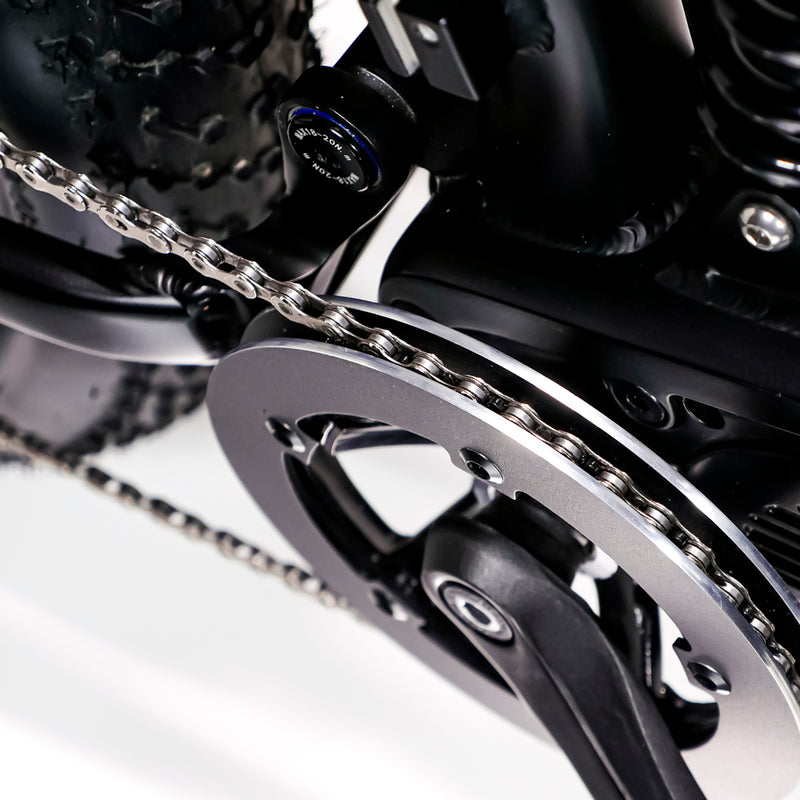

Crank set
40t chainring w/152mm arms
Stem
Adjustable stem w/31.8mm clamp
Assist levels
0-5
Bottom bracket
High strength stainless steel square tapered
Grips
Mtb grips

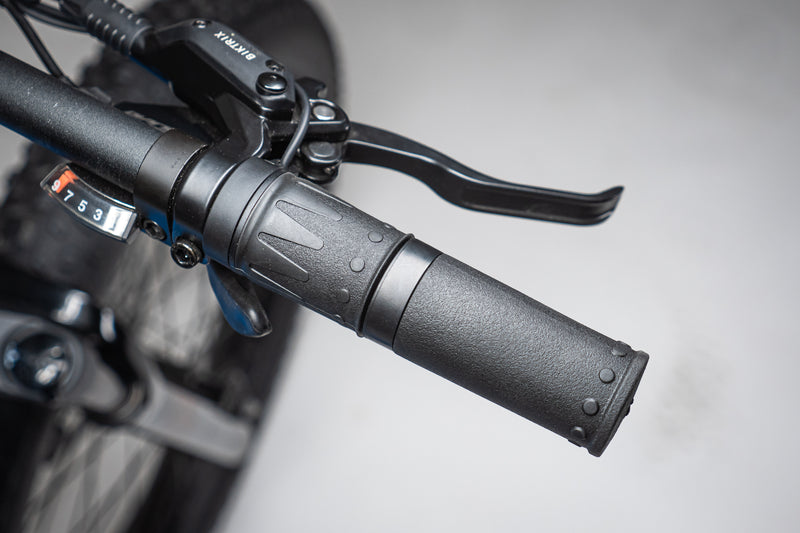

Throttle
Low profile right-hand twist throttle / thumb throttle

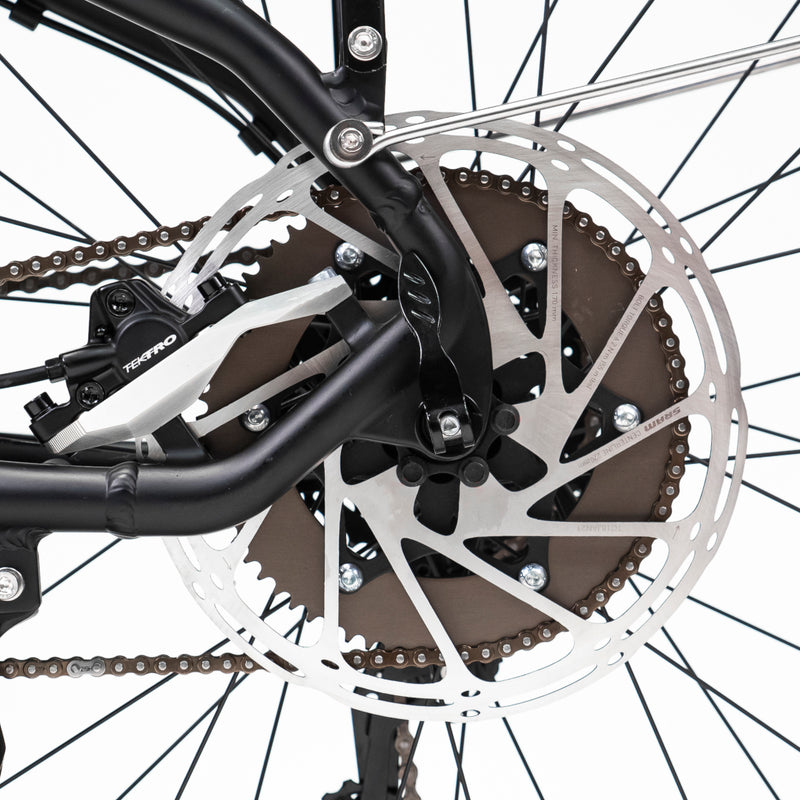

Brakes
Iiipro e500 quad piston brakes w/203mm front, 220mm rear rotor

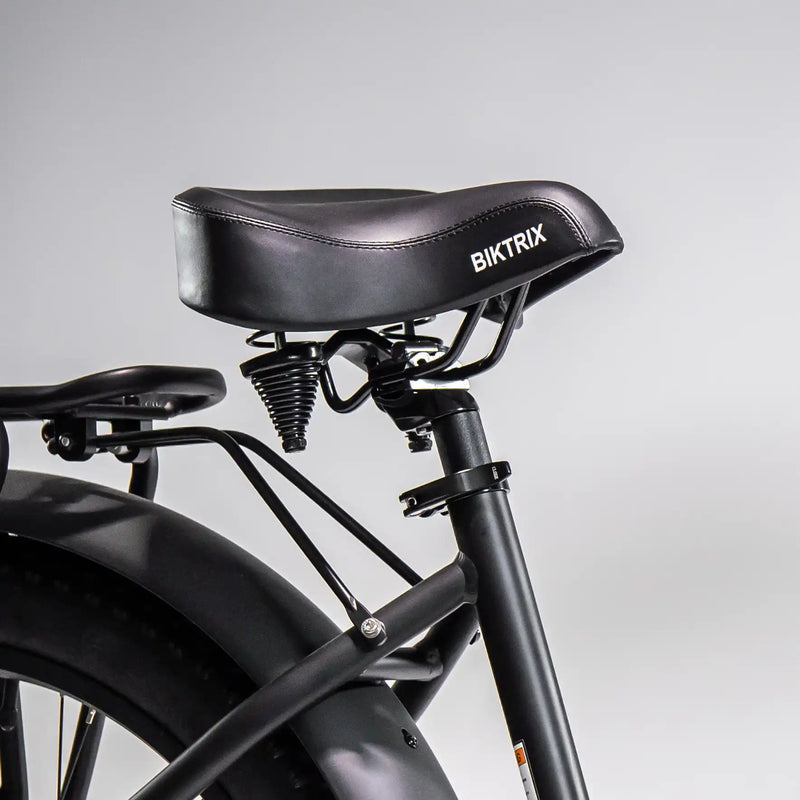

Saddle
Wide spring supported comfort saddle
Other
Rear rack, kickstand, front and rear fenders
Brake levers
Adjustable w/ integrated brake cutoffs
Frame
6061 aluminum
Front hub
135mm 36h
Seat post
28.6mm
Fork
Rst guide w/75mm travel, lockout and preload
Front axle
5mm qr
Seat post clamp
Qr
Headset
Threadless 1-1/2 1-1/8 tapered
Rear hub
190mm 36h
Motor
Biktrix coaxial mid-drive motor
Shifter rear
Shimano alivio trigger shifter
Rear axle
Bolt-on
Battery sizes
Total capacity of 52v 38.5ah 2002wh:
52v 17.5ah 910wh (internal battery) +
52v 21ah 1092 wh (external range extender battery)
Rear derailleur
Shimano alivio 9 speed
Rims
26" black w/ round cutouts, 27.5" solid black
Display
Ds103
Cassette
11-34t 9 speed
Tire sizes
Chaoyang 26x4, chaoyang 27.5x3
Lights
Armageddon headlight
Chain
Kmc e9s - 124 links
Handlebar
700mm wide, 50mm rise w/31.8mm clamp
Assist type
Cadence + torque
Crank set
40t chainring w/152mm arms
Stem
Adjustable stem w/31.8mm clamp
Assist levels
0-5
Bottom bracket
High strength stainless steel square tapered
Grips
Mtb grips
Throttle
Low profile right-hand twist throttle / thumb throttle
Brakes
Iiipro e500 quad piston brakes w/203mm front, 220mm rear rotor
Saddle
Wide spring supported comfort saddle
Other
Rear rack, kickstand, front and rear fenders
Brake levers
Adjustable w/ integrated brake cutoffs
Frame
6061 aluminum
Front hub
135mm 36h
Seat post
28.6mm
Fork
Rst guide w/75mm travel, lockout and preload
Front axle
5mm qr
Seat post clamp
Qr
Headset
Threadless 1-1/2 1-1/8 tapered
Rear hub
190mm 36h
Motor
Biktrix coaxial mid-drive motor
Shifter rear
Shimano alivio trigger shifter
Rear axle
Bolt-on
Battery sizes
Total capacity of 52v 38.5ah 2002wh:
52v 17.5ah 910wh (internal battery) +
52v 21ah 1092 wh (external range extender battery)
Rear derailleur
Shimano alivio 9 speed
Rims
26" black w/ round cutouts, 27.5" solid black
Display
Ds103
Cassette
11-34t 9 speed
Tire sizes
Chaoyang 26x4, chaoyang 27.5x3
Lights
Armageddon headlight
Chain
Kmc e9s - 124 links
Handlebar
700mm wide, 50mm rise w/31.8mm clamp
Assist type
Cadence + torque
Crank set
40t chainring w/152mm arms
Stem
Adjustable stem w/31.8mm clamp
Assist levels
0-5
Bottom bracket
High strength stainless steel square tapered
Grips
Mtb grips
Throttle
Low profile right-hand twist throttle / thumb throttle
Brakes
Iiipro e500 quad piston brakes w/203mm front, 220mm rear rotor
Saddle
Wide spring supported comfort saddle
Other
Rear rack, kickstand, front and rear fenders
Brake levers
Adjustable w/ integrated brake cutoffs

Size & Fittings

1
Effective Top Tube Length
530mm 20.9in
2
Seat Tube Length (Classic Bike Size)
460mm 18.1in
3
Reach
560mm 22in
4
Stack
520mm 20.5in
5
Chainstay Length
520mm 20.5in
6
Standover Height
450mm 17.7in
7
Head Angle
68° -
8
Seat Angle
71° -
9
Head Tube Length
180 mm 7.1 in
10
Fork Length
530mm 20.9in
11
Front Center
730mm 28.7in
12
BB (Bottom Bracket) Drop
50mm 2in
13
Fork Offset
30mm 1.2in
14
Wheelbase
1240mm 48.8in
15
Total Length
2000mm 78.7in
16
Max Seat Height
1000mm 39.4in
17
Min Seat Height
880mm 34.6in
18
Handlebar Height
1160mm 45.7in
19
Weight (Without Battery)
34kg 75lb
1
Effective Top Tube Length
560mm 22in
2
Seat Tube Length (Classic Bike Size)
420mm 16.5in
3
Reach
520mm 20.5in
4
Stack
500mm 19.7in
5
Chainstay Length
480mm 18.9in
6
Standover Height
430mm 16.9in
7
Head Angle
68° -
8
Seat Angle
71° -
9
Head Tube Length
180 mm 7.1 in
10
Fork Length
530mm 20.9in
11
Front Center
710mm 28in
12
BB (Bottom Bracket) Drop
40mm 1.6in
13
Fork Offset
30mm 1.2in
14
Wheelbase
1240mm 48.8in
15
Total Length
2000mm 78.7in
16
Max Seat Height
1000mm 39.4in
17
Min Seat Height
830mm 32.7in
18
Handlebar Height
1100mm 43.3in
19
Weight (Without Battery)
33.5kg 73.9lb
