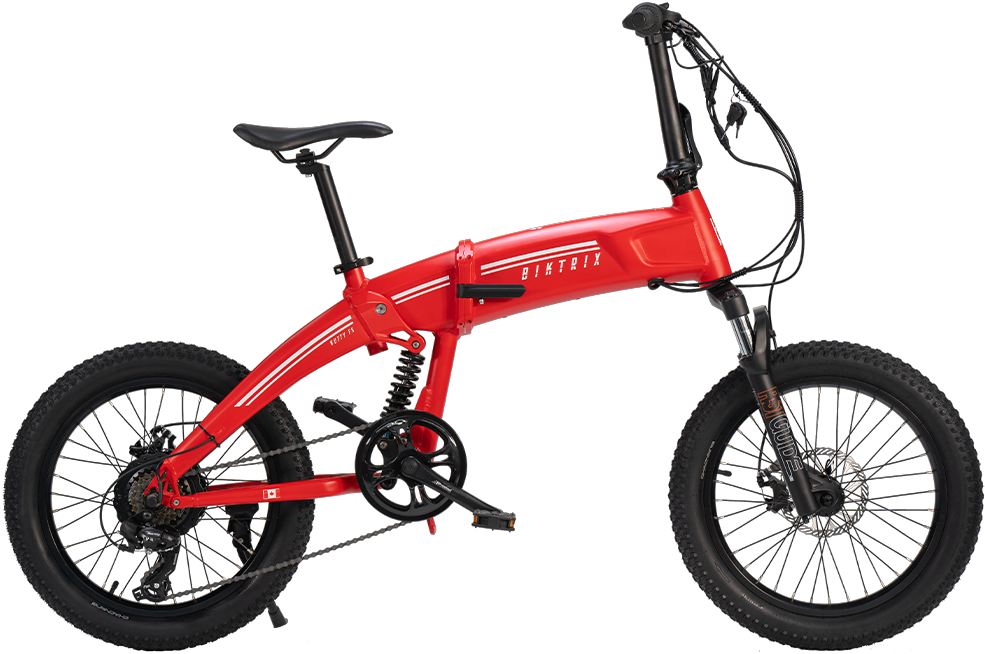

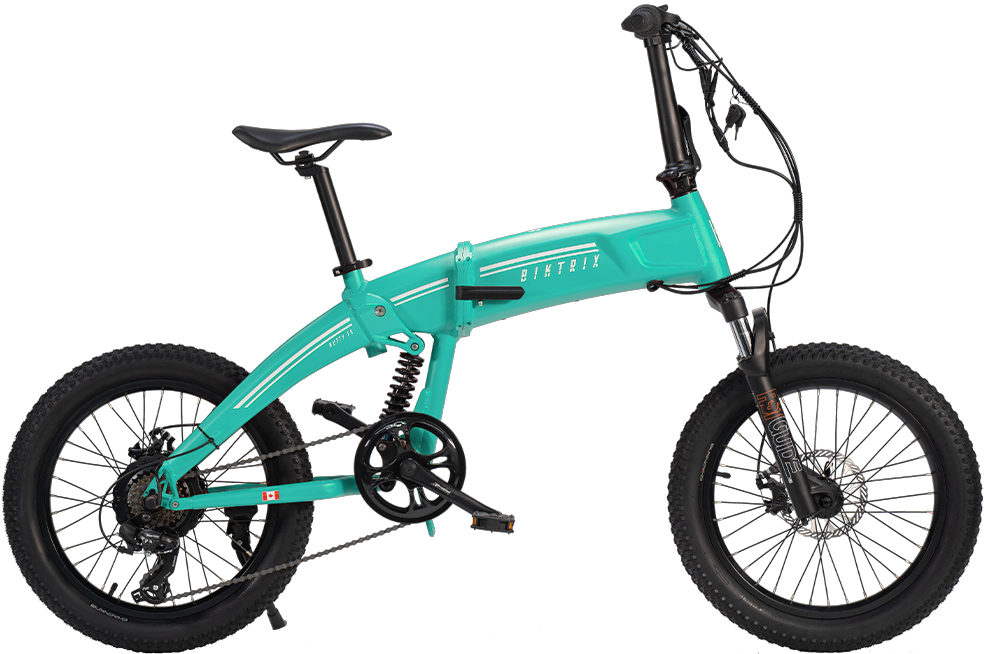

Kutty FS

Sale price $1,299 USD Regular price $1,499 USD
Sale price $1,299 USD Regular price $1,499 USD
250W Hub-Drive

Motor Power

36V 13Ah 468Wh

est. 25mi Range

+5'2ft / 265lb

Max Load

Cadence Sensor

Powerful Pedal Assist

25+ Point Quality

Control Checklist

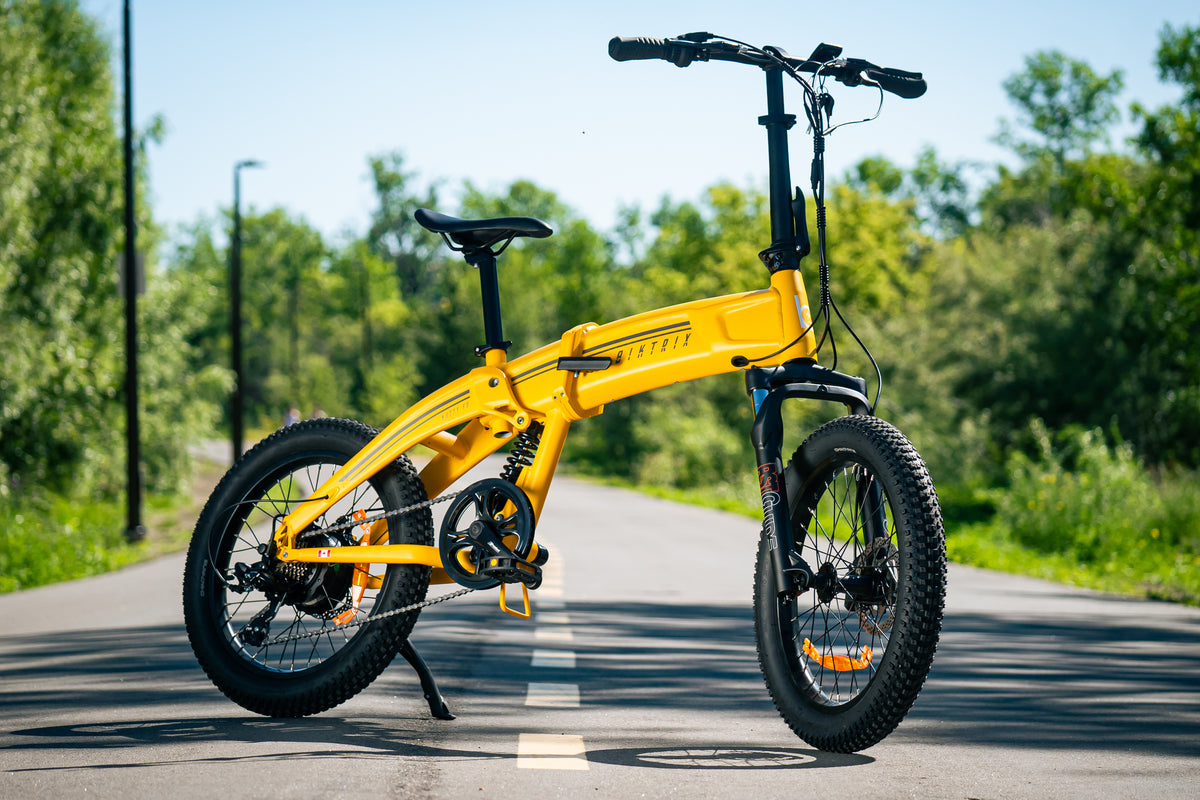

Let Your Adventure Unfold.

Our folding eBike is back by popular demand! Now with front and rear suspension, the compact Kutty FS is more enjoyable than ever. The 250W hub-motor and 36V 13Ah battery provide the perfect amount of assist for commuting to work, cruising to school, or taking your sight-seeing to the next level!

Small Size. Big Fun.

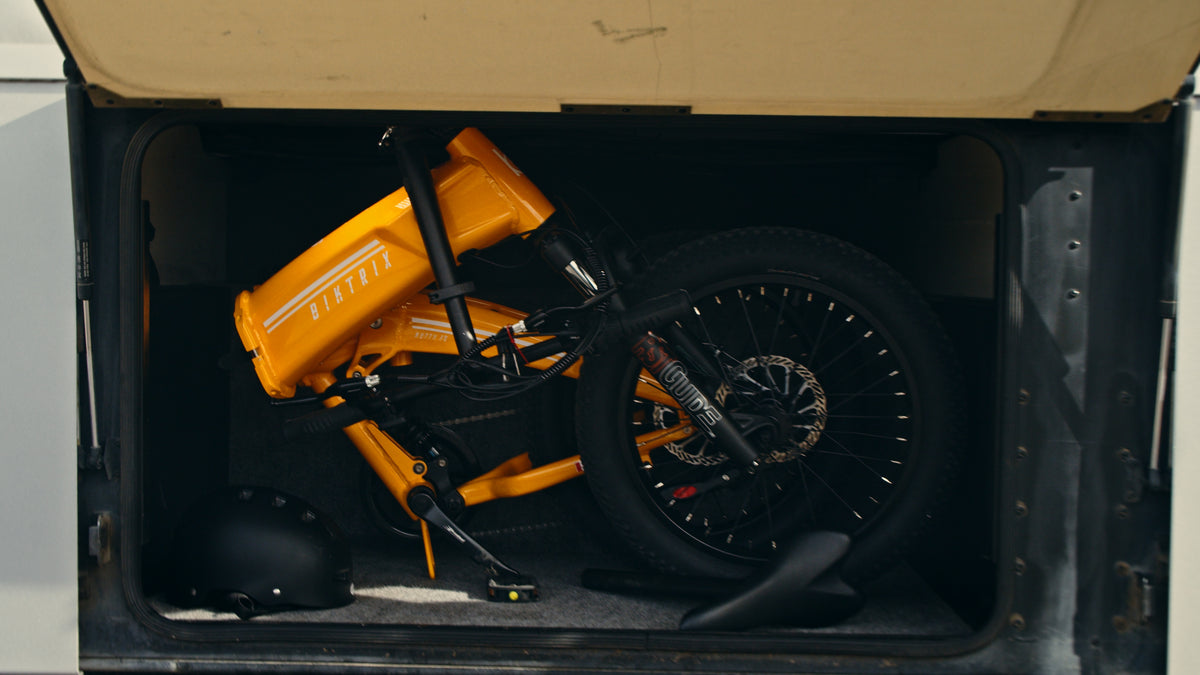

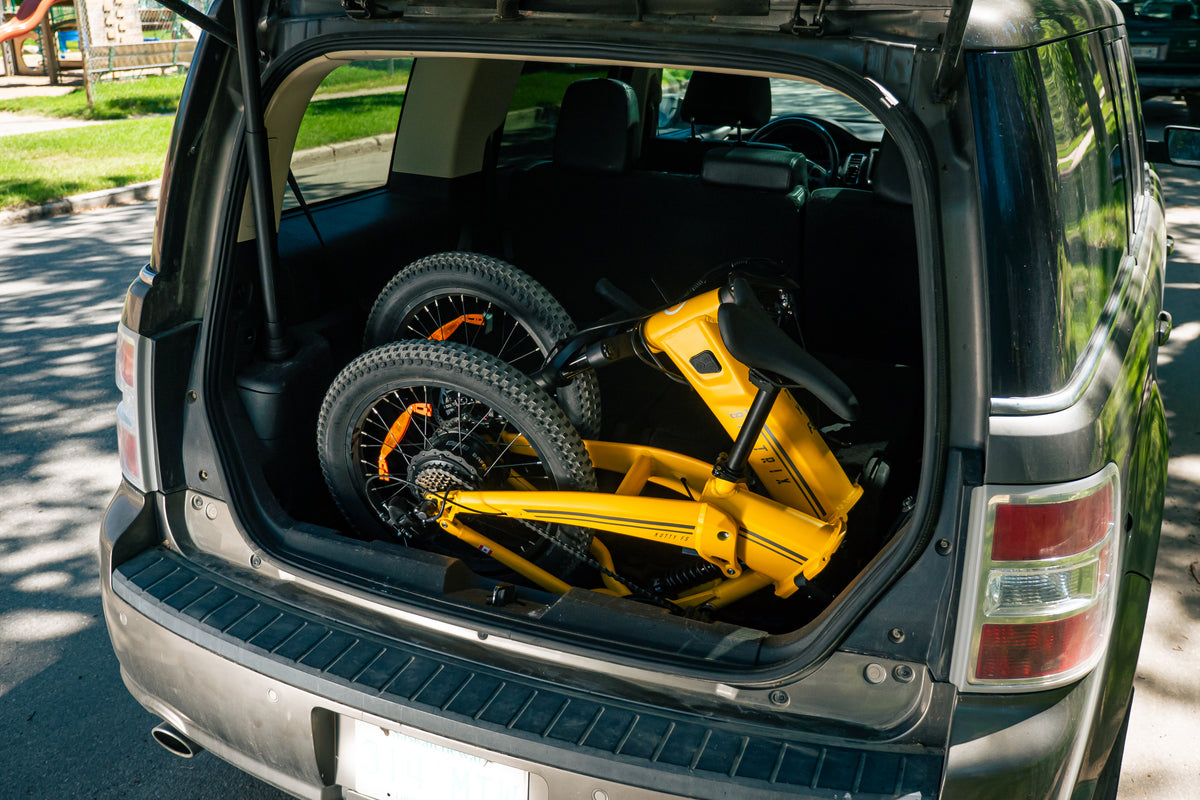

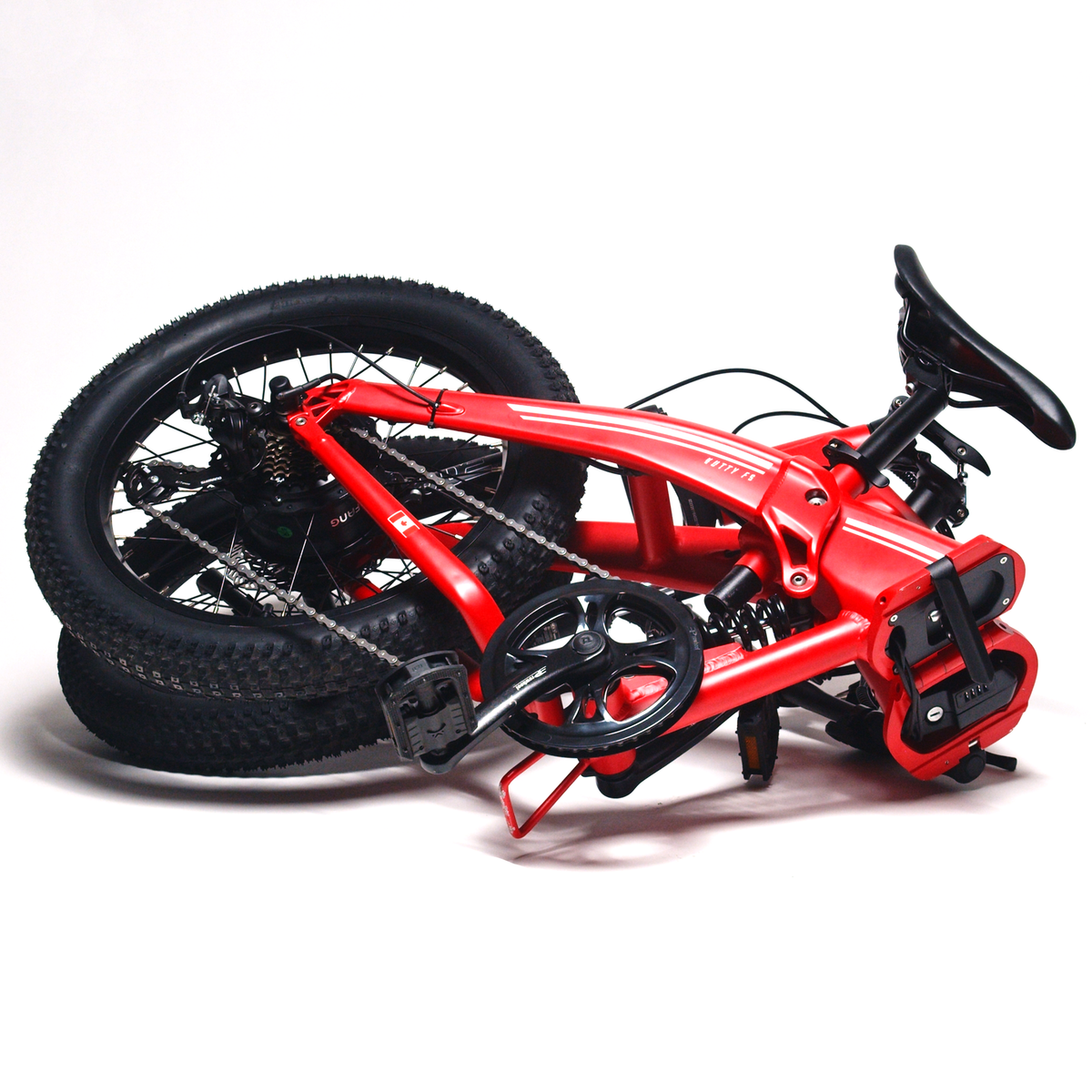

Low on space? Perfect. Our folding design allows the Kutty FS to fit just about anywhere. From car trunks to bedroom closets and anything in between. Bring one along on your next road trip and go exploring where a car can't take you!

Ultra Power. Greater Features.

Technical Specifications

Frame
6061 aluminum foldable
Front hub
135mm 36h
Seat post
30.9mm
Fork
Rst guide w/ 60mm travel + adjustable preload
Front axle
5mm qr
Seat post clamp
Qr
Headset
Threadless 1-1/8 straight
Rear hub
Motor

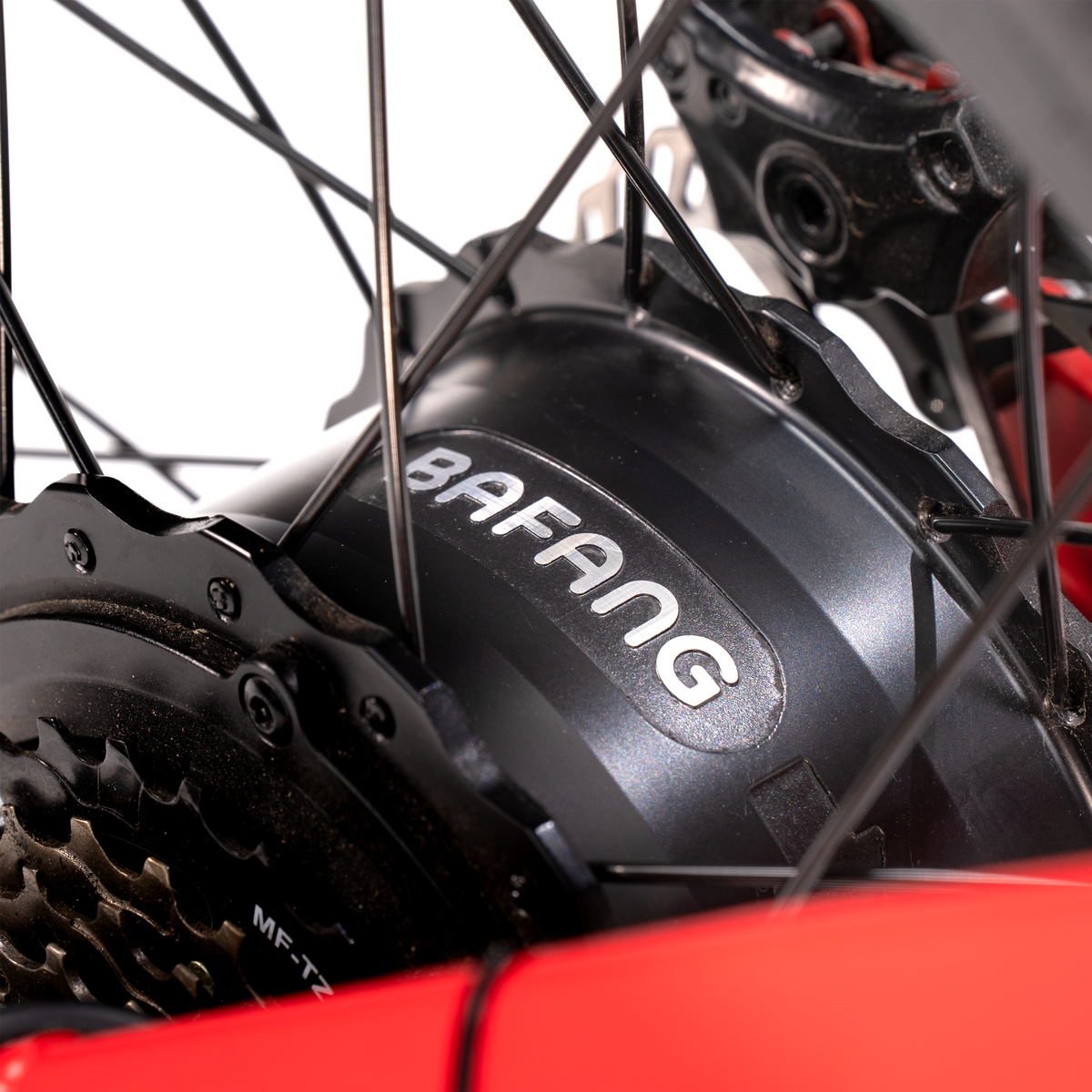

Motor
250w rear hub
Shifter rear
Shimano revoshift 7 speed twist shifter
Rear axle
Bolt on
Battery sizes
36v 13ah 468wh

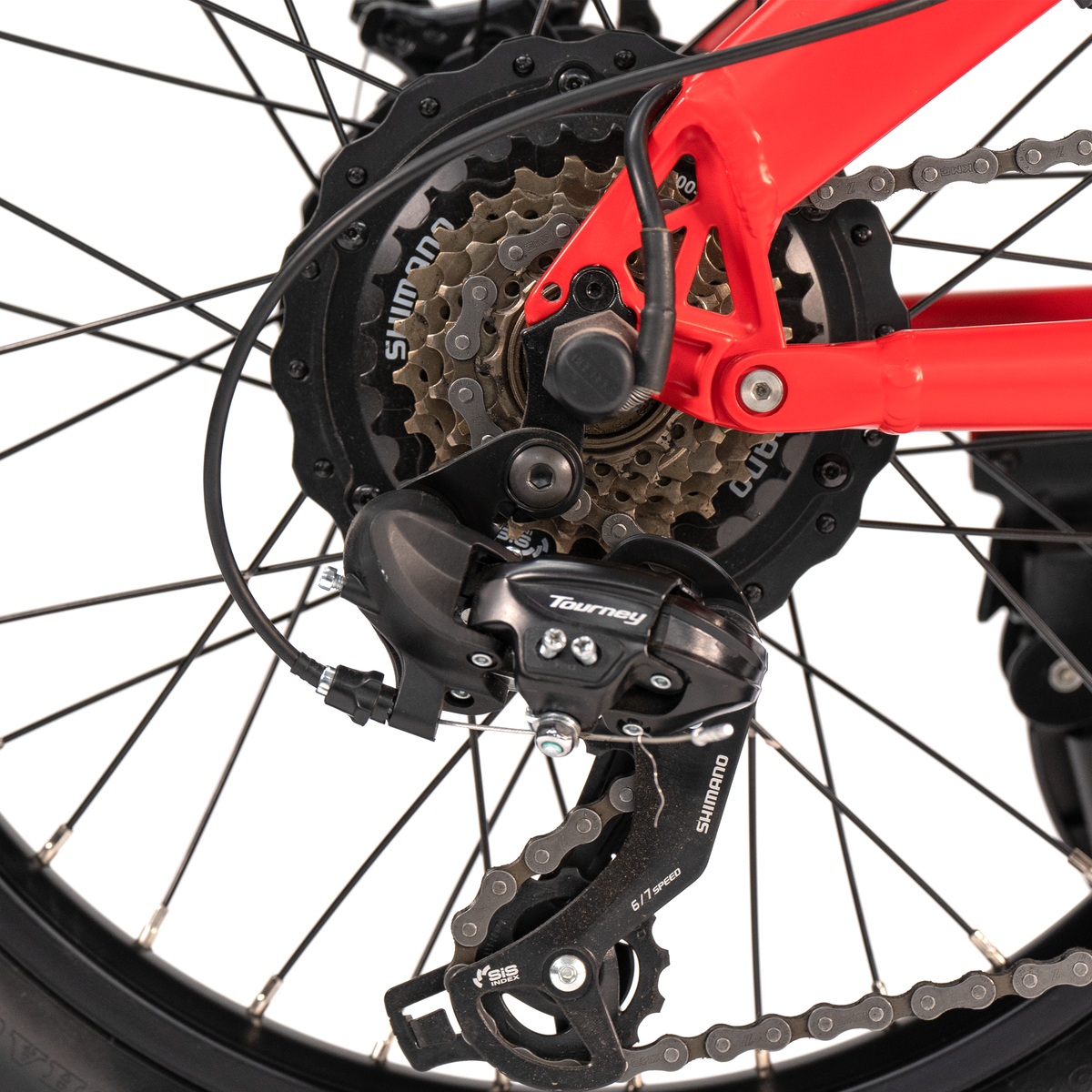

Rear derailleur
Shimano tourney 7 speed
Rims
Black 36h 30mm wide

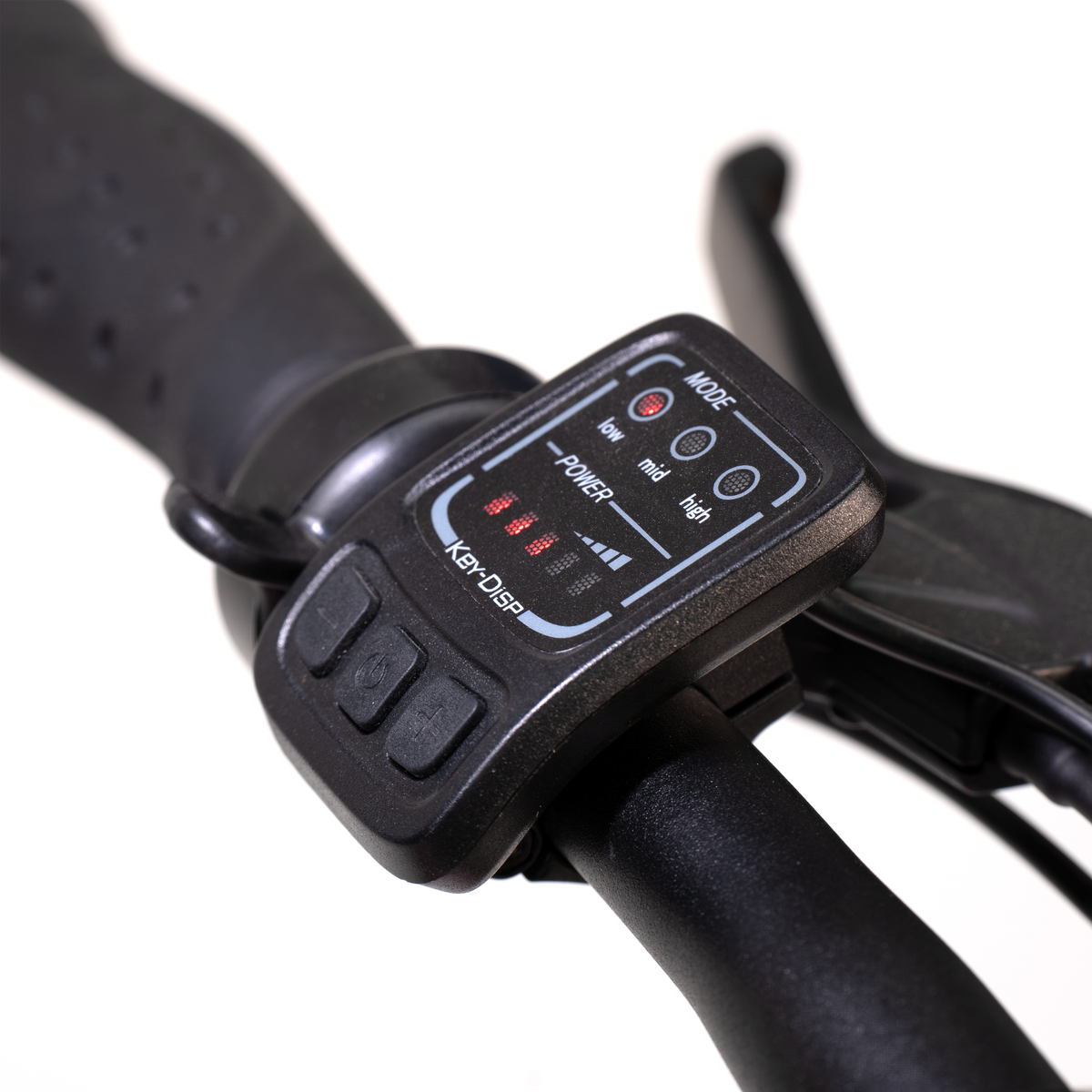

Display
3 button static display
Cassette
7 speed 13-28t
Tire sizes
20x3"
Chain
Kmc z7
Handlebar
25.4mm clamp, 610mm wide
Assist type
Cadence
Crank set
180mm arms, 44t chainring
Stem
Folding w/ height adjustment
Assist levels
0-3
Bottom bracket
115mm square taper
Grips
Slide-on
Throttle
Thumb throttle
Brakes
Artek mechanical brakes w/ 160mm rotors
Saddle
Narrow
Other
Folding pedals
Brake levers
Artek w/ brake cutoff switch

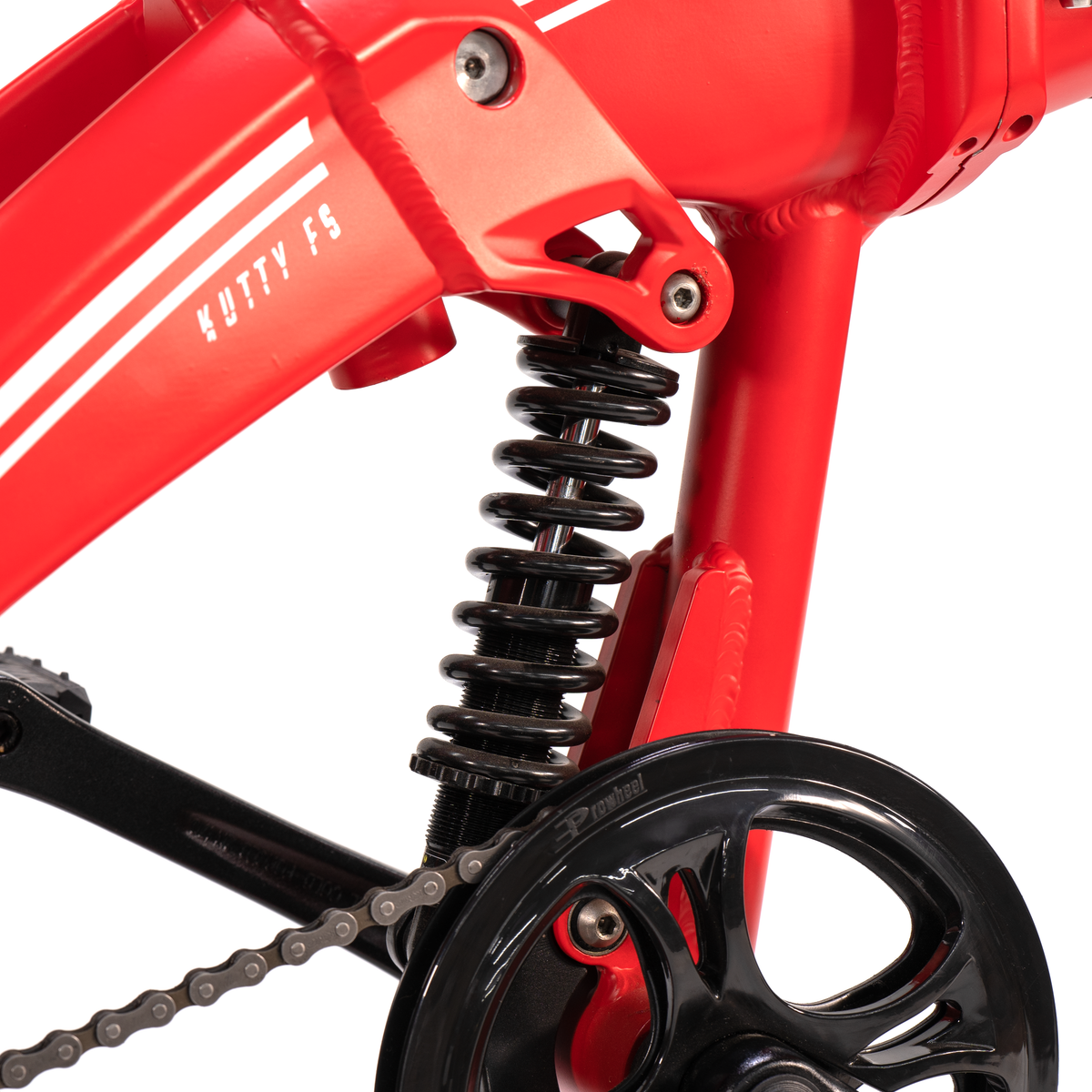

Rear suspension
Exaform 290 rear shock w/50mm travel
Folded dimensions
39"x22"x32" (lxwxh)
Frame
6061 aluminum foldable
Front hub
135mm 36h
Seat post
30.9mm
Fork
Rst guide w/ 60mm travel + adjustable preload
Front axle
5mm qr
Seat post clamp
Qr
Headset
Threadless 1-1/8 straight
Rear hub
Motor
Motor
250w rear hub
Shifter rear
Shimano revoshift 7 speed twist shifter
Rear axle
Bolt on
Battery sizes
36v 13ah 468wh
Rear derailleur
Shimano tourney 7 speed
Rims
Black 36h 30mm wide
Display
3 button static display
Cassette
7 speed 13-28t
Tire sizes
20x3"
Chain
Kmc z7
Handlebar
25.4mm clamp, 610mm wide
Assist type
Cadence
Crank set
180mm arms, 44t chainring
Stem
Folding w/ height adjustment
Assist levels
0-3
Bottom bracket
115mm square taper
Grips
Slide-on
Throttle
Thumb throttle
Brakes
Artek mechanical brakes w/ 160mm rotors
Saddle
Narrow
Other
Folding pedals
Brake levers
Artek w/ brake cutoff switch
Rear suspension
Exaform 290 rear shock w/50mm travel
Folded dimensions
39"x22"x32" (lxwxh)
Frame
6061 aluminum foldable
Front hub
135mm 36h
Seat post
30.9mm
Fork
Rst guide w/ 60mm travel + adjustable preload
Front axle
5mm qr
Seat post clamp
Qr
Headset
Threadless 1-1/8 straight
Rear hub
Motor
Motor
250w rear hub
Shifter rear
Shimano revoshift 7 speed twist shifter
Rear axle
Bolt on
Battery sizes
36v 13ah 468wh
Rear derailleur
Shimano tourney 7 speed
Rims
Black 36h 30mm wide
Display
3 button static display
Cassette
7 speed 13-28t
Tire sizes
20x3"
Chain
Kmc z7
Handlebar
25.4mm clamp, 610mm wide
Assist type
Cadence
Crank set
180mm arms, 44t chainring
Stem
Folding w/ height adjustment
Assist levels
0-3
Bottom bracket
115mm square taper
Grips
Slide-on
Throttle
Thumb throttle
Brakes
Artek mechanical brakes w/ 160mm rotors
Saddle
Narrow
Other
Folding pedals
Brake levers
Artek w/ brake cutoff switch
Rear suspension
Exaform 290 rear shock w/50mm travel
Folded dimensions
39"x22"x32" (lxwxh)

Size & Fittings

1
Effective Top Tube Length
560mm 22in
2
Seat Tube Length (Classic Bike Size)
170mm 6.7in
3
Reach
480mm 18.9in
4
Stack
440mm 17.3in
5
Chainstay Length
450mm 17.7in
6
Standover Height
650mm 25.6in
7
Head Angle
70° -
8
Seat Angle
72° -
9
Head Tube Length
170 mm 6.7 in
10
Fork Length
420mm 16.5in
11
Front Center
710mm 28in
12
BB (Bottom Bracket) Drop
-70mm -2.8in
13
Fork Offset
30mm 1.2in
14
Wheelbase
1170mm 46.1in
15
Total Length
1730mm 68.1in
16
Max Seat Height
1000mm 39.4in
17
Min Seat Height
760mm 29.9in
18
Handlebar Height
1170mm 46.1in
19
Weight (Without Battery)
18.1kg 39.9lb
