Everything You Need

Technical Specifications

Frame
Carbon fiber
Front hub
110mm 36h thru
Seat post
Pnw rainier 110mm / 31.6 dropper post
Fork
Manitou mezzer pro suspension fork - 27.5 boost 180mm travel
Front axle
15mm thru axle
Seat post clamp
Quick-release
Headset
Threadless 1-1/2 1-1/8 tapered
Rear hub
148mm 36h thru
Motor
Canbus bafang m600 mid-drive
Shifter rear
Sram nx 11 speed trigger
Rear axle
12mm thru axle
Battery sizes
48v 17.5ah 840wh
Rear derailleur
Sram nx 11 speed
Rims
27.5" solid black 36h
Display
Canbus dpc-18
Cassette
11 speed sram 11-42t cassette
Tire sizes
27.5x3"
Lights
Integrated headlight
Chain
Kmc e11s
Handlebar
720mm wide, 31.8mm clamp
Assist type
Torque + cadence
Crank set
170mm arms w/ 40t chainring
Stem
Promax 80mm
Assist levels
1-5 (1-3, 1-9)
Bottom bracket
Bafang isis
Grips
Bolt on mtb grips
Throttle
Thumb throttle
Brakes
Tektro e-725 quad piston hydraulic w/203mm rotors
Saddle
Sellaroyale seta-s1
Other
Gear shift sensor
Brake levers
Tektro hydraulic with adjustable reach and motor cutoff
Rear suspension
Kke ba-27rc coil spring rear suspension w/55mm travel, 210mm eye-to-eye
Frame
Carbon fiber
Front hub
110mm 36h thru
Seat post
Pnw rainier 110mm / 31.6 dropper post
Fork
Manitou mezzer pro suspension fork - 27.5 boost 180mm travel
Front axle
15mm thru axle
Seat post clamp
Quick-release
Headset
Threadless 1-1/2 1-1/8 tapered
Rear hub
148mm 36h thru
Motor
Canbus bafang m600 mid-drive
Shifter rear
Sram nx 11 speed trigger
Rear axle
12mm thru axle
Battery sizes
48v 17.5ah 840wh
Rear derailleur
Sram nx 11 speed
Rims
27.5" solid black 36h
Display
Canbus dpc-18
Cassette
11 speed sram 11-42t cassette
Tire sizes
27.5x3"
Lights
Integrated headlight
Chain
Kmc e11s
Handlebar
720mm wide, 31.8mm clamp
Assist type
Torque + cadence
Crank set
170mm arms w/ 40t chainring
Stem
Promax 80mm
Assist levels
1-5 (1-3, 1-9)
Bottom bracket
Bafang isis
Grips
Bolt on mtb grips
Throttle
Thumb throttle
Brakes
Tektro e-725 quad piston hydraulic w/203mm rotors
Saddle
Sellaroyale seta-s1
Other
Gear shift sensor
Brake levers
Tektro hydraulic with adjustable reach and motor cutoff
Rear suspension
Kke ba-27rc coil spring rear suspension w/55mm travel, 210mm eye-to-eye
Frame
Carbon fiber
Front hub
110mm 36h thru
Seat post
Pnw rainier 110mm / 31.6 dropper post
Fork
Manitou mezzer pro suspension fork - 27.5 boost 180mm travel
Front axle
15mm thru axle
Seat post clamp
Quick-release
Headset
Threadless 1-1/2 1-1/8 tapered
Rear hub
148mm 36h thru
Motor
Canbus bafang m600 mid-drive
Shifter rear
Sram nx 11 speed trigger
Rear axle
12mm thru axle
Battery sizes
48v 17.5ah 840wh
Rear derailleur
Sram nx 11 speed
Rims
27.5" solid black 36h
Display
Canbus dpc-18
Cassette
11 speed sram 11-42t cassette
Tire sizes
27.5x3"
Lights
Integrated headlight
Chain
Kmc e11s
Handlebar
720mm wide, 31.8mm clamp
Assist type
Torque + cadence
Crank set
170mm arms w/ 40t chainring
Stem
Promax 80mm
Assist levels
1-5 (1-3, 1-9)
Bottom bracket
Bafang isis
Grips
Bolt on mtb grips
Throttle
Thumb throttle
Brakes
Tektro e-725 quad piston hydraulic w/203mm rotors
Saddle
Sellaroyale seta-s1
Other
Gear shift sensor
Brake levers
Tektro hydraulic with adjustable reach and motor cutoff
Rear suspension
Kke ba-27rc coil spring rear suspension w/55mm travel, 210mm eye-to-eye

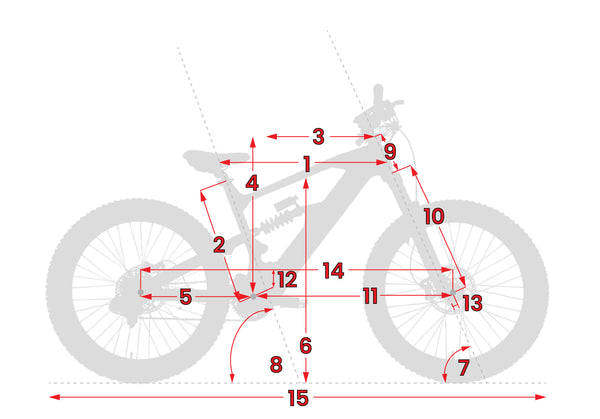

Size & Fittings

1
Effective Top Tube Length
610mm 24in
2
Seat Tube Length (Classic Bike Size)
480mm 18.9in
3
Reach
510mm 20.1in
4
Stack
620mm 24.4in
5
Chainstay Length
460mm 18.1in
6
Standover Height
770mm 30.3in
7
Head Angle
63° -
8
Seat Angle
70° -
9
Head Tube Length
120 mm 4.7 in
10
Fork Length
580mm 22.8in
11
Front Center
790mm 31.1in
12
BB (Bottom Bracket) Drop
20mm 0.8in
13
Fork Offset
40mm 1.6in
14
Wheelbase
1240mm 48.8in
15
Total Length
1960mm 77.2in
16
Max Seat Height
1065mm 41.9in
17
Min Seat Height
890mm 35in
18
Handlebar Height
1070mm 42.1in
19
Weight (Without Battery)
24.2kg 53.4lb
