Technical Specifications
Frame6061 aluminum with rack and fenders |
Front hub150mm |
ForkSpring suspension fork |
Front axle5mm qr |
HeadsetTreadless 1-1/8 straight |
Rear hubMotor |

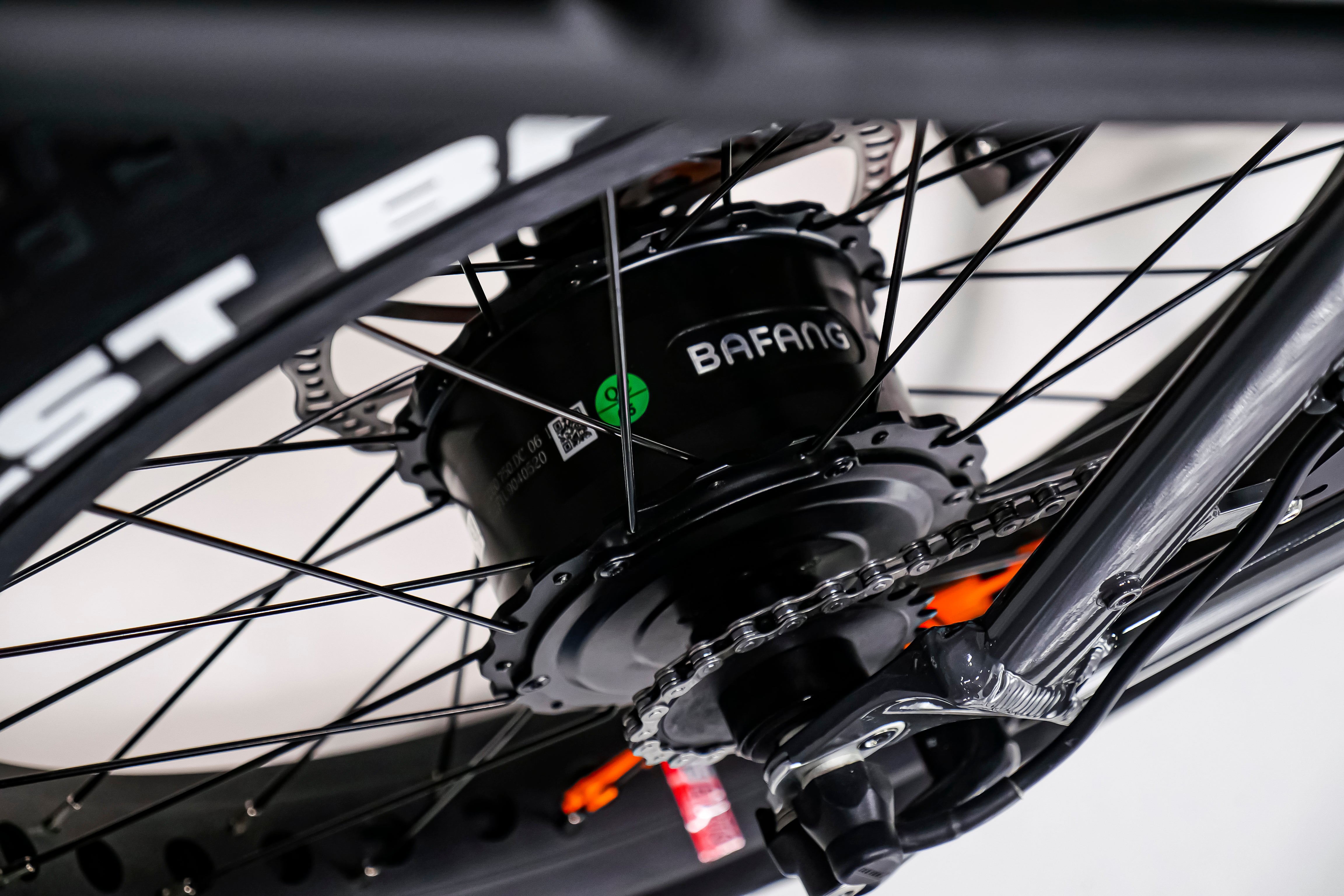

MotorBafang rear hub 750w |
Shifter rearSingle speed |
Rear axleBolt on |

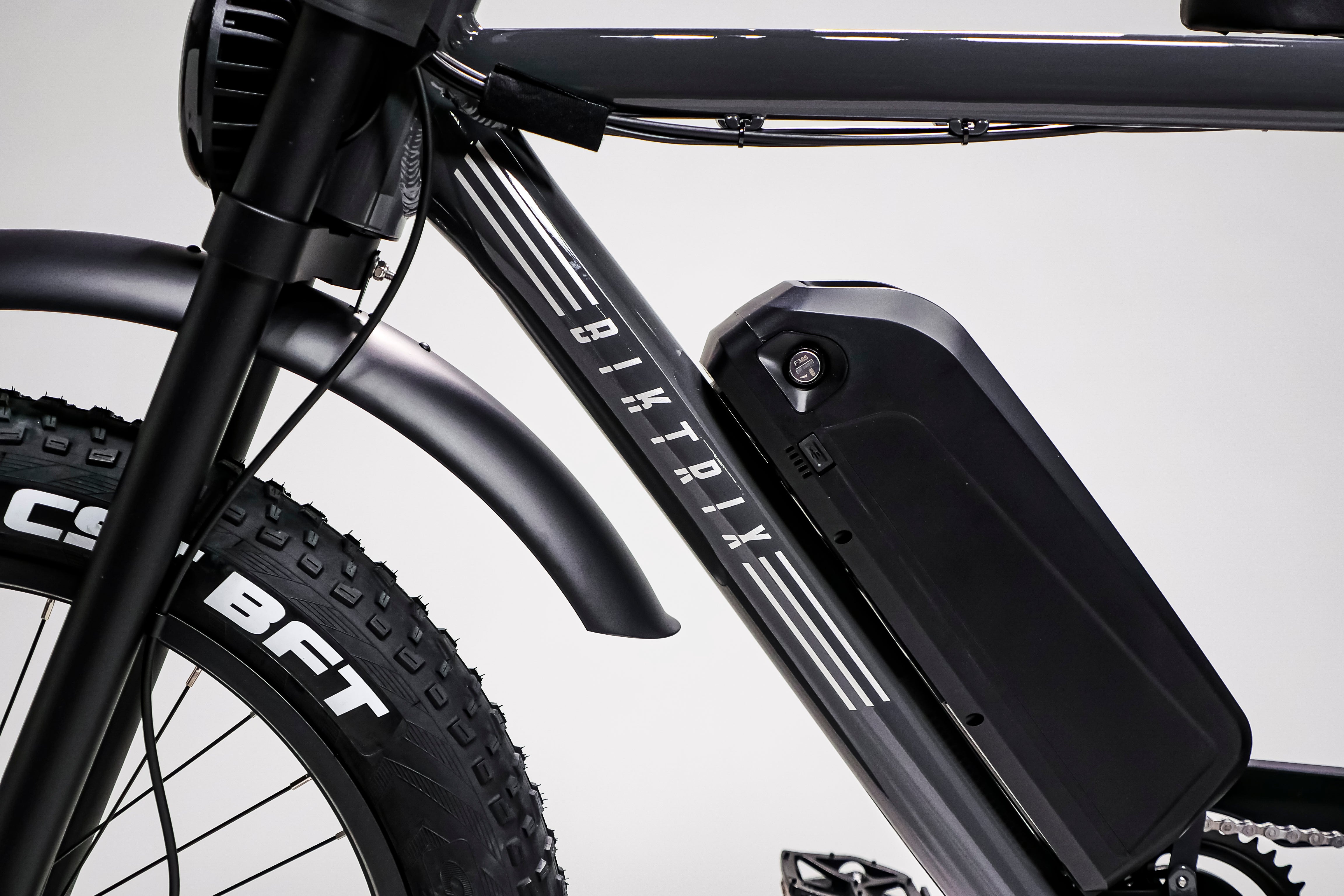

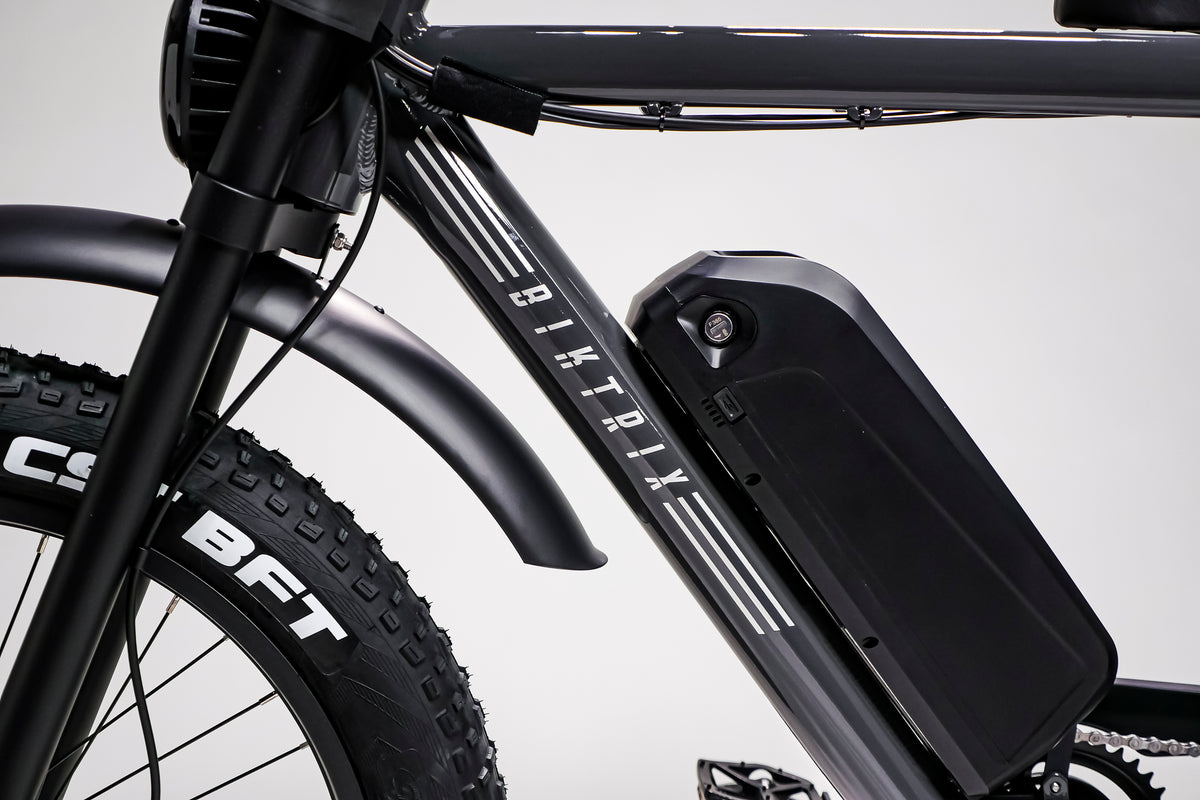

Battery sizes48v 21.5ah hailong removable |

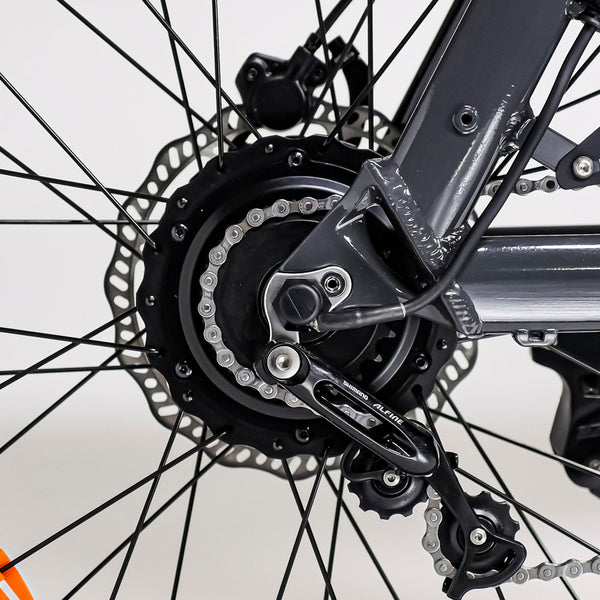

Rear derailleurShimano alfine |
Rims20" 80mm 36h, 24" 80mm 36h |

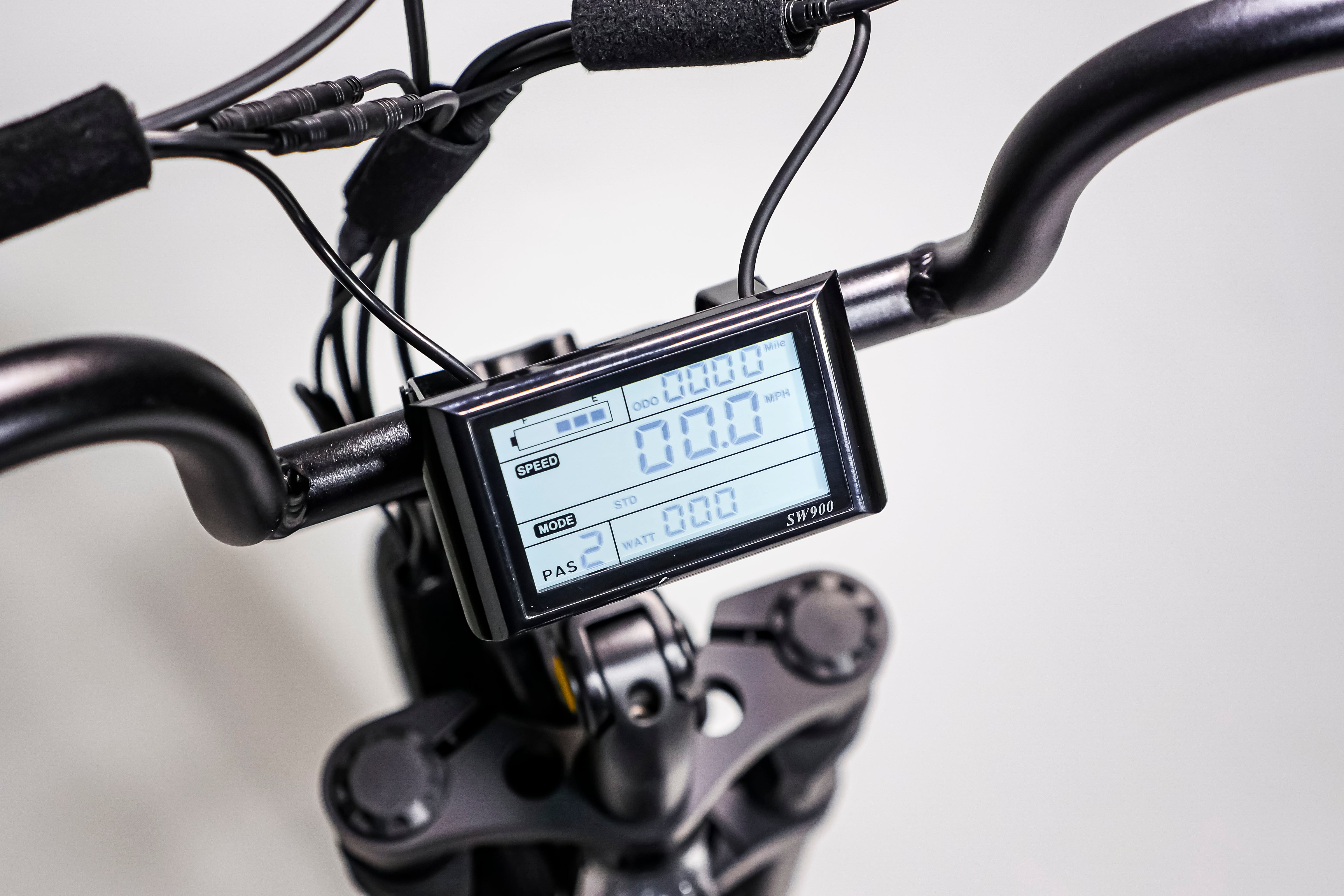

DisplaySw900 |
Cassette22t |
Tire sizes20x4" (20")/24x4" (24") |

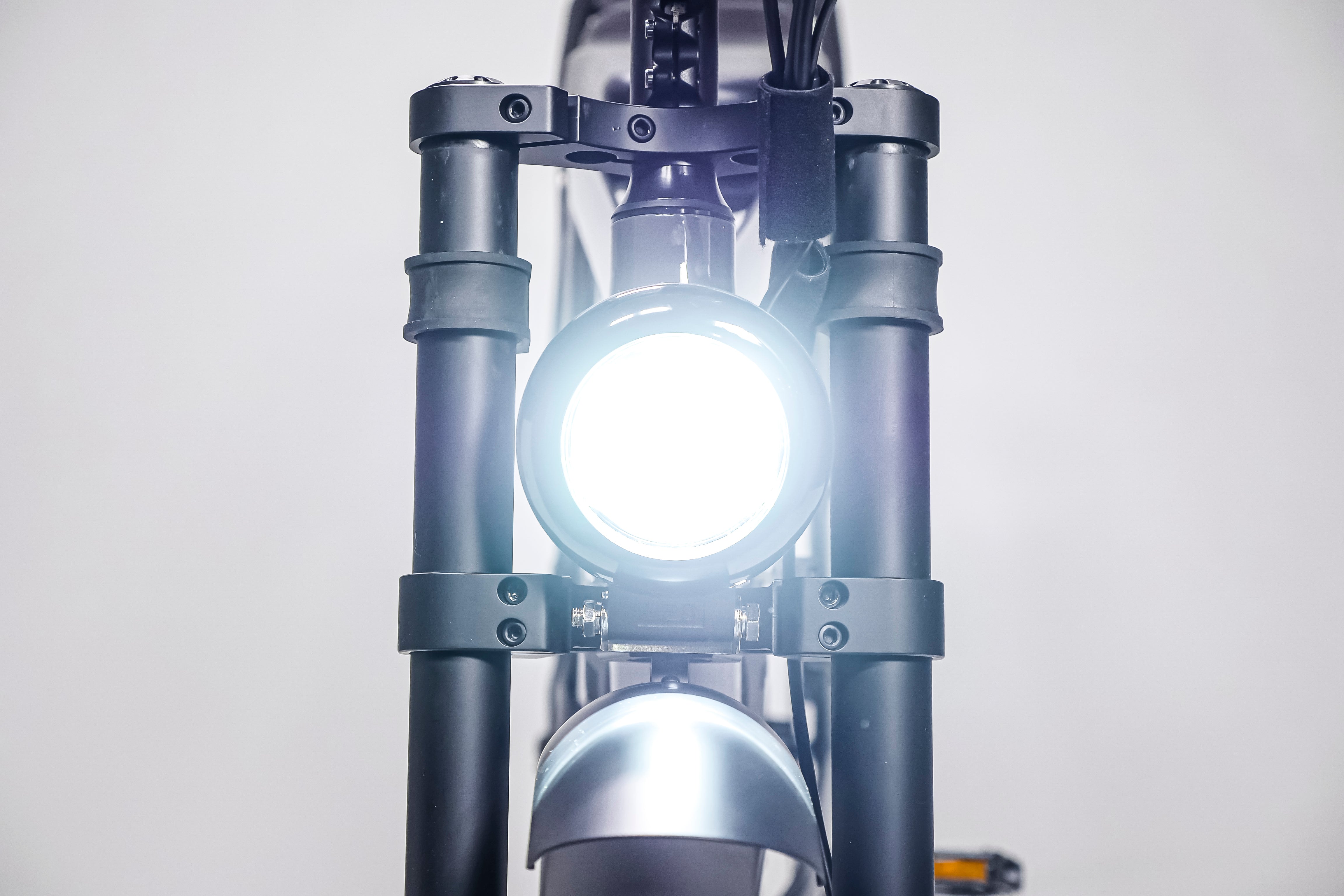

LightsIntegrated headlight, integrated taillight |
ChainKmc z |
Handlebar31.8mm clamp, 720mm wide |
Assist typeCadence |
Crank set170mm 42t |
StemPromax 90mm adjustable |
Assist levels3, 5, 9 |
Bottom bracket105mm |
GripsSlide on |

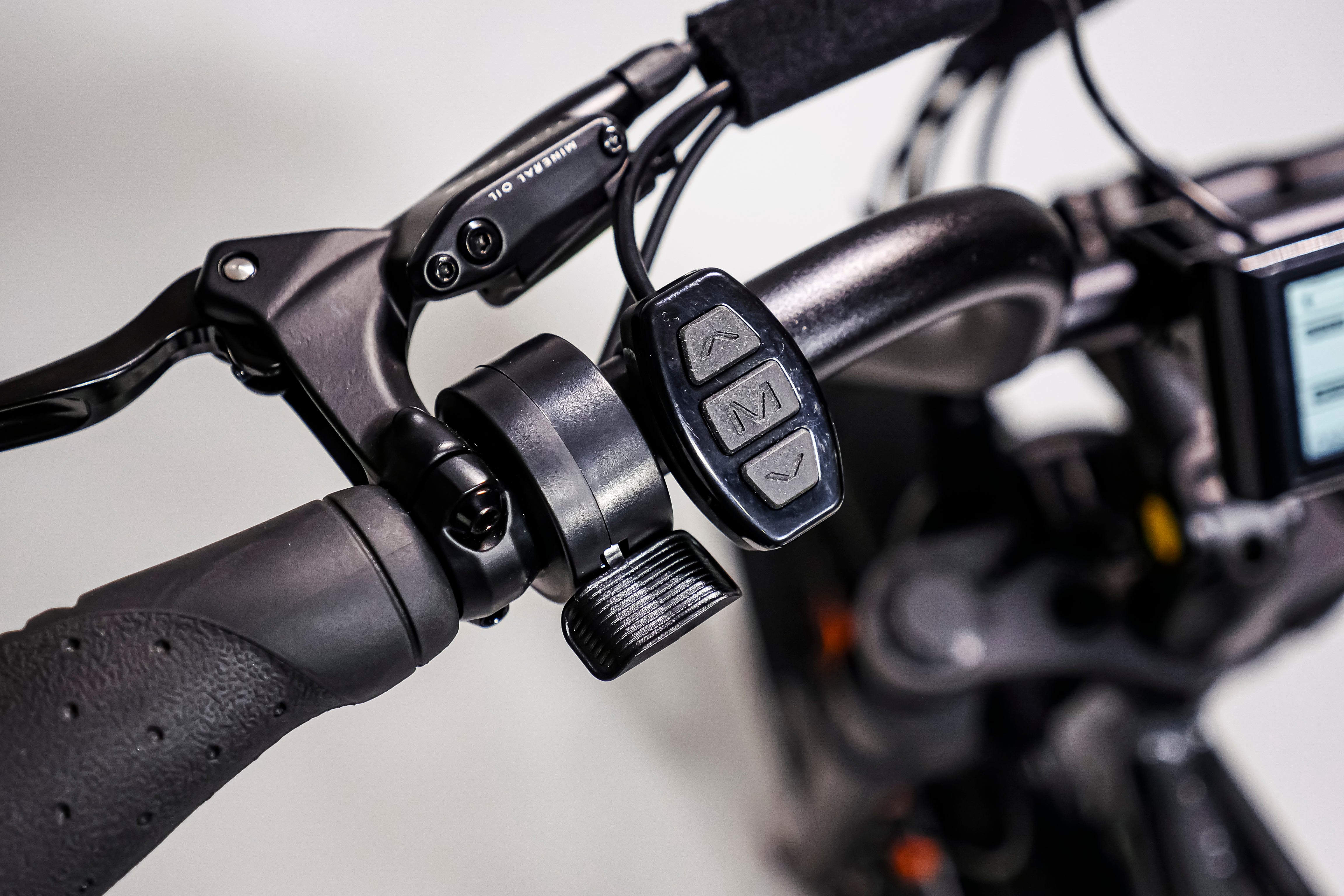

ThrottleThumb throttle |

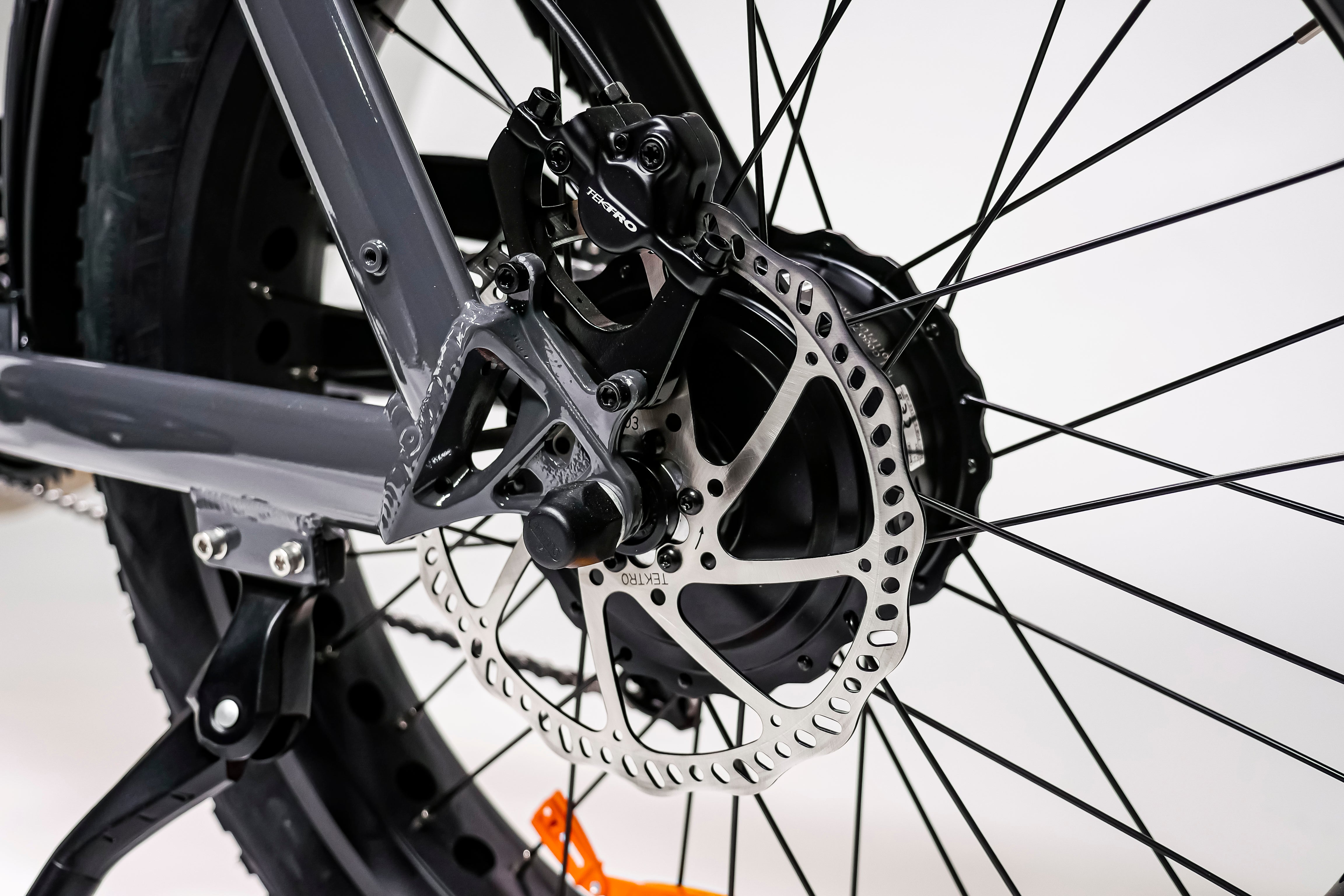

BrakesTektro hd-e350 hydraulic w/ 200mm rotors |

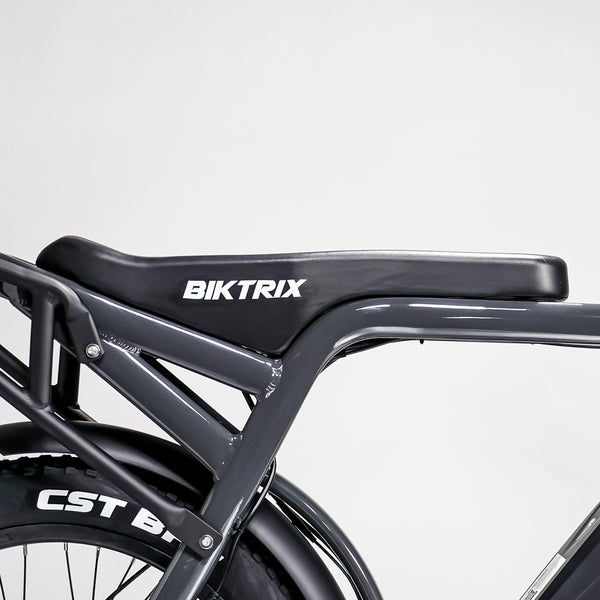

SaddleLong integrated |
OtherFront + rear fenders, chainguard |
Brake leversTektro with adjustable reach and motor cutoffs |
Frame6061 aluminum with rack and fenders |
Front hub150mm |
ForkSpring suspension fork |
Front axle5mm qr |
HeadsetTreadless 1-1/8 straight |
Rear hubMotor |
MotorBafang rear hub 750w |
Shifter rearSingle speed |
Rear axleBolt on |
Battery sizes48v 21.5ah hailong removable |
Rear derailleurShimano alfine |
Rims20" 80mm 36h, 24" 80mm 36h |
DisplaySw900 |
Cassette22t |
Tire sizes20x4" (20")/24x4" (24") |
LightsIntegrated headlight, integrated taillight |
ChainKmc z |
Handlebar31.8mm clamp, 720mm wide |
Assist typeCadence |
Crank set170mm 42t |
StemPromax 90mm adjustable |
Assist levels3, 5, 9 |
Bottom bracket105mm |
GripsSlide on |
ThrottleThumb throttle |
BrakesTektro hd-e350 hydraulic w/ 200mm rotors |
SaddleLong integrated |
OtherFront + rear fenders, chainguard |
Brake leversTektro with adjustable reach and motor cutoffs |
Size & Fittings
1 | Effective Top Tube Length |
700mm | 27.6in |
2 | Seat Tube Length (Classic Bike Size) |
0mm | 0in |
3 |
Reach |
400mm | 15.7in |
4 |
Stack |
530mm | 20.9in |
5 |
Chainstay Length |
500mm | 19.7in |
6 |
Standover Height |
770mm | 30.3in |
7 |
Head Angle |
62° | - |
8 |
Seat Angle |
° | - |
9 |
Head Tube Length |
140 mm | 5.5 in |
10 |
Fork Length |
575mm | 22.6in |
11 |
Front Center |
655mm | 25.8in |
12 |
BB (Bottom Bracket) Drop |
0mm | 0in |
13 |
Fork Offset |
15mm | 0.6in |
14 |
Wheelbase |
1160mm | 45.7in |
15 |
Total Length |
1740mm | 68.5in |
16 |
Max Seat Height |
830mm | 32.7in |
17 |
Min Seat Height |
830mm | 32.7in |
18 |
Handlebar Height |
1200mm | 47.2in |
19 |
Weight (Without Battery) |
34kg | 75lb |
1 | Effective Top Tube Length |
700mm | 27.6in |
2 | Seat Tube Length (Classic Bike Size) |
0mm | 0in |
3 |
Reach |
420mm | 16.5in |
4 |
Stack |
570mm | 22.4in |
5 |
Chainstay Length |
520mm | 20.5in |
6 |
Standover Height |
860mm | 33.9in |
7 |
Head Angle |
62° | - |
8 |
Seat Angle |
° | - |
9 |
Head Tube Length |
140 mm | 5.5 in |
10 |
Fork Length |
640mm | 25.2in |
11 |
Front Center |
690mm | 27.2in |
12 |
BB (Bottom Bracket) Drop |
0mm | 0in |
13 |
Fork Offset |
15mm | 0.6in |
14 |
Wheelbase |
1200mm | 47.2in |
15 |
Total Length |
1860mm | 73.2in |
16 |
Max Seat Height |
910mm | 35.8in |
17 |
Min Seat Height |
910mm | 35.8in |
18 |
Handlebar Height |
1280mm | 50.4in |
19 |
Weight (Without Battery) |
35.4kg | 78lb |
