Overview

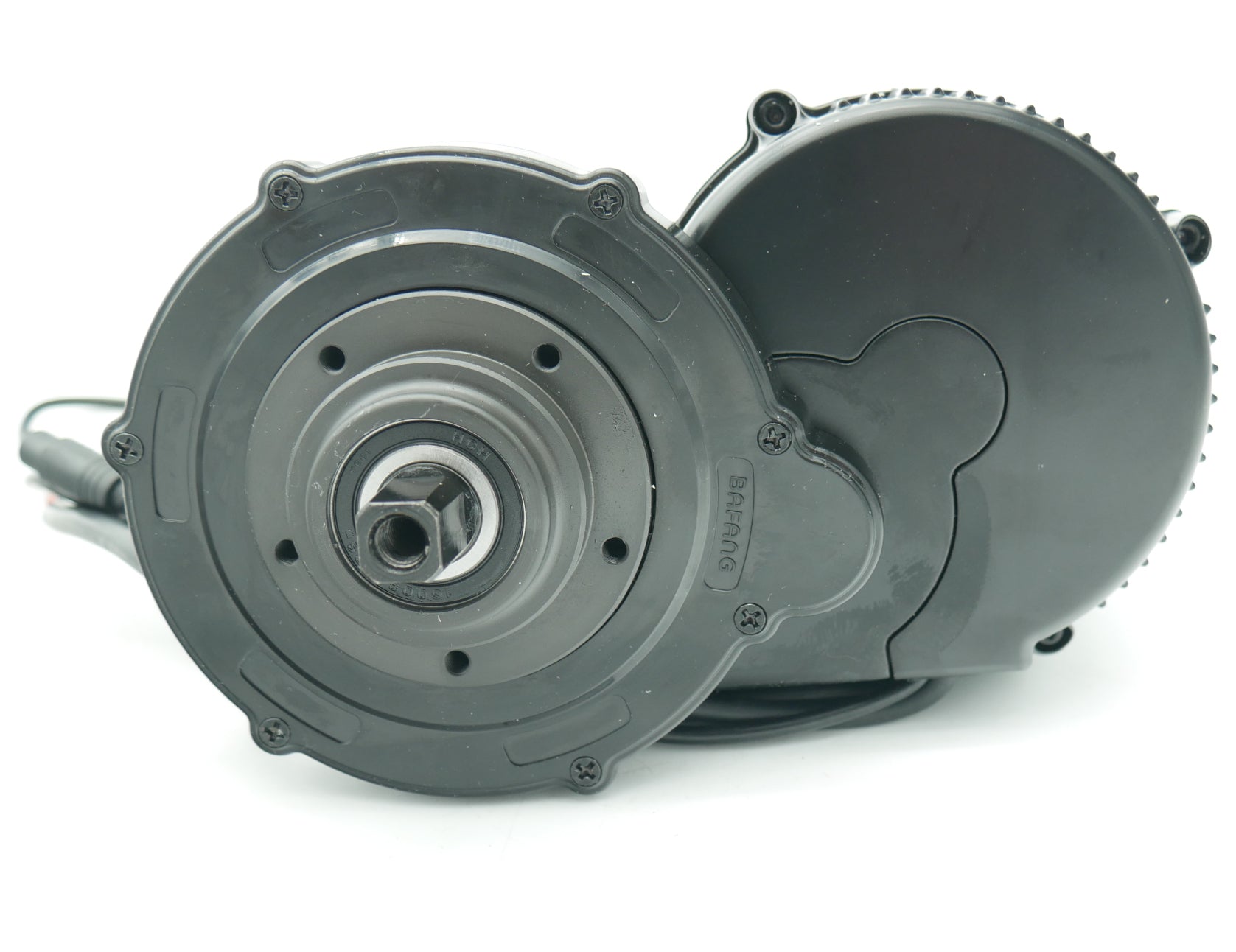

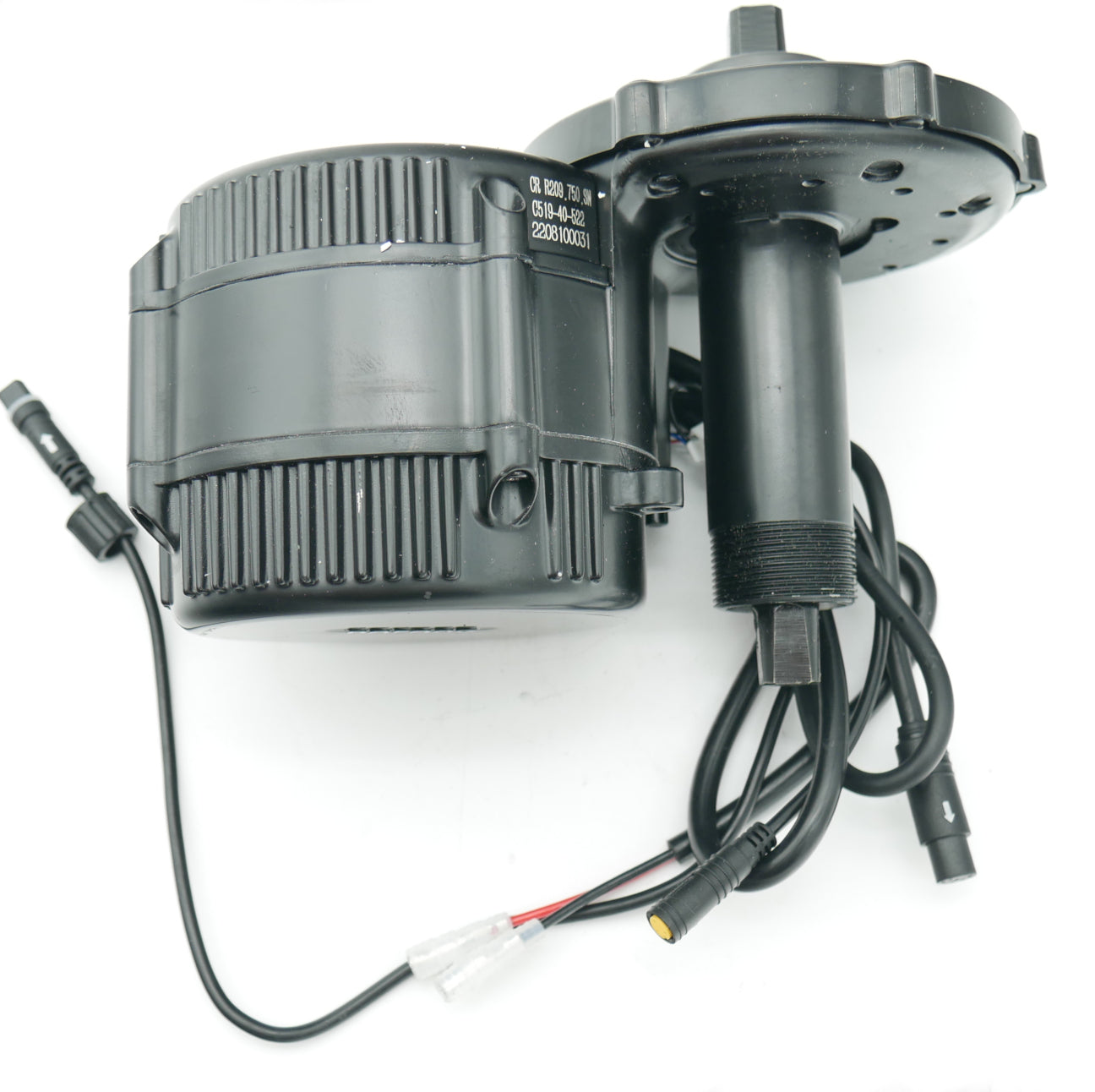

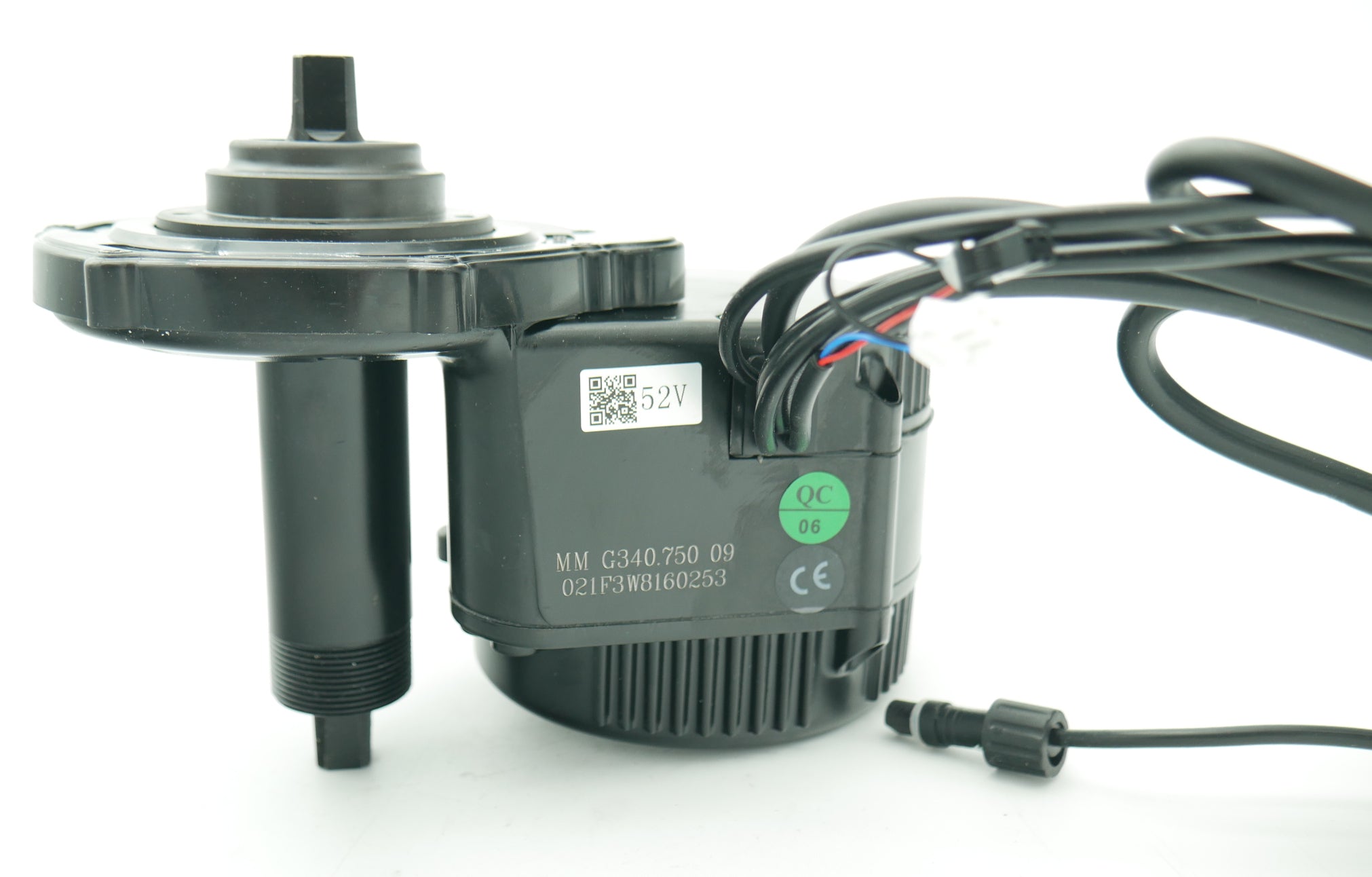

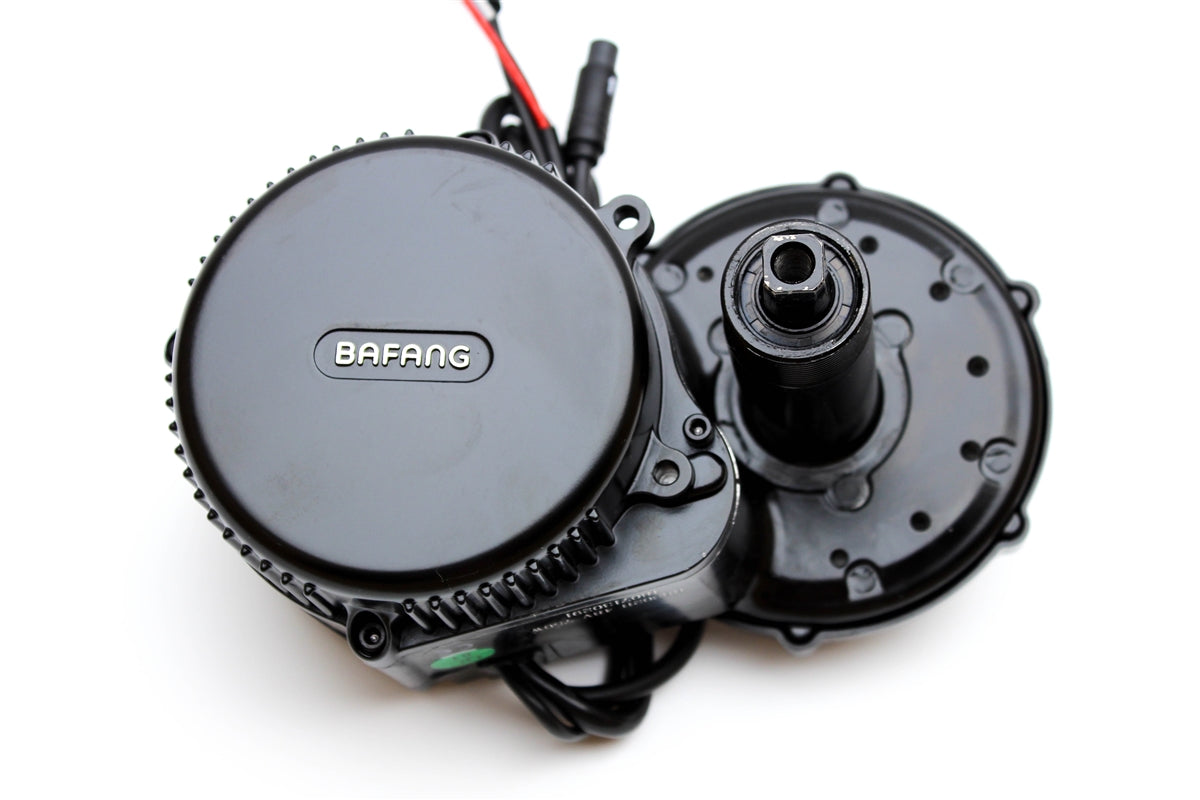

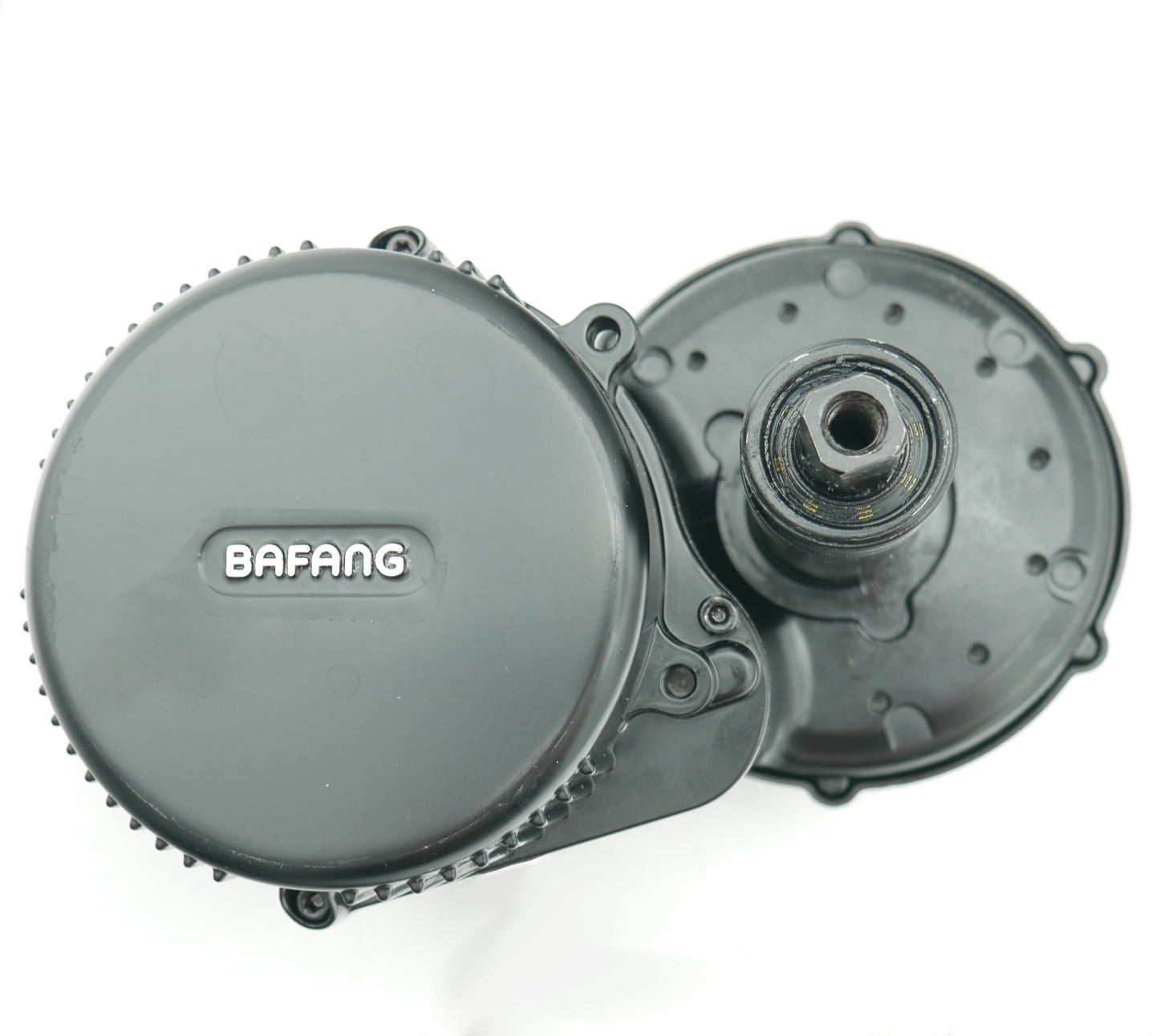

Experience the ultimate power and performance upgrade for your eBike with the Bafang BBS02 52V 750W Bare Motor. Offering a maximum torque of 120 Nm and a cadence sensing assist, this motor ensures your eBike is equipped to handle any terrain with ease. With enhanced power and extended ride range, conquering hills and mountains becomes effortless.
Technical Specifications
Rated Nominal Power output
750W
Peak Power Output
1000W
Max Torque
120 N.m
Rated Voltage
52V
Communications Protocol
UART
Position
Mid-Drive
Internal Gears
Nylon
Spindle Shaft Standard
Square Taper
Water-proof grade
IP66
Pedal Assist Sensors
Integrated Cadence
Shift Sensor Function
Yes
Brake Sensor Function
Yes - Closer Type
Integrated Headlight / Taillight Capacity
Yes - Headlight + Taillight at 6 DCV / 3W MAX
Compatibility
| Bike Name | Compatible |
|---|---|
| Juggernaut Classic (All versions)) | |
| Juggernaut Classic Duo (All Versions) | |
| Stunner Step-Over (All Versions) | |
| Stunner Step-Thru (All Versions) | |
| Stunner X (All Versons) | |
| Other Biktrix eBikes |
