Technical Specifications
Frame6061 aluminum step thru frame w/ rack and fenders |
Front hubModus 130mm |
Seat postAluminum promax 30.4mm |
ForkRigid |
Front axle5mm quick release |
Seat post clamp38.5mm qr |
HeadsetThreadless 1-⅛ straight |
Rear hubMotor |
Motor750w bafang geared hub |
Shifter rearShimano altus |
Rear axleBolt on |
Battery sizes48v17ah, 48v19ah, 48v21ah, 48v25ah |
Rear derailleurShimano altus 8 speed |
Rims26", 36h |
Display800s |
CassetteShimano cshg 31-8 (shimano 8-31t) |
Tire sizes26x3" |
LightsIntegrated headlight + tail light |
ChainKmc x8 |
Handlebar34mm clamp |
Assist typeCadence |

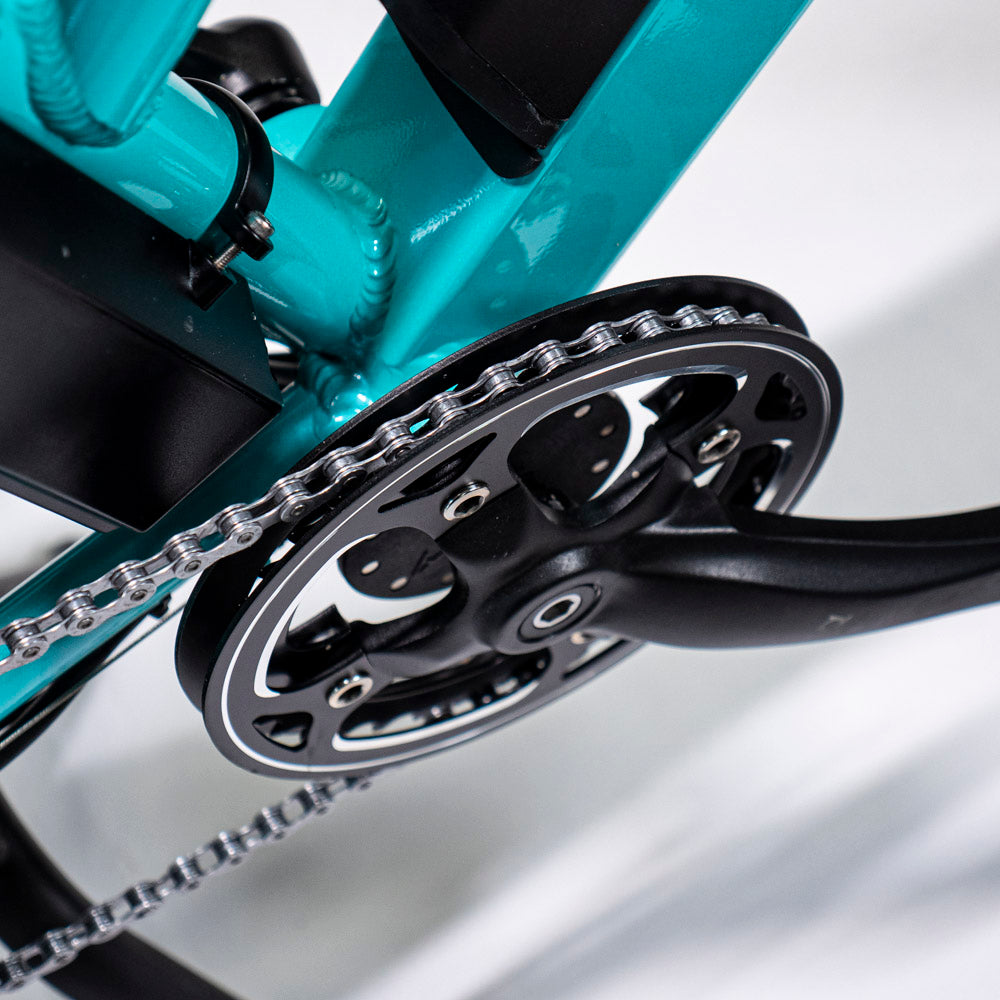

Crank set170mm arms 38t |
StemPromax adjustable 90mm |
Assist levels0-5 |
Bottom bracketSquare taper |
GripsErgo slide on |
ThrottleThumb throttle |
BrakesTektro hd-e350 |
SaddleVelo plush |
OtherRear platform and footrests |
Brake leversTektro hydraulic with motor cutoff |
Frame6061 aluminum step thru frame w/ rack and fenders |
Front hubModus 130mm |
Seat postAluminum promax 30.4mm |
ForkRigid |
Front axle5mm quick release |
Seat post clamp38.5mm qr |
HeadsetThreadless 1-⅛ straight |
Rear hubMotor |
Motor750w bafang geared hub |
Shifter rearShimano altus |
Rear axleBolt on |
Battery sizes48v17ah, 48v19ah, 48v21ah, 48v25ah |
Rear derailleurShimano altus 8 speed |
Rims26", 36h |
Display800s |
CassetteShimano cshg 31-8 (shimano 8-31t) |
Tire sizes26x3" |
LightsIntegrated headlight + tail light |
ChainKmc x8 |
Handlebar34mm clamp |
Assist typeCadence |
Crank set170mm arms 38t |
StemPromax adjustable 90mm |
Assist levels0-5 |
Bottom bracketSquare taper |
GripsErgo slide on |
ThrottleThumb throttle |
BrakesTektro hd-e350 |
SaddleVelo plush |
OtherRear platform and footrests |
Brake leversTektro hydraulic with motor cutoff |
Size & Fittings
1 | Effective Top Tube Length |
660mm | 26in |
2 | Seat Tube Length (Classic Bike Size) |
435mm | 17.1in |
3 |
Reach |
460mm | 18.1in |
4 |
Stack |
620mm | 24.4in |
5 |
Chainstay Length |
610mm | 24in |
6 |
Standover Height |
660mm | 26in |
7 |
Head Angle |
61.1° | - |
8 |
Seat Angle |
65° | - |
9 |
Head Tube Length |
220 mm | 8.7 in |
10 |
Fork Length |
480mm | 18.9in |
11 |
Front Center |
680mm | 26.8in |
12 |
BB (Bottom Bracket) Drop |
0mm | 0in |
13 |
Fork Offset |
20mm | 0.8in |
14 |
Wheelbase |
1280mm | 50.4in |
15 |
Total Length |
1980mm | 78in |
16 |
Max Seat Height |
1020mm | 40.2in |
17 |
Min Seat Height |
830mm | 32.7in |
18 |
Handlebar Height |
15230mm | 599.6in |
19 |
Weight (Without Battery) |
35kg | 77.2lb |
