Stunner Lite

Sale price $1,799 USD
Bright Green
Packages
Battery
Upgrades
Seatpost


Suspension seatposts offer great riding comfort as they absorb many of the imperfections on the road/trail.

***Adding a suspension seatpost to your eBike will increase the minimum seatpost height by 75mm/3" to 150mm/6"
Accessories
Canvas Pannier Bags
Canvas Pannier Bags


These Canvas bags offer great convenience and carrying capacity!

Limited Offer 2-Bike Hitch Rack


Add a discounted 2-Bike Hitch Rack Carrier to your eBike purchase!

Coloured Pedals


Add some extra flair to your eBike with a set of coloured pedals!

Warranty

Secure your investment by opting for an extended warranty through the BiktrixCare+ plan.

Sale price $1,799.00
Shipping: Leaves within Late October
500W Hub-Drive

Motor Power

Up to 55mi

Standard Range

+5'2"ft / 330lb

Max Load

Torque Sensor

Powerful Pedal Assist

On-Demand Throttle

Pedaling Optional

25+ Point Quality

Control Checklist

Keep It Simple, Stun In Comfort

Meet the Biktrix Stunner Lite - the newest comfort cruiser in our lineup! Offering a fantastic combination of comfort, control and assistance it’s got everything you need and nothing you don’t. The Stunner Lite is an efficient, easy, affordable way to get a fantastic cruiser eBike!

Cruise With Comfort

Cruisers are the most comfortable eBikes thanks to the laid-back frame, sit-up straight riding position and relaxed shoulder-level arm height. You’ll feel right at home riding your Stunner Lite!

Bells & Whistles? You Bet.

Distance Range (Single Battery)

PAS 1
Pedal-Assist Lv.1
53mi
PAS 2
Pedal-Assist Lv.2
47mi
PAS 3
Pedal-Assist Lv.3
40mi
PAS 4
Pedal-Assist Lv.4
36mi
PAS 5
Pedal-Assist Lv.5
31mi
THRL
Throttle Only
25mi
**Please note that information regarding the expected range on a single stock battery charge on one of our e-bikes is an estimate, not a guarantee. There are many factors that contribute to the actual, real-world range for an e-bike battery such as the age of the battery, temperature, level of assist, speed, payload, and terrain. Depending on these various conditions, it is possible to get less than the expected minimum range or greater than the expected maximum range.

Technical Specifications

Frame
6061 aluminum
Front hub
100mm 36h qr
Seat post
28.6mm
Fork
Suntour nex-ds with 50mm travel, preload adjustment
Front axle
5mm qr
Seat post clamp
34.9mm qr
Headset
Threaded 1-1/8" straight
Rear hub
Motor
Motor
500w nominal, 750w peak, bafang rear hub motor
Shifter rear
Shimano 7 speed trigger shifter
Rear axle
Bolt-on
Battery sizes
48v 16ah 768wh
Rear derailleur
Shimano tourney 7 speed derailleur
Rims
26" solid black, 36h, 30mm wide
Display
Ukc3 colour display
Cassette
Shimano 14-28t 7 speed freewheel
Tire sizes
26x2 kenda kwick roller
Lights
Integrated headlight, taillight
Chain
Kmc z8.1 - 114 links
Handlebar
620mm wide, 40mm rise w/25.4mm clamp
Assist type
Torque + cadence
Crank set
44t chainring w/170mm arms
Stem
70mm adjustable w/25.4mm clamp
Assist levels
0-5 (0-3, 0-9)
Bottom bracket
Integrated torque sensor (68mm) w/ square taper
Throttle
Thumb throttle
Brakes
Biktrix dual piston hydraulic w/160mm rotors
Saddle
Velo foam breeze padded saddle
Other
Rear rack, fenders, kickstand
Brake levers
Biktrix adjustable w/ integrated brake sensors
Frame
6061 aluminum
Front hub
100mm 36h qr
Seat post
28.6mm
Fork
Suntour nex-ds with 50mm travel, preload adjustment
Front axle
5mm qr
Seat post clamp
34.9mm qr
Headset
Threaded 1-1/8" straight
Rear hub
Motor
Motor
500w nominal, 750w peak, bafang rear hub motor
Shifter rear
Shimano 7 speed trigger shifter
Rear axle
Bolt-on
Battery sizes
48v 16ah 768wh
Rear derailleur
Shimano tourney 7 speed derailleur
Rims
26" solid black, 36h, 30mm wide
Display
Ukc3 colour display
Cassette
Shimano 14-28t 7 speed freewheel
Tire sizes
26x2 kenda kwick roller
Lights
Integrated headlight, taillight
Chain
Kmc z8.1 - 114 links
Handlebar
620mm wide, 40mm rise w/25.4mm clamp
Assist type
Torque + cadence
Crank set
44t chainring w/170mm arms
Stem
70mm adjustable w/25.4mm clamp
Assist levels
0-5 (0-3, 0-9)
Bottom bracket
Integrated torque sensor (68mm) w/ square taper
Throttle
Thumb throttle
Brakes
Biktrix dual piston hydraulic w/160mm rotors
Saddle
Velo foam breeze padded saddle
Other
Rear rack, fenders, kickstand
Brake levers
Biktrix adjustable w/ integrated brake sensors
Frame
6061 aluminum
Front hub
100mm 36h qr
Seat post
28.6mm
Fork
Suntour nex-ds with 50mm travel, preload adjustment
Front axle
5mm qr
Seat post clamp
34.9mm qr
Headset
Threaded 1-1/8" straight
Rear hub
Motor
Motor
500w nominal, 750w peak, bafang rear hub motor
Shifter rear
Shimano 7 speed trigger shifter
Rear axle
Bolt-on
Battery sizes
48v 16ah 768wh
Rear derailleur
Shimano tourney 7 speed derailleur
Rims
26" solid black, 36h, 30mm wide
Display
Ukc3 colour display
Cassette
Shimano 14-28t 7 speed freewheel
Tire sizes
26x2 kenda kwick roller
Lights
Integrated headlight, taillight
Chain
Kmc z8.1 - 114 links
Handlebar
620mm wide, 40mm rise w/25.4mm clamp
Assist type
Torque + cadence
Crank set
44t chainring w/170mm arms
Stem
70mm adjustable w/25.4mm clamp
Assist levels
0-5 (0-3, 0-9)
Bottom bracket
Integrated torque sensor (68mm) w/ square taper
Throttle
Thumb throttle
Brakes
Biktrix dual piston hydraulic w/160mm rotors
Saddle
Velo foam breeze padded saddle
Other
Rear rack, fenders, kickstand
Brake levers
Biktrix adjustable w/ integrated brake sensors

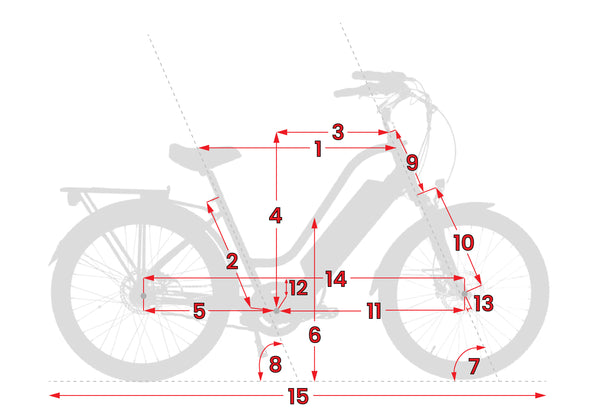

Size & Fittings

1
Effective Top Tube Length
560mm 22in
2
Seat Tube Length (Classic Bike Size)
445mm 17.5in
3
Reach
450mm 17.7in
4
Stack
620mm 24.4in
5
Chainstay Length
460mm 18.1in
6
Standover Height
600mm 23.6in
7
Head Angle
75° -
8
Seat Angle
76° -
9
Head Tube Length
190 mm 7.5 in
10
Fork Length
440mm 17.3in
11
Front Center
645mm 25.4in
12
BB (Bottom Bracket) Drop
70mm 2.8in
13
Fork Offset
20mm 0.8in
14
Wheelbase
1100mm 43.3in
15
Total Length
1760mm 69.3in
16
Max Seat Height
940mm 37in
17
Min Seat Height
790mm 31.1in
18
Handlebar Height
1060mm 41.7in
19
Weight (Without Battery)
21.4kg 47.2lb
