750W Hub-Drive

Motor Power

Up to 50mi

Standard Range

+5'0ft / 330lb

Max Load

Torque Sensor

Powerful Pedal Assist

25+ Point Quality

Control Checklist

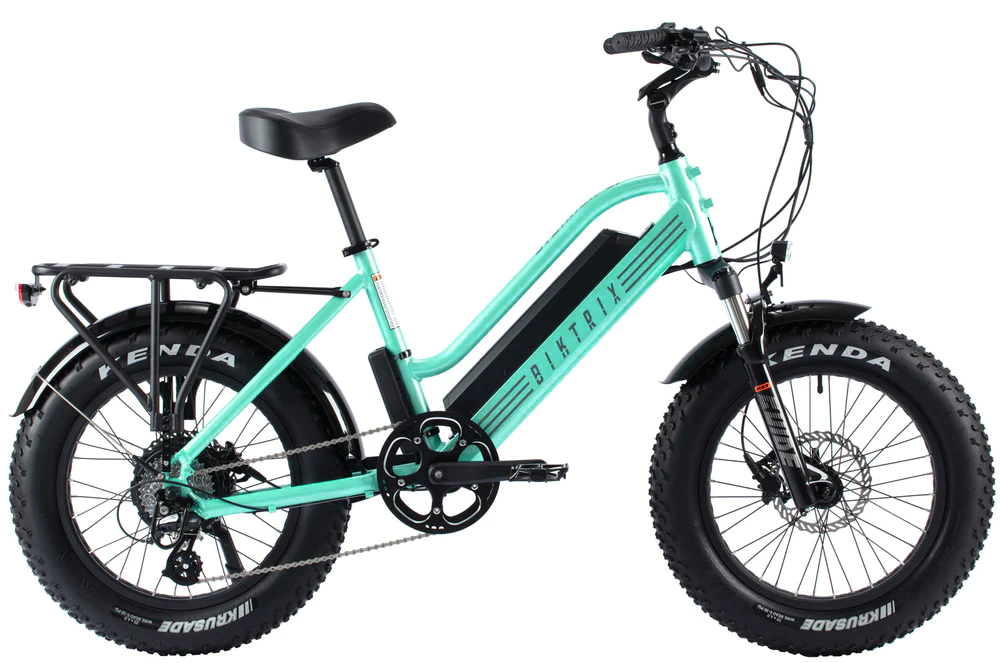

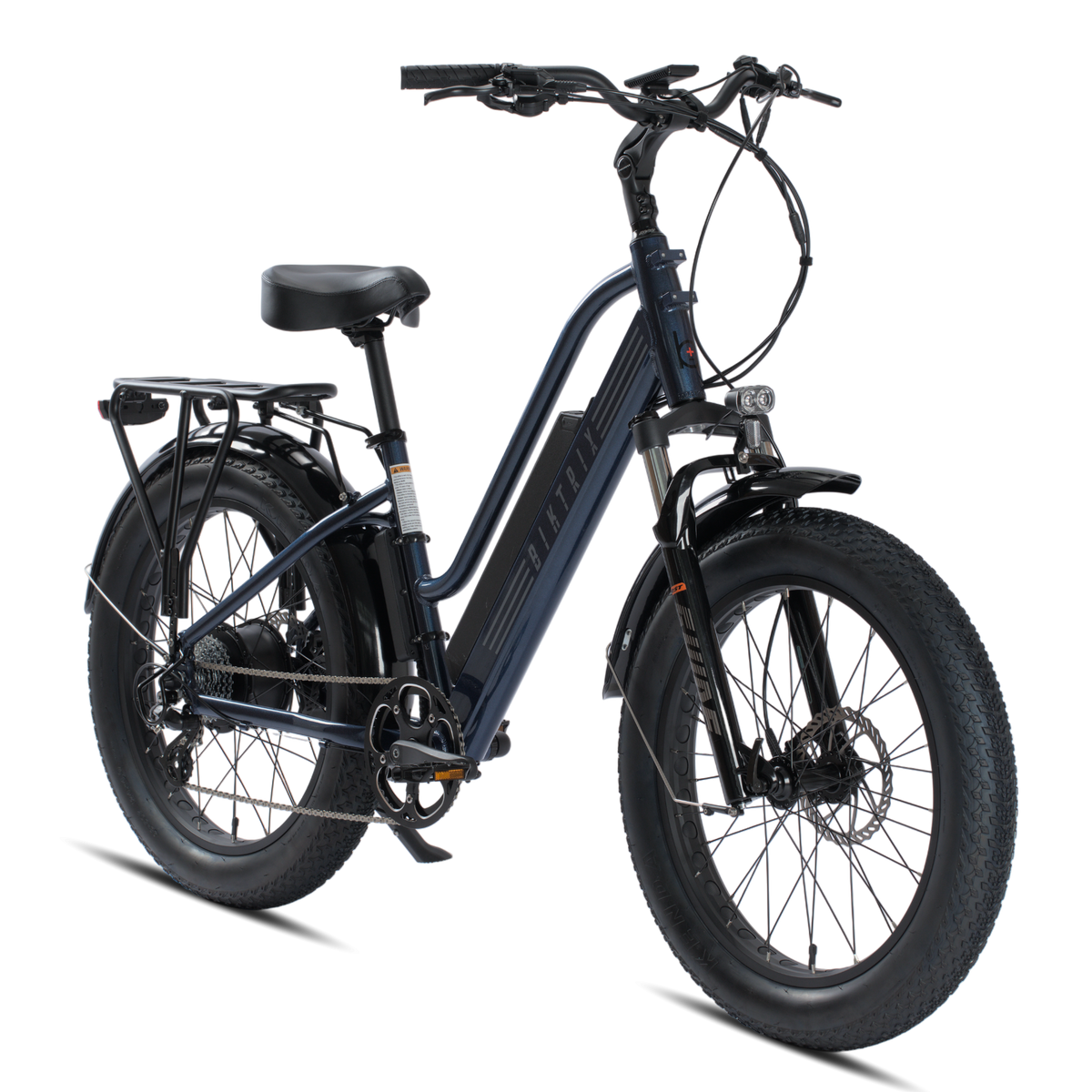

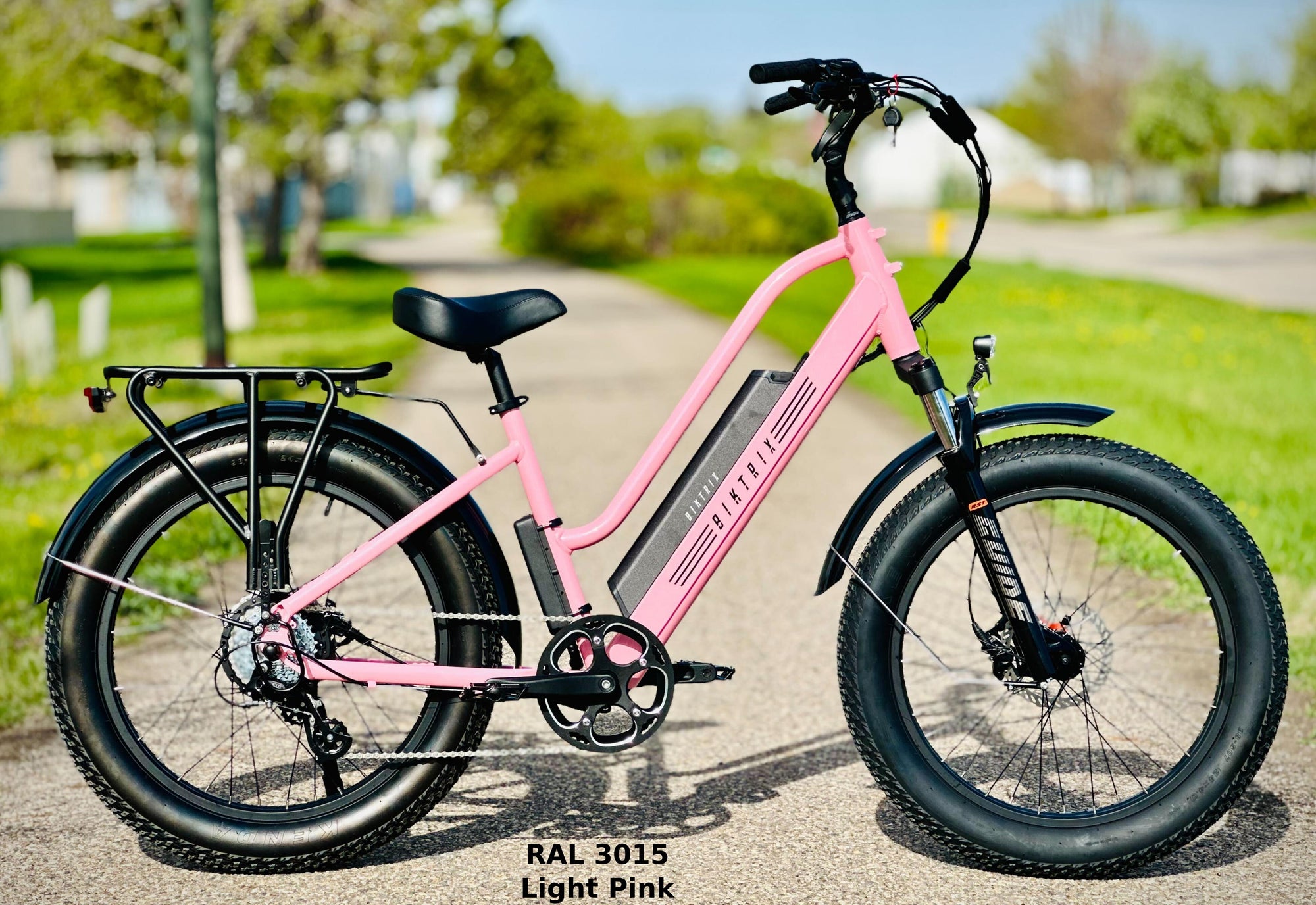

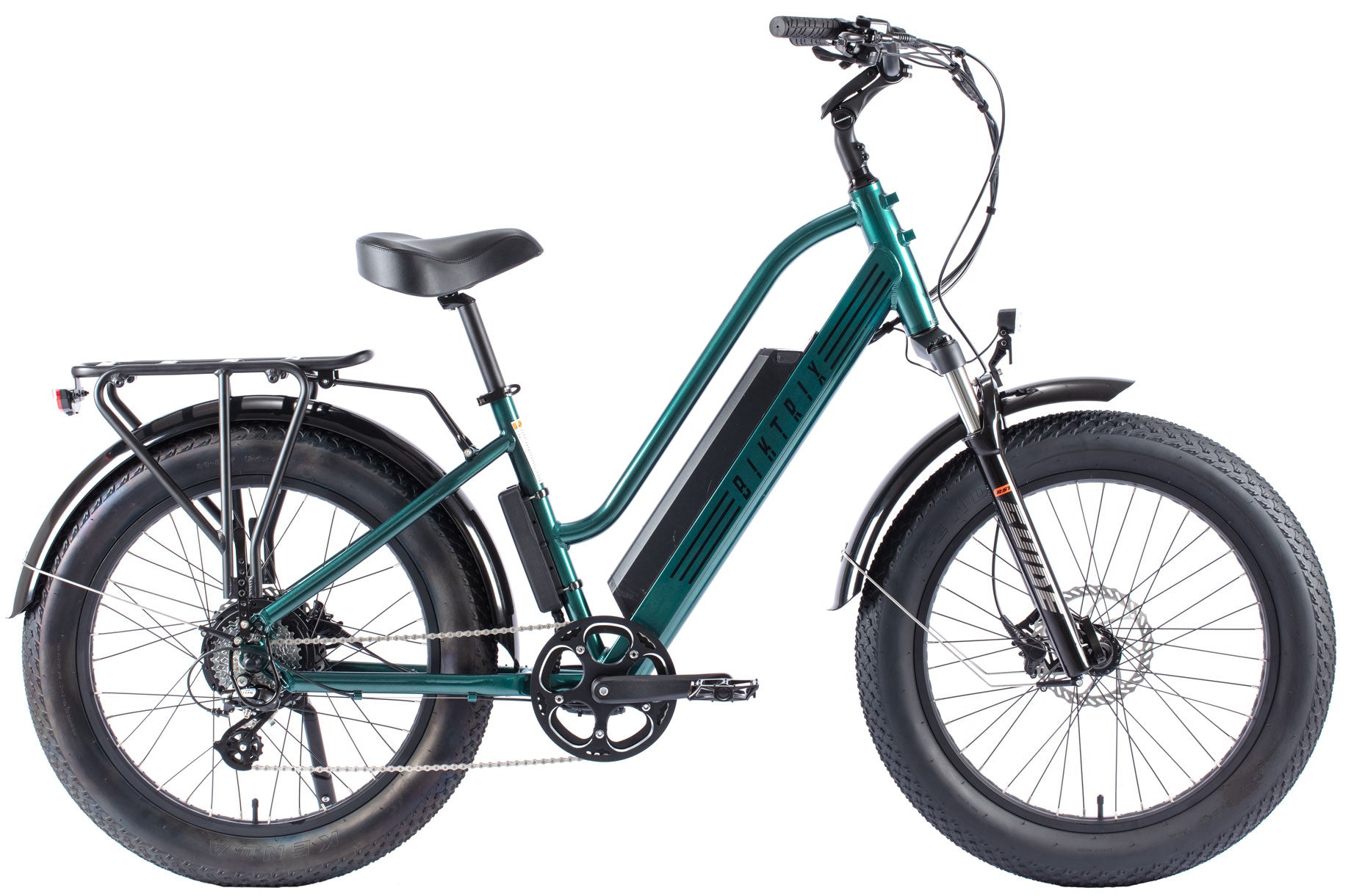

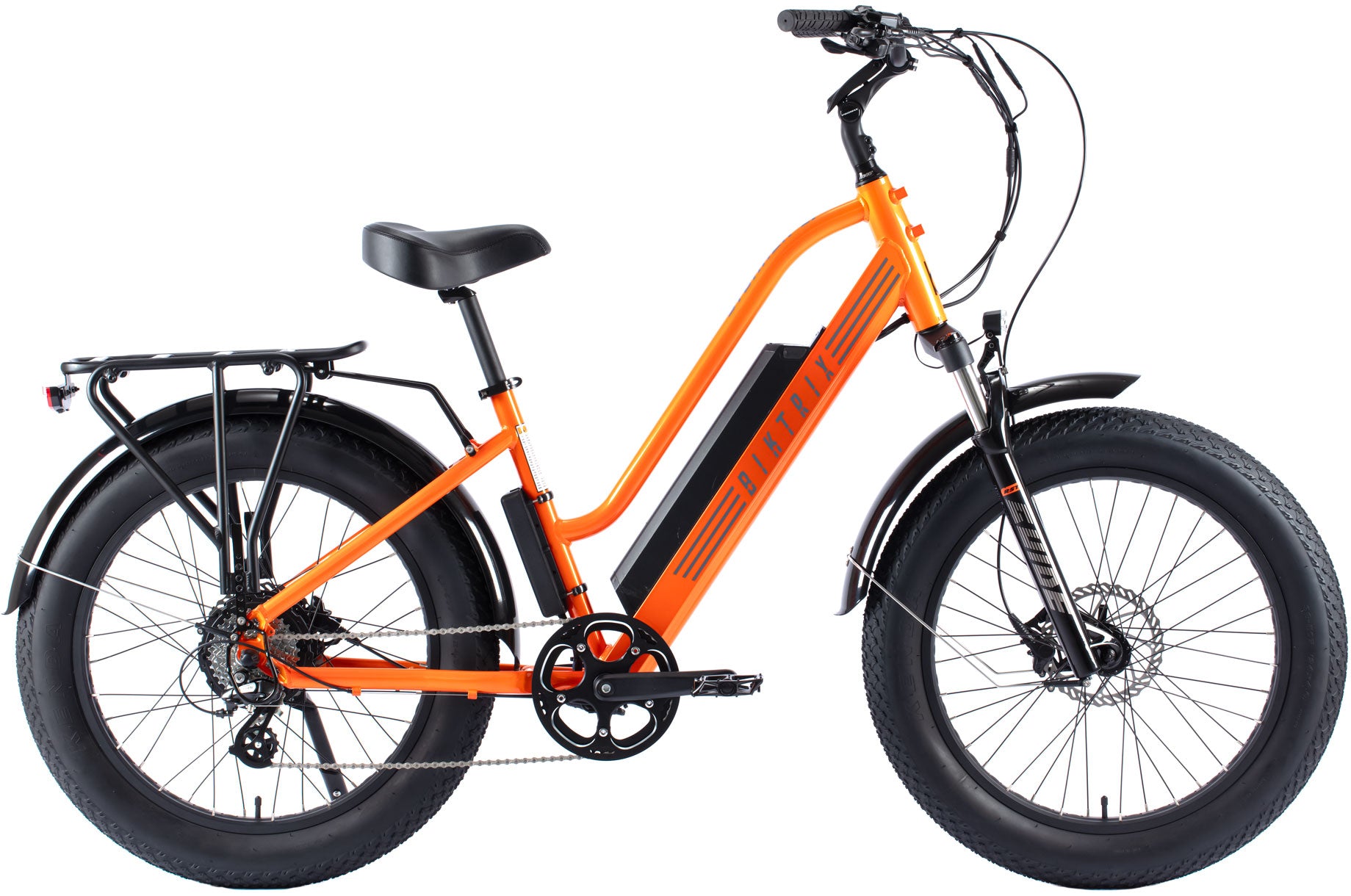

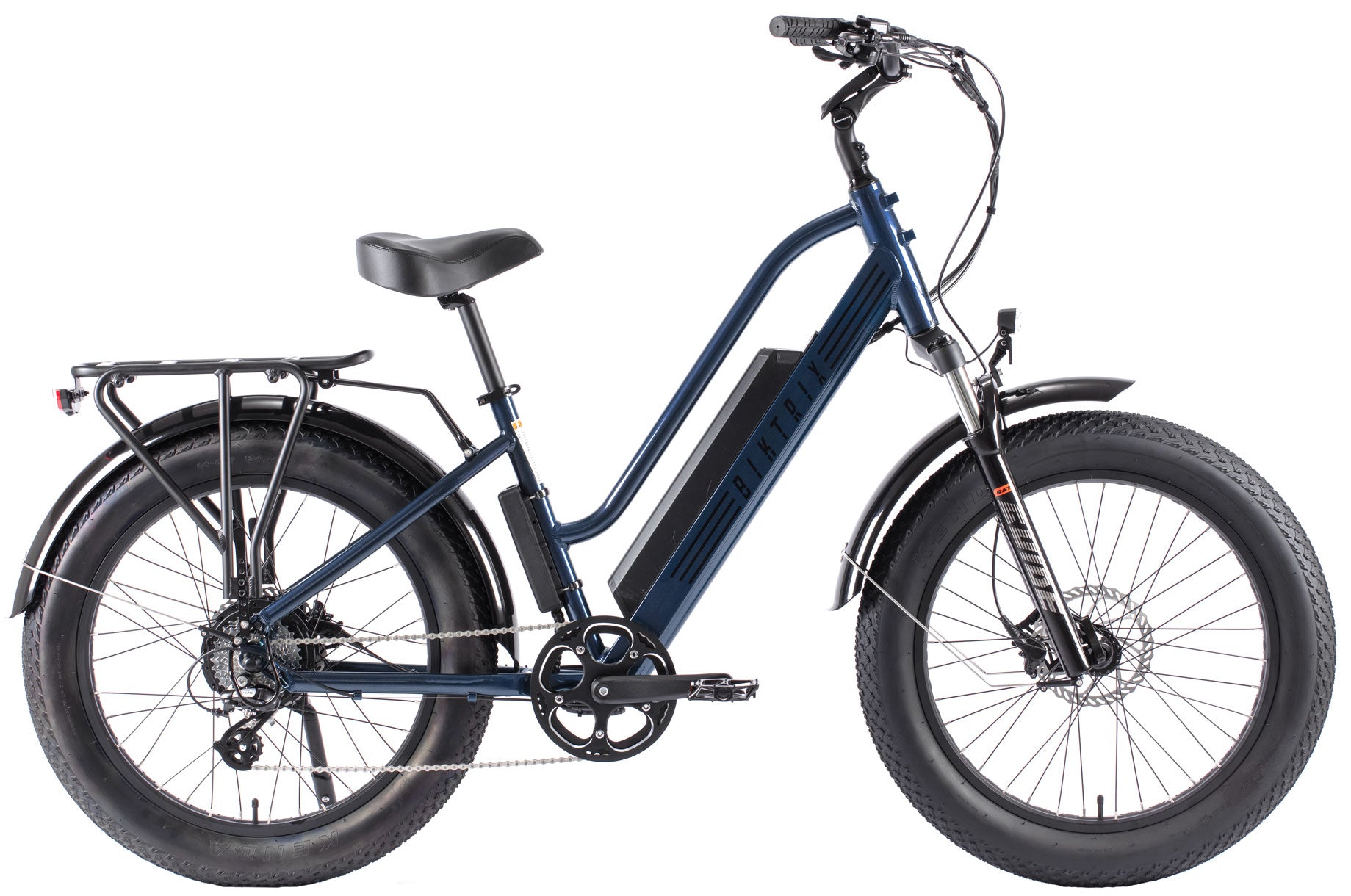

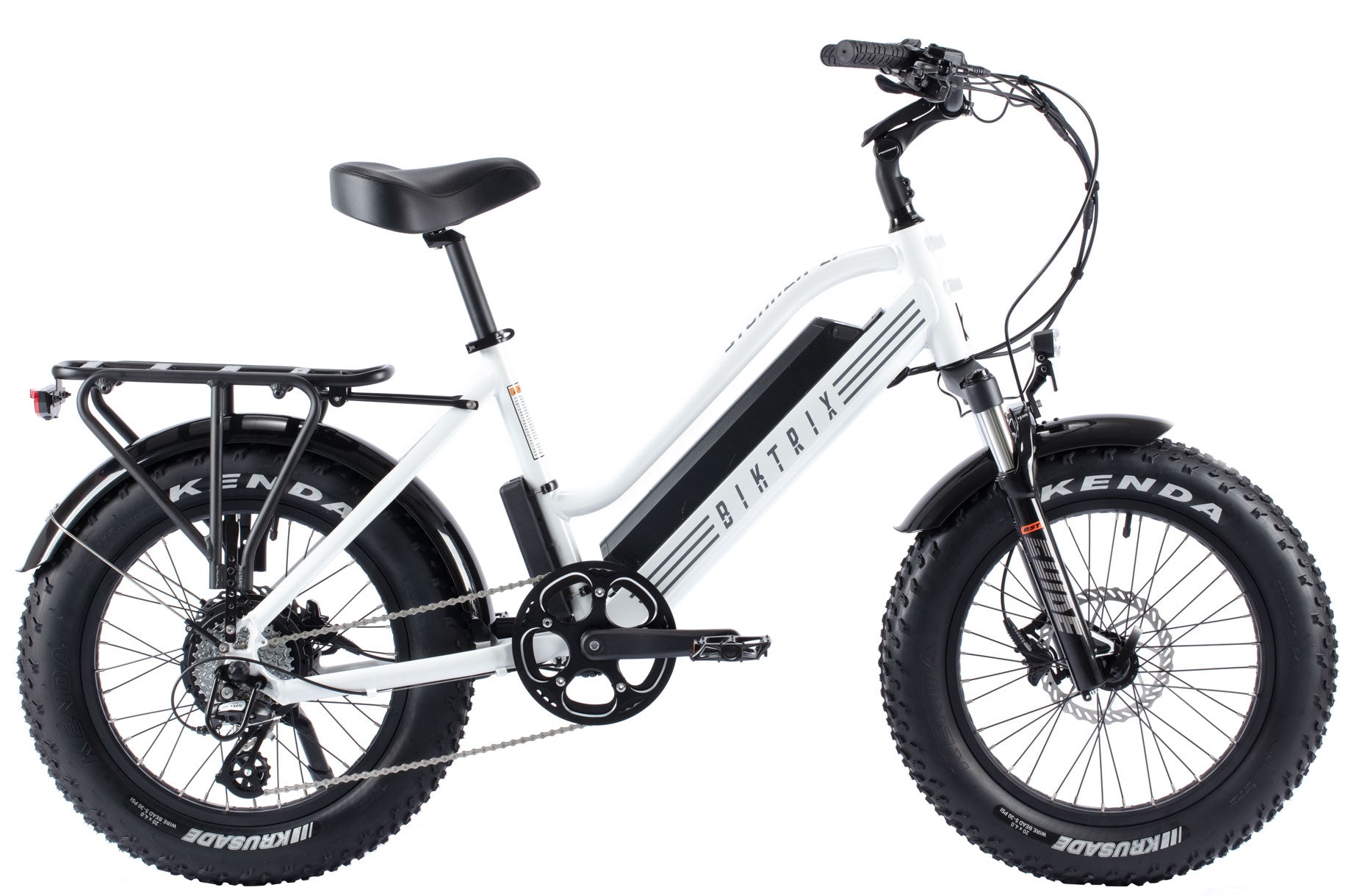

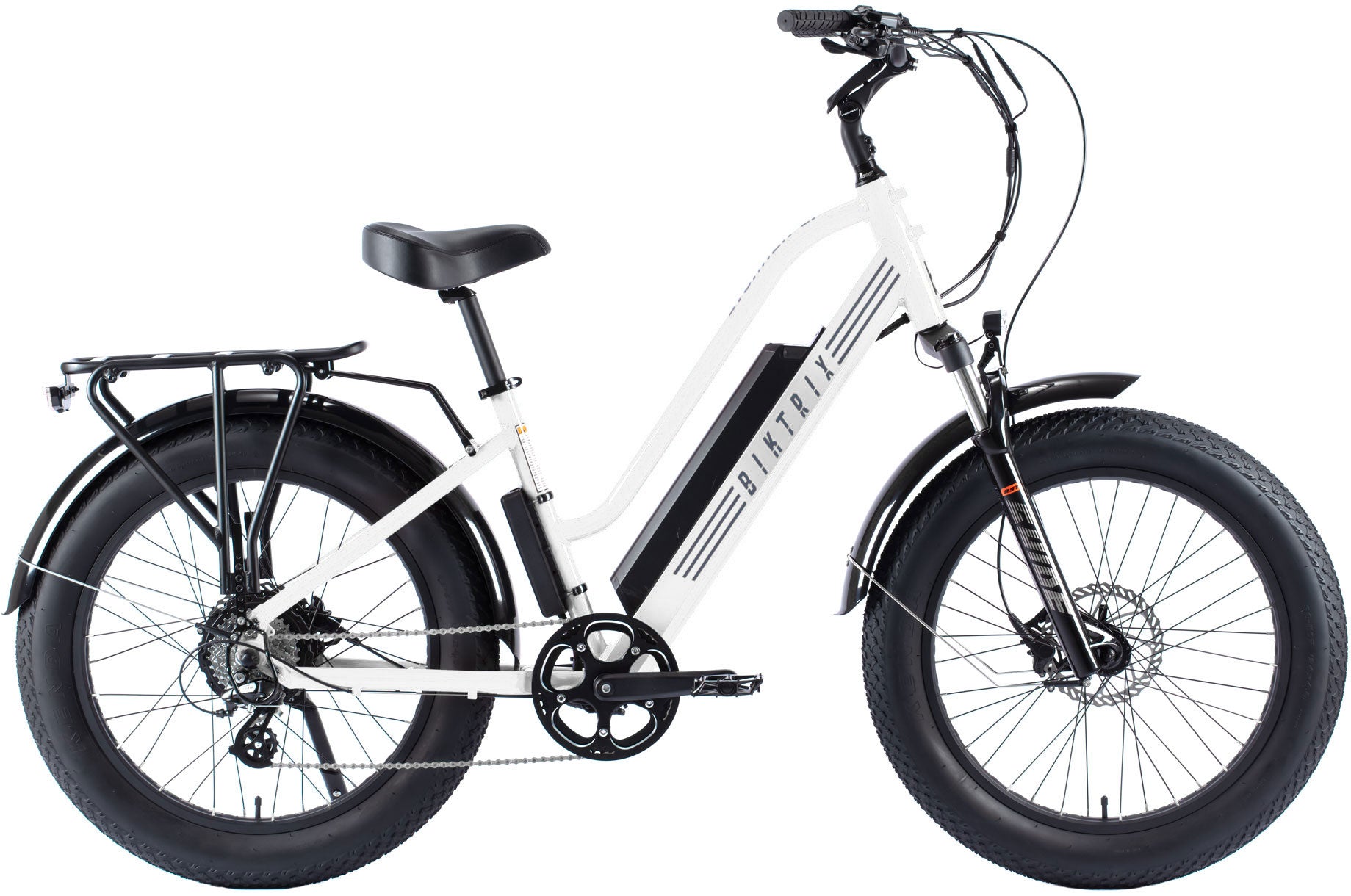

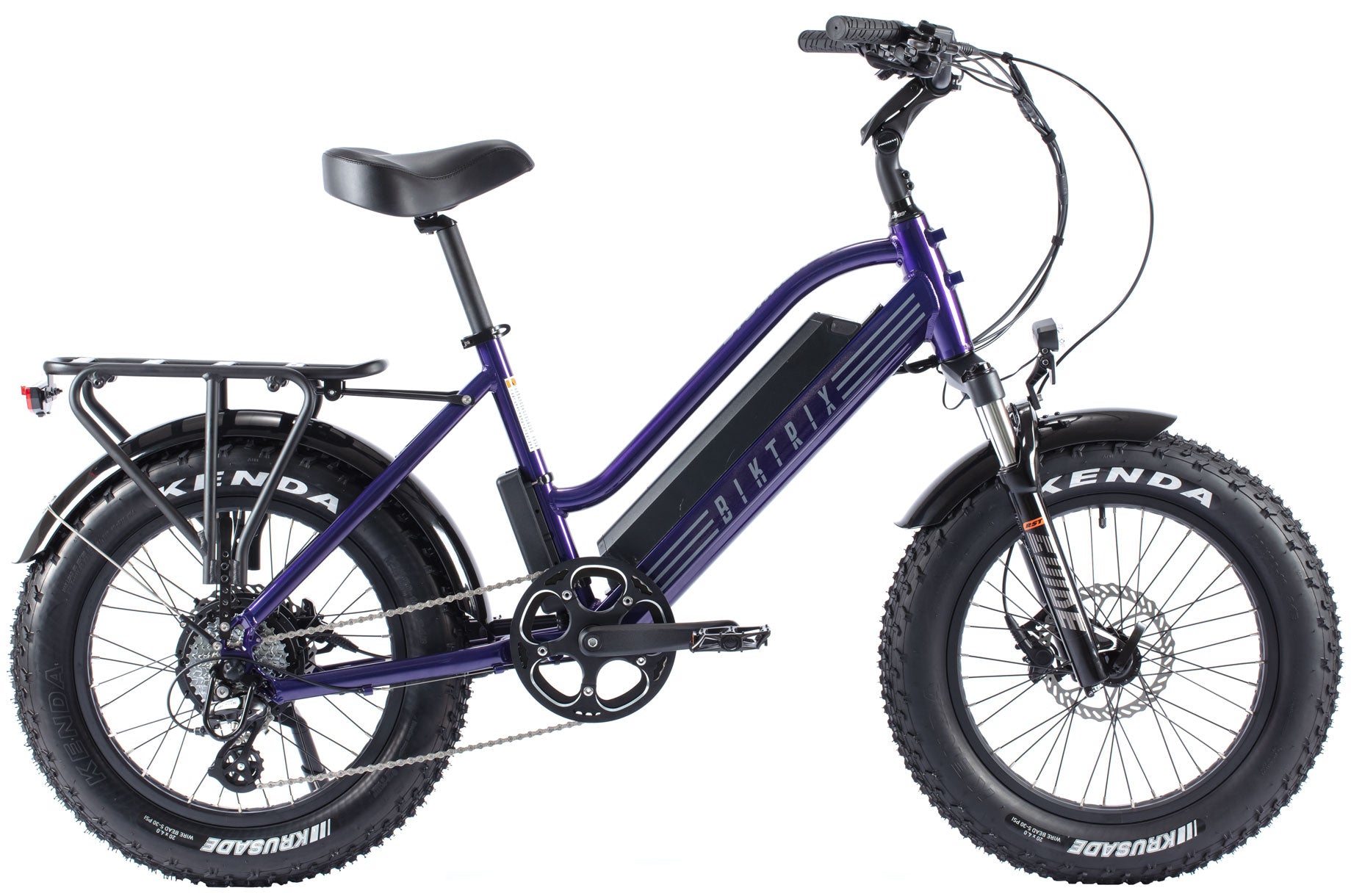

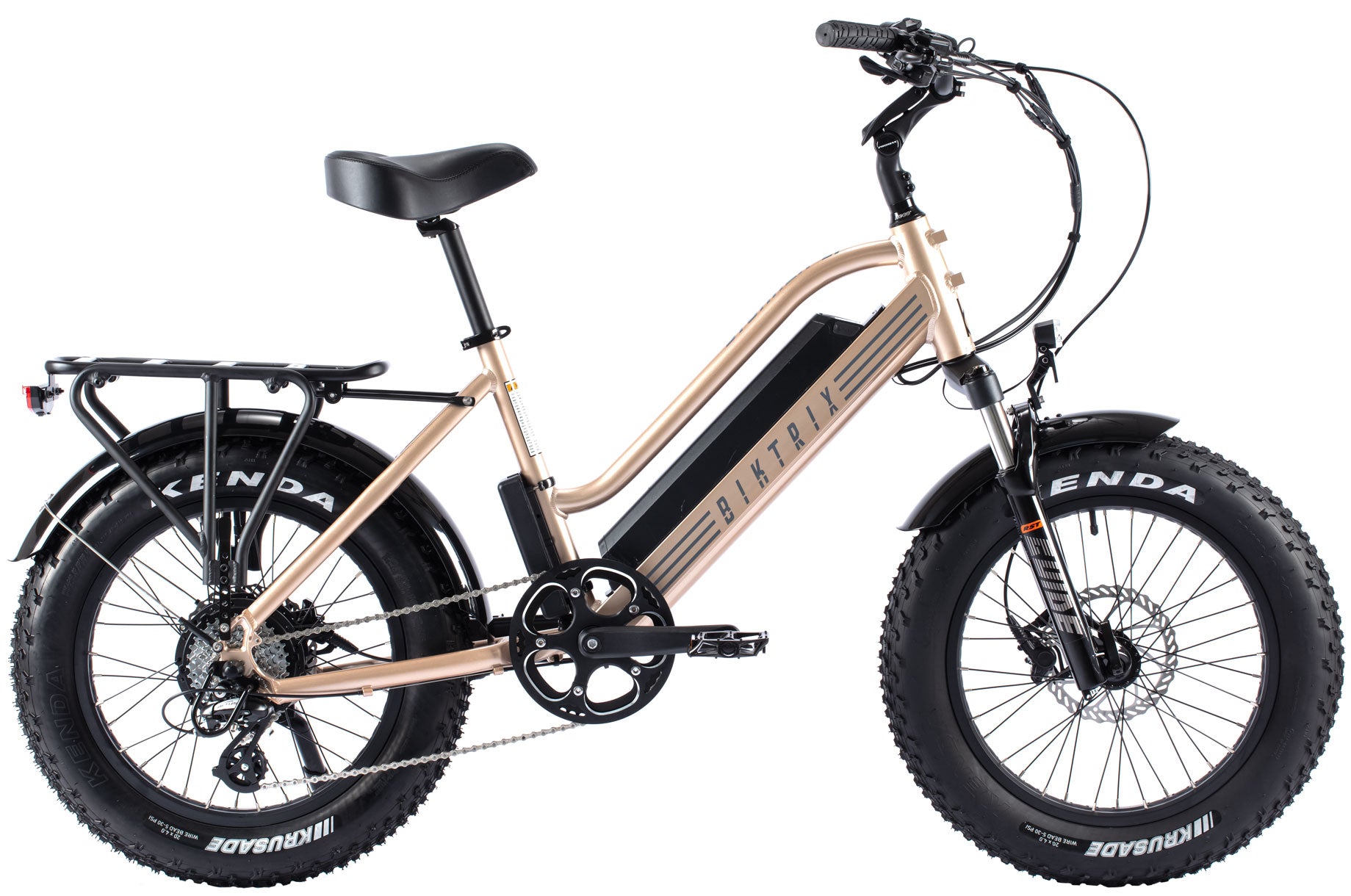

Stunner LT 7

Name: Stunner LT 7
Brand: BTN E - Bikes
SKU: STLT204CH2
Price: 1999.0 USD
Availability: OutOfStock
Rating: 4.6 (109 reviews)

4.6

$1,999 USD $2,199 USD

$1,999.00 $2,199.00

Notify Me When Available

1	Effective Top Tube Length	570mm	22.4in
2	Seat Tube Length (Classic Bike Size)	420mm	16.5in
3	Reach	380mm	15in
4	Stack	480mm	18.9in
5	Chainstay Length	440mm	17.3in
6	Standover Height	520mm	20.5in
7	Head Angle	68°	-
8	Seat Angle	70°	-
9	Head Tube Length	180 mm	7.1 in
10	Fork Length	440mm	17.3in
11	Front Center	650mm	25.6in
12	BB (Bottom Bracket) Drop	20mm	0.8in
13	Fork Offset	30mm	1.2in
14	Wheelbase	1120mm	44.1in
15	Total Length	1680mm	66.1in
16	Max Seat Height	1010mm	39.8in
17	Min Seat Height	810mm	31.9in
18	Handlebar Height	1090mm	42.9in
19	Weight (Without Battery)	29.4kg	64.8lb

1	Effective Top Tube Length	600mm	23.6in
2	Seat Tube Length (Classic Bike Size)	420mm	16.5in
3	Reach	470mm	18.5in
4	Stack	680mm	26.8in
5	Chainstay Length	480mm	18.9in
6	Standover Height	540mm	21.3in
7	Head Angle	62°	-
8	Seat Angle	66°	-
9	Head Tube Length	220 mm	8.7 in
10	Fork Length	530mm	20.9in
11	Front Center	720mm	28.3in
12	BB (Bottom Bracket) Drop	30mm	1.2in
13	Fork Offset	30mm	1.2in
14	Wheelbase	1170mm	46.1in
15	Total Length	1830mm	72in
16	Max Seat Height	1020mm	40.2in
17	Min Seat Height	830mm	32.7in
18	Handlebar Height	1200mm	47.2in
19	Weight (Without Battery)	30.3kg	66.8lb

750W Hub-Drive

Motor Power

Up to 50mi

Standard Range

+5'0ft / 330lb

Max Load

Torque Sensor

Powerful Pedal Assist

25+ Point Quality

Control Checklist

50+

Miles Range

80Nm

Torque For Extreme Hills

48V 21Ah

Strong, Reliable Battery

Like Riding On A Cloud

The Stunner LT is one of the most comfortable electric cruisers on the market today. The front suspension and fat tires make this bike feel just as good on the trails as it does on the road. The powerful 750W hub motor makes this bike an easy-to-use, capable explorer.

Customizable Style

Design the Stunner LT to suit your lifestyle! Enjoy additional range with a larger battery. Equip the Armageddon headlight for superior illumination. Upgrade to quad-piston brakes for enhanced performance. Thow on some pannier bags and you've got an eBike unique to you

Bells & Whistles? You Bet.

750W Rear Hub Motor

This powerful 750W motor will allow you to span cities, climb hills and explore further with ease.

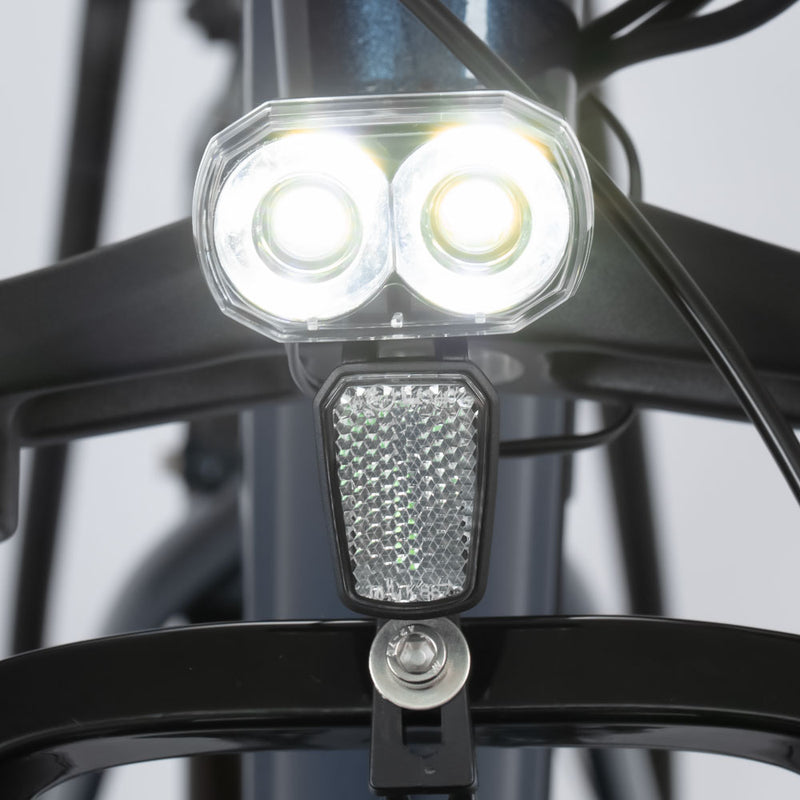

Integrated Headlight

Adding extra visibility and safety, this headlight is powered by the bike’s battery and can be turned on or off with the push of a button..

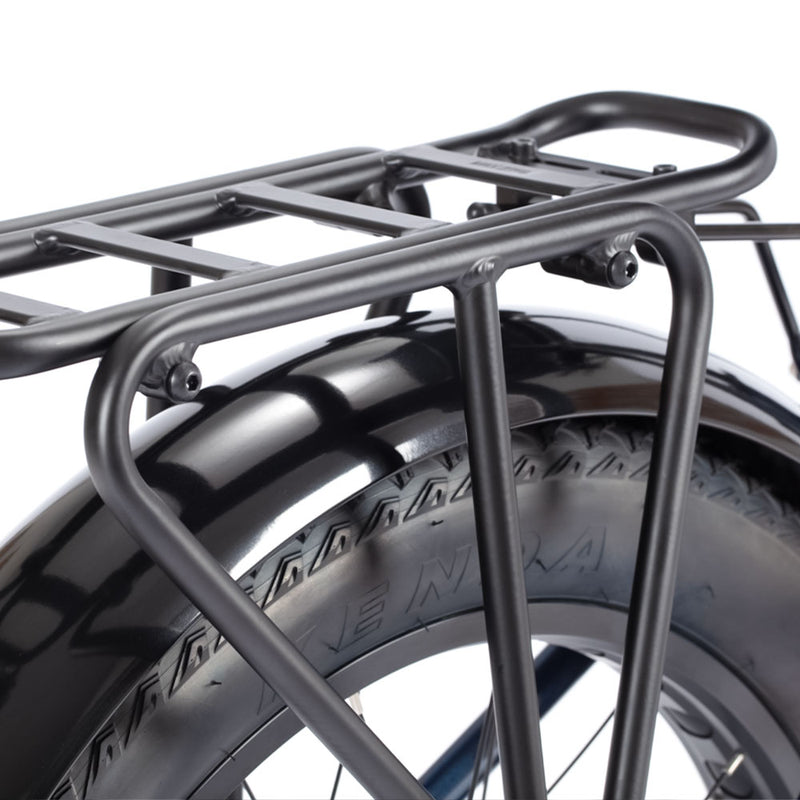

Rack & Fenders

These fenders will keep you and your bike clean. Need to carry gear? Strap onto our robust rear rack and go!

Removable 48V Lithium-Ion Battery

Our removable battery system is convenient. Twist the key to remove the battery and bring it inside to charge. We offer a variety of battery capacity options.

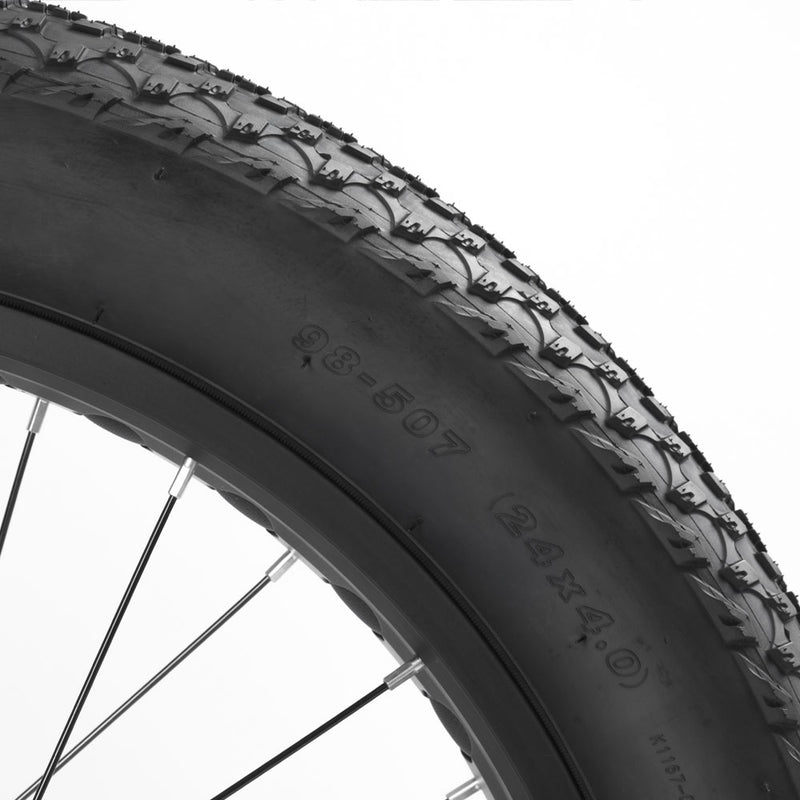

4” Fat Tires

Whether you’re up against sand, mud or snow, these tires will handle it with ease. The Stunner LT 7 is completely ready for all-season, all-terrain riding.

8 Speed Shimano Transmission

From climbing steep hills to holding maximum speed on flats and everything between, our Shimano 8-Speed drivetrain has you covered.

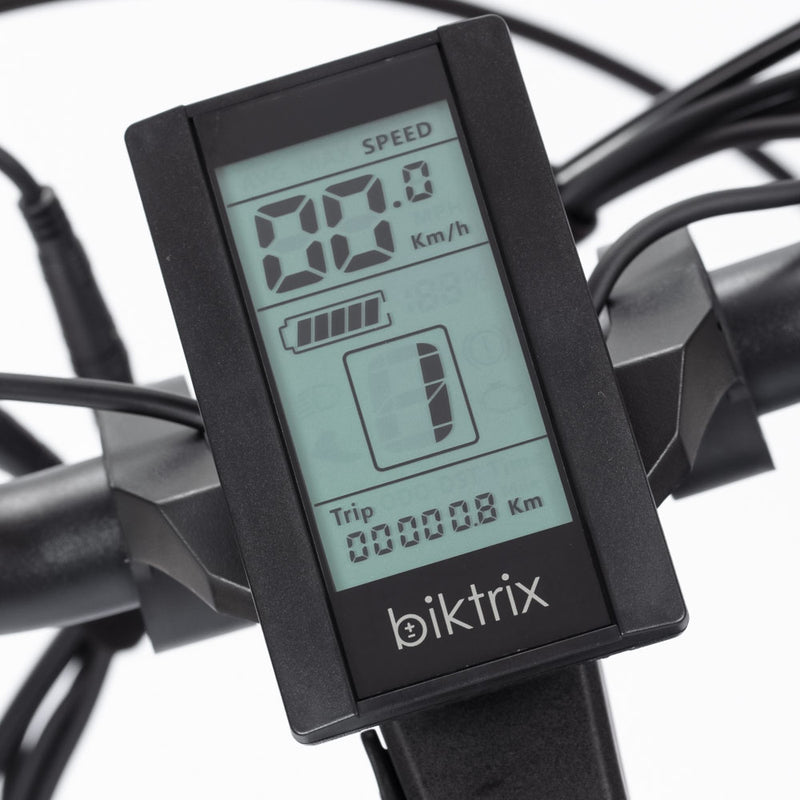

LCD Display

The LCD Display shows you all kinds of important information about your ride including speed, battery life, odometer, pedal assist level and more.

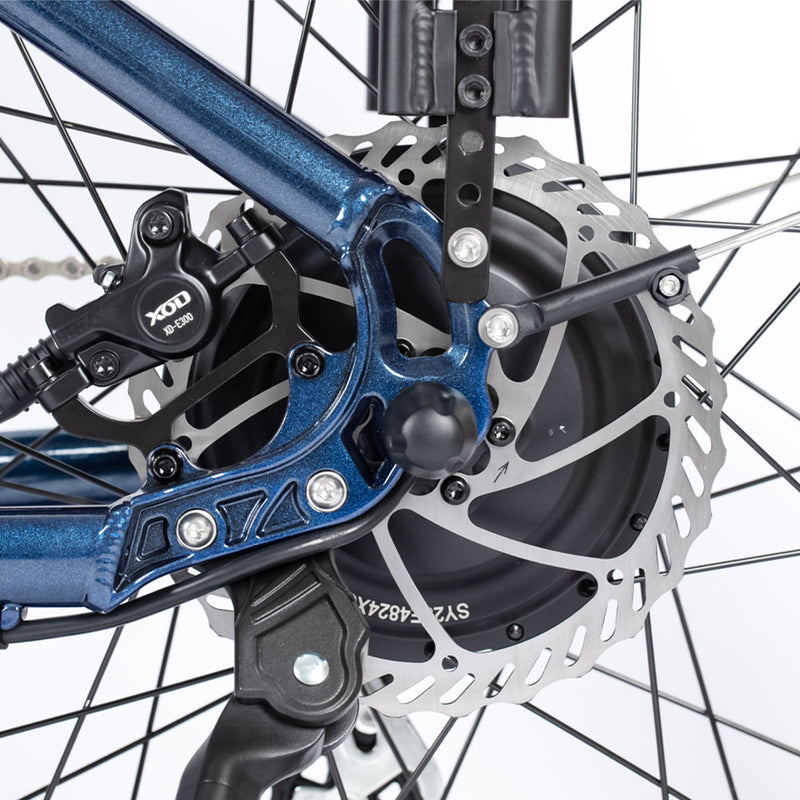

180mm Hydraulic Disc Brakes

Safety on an eBike is key. With standard dual-piston hydraulic brakes, you can stop even faster than you accelerate. Four-piston brakes are available as an additional upgrade.

Distance Range (Single Battery)

PAS 1 Pedal-Assist Lv.1		68mi
PAS 2 Pedal-Assist Lv.2		50mi
PAS 3 Pedal-Assist Lv.3		36mi
PAS 4 Pedal-Assist Lv.4		33mi
PAS 5 Pedal-Assist Lv.5		32mi
THRL Throttle Only		26mi

**Please note that information regarding the expected range on a single stock battery charge on one of our e-bikes is an estimate, not a guarantee. There are many factors that contribute to the actual, real-world range for an e-bike battery such as the age of the battery, temperature, level of assist, speed, payload, and terrain. Depending on these various conditions, it is possible to get less than the expected minimum range or greater than the expected maximum range.

Technical Specifications

Frame 6061 aluminum	Front hub 135mm 36h	Seat post 28.6mm
Fork Rst guide fork w/75mm travel (m \| 24” wheelset), 60mm travel (s \| 20" wheelset), preload and lockout	Front axle 5mm qr	Seat post clamp Qr
Headset Threadless 1-1/8" straight (s \| 20" wheelset) / threadless 1-1/2" - 1-1/8" tapered (m \ 24" wheelset)	Rear hub Motor	Motor 750w rear hub
Shifter rear Shimano altus 8 speed trigger shifter	Rear axle Bolt-on	Battery sizes 48v 21ah 1008wh, 48v 25ah 1200wh
Rear derailleur Shimano altus 8-speed	Rims 20x4", 24x4"	Display 800s
Cassette 8-speed 11-32t freewheel	Tire sizes 20x4", 24x4"	Lights Integrated headlight, taillight
Chain 8 speed kmc z8.3 126 links	Handlebar 24.5mm clamp, 620mm wide, 50mm rise mid-cruiser bars	Assist type Cadence + torque
Crank set 48t chainring w/170mm arms	Stem Promax adjustable	Assist levels 0-5
Bottom bracket Square tapered w/ torque sensor	Grips Slide-on	Throttle Thumb throttle
Brakes Xd-e300 dual piston hydraulic w/180mm rotors	Saddle Large black saddle	Other Rear rack, fenders, kickstand
Brake levers Adjustable w/ integrated brake cutoff sensors

Frame 6061 aluminum	Front hub 135mm 36h
Seat post 28.6mm	Fork Rst guide fork w/75mm travel (m \| 24” wheelset), 60mm travel (s \| 20" wheelset), preload and lockout
Front axle 5mm qr	Seat post clamp Qr
Headset Threadless 1-1/8" straight (s \| 20" wheelset) / threadless 1-1/2" - 1-1/8" tapered (m \ 24" wheelset)	Rear hub Motor
Motor 750w rear hub	Shifter rear Shimano altus 8 speed trigger shifter
Rear axle Bolt-on	Battery sizes 48v 21ah 1008wh, 48v 25ah 1200wh
Rear derailleur Shimano altus 8-speed	Rims 20x4", 24x4"
Display 800s	Cassette 8-speed 11-32t freewheel
Tire sizes 20x4", 24x4"	Lights Integrated headlight, taillight
Chain 8 speed kmc z8.3 126 links	Handlebar 24.5mm clamp, 620mm wide, 50mm rise mid-cruiser bars
Assist type Cadence + torque	Crank set 48t chainring w/170mm arms
Stem Promax adjustable	Assist levels 0-5
Bottom bracket Square tapered w/ torque sensor	Grips Slide-on
Throttle Thumb throttle	Brakes Xd-e300 dual piston hydraulic w/180mm rotors
Saddle Large black saddle	Other Rear rack, fenders, kickstand
Brake levers Adjustable w/ integrated brake cutoff sensors

Frame

6061 aluminum

Front hub

135mm 36h

Seat post

28.6mm

Fork

Rst guide fork w/75mm travel (m | 24” wheelset), 60mm travel (s | 20" wheelset), preload and lockout

Front axle

5mm qr

Seat post clamp

Headset

Threadless 1-1/8" straight (s | 20" wheelset) / threadless 1-1/2" - 1-1/8" tapered (m \ 24" wheelset)

Rear hub

Motor

750w rear hub

Shifter rear

Shimano altus 8 speed trigger shifter

Rear axle

Bolt-on

Battery sizes

48v 21ah 1008wh, 48v 25ah 1200wh

Rear derailleur

Shimano altus 8-speed

Rims

20x4", 24x4"

Display

800s

Cassette

8-speed 11-32t freewheel

Tire sizes

20x4", 24x4"

Lights

Integrated headlight, taillight

Chain

8 speed kmc z8.3 126 links

Handlebar

24.5mm clamp, 620mm wide, 50mm rise mid-cruiser bars

Assist type

Cadence + torque

Crank set

48t chainring w/170mm arms

Stem

Promax adjustable

Assist levels

0-5

Bottom bracket

Square tapered w/ torque sensor

Grips

Slide-on

Throttle

Thumb throttle

Brakes

Xd-e300 dual piston hydraulic w/180mm rotors

Saddle

Large black saddle

Other

Rear rack, fenders, kickstand

Brake levers

Adjustable w/ integrated brake cutoff sensors

Size & Fittings

1	Effective Top Tube Length	570mm	22.4in
2	Seat Tube Length (Classic Bike Size)	420mm	16.5in
3	Reach	380mm	15in
4	Stack	480mm	18.9in
5	Chainstay Length	440mm	17.3in
6	Standover Height	520mm	20.5in
7	Head Angle	68°	-
8	Seat Angle	70°	-
9	Head Tube Length	180 mm	7.1 in
10	Fork Length	440mm	17.3in
11	Front Center	650mm	25.6in
12	BB (Bottom Bracket) Drop	20mm	0.8in
13	Fork Offset	30mm	1.2in
14	Wheelbase	1120mm	44.1in
15	Total Length	1680mm	66.1in
16	Max Seat Height	1010mm	39.8in
17	Min Seat Height	810mm	31.9in
18	Handlebar Height	1090mm	42.9in
19	Weight (Without Battery)	29.4kg	64.8lb

1	Effective Top Tube Length	600mm	23.6in
2	Seat Tube Length (Classic Bike Size)	420mm	16.5in
3	Reach	470mm	18.5in
4	Stack	680mm	26.8in
5	Chainstay Length	480mm	18.9in
6	Standover Height	540mm	21.3in
7	Head Angle	62°	-
8	Seat Angle	66°	-
9	Head Tube Length	220 mm	8.7 in
10	Fork Length	530mm	20.9in
11	Front Center	720mm	28.3in
12	BB (Bottom Bracket) Drop	30mm	1.2in
13	Fork Offset	30mm	1.2in
14	Wheelbase	1170mm	46.1in
15	Total Length	1830mm	72in
16	Max Seat Height	1020mm	40.2in
17	Min Seat Height	830mm	32.7in
18	Handlebar Height	1200mm	47.2in
19	Weight (Without Battery)	30.3kg	66.8lb
