Swift Lite ST 2

Name: Swift Lite Step-Thru 2
Brand: swift-lite-details
SKU: SFT-LT-ST-WH
Price: 1149.0 USD
Availability: OutOfStock
Rating: 4.5 (136 reviews)

4.5

$1,149 USD $1,599 USD

This item has been replaced!

Want the latest version? Check out the Swift Lite 3 Step-Thru!

Swift Lite 3 Step-Thru

Technical Specifications

Frame 6061 aluminum	Front hub Modus 100mm	Seat post Aluminum 27.2mm
Fork Single shock fork w/ 30mm travel	Front axle 5mm qr	Seat post clamp 30.8mm qr
Headset Neco threadless	Rear hub 135mm hub motor	Motor 350w rear hub
Shifter rear Shimano tourney 6 speed	Rear axle Bolt on	Battery sizes 36v10.4h removable
Rear derailleur Shimano tourney sz 6 speed	Rims 700x25c aluminum 36h	Display Yl-70e lcd
Cassette Shimano mzt500-6	Tire sizes 700x40c	Lights Integrated headlight and taillight
Chain Kmc 6	Handlebar Aluminum 20mm riser bar w/ 25.4 clamp (step over) / aluminum 50mm riser bar w/ 25.4 clamp (step thru)	Assist type Cadence
Crank set Prowheel 170mm 42t	Stem Promax 110mm stem (step over) / adjustable promax stem (step thru)	Assist levels 0-3
Bottom bracket Square taper	Grips Slide on stitched	Throttle Yes w/ toggle
Brakes Mechanical disc w/ 160mm rotors	Saddle Medium comfort style	Other Rack, fenders and kickstand
Brake levers Z-star w/ cutoff

Frame 6061 aluminum	Front hub Modus 100mm
Seat post Aluminum 27.2mm	Fork Single shock fork w/ 30mm travel
Front axle 5mm qr	Seat post clamp 30.8mm qr
Headset Neco threadless	Rear hub 135mm hub motor
Motor 350w rear hub	Shifter rear Shimano tourney 6 speed
Rear axle Bolt on	Battery sizes 36v10.4h removable
Rear derailleur Shimano tourney sz 6 speed	Rims 700x25c aluminum 36h
Display Yl-70e lcd	Cassette Shimano mzt500-6
Tire sizes 700x40c	Lights Integrated headlight and taillight
Chain Kmc 6	Handlebar Aluminum 20mm riser bar w/ 25.4 clamp (step over) / aluminum 50mm riser bar w/ 25.4 clamp (step thru)
Assist type Cadence	Crank set Prowheel 170mm 42t
Stem Promax 110mm stem (step over) / adjustable promax stem (step thru)	Assist levels 0-3
Bottom bracket Square taper	Grips Slide on stitched
Throttle Yes w/ toggle	Brakes Mechanical disc w/ 160mm rotors
Saddle Medium comfort style	Other Rack, fenders and kickstand
Brake levers Z-star w/ cutoff

Frame

6061 aluminum

Front hub

Modus 100mm

Seat post

Aluminum 27.2mm

Fork

Single shock fork w/ 30mm travel

Front axle

5mm qr

Seat post clamp

30.8mm qr

Headset

Neco threadless

Rear hub

135mm hub motor

Motor

350w rear hub

Shifter rear

Shimano tourney 6 speed

Rear axle

Bolt on

Battery sizes

36v10.4h removable

Rear derailleur

Shimano tourney sz 6 speed

Rims

700x25c aluminum 36h

Display

Yl-70e lcd

Cassette

Shimano mzt500-6

Tire sizes

700x40c

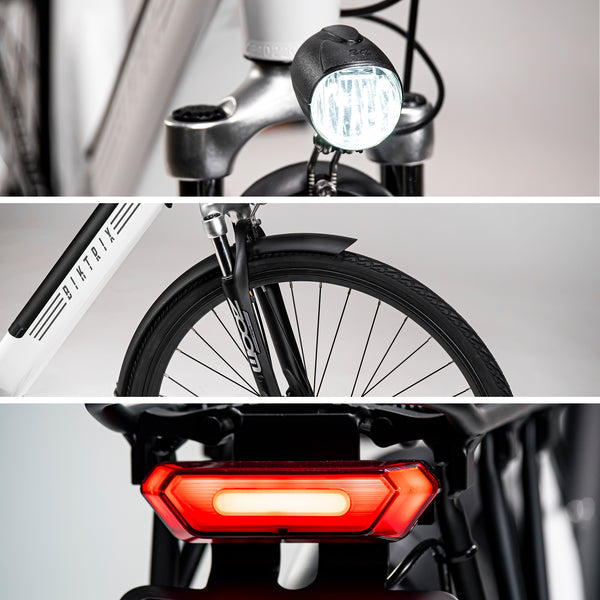

Lights

Integrated headlight and taillight

Chain

Kmc 6

Handlebar

Aluminum 20mm riser bar w/ 25.4 clamp (step over) / aluminum 50mm riser bar w/ 25.4 clamp (step thru)

Assist type

Cadence

Crank set

Prowheel 170mm 42t

Stem

Promax 110mm stem (step over) / adjustable promax stem (step thru)

Assist levels

0-3

Bottom bracket

Square taper

Grips

Slide on stitched

Throttle

Yes w/ toggle

Brakes

Mechanical disc w/ 160mm rotors

Saddle

Medium comfort style

Other

Rack, fenders and kickstand

Brake levers

Z-star w/ cutoff

Size & Fittings

1	Effective Top Tube Length	580mm	22.8in
2	Seat Tube Length (Classic Bike Size)	460mm	18.1in
3	Reach	410mm	16.1in
4	Stack	600mm	23.6in
5	Chainstay Length	450mm	17.7in
6	Standover Height	430mm	16.9in
7	Head Angle	69°	-
8	Seat Angle	74°	-
9	Head Tube Length	170 mm	6.7 in
10	Fork Length	465mm	18.3in
11	Front Center	650mm	25.6in
12	BB (Bottom Bracket) Drop	55mm	2.2in
13	Fork Offset	45mm	1.8in
14	Wheelbase	1100mm	43.3in
15	Total Length	1800mm	70.9in
16	Max Seat Height	1010mm	39.8in
17	Min Seat Height	810mm	31.9in
18	Handlebar Height	1150mm	45.3in
19	Weight (Without Battery)	21.7kg	47.8lb
