Overview

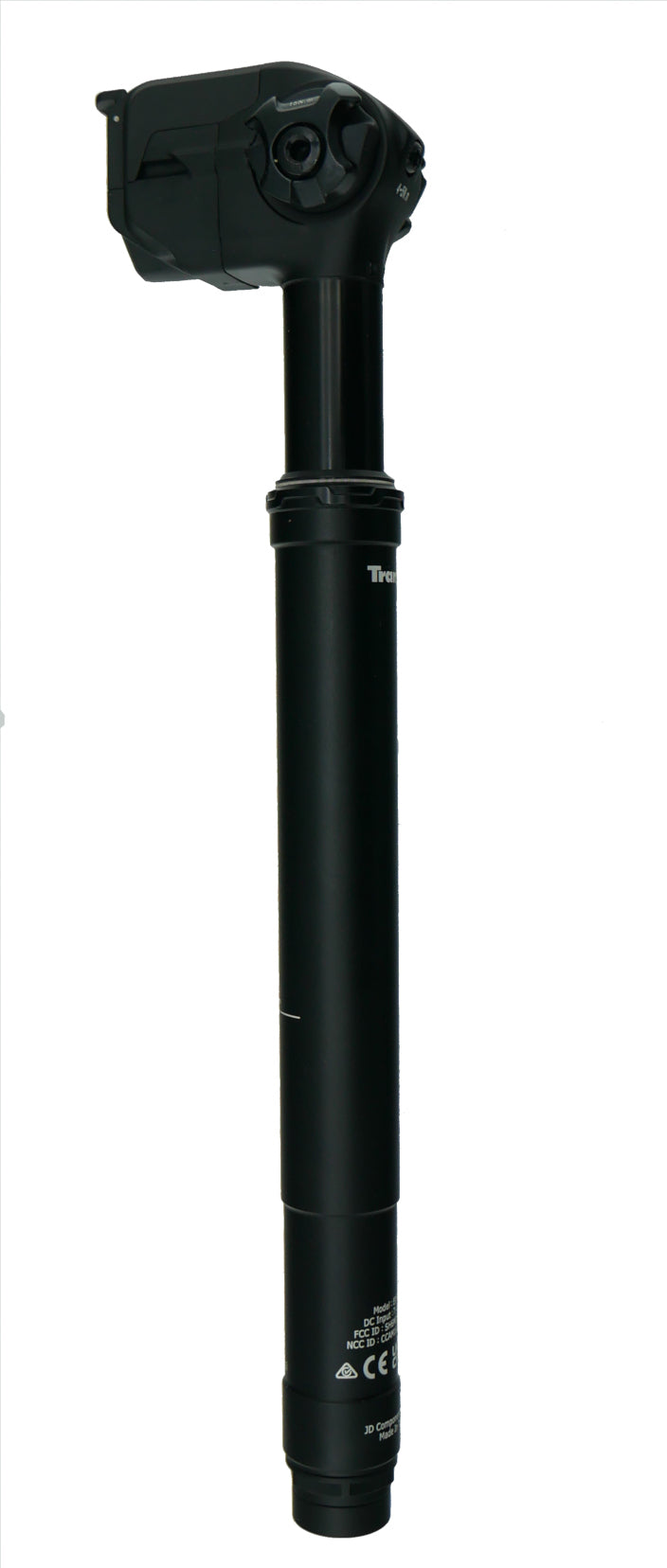

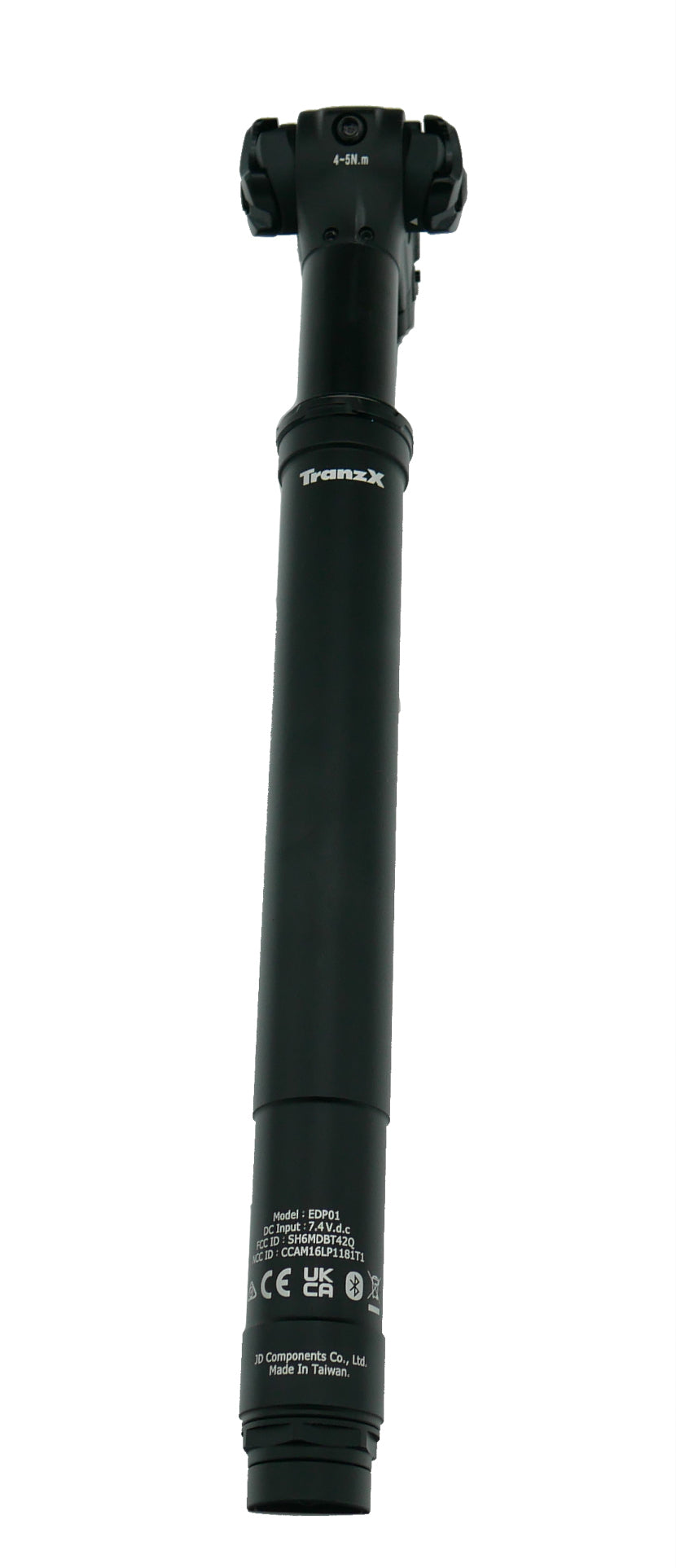

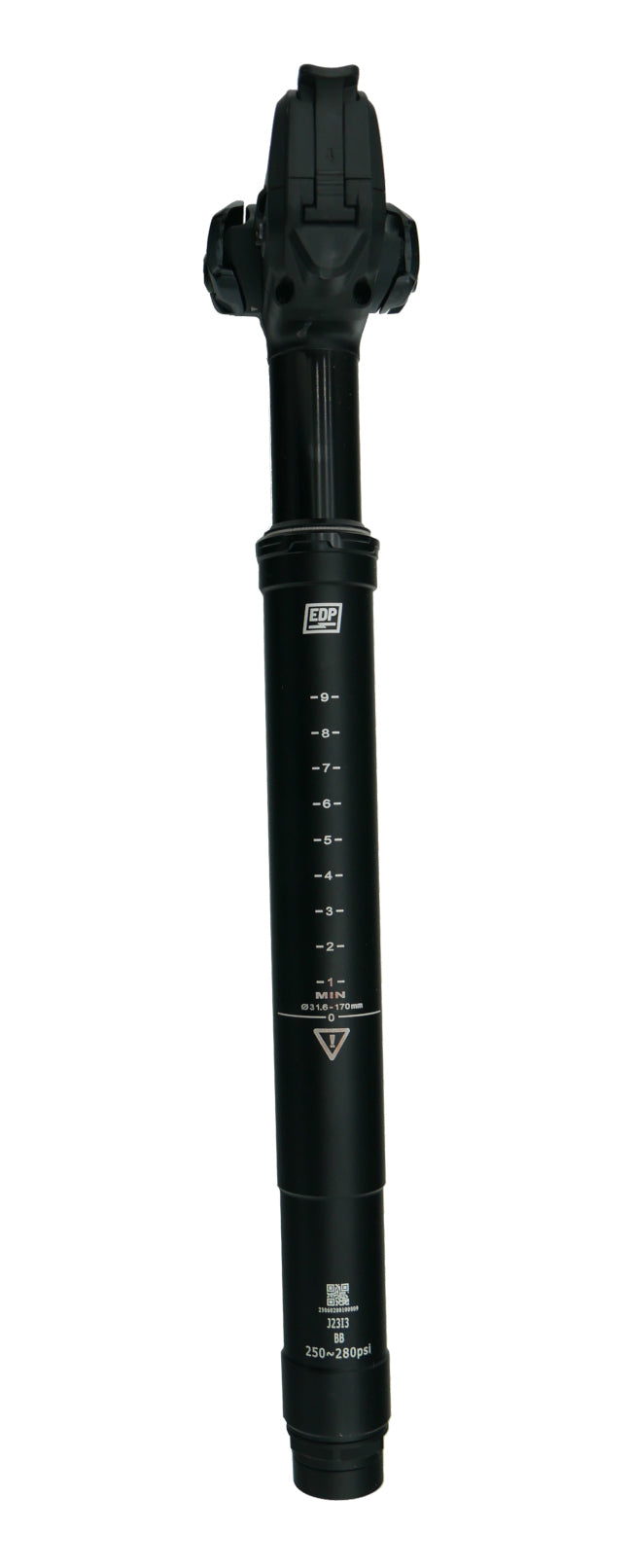

Experience the ultimate convenience and performance with the TranzX EDP01 Wireless Dropper Seatpost. This cutting-edge dropper post eliminates the hassle of cables, making it one of the shortest wireless droppers available on the market. With 170mm of travel, it provides smooth and precise adjustments to enhance your riding experience.Say goodbye to cable maintenance and hello to simplicity. The wireless design of the EDP01 allows for a straightforward installation, and its reliable TranzX technology ensures long-lasting performance. No more tangled cables or complicated setups - just pure functionality.
Featuring Bluetooth 5.0 wireless connectivity, this dropper post connects seamlessly to the remote, providing quick and effortless adjustments. The automotive-grade IPX66 water resistance rating ensures durability even in challenging weather conditions, so you can rely on it no matter where you ride.
The EDP01 comes with a rechargeable lithium-ion battery, offering a long-lasting power source for your rides. With an estimated range of over 6,000 times per fully charged battery, you can enjoy continuous activations without worrying about running out of power. The included charging case and cables make it convenient to recharge the battery, and the USB Type-C plug ensures compatibility with various power sources.
Travel: 170mm
Diameters: 31.6mm
Sealed adjustable air cartridge
Bluetooth 5.0 wireless connectivity
Automotive grade IPX 66 rated water resistance
Rechargeable lithium-ion battery

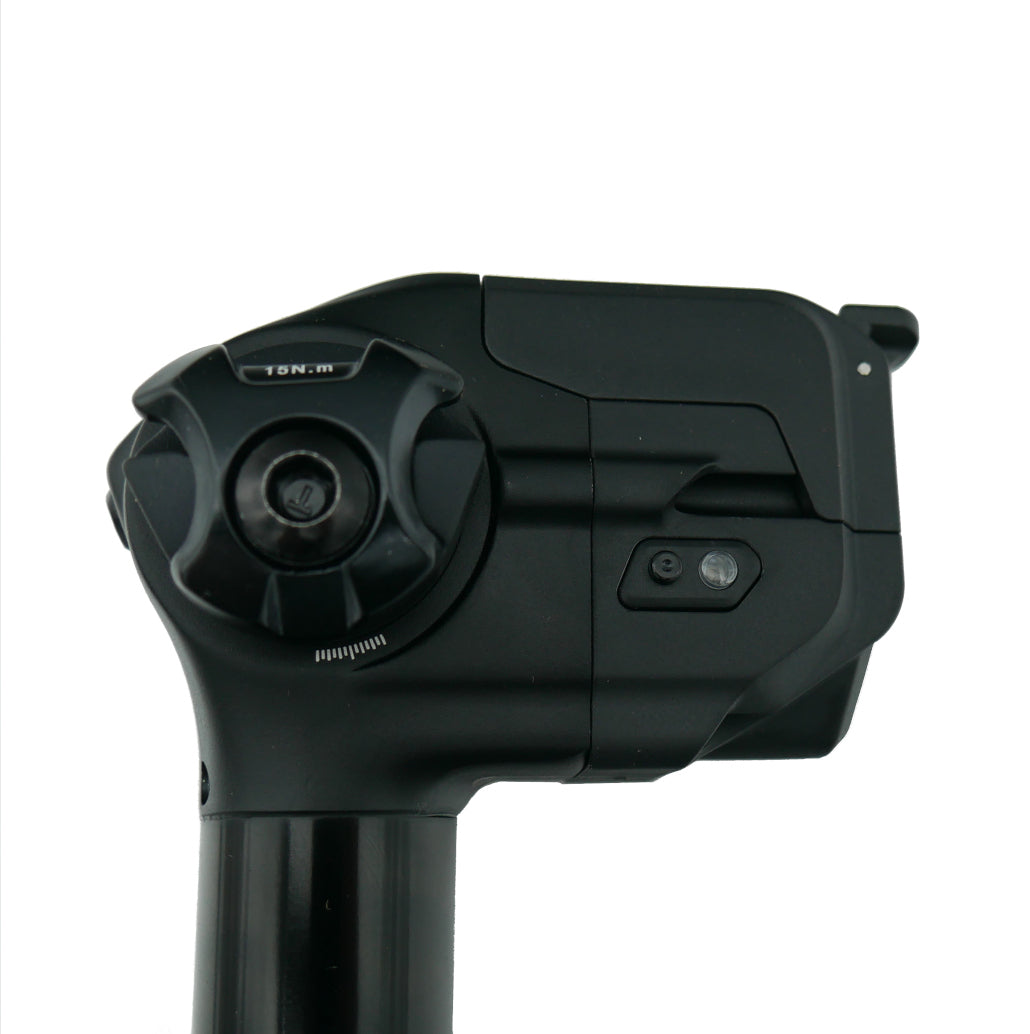

0mm offset post head with secure 2-bolt saddle clamp
Weights: 648-748g depending on diameter
Lever remote uses common CR2032 battery
1-Year Warranty

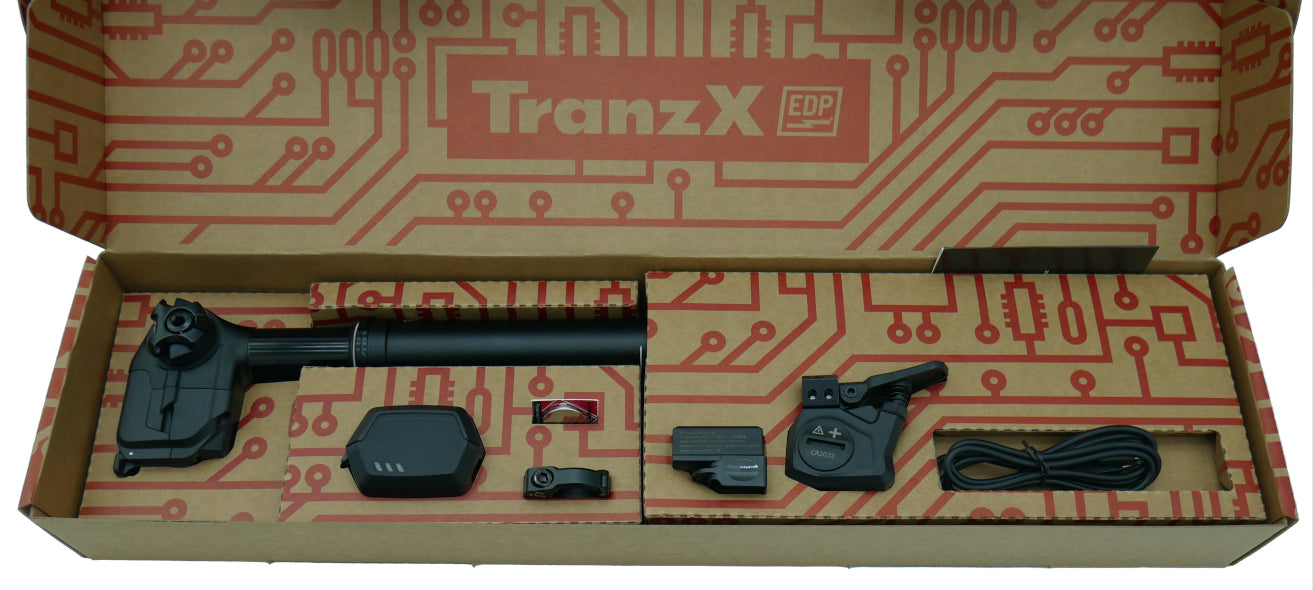

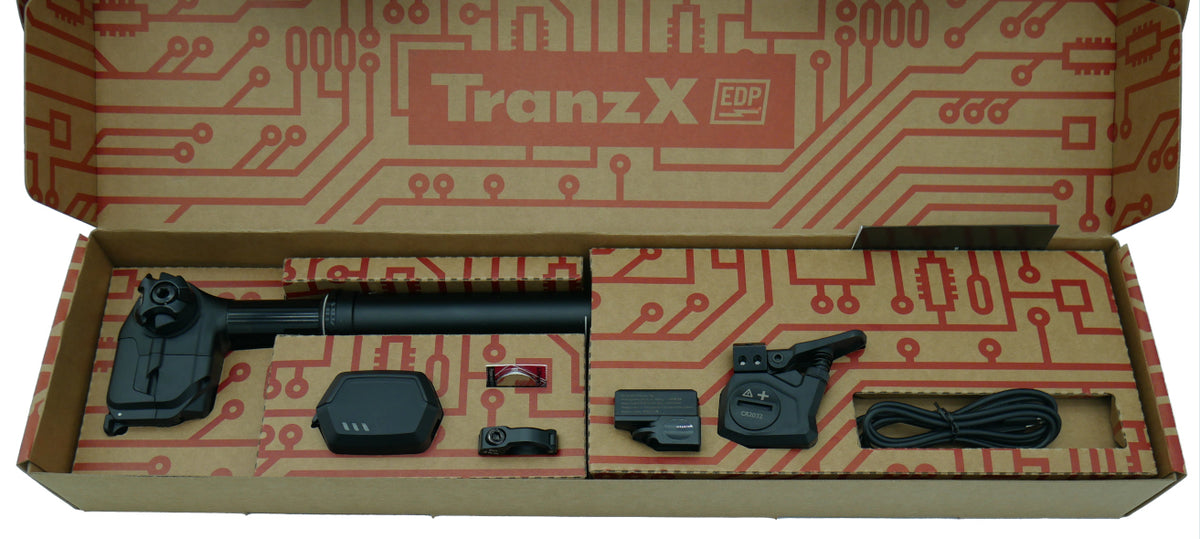

What's Included:
EDP01 wireless dropper post

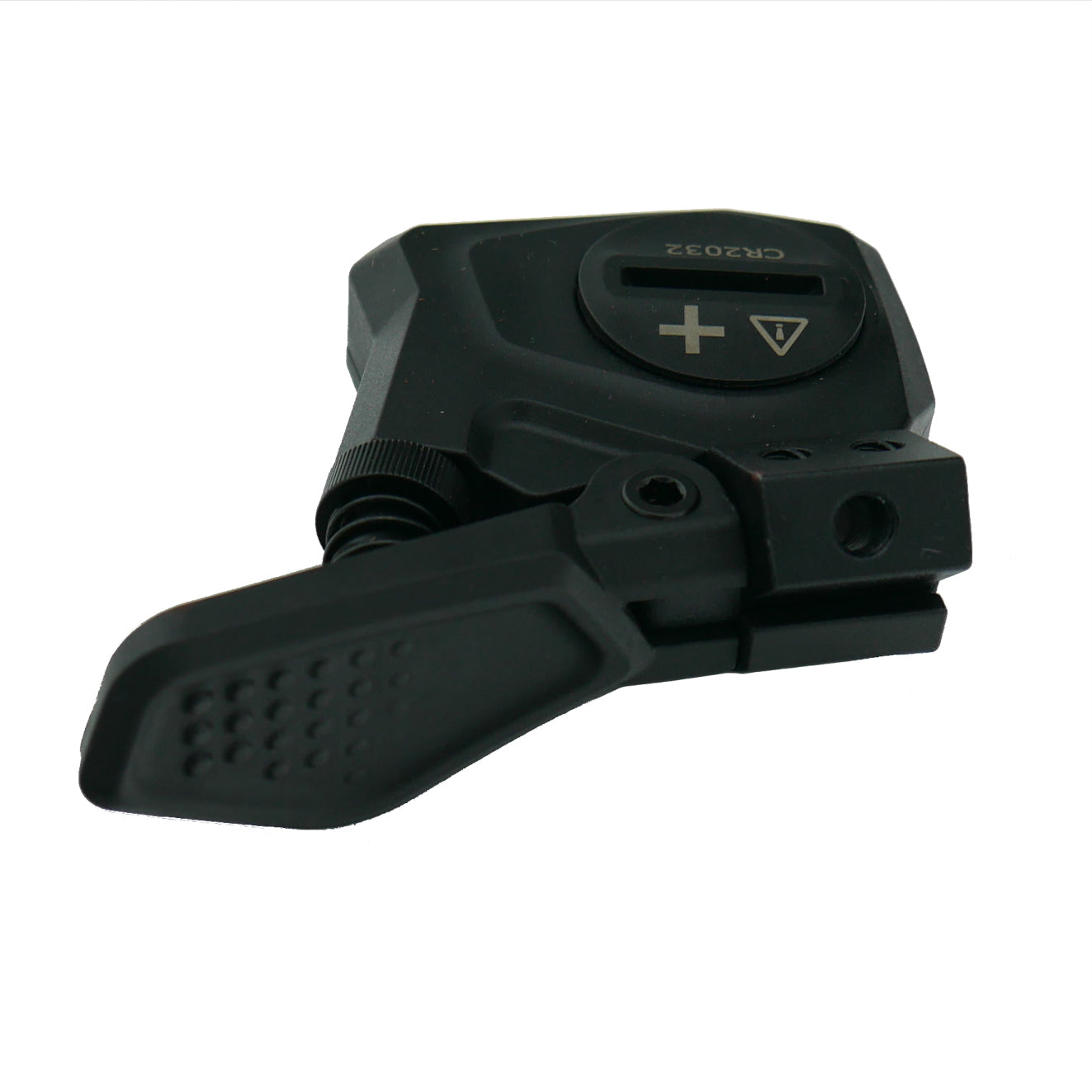

EDP01 remote lever w/ 22mm clamp
EDP01 rechargeable battery

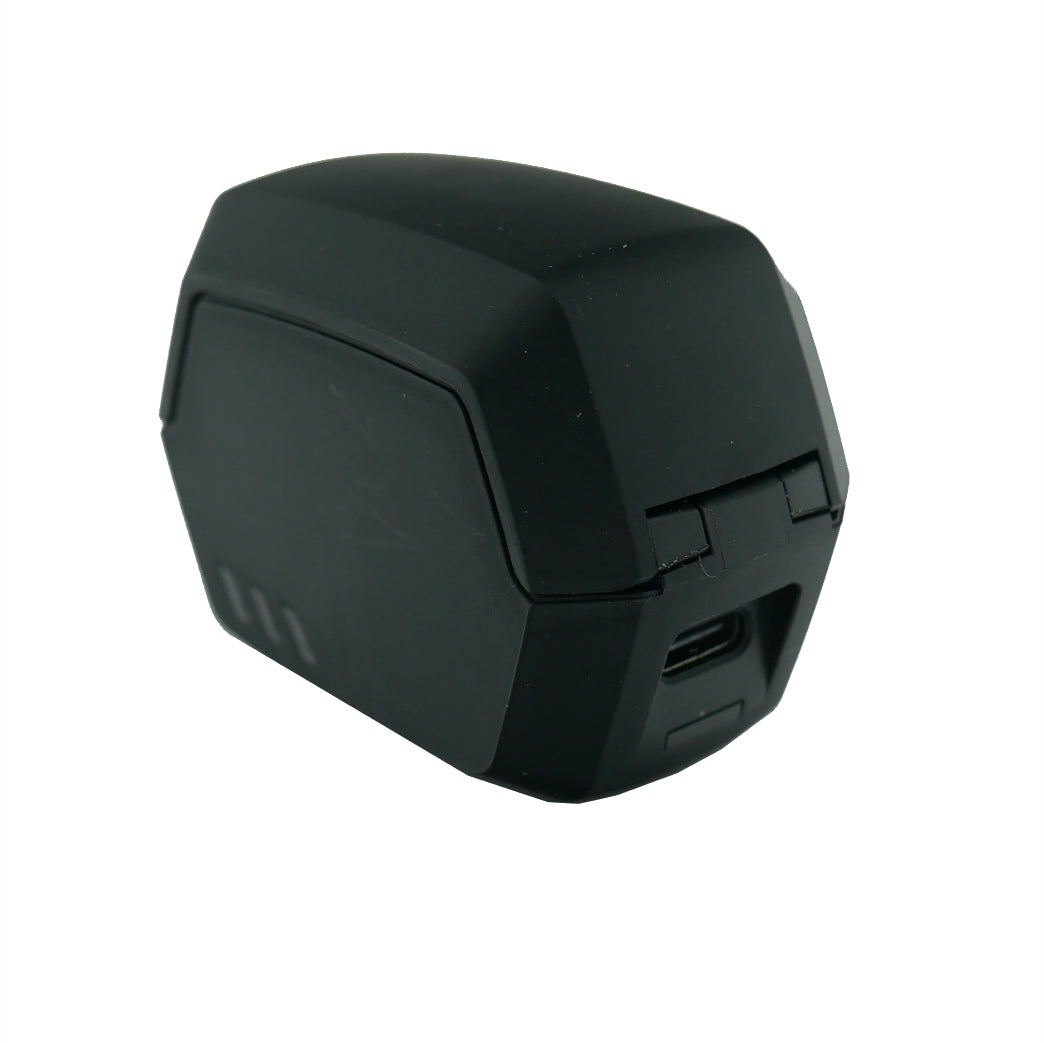

EDP01 charging case
Required charging cables
CR2032 battery for remote
The Battery
Battery Voltage: 7.4V (nominal)
Battery capacity: 240mAh
Battery size: 40.5 *19.0 *21.2mm
Battery weight: 20.5g
Estimated range: Over 6,000 times per fully charged battery (continuous activations)
The Charger
Charge voltage: 8.4V
Charge current: 240mA
Charge time: approx. 90 minutes
Power source: 5Vdc, USB powered
Plug type: USB Type-C
Technical Specifications
Diameter
31.6mm
Travel
170mm
Seat Height Increase (Minimum)
3" / 75mm
Wireless Connection
Bluetooth 5.0
Water Resistance
Automotive Grade IPX 66
Battery (Seatpost)
7.4V 240mAh Rechargable
Seatpost Battery Charge Time
Approximately 90 Minutes
Estimated Seatpost Battery Range
Over 6000 Activations Per Charge
Battery (Remote)
CR2032 Battery (Included)
Compatibility
| Bike Name | Compatible |
|---|---|
| Monte Capro Ultra 1/2 (Boost and Fat Versions) | |
| Monte Capro Lite | |
| Juggernaut Ultra FS Pro 1/2/3 | |
| Juggernaut FS Step Thru MTB/FAT | |
| Juggernaut Ultra FS with 31.6mm Seatpost | |
| Other eBikes w/ 31.6mm Seatpost Size | |
| Other eBikes with smaller than 31.6mm Seatpost Size |
