Overview

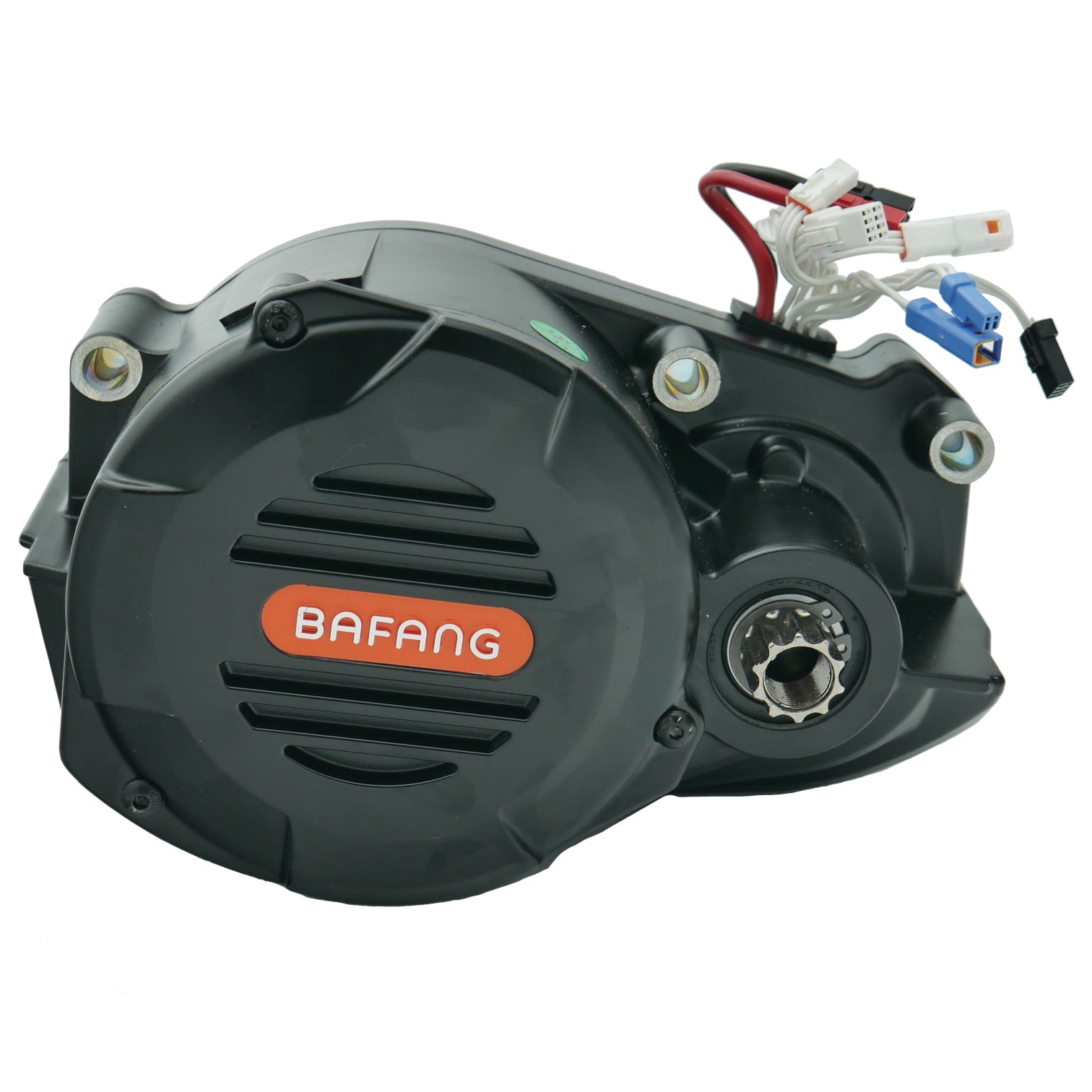

The Bafang Ultra M620 is the ultimate motor for your heavy-duty eBike with an incredible maximum torque of 160Nm and a power output of 1000W, this motor can handle the heaviest loads on the steepest inclines.

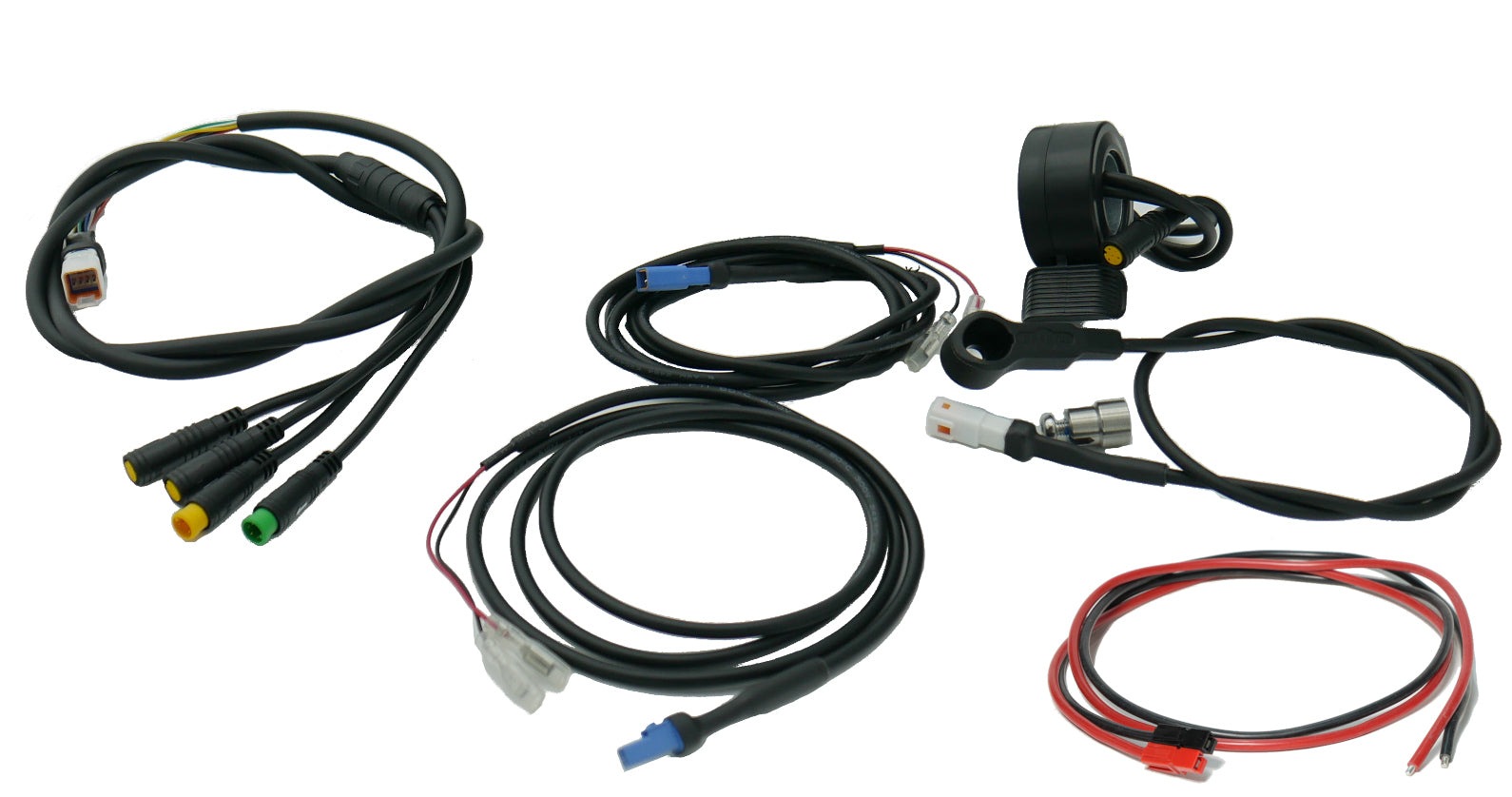

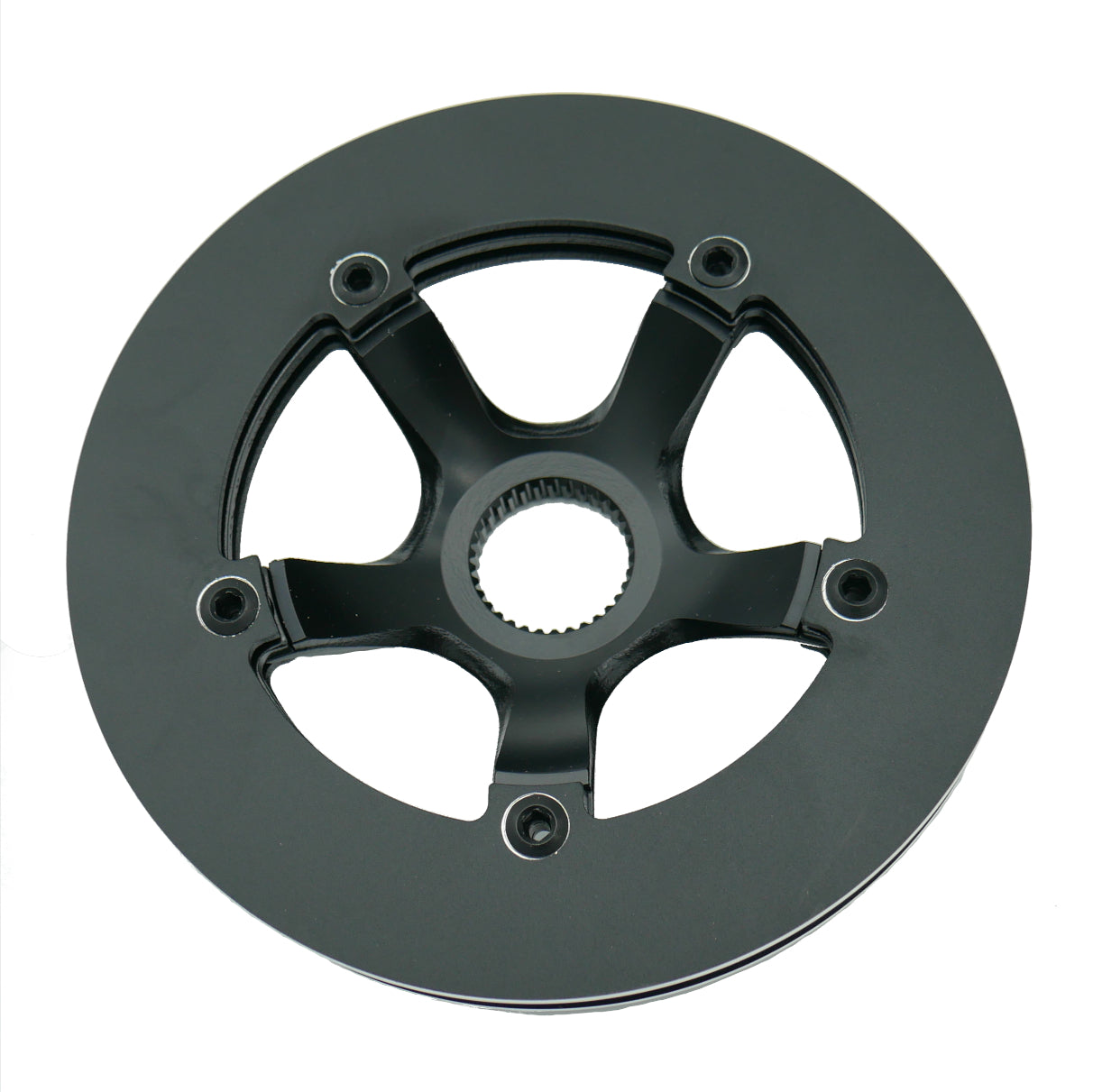

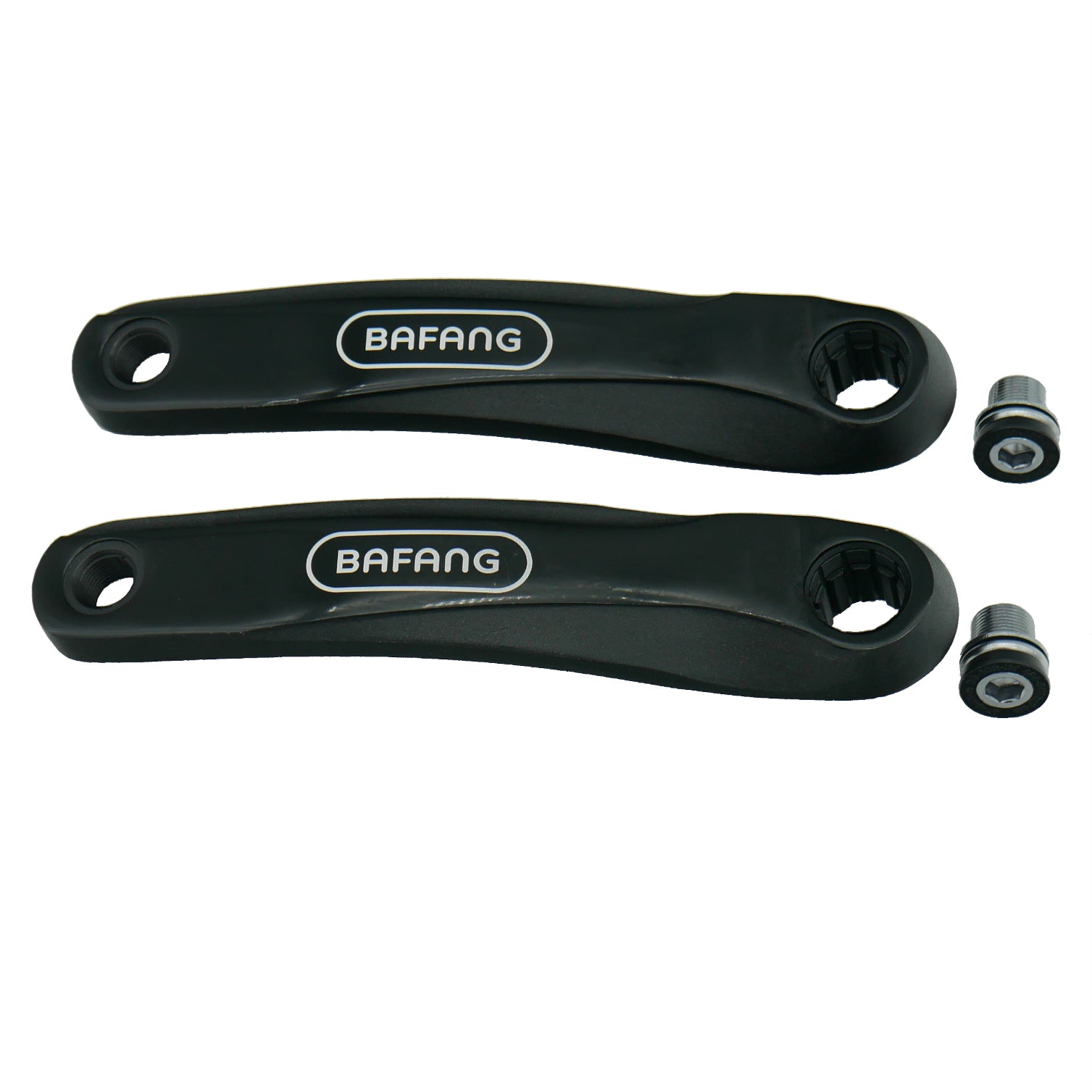

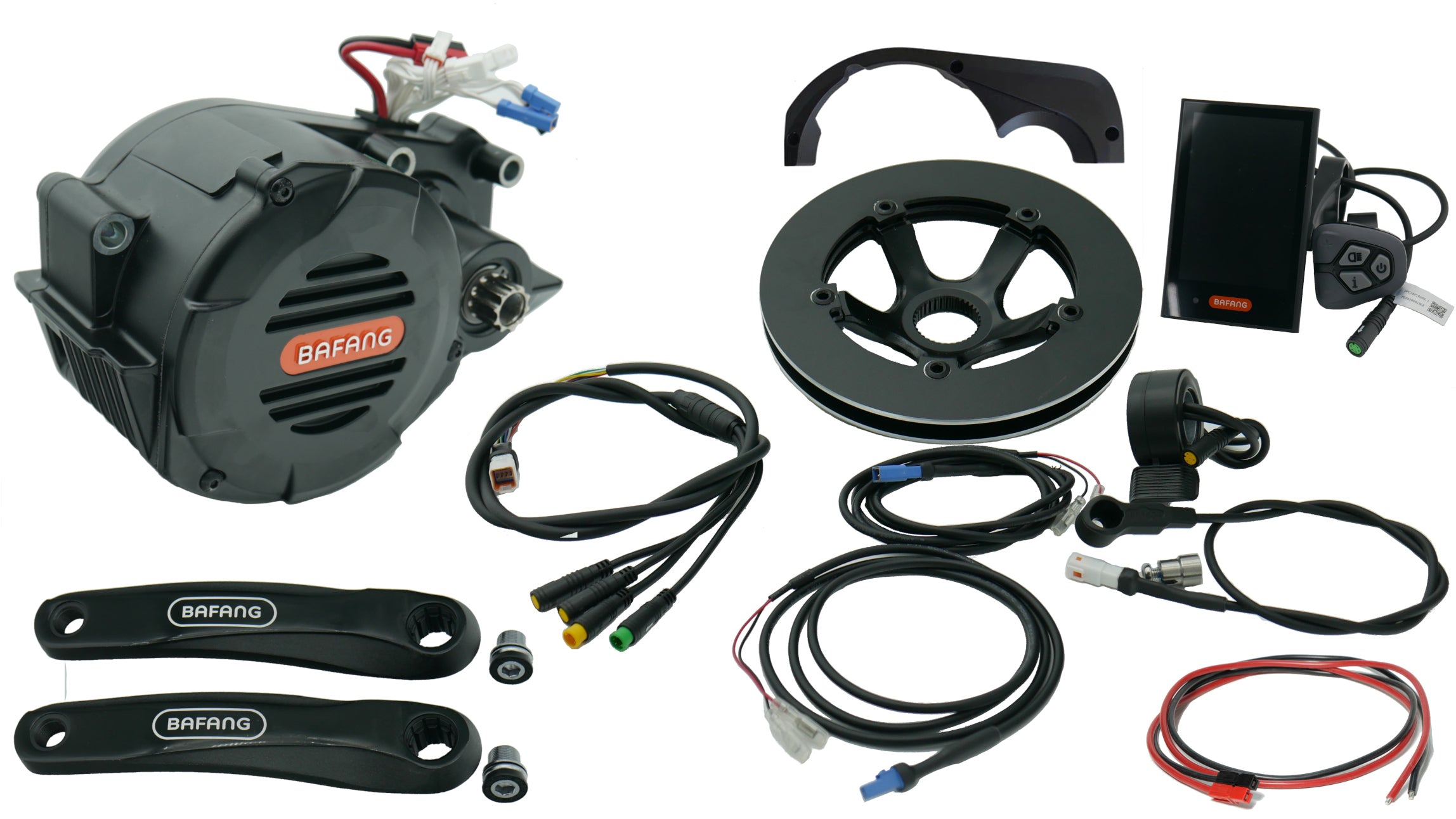

Kit Contains: Motor, Motor Cover, Speed Sensor, Headlight Wire, Taillight Wire, Anderson Pigtail, umbilical, throttle, crank arms, 44T Chainring w/ chainguard, Bafang DPC-18 LCD Display
KIT DOES NOT CONTAIN A 4-PIN BATTERY COMMUNICATION CABLE
Technical Specifications
Kit Contents
Motor, Motor Cover, 44T Chainring w/ Guard, Speed Sensor, Headlight Wire, Taillight Wire, 1 Anderson Pigtail, 1 Ultra motor Umbilical, Crank Arms, Thumb Throttle, DPC18 Display
Motor protocol
UART
Rated Nominal Power output
1000W
Peak Power Output
1500W
Max Ampreage
30A
Max Torque
160 N.m
Rated Voltage
48V / 52V
Position
Mid-Drive
Internal Gears
Steel Gears
Spindle Shaft Standard
ISIS
Water-proof grade
IP66
Pedal Assist Sensors
Integrated Torque + Cadence
Shift Sensor Function
Yes
Brake Sensor Function
Yes - Closer Type
Integrated Headlight / Taillight Capacity
Yes - Headlight + Taillight at 6 DCV / 3W MAX
Compatibility
| Bike Name | Compatible |
|---|---|
| Bikes with Bafang Ultra M620/G510 Motor | |
| eBike Frames Designed for Bafang Ultra M620/G510 motors | |
| Standard Bike Frames | |
| Bike Frame Designed for BBS02 / BBSHD Mid-Drive Motors | |
| Bike Frame Designed for Rear Hub Motor |
