Neptune Juggernaut XD Eagle 18”
Neptune Juggernaut XD Eagle 18”

Motor Power

Up to mi

Standard Range

+ft /

Max Load

25+ Point Quality

Control Checklist

Neptune Juggernaut XD Eagle 18”

$7,099 USD
$7,099 USD
Notify Me When Available

Sizing / Fittings

×
1
Effective Top Tube Length
 600mm 23.6in
2
Seat Tube Length (Classic Bike Size)
 480mm 18.9in
3
Reach
 480mm 18.9in
4
Stack
 620mm 24.4in
5
Chainstay Length
 530mm 20.9in
6
Standover Height
 720mm 28.3in
7
Head Angle
 66° -
8
Seat Angle
 71° -
9
Head Tube Length
 180 mm 7.1 in
10
Fork Length
 510mm 20.1in
11
Front Center
 760mm 29.9in
12
BB (Bottom Bracket) Drop
 40mm 1.6in
13
Fork Offset
 20mm 0.8in
14
Wheelbase
 1290mm 50.8in
15
Total Length
 2050mm 80.7in
16
Max Seat Height
 1130mm 44.5in
17
Min Seat Height
 890mm 35in
18
Handlebar Height
 1100mm 43.3in
19
Weight (Without Battery)
 21.6kg 47.6lb

Technical Specifications

×
Frame
Made in usa 6061 aluminum
Front hub
150mm 36h/150mm 32h
Seat post
31.6mm
Fork
Rst renegade coil spring w/100mm travel, lockout & preload
Front axle
15mm thru axle
Seat post clamp
Qr
Headset
Threadless 1-1/2 1-1/8 tapered
Rear hub
197mm 36h / 197 32h
Motor
Biktrix xd dual drive motor
Shifter rear
Sram nx 11 speed trigger shifter
Rear axle
12mm thru axle
Battery sizes
60v 20ah 1200wh
Rear derailleur
Sram nx 11 speed
Rims
27.5x3 36h, 26x4 32h, 26x4.8 32h
Display
Ds104
Cassette
Sram 11-42t
Tire sizes
26x4.8"
Lights
Biktrix armageddon 2000 lumen headlight, battery taillight
Chain
Kmc x11e
Handlebar
31.8mm clamp, 800mm length, 30mm rise
Assist type
Cadence
Crank set
150mm short crank arms, 46t chainring (xd)
Stem
31.8mm clamp 100mm fixed stem
Assist levels
0-5
Bottom bracket
High strength stainless steel square tapered
Grips
Mtb grips
Throttle
Twist throttle
Brakes
Iiipro e500 quad piston brakes w/ 203mm front + 220mm rear
Saddle
Dco classic mtb saddle
Brake levers
Tektro dorado 4-finger w/adjustable reach and brake cutoffs
Frame
Made in usa 6061 aluminum
Front hub
150mm 36h/150mm 32h
Seat post
31.6mm
Fork
Rst renegade coil spring w/100mm travel, lockout & preload
Front axle
15mm thru axle
Seat post clamp
Qr
Headset
Threadless 1-1/2 1-1/8 tapered
Rear hub
197mm 36h / 197 32h
Motor
Biktrix xd dual drive motor
Shifter rear
Sram nx 11 speed trigger shifter
Rear axle
12mm thru axle
Battery sizes
60v 20ah 1200wh
Rear derailleur
Sram nx 11 speed
Rims
27.5x3 36h, 26x4 32h, 26x4.8 32h
Display
Ds104
Cassette
Sram 11-42t
Tire sizes
26x4.8"
Lights
Biktrix armageddon 2000 lumen headlight, battery taillight
Chain
Kmc x11e
Handlebar
31.8mm clamp, 800mm length, 30mm rise
Assist type
Cadence
Crank set
150mm short crank arms, 46t chainring (xd)
Stem
31.8mm clamp 100mm fixed stem
Assist levels
0-5
Bottom bracket
High strength stainless steel square tapered
Grips
Mtb grips
Throttle
Twist throttle
Brakes
Iiipro e500 quad piston brakes w/ 203mm front + 220mm rear
Saddle
Dco classic mtb saddle
Brake levers
Tektro dorado 4-finger w/adjustable reach and brake cutoffs

Motor Power

Up to mi

Standard Range

+ft /

Max Load

25+ Point Quality

Control Checklist

Overview

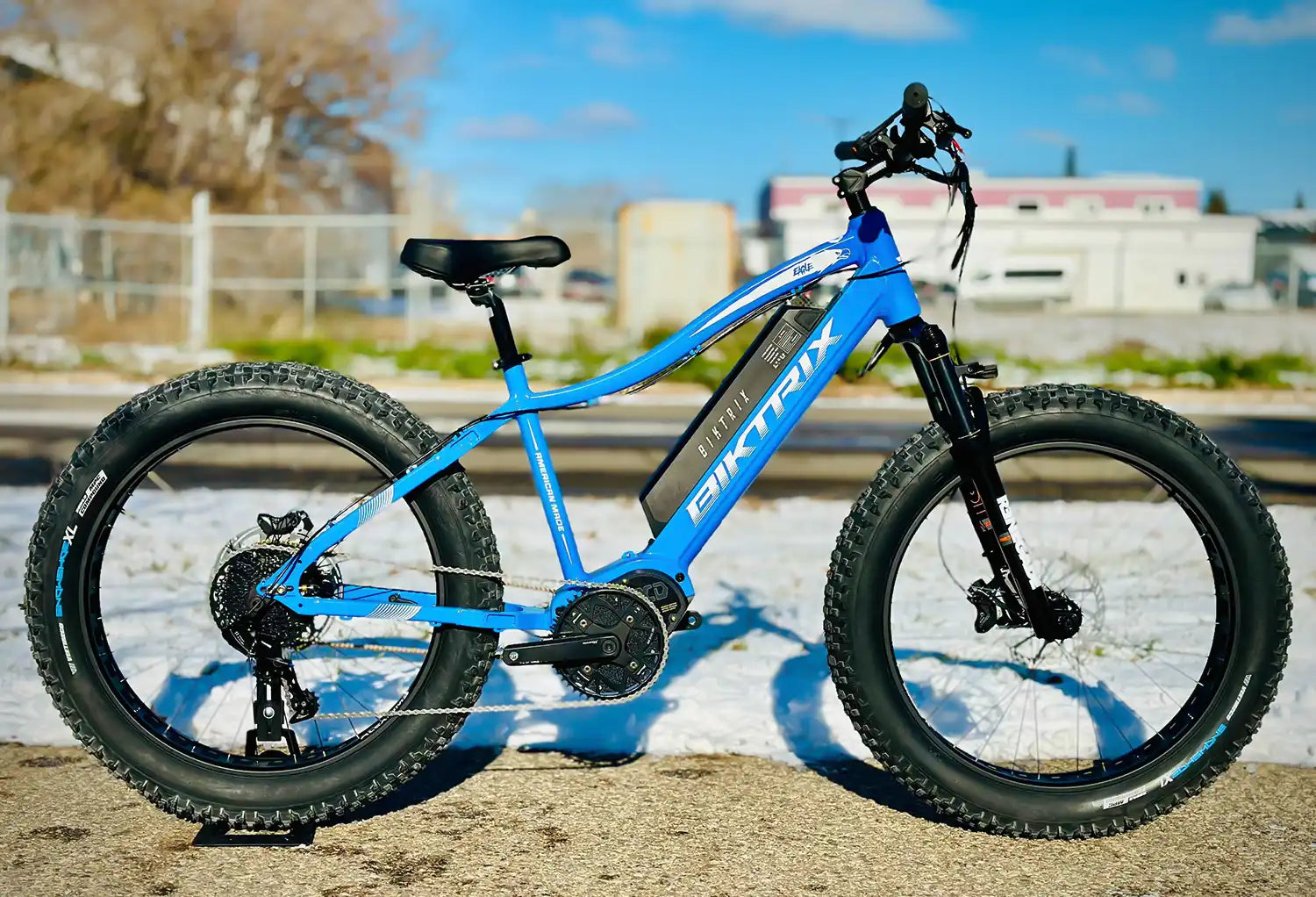

Performance without compromise. With the handcrafted USA made frame, the Neptune blends comfort with the best performance that money can buy. Rip around the streets and trails with the 60V XD motor paired with top of the line Tektro Quad piston brakes to stop at a dime. The RST Renegade will ensure that you’ll be riding frequently in comfort. When you’re finished from the trails, the Armageddon lights will gladly illuminate the path back home.
