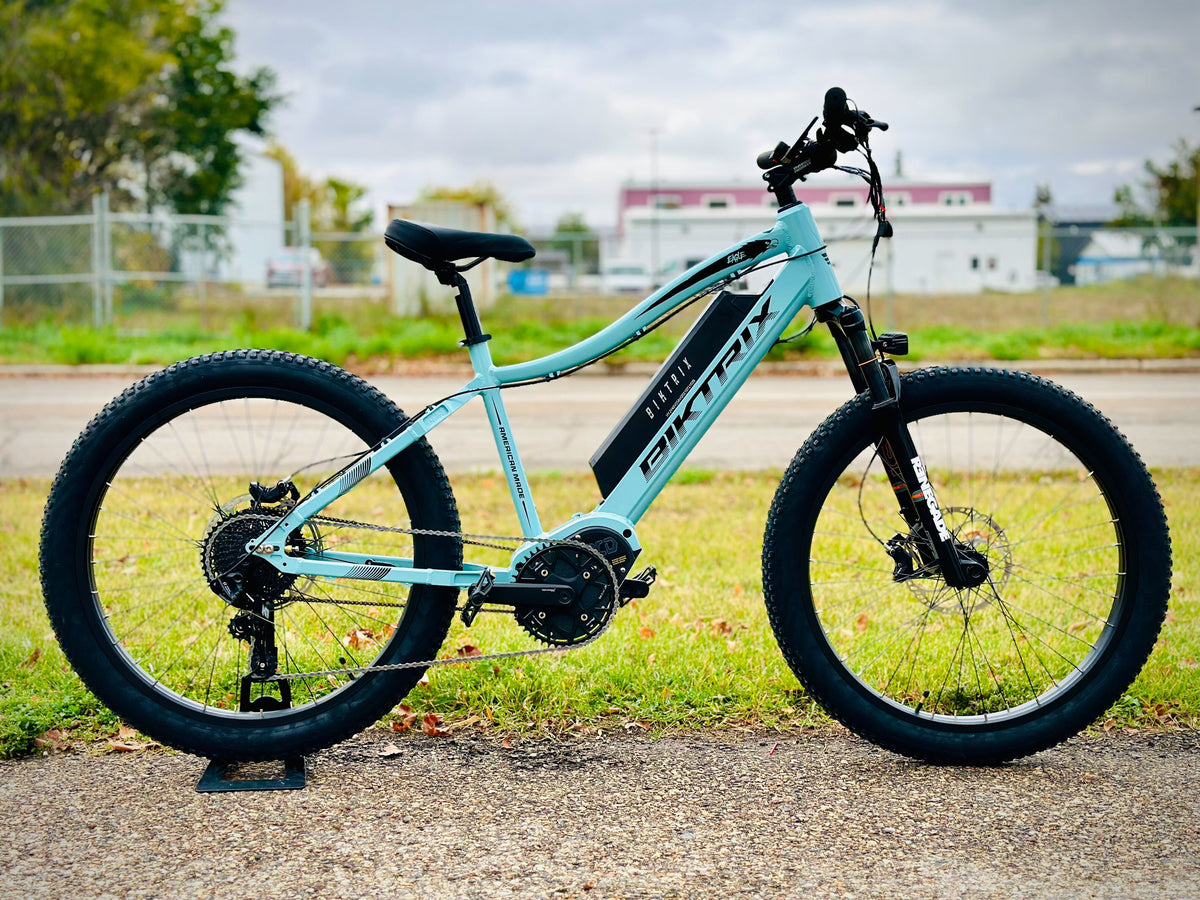

Tempest Juggernaut XD Eagle 18”
Tempest Juggernaut XD Eagle 18”

Motor Power

Up to mi

Standard Range

+ft /

Max Load

25+ Point Quality

Control Checklist

Tempest Juggernaut XD Eagle 18”

$6,999 USD
$6,999 USD
Notify Me When Available

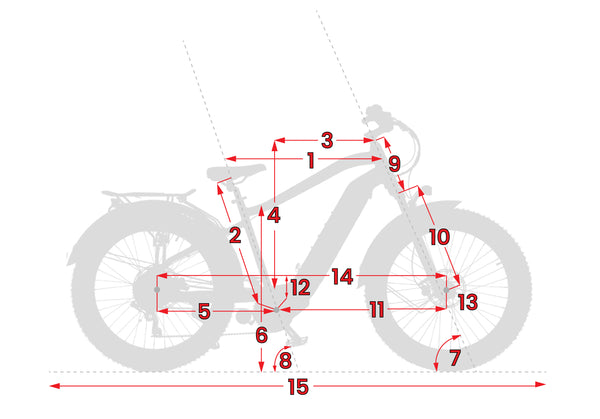

Sizing / Fittings

×
1
Effective Top Tube Length
 mm in
2
Seat Tube Length (Classic Bike Size)
 mm in
3
Reach
 mm in
4
Stack
 mm in
5
Chainstay Length
 mm in
6
Standover Height
 mm in
7
Head Angle
 ° °
8
Seat Angle
 ° °
9
Head Tube Length
 mm in
10
Fork Length
 mm in
11
Front Center
 mm in
12
BB (Bottom Bracket) Drop
 mm in
13
Fork Offset
 mm in
14
Wheelbase
 mm in
15
Total Length
 mm in
16
Max Seat Height
 mm in
17
Min Seat Height
 mm in
18
Handlebar Height
 mm in
19
Weight (Without Battery)
 kg lb

Technical Specifications

×
Frame
Made in usa 6061 aluminum
Front hub
150mm 36h/150mm 32h
Seat post
31.6mm
Fork
Rst renegade coil spring w/100mm travel, lockout & preload
Front axle
15mm thru axle
Seat post clamp
Qr
Headset
Threadless 1-1/2 1-1/8 tapered
Rear hub
197mm 36h / 197 32h
Motor
Biktrix xd dual drive motor
Shifter rear
Sram nx 11 speed trigger shifter
Rear axle
12mm thru axle
Battery sizes
48v 25ah 1200wh
Rear derailleur
Sram nx 11 speed
Rims
27.5x3 36h, 26x4 32h, 26x4.8 32h
Display
Ds104
Cassette
Sram 11-42t
Tire sizes
26x4.8"
Lights
Biktrix armageddon 2000 lumen headlight, battery taillight
Chain
Kmc x11e
Handlebar
31.8mm clamp, 800mm length, 30mm rise
Assist type
Cadence
Crank set
150mm short crank arms, 46t chainring (xd)
Stem
31.8mm clamp 100mm fixed stem
Assist levels
0-5
Bottom bracket
High strength stainless steel square tapered
Grips
Mtb grips
Throttle
Twist throttle
Brakes
Iiipro e500 quad piston brakes w/ 203mm front + 220mm rear
Saddle
Dco classic mtb saddle
Brake levers
Tektro dorado 4-finger w/adjustable reach and brake cutoffs
Frame
Made in usa 6061 aluminum
Front hub
150mm 36h/150mm 32h
Seat post
31.6mm
Fork
Rst renegade coil spring w/100mm travel, lockout & preload
Front axle
15mm thru axle
Seat post clamp
Qr
Headset
Threadless 1-1/2 1-1/8 tapered
Rear hub
197mm 36h / 197 32h
Motor
Biktrix xd dual drive motor
Shifter rear
Sram nx 11 speed trigger shifter
Rear axle
12mm thru axle
Battery sizes
48v 25ah 1200wh
Rear derailleur
Sram nx 11 speed
Rims
27.5x3 36h, 26x4 32h, 26x4.8 32h
Display
Ds104
Cassette
Sram 11-42t
Tire sizes
26x4.8"
Lights
Biktrix armageddon 2000 lumen headlight, battery taillight
Chain
Kmc x11e
Handlebar
31.8mm clamp, 800mm length, 30mm rise
Assist type
Cadence
Crank set
150mm short crank arms, 46t chainring (xd)
Stem
31.8mm clamp 100mm fixed stem
Assist levels
0-5
Bottom bracket
High strength stainless steel square tapered
Grips
Mtb grips
Throttle
Twist throttle
Brakes
Iiipro e500 quad piston brakes w/ 203mm front + 220mm rear
Saddle
Dco classic mtb saddle
Brake levers
Tektro dorado 4-finger w/adjustable reach and brake cutoffs

Motor Power

Up to mi

Standard Range

+ft /

Max Load

25+ Point Quality

Control Checklist

Overview

Performance without compromise. With the handcrafted USA made frame, the Tempest blends comfort with the best performance that money can buy. Rip around the streets and trails with the XD motor paired with top of the line Tektro Quad piston brakes to stop at a dime. The RST Renegade will ensure that you’ll be riding frequently in comfort. When you’re finished from the trails, the Armageddon lights will gladly illuminate the path back home.
