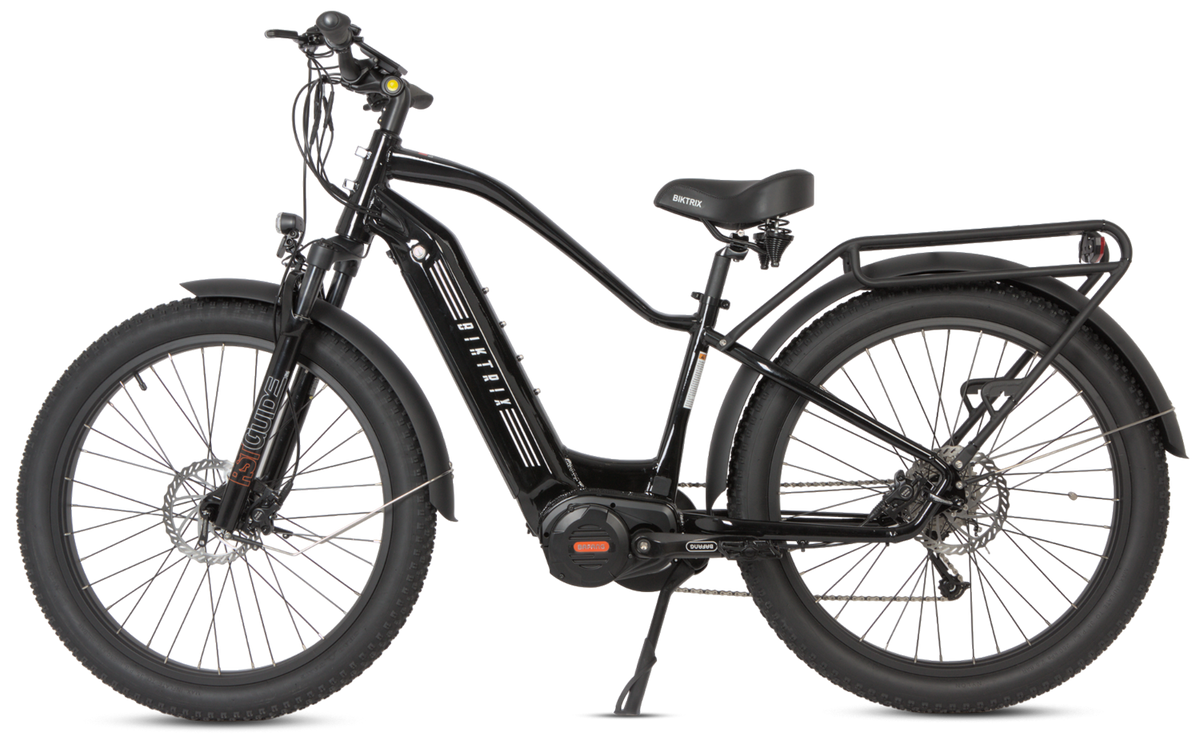

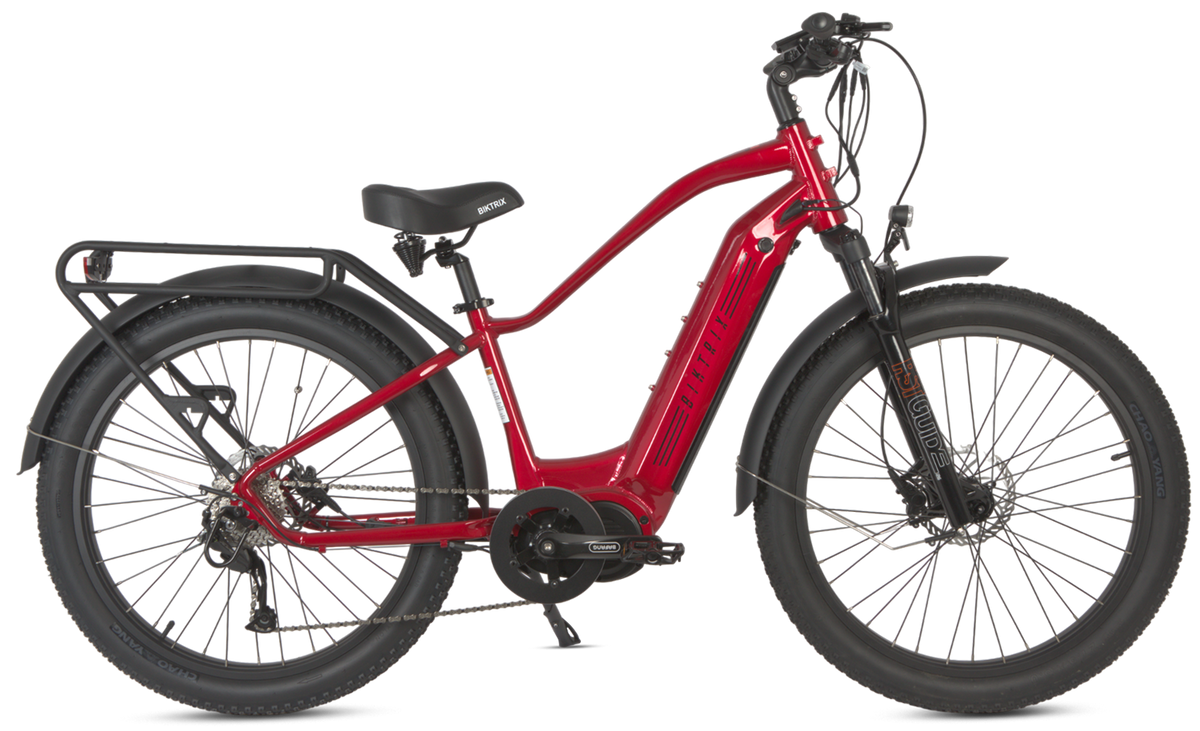

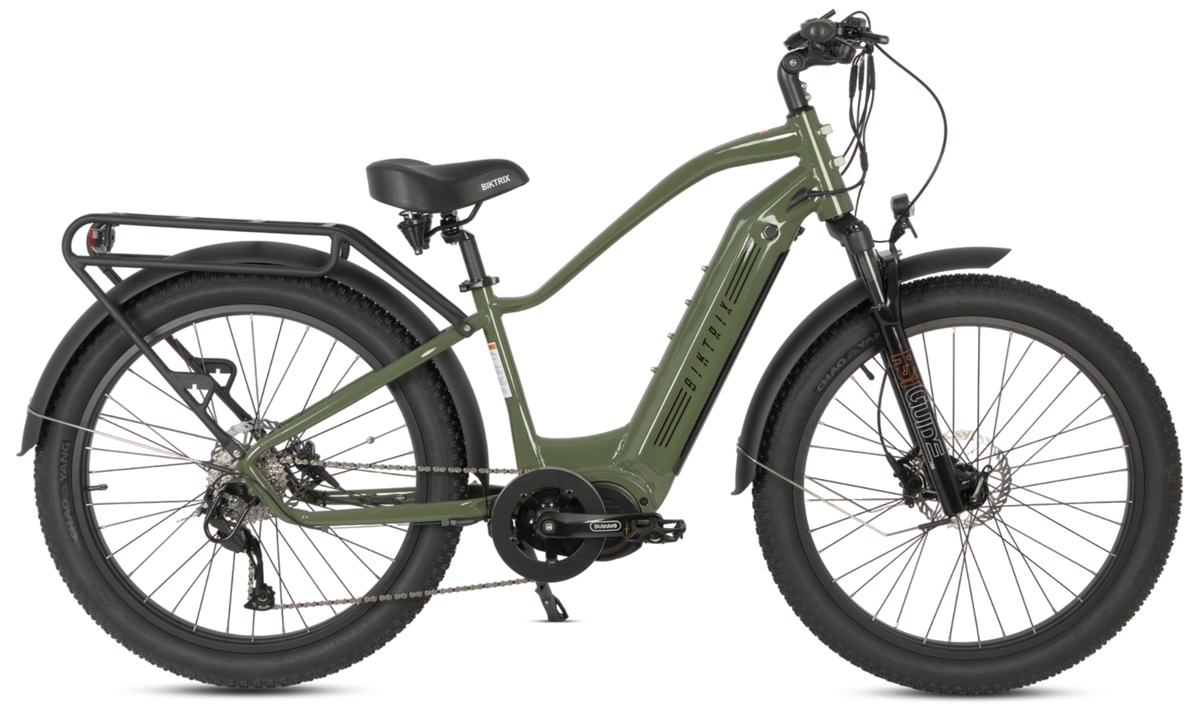

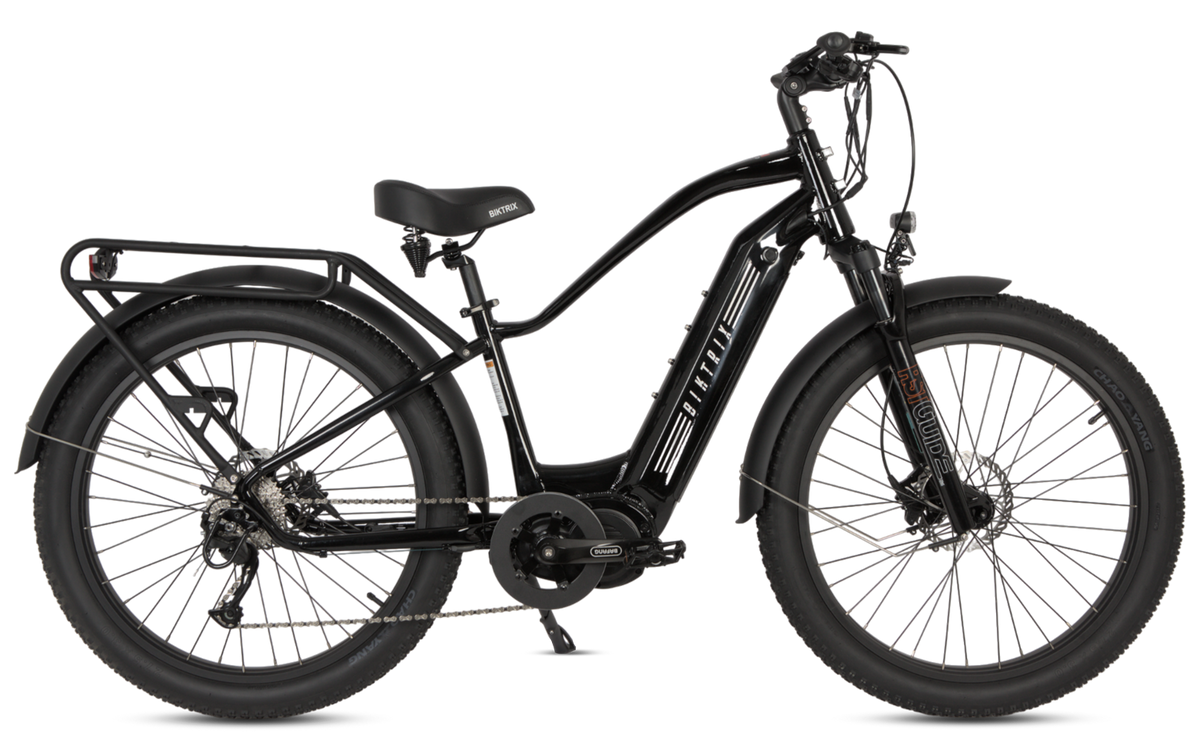

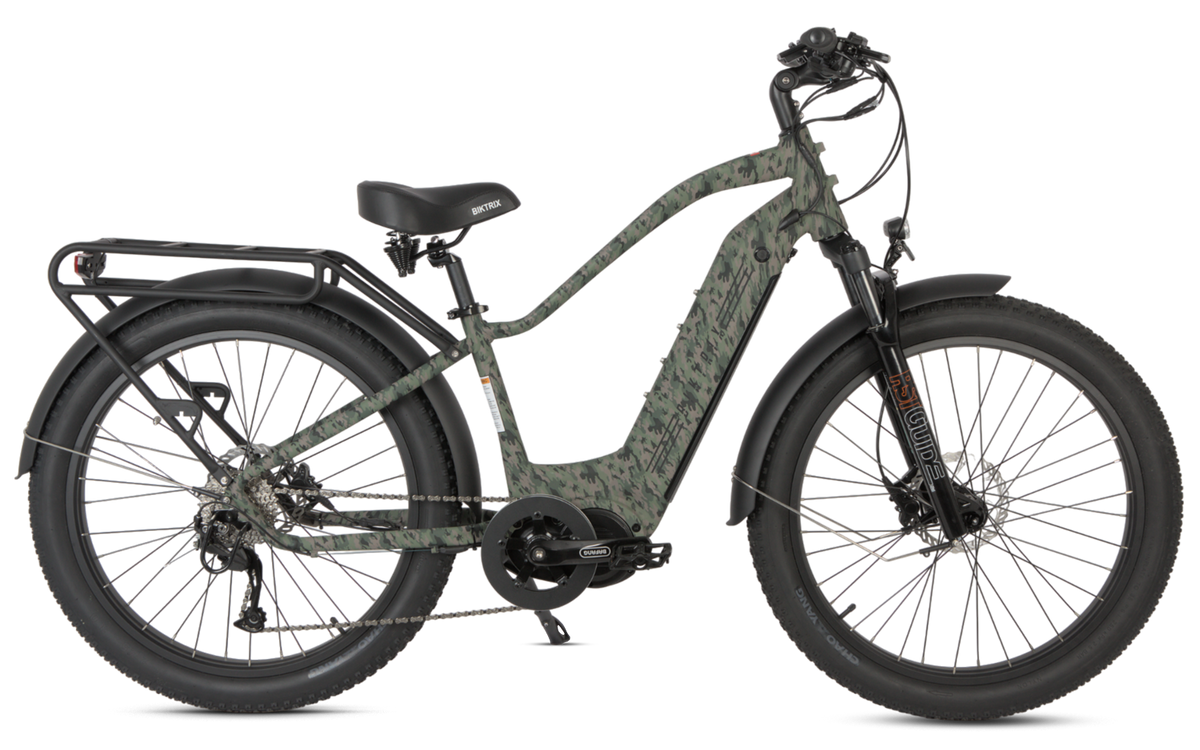

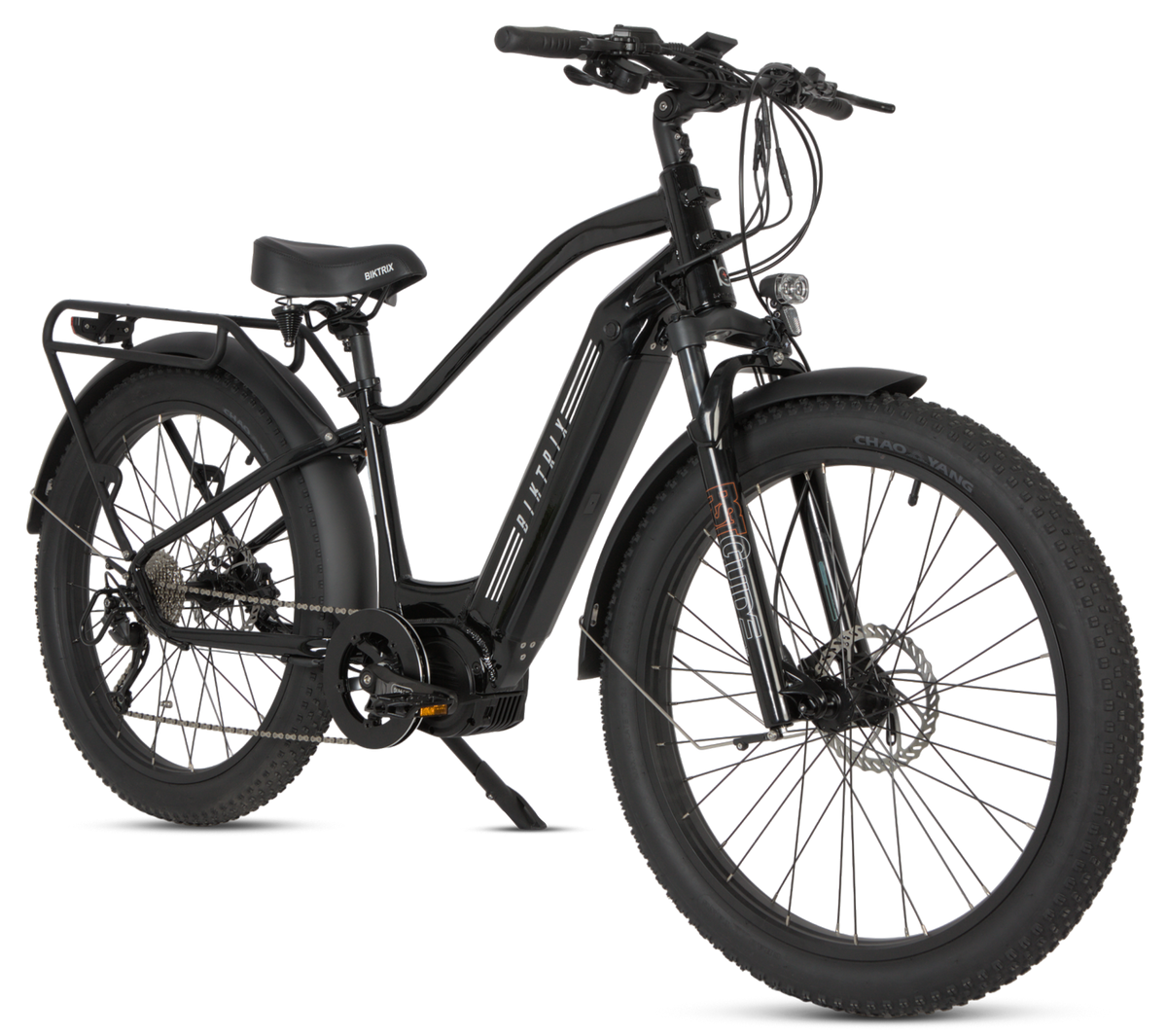

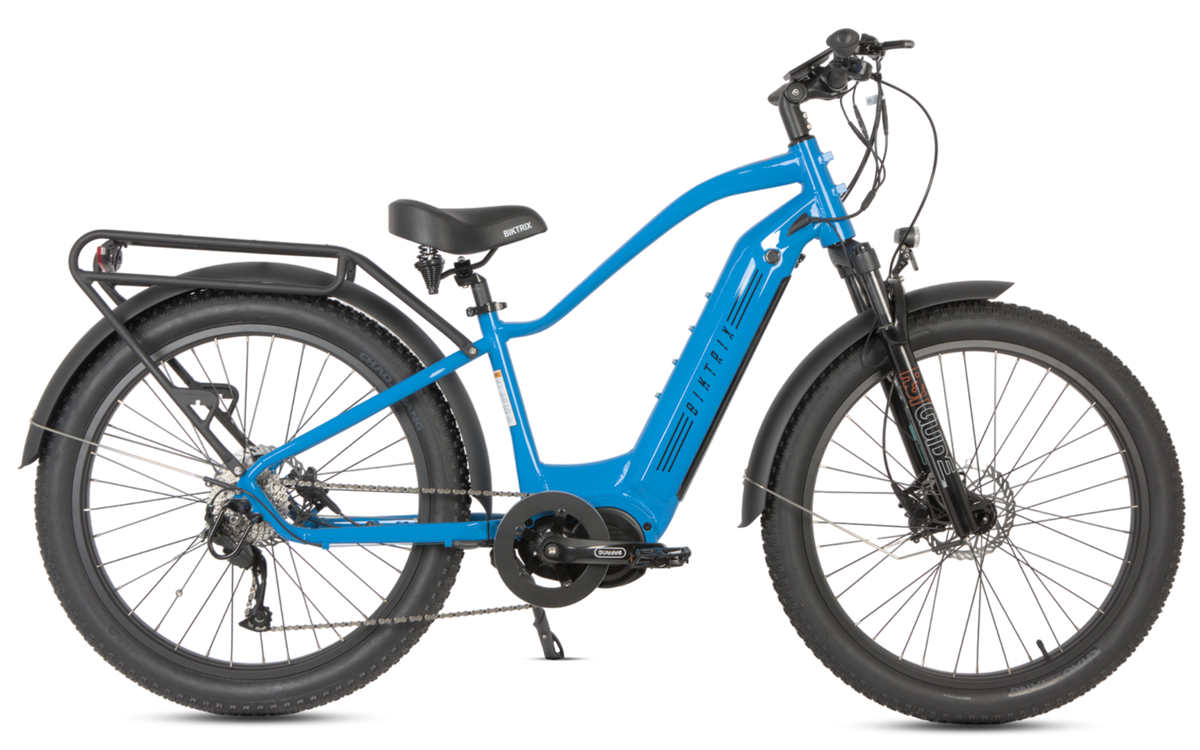

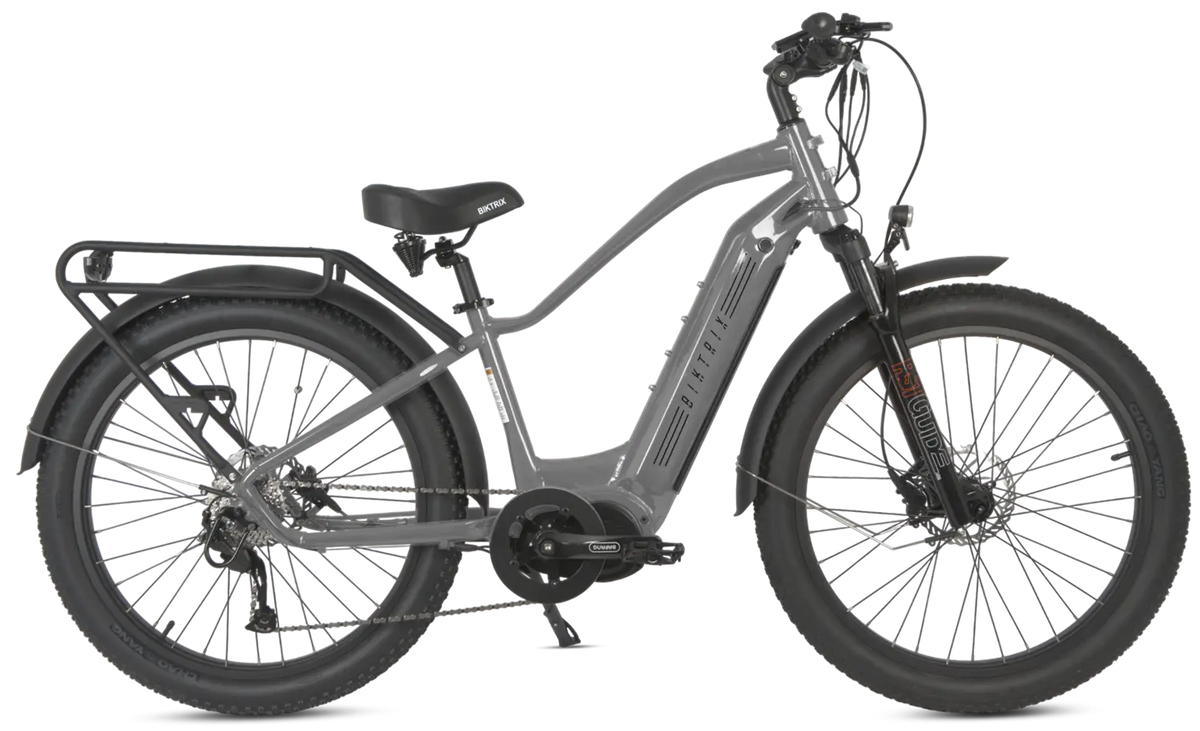

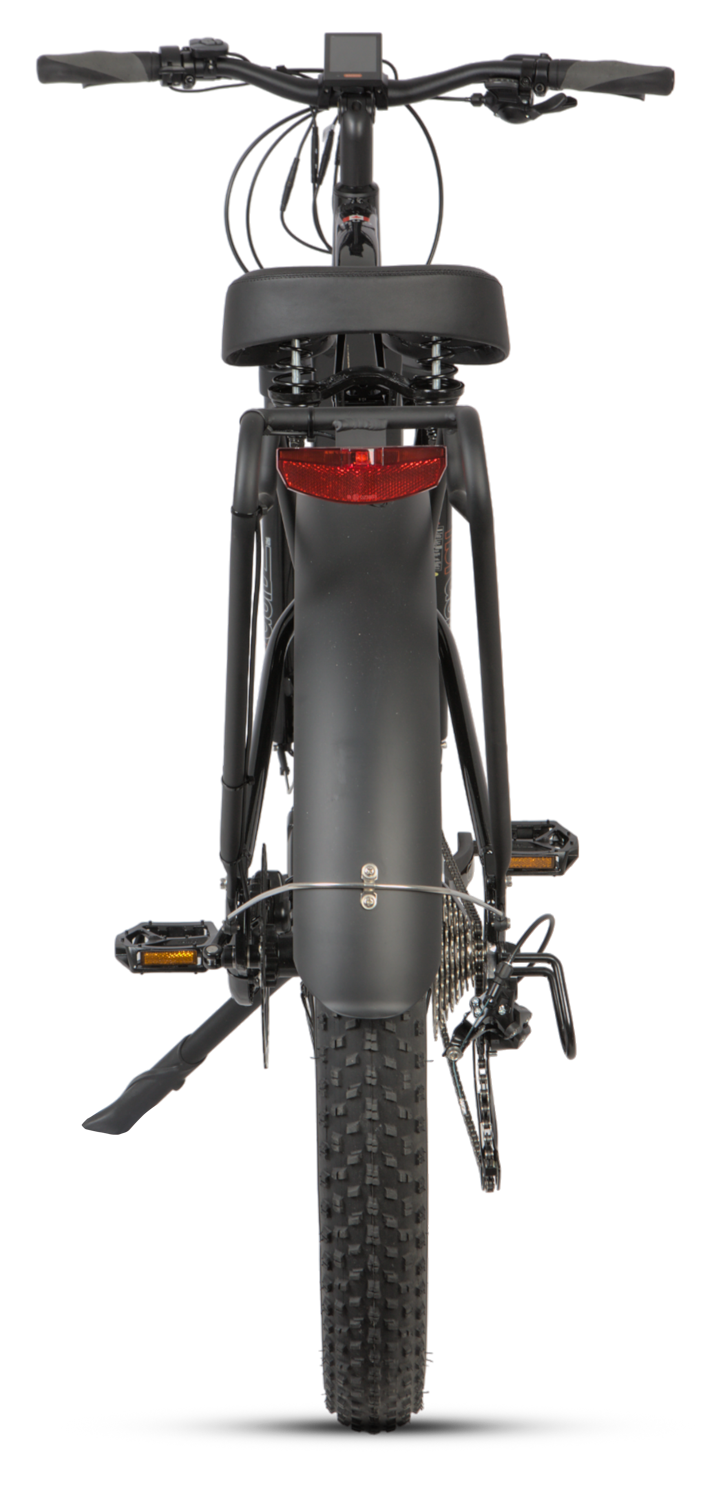

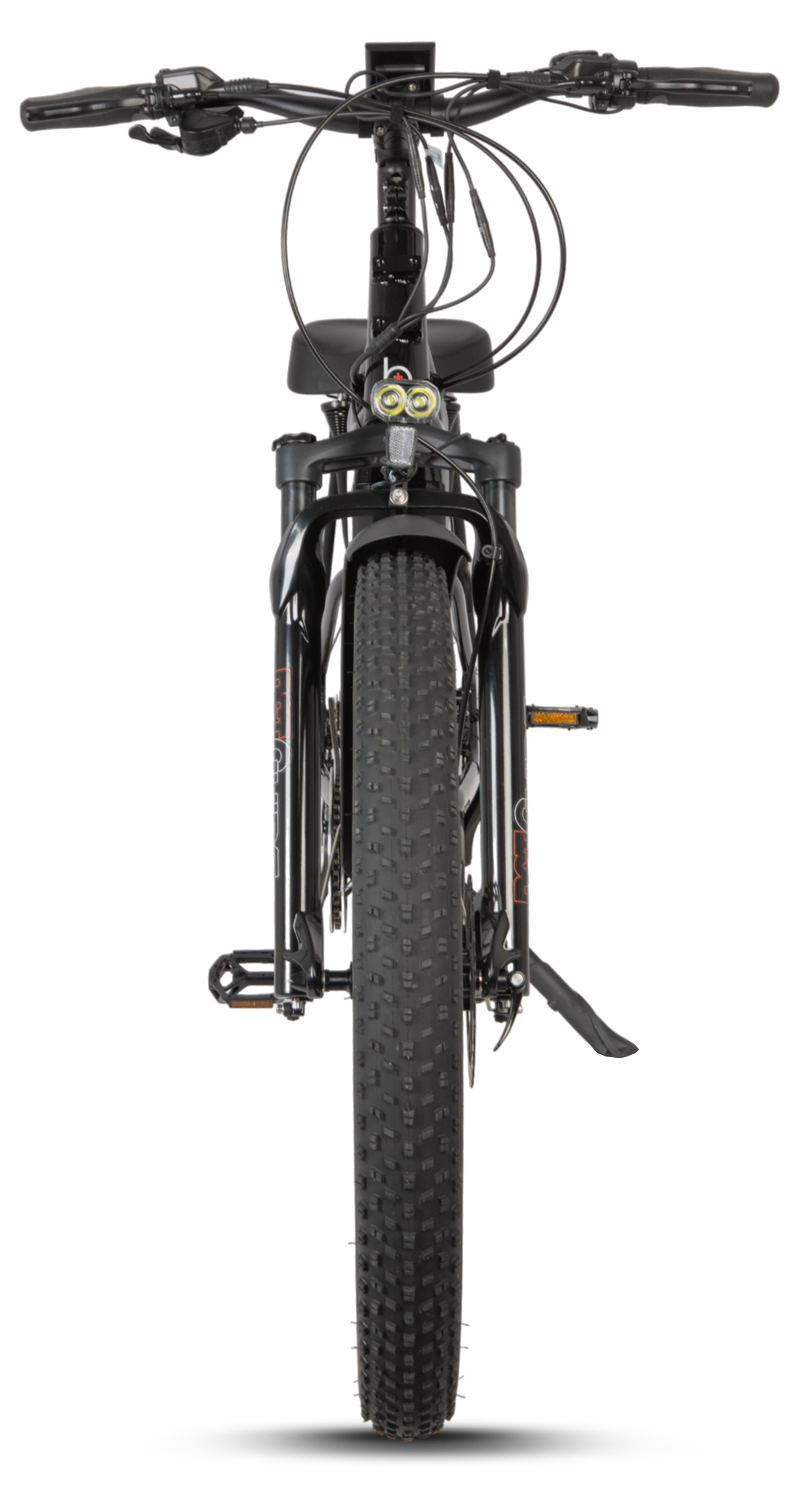

Juggernaut Ultra Duo 4 Step-Over | 52V
Juggernaut Ultra Duo 4 Step-Over | 52V
Juggernaut Ultra Duo 4 Step-Over | 52V
Juggernaut Ultra Duo 4 Step-Over | 52V
Juggernaut Ultra Duo 4 Step-Over | 52V
Juggernaut Ultra Duo 4 Step-Over | 52V
Juggernaut Ultra Duo 4 Step-Over | 52V
Juggernaut Ultra Duo 4 Step-Over | 52V
Juggernaut Ultra Duo 4 Step-Over | 52V
Juggernaut Ultra Duo 4 Step-Over | 52V
Juggernaut Ultra Duo 4 Step-Over | 52V
Juggernaut Ultra Duo 4 Step-Over | 52V
Juggernaut Ultra Duo 4 Step-Over | 52V
Juggernaut Ultra Duo 4 Step-Over | 52V
Juggernaut Ultra Duo 4 Step-Over | 52V
Juggernaut Ultra Duo 4 Step-Over | 52V
Juggernaut Ultra Duo 4 Step-Over | 52V
Juggernaut Ultra Duo 4 Step-Over | 52V
1000W Mid-Drive

Motor Power

Up to 95mi

Standard Range

+5'6"ft / 380lb

Max Load

Torque Sensor

Powerful Pedal Assist

25+ Point Quality

Control Checklist

Juggernaut Ultra Duo 4 SO | 52V

4.4
$2,593 USD $3,799 USD
Save $1,206 USD
Forest Green
Packages
Battery
Range Extender Battery


This option adds an extra battery that mounts on top of the frame providing up to double the range of the stock battery.

**17" | M / 24x4" Wheelset only compatible with 52V14Ah

Choose Battery

×

Batteries are one of those things that you usually do not want to skimp on. We never hear anyone complaining that they get too much range from a charge. This is why we recommend getting the biggest battery you can afford.

Biktrix is proud to offer some of the largest ebike batteries on the market. Even when you pick our smallest battery option, it is often much larger than the largest offered by our competitors.

A good way to estimate approximate ride time is as follows:

  1. Calculate/check the Wh (Watt-hour) rating of the battery. This is V x Ah. Eg. 52V x 10Ah = 520Wh
  2. Check the wattage of the motor on the bike you’re considering. Eg. 500W
  3. This means that if you had to use this 500W bike at full power with a 520Wh battery, you would get roughly 520Wh/500W = ~1hour of riding.

[Batteries are like energy tanks on an eBike. Using our high capacity automotive-grade cell Battery Packs ensures that you can travel longer distances without the need for frequent recharges. Since batteries take time to recharge, buying the largest capacity that you can afford would be the best idea.

An eBike battery is usually specced using Voltage & Amp-hours (V&Ah), therefore while comparing specs between the two batteries with the same voltage rating compare the Ah (Amp-hour) rating between them, since more Ah = more capacity.

While buying a DUO bike we highly recommend not missing the opportunity of buying a Range Extender which also functions as a Standby Spare in case the primary battery is not charged or fails.]

Note that you likely won’t be using 100% power (500W) all the time, this means you would get more range if you use lesser power.

Upgrades
Motor Power


Program your motor to meet local eBike regulations or opt for unlimited speed and power suitable for off-road use only.

Upgrade Motor

×

In most places, 500w (32kmph/20mph) is the street-legal setting and for many casual riders is lots of power to get you where you are going.

If you are riding off-road, on private land, you may want to consider the unlock option to get the most power out of your motor.



**Note that the onus is on you, the rider, to determine whether it is legal to ride an ebike where you intend to ride it. Biktrix will not be held liable if the rider decides to break local laws by riding an ebike illegally.

Seatpost


Add a Suspension Seatpost for a more cushioned ride, or a Dropper Seatpost to adjust your seat height to different riding conditions on the go!

**Adding a dropper seatpost will increase the minimum seat height by 25mm/1" or more, adding a suspension seatpost will increase the minimum seat height by 75mm/3" to 150mm/6"
Fork


Elevate your ride's comfort and control by upgrading your ebike fork, ensuring a smoother journey over any terrain.

**The Upgraded Fork options are incompatible with the front fender included with the bike.

Upgrade Fork

×

Biktrix eBikes are designed with modern riders’ habits and demands in mind. So while our high quality stock suspension forks are sufficient on normal surfaces with an occasional mix of trail riding, you can choose a fork based on your riding style and needs. For example, Inverted Forks and Wren Forks are best suited for off-roading or rides that involve rough trails.

The Stock suspension fork on most of our models is a coil-sprung suspension fork, meaning it has a spring housed within. If you are planning on riding more technical or across very rough off-road terrain, upgrading to an Air suspension fork is something to consider; they are more adjustable and offer a smoother ride.

Drive Train


Choose between the stock Shimano or an upgraded 11 Speed Drivetrain!

**Drivetrain upgrade included Shifter, Cassette, Derailleur and Chain
Brakes


Enhance your safety and control on every ride by upgrading your eBike brakes.

***Tektro and Magura upgrades come with a brake rotor upgrade from 160mm to 203mm

Upgrade Brakes

×

Biktrix bikes are equipped with great brakes which are more than sufficient for most riders. However, if you plan on riding technical trails or have several descents on your daily ride, we offer a variety of brake upgrades which offer superior stopping power.

Unless otherwise stated, most Biktrix ebikes come standard with dual-piston hydraulic brakes. For heavier riders, folks who plan to haul more gear (ie: hunters), or anyone planning to ride over steep or technical terrain, the Quad piston brake upgrade is worth considering. Quad piston brakes have more stopping ability than the dual-piston (Quad piston brake upgrades not available on all models).

Rear Hub


Upgrade your eBike's rear hub for a smoother, more efficient ride, unlocking enhanced performance and reliability with every pedal.

Biktrix A-Bars


The swept-back design of the Biktrix A Bars provides an upright riding position with multiple comfortable hand positions so you can enjoy further and more frequent rides!

Headlights


Illuminate your path to adventure with an upgraded eBike headlight, delivering superior visibility and style for night-time riding.

Note: This is a DIY upgrade upon purchasing the bike. Our Installation Guide for this can be found here.

Upgrade Headlights

×

The stock headlights on Biktrix eBike's work great and allow the rider to be seen. If you plan on riding after dusk however, we highly recommend upgrading to an Armageddon headlight which turns night into day for riding. This is particularly handy for anyone who commutes in the evenings or rides off road in places not well lit.

Accessories
Warranty

Secure your investment by opting for an extended warranty through the BiktrixCare+ plan.

Why BiktrixCare+?

×

Biktrix is proud to introduce our latest warranty option for all clients on all products. With these latest upgrades, we will guarantee primary customer service and premium care for your eBike.

2-Year

Standard

Standard Warranty that is included for all our eBikes for basic coverage

  • Battery & Charger
  • Cables, Wiring, Electronic Sensors
  • Front and Rear Suspensions
  • Motor* & Controller
  • Brakes
4-Years

BiktrixCare+

Starting at $349.00

The Ultimate coverage for your eBike, for complete peace of mind.

  • Everything in Standard
  • Refundable**
  • eBike Frame
  • Transferable

Inclusions

This package can be purchased within 30 Days from the date of delivery or while placing the eBike order whichever is earlier. BiktrixCare+ will cover the following list of eBike parts for manufacturing defects under the respective packages. BiktrixCare+ Gold is transferable once from the original buyer to another person subject to notifying the transfer of ownership to BEB.

*Motors

BEB will request to ship the motor to the Service Centre if the defect is fixable. Labour and parts cost is included in the motor service at BEB’s Service Centre. If the defect is unfixable BEB will issue a refurbished replacement. Shipping charges are excluded for the motor service. For Hub-Motors the maximum liability is the cost of the motor.

**Cancellation & Refund

BiktrixCare+ alone cannot be cancelled or refunded once the bike has been shipped. If the bike is returned under the first 14-day return window for a refund, 100% of the amount paid for this package would be refunded. If BEB decides to sever all relations with an owner under Section 19 this package would be deemed terminated with no refund

Learn More About BiktrixCare+

$2,593 USD $3,799 USD
Shipping Time

Leaves within 6-7 Business Days

1000W Mid-Drive

Motor Power

Up to 95mi

Standard Range

+5'6"ft / 380lb

Max Load

Torque Sensor

Powerful Pedal Assist

25+ Point Quality

Control Checklist

Riders Reviews

Biktrix Juggernaut Ultra Duo 4 Review
ElectricBikeReview.com
Biktrix Juggernaut Ultra Duo **Review & Unboxing**
E-Ryders
Juggernaut Ultra Dou 4. Part 1 of 4
E Bikes Instant Power

90+

Miles Range

160Nm

Torque For Extreme Hills

52V 17Ah

Strong, Reliable Battery

The Duo Series. Ebikes For Everyone.

The Juggernaut Duo Series is all about flexibility. Hub-drive or mid-drive, step-over or step-thru, single battery or dual battery, entry-level or high-end. No matter your needs, there's probably a Duo for you.

Watch this video to see how The 3 Duo models stack up.

Welcome To The Big Leagues.

The Ultra Duo sits at the top of the Duo range, so naturally, it boasts one of the most powerful motor systems available today. The Bafang Ultra M620 mid-drive motor is loaded with 1500W of peak power and 160Nm of torque. Pair that with the 11-speed drivetrain and you'll be nearly unstoppable.

Ultra Power. Greater Features.

Mid-Drive Motor

The Bafang Ultra M620 mid-drive motor features 1000 watts of power and 160Nm of torque. Span cities, climb hills and explore all the places you want to go with ease.

LCD Display

The LCD display shows all kinds of important information about your ride including speed, battery life, odometer, pedal assist level and more.

Thumb Throttle & Control Pad

With just a push of the thumb, you can access all of the power the motor has to offer. No need to pedal, just sit back and enjoy the ride.

Suspension Fork

The RST Guide spring suspension fork provides 75mm of travel with pre-load and lockout adjustability.

Drivetrain

From climbing hills top holding maximum speed on flats, the Shimano Alivio 9 Speed drivetrain has you covered.

Hydraulic Disk Brakes

When it’s so easy to go fast, you need strong stopping power. These hydraulic disc brakes will quickly and reliably bring you to a halt.

Integrated Front Light

This bright LED light is powered by the bike's battery and can be turned on/off with a button on the handlebar control pad.

Optional Range Extender

Multiple range-extender battery options can expand your eBike’s range all the way to 160 kilometres.

Rack & Fenders

These fenders will keep you and your bike clean. Need to carry some gear? Strap on the rear rack and make your way!

Distance Range (Single Battery)

PAS 1
Pedal-Assist Lv.1
84km Up To
PAS 2
Pedal-Assist Lv.2
70km Up To
PAS 3
Pedal-Assist Lv.3
61km Up To
PAS 4
Pedal-Assist Lv.4
56km Up To
PAS 5
Pedal-Assist Lv.5
50km Up To
THRL
Throttle Only
35km Up To
**Please note that information regarding the expected range on a single stock battery charge on one of our e-bikes is an estimate, not a guarantee. There are many factors that contribute to the actual, real-world range for an e-bike battery such as the age of the battery, temperature, level of assist, speed, payload, and terrain. Depending on these various conditions, it is possible to get less than the expected minimum range or greater than the expected maximum range.

Technical Specifications

Frame
6061 aluminum
Front hub
135m 36h
Seat post
28.6mm
Fork
Rst guide w/75mm travel, lockout & preload
Front axle
5mm qr
Seat post clamp
Qr
Headset
Threadless 1-1/2" 1-1/8" tapered
Rear hub
190mm 36h
Motor
Bafang ultra m620
Shifter rear
Shimano alivio 9 speed trigger
Rear axle
5mm qr
Battery sizes
Total capacity of 52v 34ah 1794wh:
52v 17.5ah 910wh (internal battery) +
up to 52v 17ah 884wh (external range extender battery)
Rear derailleur
Shimano alivio 9 speed
Rims
26" black w/ round cutouts, 27.5" solid black
Display
Dpc-18 colour display
Cassette
11-34t
Tire sizes
26x4 chaoyang, 27.5x3 chaoyang
Lights
Integrated headlight, integrated taillight
Chain
Kmc e9s - 124 links
Handlebar
700mm wide, 50mm rise w/ 31.8mm clamp
Assist type
Torque + cadence
Crank set
44t chainring, 170mm crank arms
Stem
Adjustable stem w/31.8mm clamp
Assist levels
1-5
Bottom bracket
Bafang isis
Grips
Slide-on comfort grips
Throttle
Thumb throttle
Brakes
Biktrix dual piston hydraulic w/ integrated brake cutoffs
Saddle
Wide spring supported comfort saddle
Other
Rack, fenders, kickstand
Brake levers
Biktrix adjustable w/ integrated brake cutoffs
Frame
6061 aluminum
Front hub
135m 36h
Seat post
28.6mm
Fork
Rst guide w/75mm travel, lockout & preload
Front axle
5mm qr
Seat post clamp
Qr
Headset
Threadless 1-1/2" 1-1/8" tapered
Rear hub
190mm 36h
Motor
Bafang ultra m620
Shifter rear
Shimano alivio 9 speed trigger
Rear axle
5mm qr
Battery sizes
Total capacity of 52v 34ah 1794wh:
52v 17.5ah 910wh (internal battery) +
up to 52v 17ah 884wh (external range extender battery)
Rear derailleur
Shimano alivio 9 speed
Rims
26" black w/ round cutouts, 27.5" solid black
Display
Dpc-18 colour display
Cassette
11-34t
Tire sizes
26x4 chaoyang, 27.5x3 chaoyang
Lights
Integrated headlight, integrated taillight
Chain
Kmc e9s - 124 links
Handlebar
700mm wide, 50mm rise w/ 31.8mm clamp
Assist type
Torque + cadence
Crank set
44t chainring, 170mm crank arms
Stem
Adjustable stem w/31.8mm clamp
Assist levels
1-5
Bottom bracket
Bafang isis
Grips
Slide-on comfort grips
Throttle
Thumb throttle
Brakes
Biktrix dual piston hydraulic w/ integrated brake cutoffs
Saddle
Wide spring supported comfort saddle
Other
Rack, fenders, kickstand
Brake levers
Biktrix adjustable w/ integrated brake cutoffs
Frame
6061 aluminum
Front hub
135m 36h
Seat post
28.6mm
Fork
Rst guide w/75mm travel, lockout & preload
Front axle
5mm qr
Seat post clamp
Qr
Headset
Threadless 1-1/2" 1-1/8" tapered
Rear hub
190mm 36h
Motor
Bafang ultra m620
Shifter rear
Shimano alivio 9 speed trigger
Rear axle
5mm qr
Battery sizes
Total capacity of 52v 34ah 1794wh:
52v 17.5ah 910wh (internal battery) +
up to 52v 17ah 884wh (external range extender battery)
Rear derailleur
Shimano alivio 9 speed
Rims
26" black w/ round cutouts, 27.5" solid black
Display
Dpc-18 colour display
Cassette
11-34t
Tire sizes
26x4 chaoyang, 27.5x3 chaoyang
Lights
Integrated headlight, integrated taillight
Chain
Kmc e9s - 124 links
Handlebar
700mm wide, 50mm rise w/ 31.8mm clamp
Assist type
Torque + cadence
Crank set
44t chainring, 170mm crank arms
Stem
Adjustable stem w/31.8mm clamp
Assist levels
1-5
Bottom bracket
Bafang isis
Grips
Slide-on comfort grips
Throttle
Thumb throttle
Brakes
Biktrix dual piston hydraulic w/ integrated brake cutoffs
Saddle
Wide spring supported comfort saddle
Other
Rack, fenders, kickstand
Brake levers
Biktrix adjustable w/ integrated brake cutoffs

Size & Fittings

1
Effective Top Tube Length
 590mm 23.2in
2
Seat Tube Length (Classic Bike Size)
 470mm 18.5in
3
Reach
 440mm 17.3in
4
Stack
 660mm 26in
5
Chainstay Length
 510mm 20.1in
6
Standover Height
 730mm 28.7in
7
Head Angle
 70° -
8
Seat Angle
 73° -
9
Head Tube Length
 180 mm 7.1 in
10
Fork Length
 540mm 21.3in
11
Front Center
 730mm 28.7in
12
BB (Bottom Bracket) Drop
 60mm 2.4in
13
Fork Offset
 40mm 1.6in
14
Wheelbase
 1230mm 48.4in
15
Total Length
 2000mm 78.7in
16
Max Seat Height
 1050mm 41.3in
17
Min Seat Height
 880mm 34.6in
18
Handlebar Height
 1140mm 44.9in
19
Weight (Without Battery)
 34kg 75lb
1
Effective Top Tube Length
 590mm 23.2in
2
Seat Tube Length (Classic Bike Size)
 420mm 16.5in
3
Reach
 440mm 17.3in
4
Stack
 660mm 26in
5
Chainstay Length
 500mm 19.7in
6
Standover Height
 690mm 27.2in
7
Head Angle
 70° -
8
Seat Angle
 73° -
9
Head Tube Length
 0 mm 0 in
10
Fork Length
 540mm 21.3in
11
Front Center
 720mm 28.3in
12
BB (Bottom Bracket) Drop
 60mm 2.4in
13
Fork Offset
 40mm 1.6in
14
Wheelbase
 1230mm 48.4in
15
Total Length
 2000mm 78.7in
16
Max Seat Height
 1000mm 39.4in
17
Min Seat Height
 830mm 32.7in
18
Handlebar Height
 1120mm 44.1in
19
Weight (Without Battery)
 34kg 75lb

Need A Hand?

Chat With Us
We are always excited to hear from you. Just click the button below to activate chat now.
Chat Now
Book A Virtual Demo
Our eBike specialists can help you find your dream eBike and answer any questions you may have.
Book An Appointment Now
Give Us A Ring
24/7 e-mail support. 8/5 phone and live chat with eBike Specialists to help you in anyway.
+1-866-BIKTRIX

Free Shipping

Free shipping (over $1,000) within USA. *Some exceptions apply.

100% Satisfaction

We offer a 15-day return* guarantee, ensuring you with peace of mind.

Free In Store Pickup

Each eBIke is meticulously built in house and made with utter perfection.

Amazing Value

Our bikes offer the best value for your money. Our specs cannot be beat for the price.
